Supporting tube stand for GRP/Al supporting tubes and Ø40 air-termination rods

For erection by means of a counter plate on wire mesh cable trays and steel girders or other structures. The adapter set for Ø40 air-termination rods is available separately in the accessories.
The D40 air-termination rods / supporting tubes must be ordered separately.

1 产品

货号 105244 SRS D50 300 300 H500 STTZN

全球贸易项目代码 4013364503069, 海关HS编码: 85389099, 总重: 9.50 kg, 包装单位: 1.00 pc(s)


附加信息

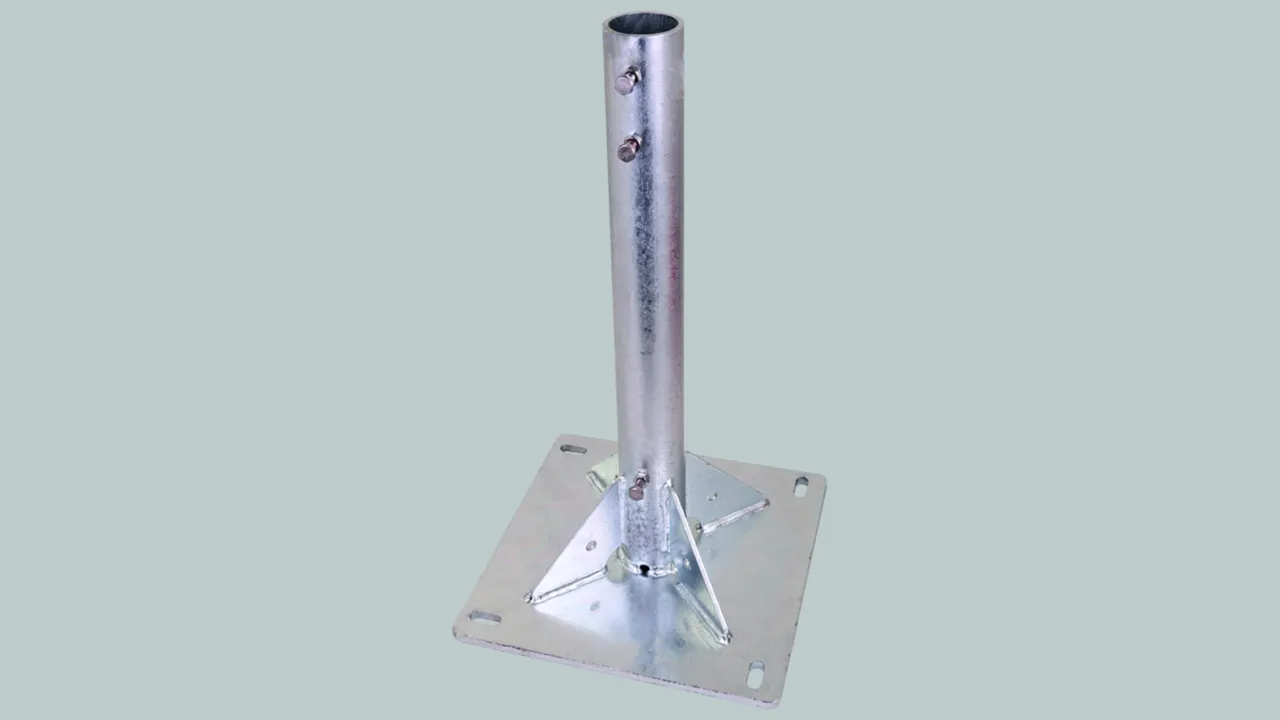

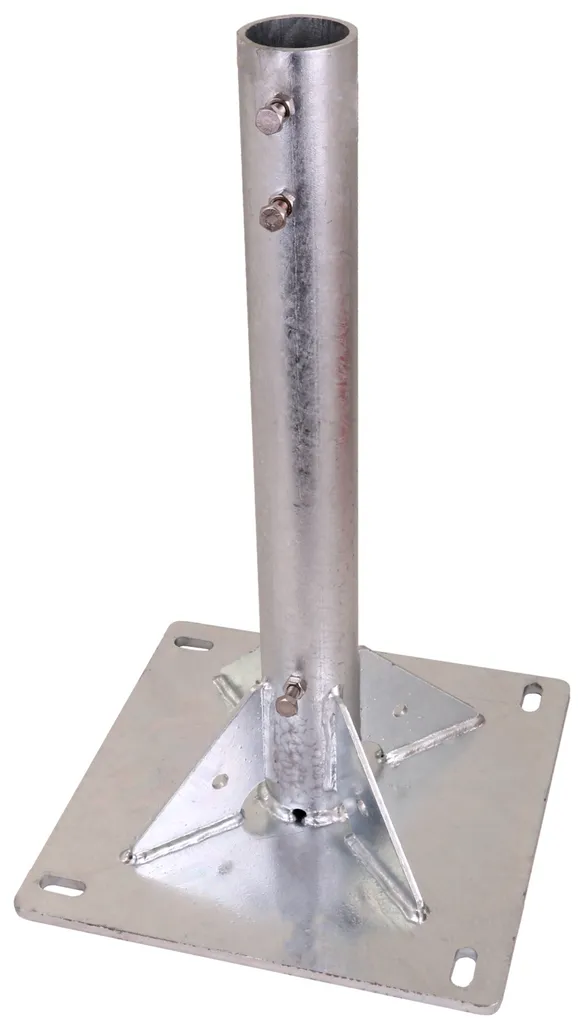

Supporting tube stand with HDG steel post
For holding Ø50 mm supporting tubes
With reducing adapter set, part no. 107 399
it is possible to hold air-termination rods with a
diameter of 40 mm
For erection directly on installations or
mounted using a counter plate with long hole
e.g. to steel girders or mesh mats
Material: HDG steel
Support: Ø50 mm and Ø40 mm *)
Fixing: 4x 13 x 30 mm

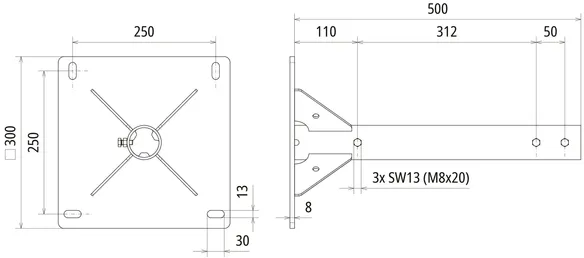

Plate dimensions: 300 x 300 x 8 mm
Height: 500 mm

Brand: DEHN
Type: SRS D50 300 300 H500 STTZN
Part No.: 105244
or equivalent.



技术参数

Material HDG steel
Support Ø50 mm and Ø40 mm *)
Fixing 4x 13 x 30 mm
Plate dimensions 300 x 300 x 8 mm
Height 500 mm
*) For holding Ø40-mm air-termination rods, only possible with adapter kit, part no. 107 399, and the holding of Ø40-mm HVI supporting tubes, only possible with adapter, part no. 819 799.
