货号 900901 DCU EMOB 2 16

全球贸易项目代码 4013364506183, 海关HS编码: 85371098, 总重: 1.14 kg, 包装单位: 1.00 pc(s)


附加信息

CAD文件

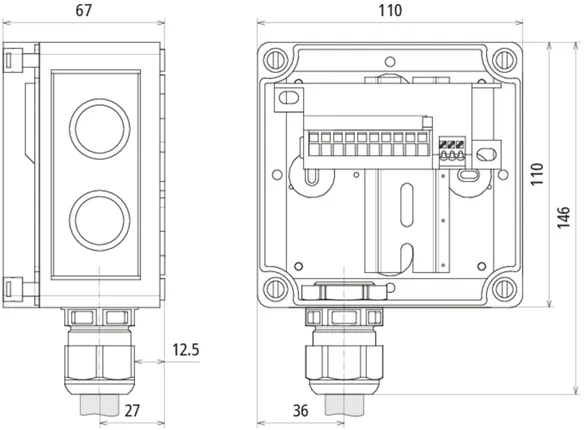

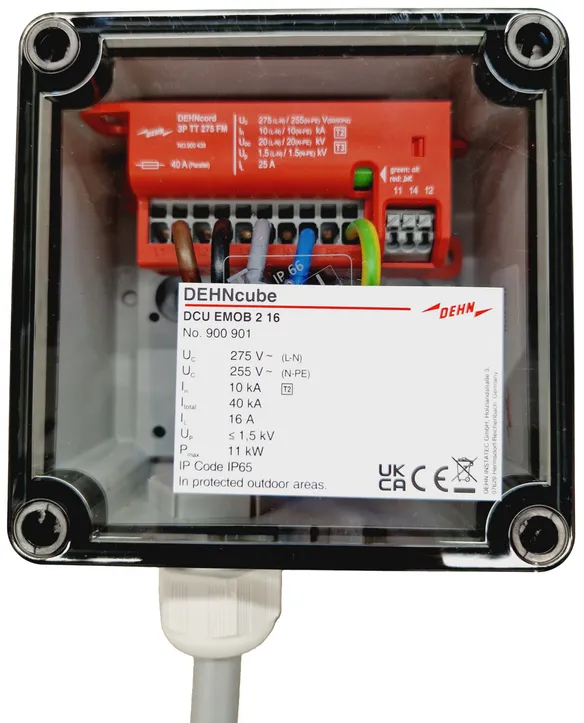

Junction box DCU EMOB 2 16
Junction box type 2+3 / II+III
as per EN 61643-11 / IEC 61643-11
EN 61439-2 / IEC 61439-2
Prewired complete unit for
universal installation upstream of the wallbox
with remote signalling contact, operating state/fault indication
Max. continuous operating voltage: 275 V AC
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20) 10 kA
Total discharge current (8/20): 40 kA
Nominal current 16 A
Max. power: 11 kW
Dimensions: 110 x 110 x 66 mm

Brand: DEHN
Type: DCU EMOB 2 16
Part No.: 900901
or equivalent.

技术参数

SPD according to EN 61643-11 / IEC 61643-11	type 2 + type 3 / class II + class III
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal alternating current (I_L )	16 A
Max. power	11 kW
Nominal discharge current (8/20 µs) [L-N] (I_n )	10 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	10 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	20 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV

SPD according to EN 61643-11 / IEC 61643-11	type 2 + type 3 / class II + class III
Tested to	EN 61439-1 / ... IEC 61439-1
Tested to	EN 61439-2 / ... IEC 61439-2
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal alternating current (I_L )	16 A
Max. power	11 kW
Nominal discharge current (8/20 µs) [L-N] (I_n )	10 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	10 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	20 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	40 kA
Combination wave [L-N]/[N-PE] (U_OC )	20 kV
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	25 ns
Response time [L/N-PE] (t_A )	100 ns
Max. mains-side overcurrent protection (series connection)	20 A gG
Max. mains-side overcurrent protection (parallel connection)	40 A gG
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms. – withstand
Insulation measurement	up to 500 V DC when connected
Operating state / fault indication	green / red
Cross-sectional area for push-in terminals	0.2 ... 6 mm²solid / flexible
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Place of installation	Installation in protected outdoor areas
Degree of protection	IP 65
Design	with pressure compensating element
Cover	Transparent cover with product label
Enclosure colour	grey
Input	Ölflex 5x 4 mm², length 1.5 m
Output	System-side connection with M25 screw connection
Enclosure dimensions (W x H x D)	110 x 110 x 66 mm

.产品已加入收藏夹。

进入收藏夹

商品900901加入购物车。

进入网上商店

货号 900902 DCU EMOB 2 25

全球贸易项目代码 4013364506190, 海关HS编码: 85371098, 总重: 1.63 kg, 包装单位: 1.00 pc(s)


附加信息

CAD文件

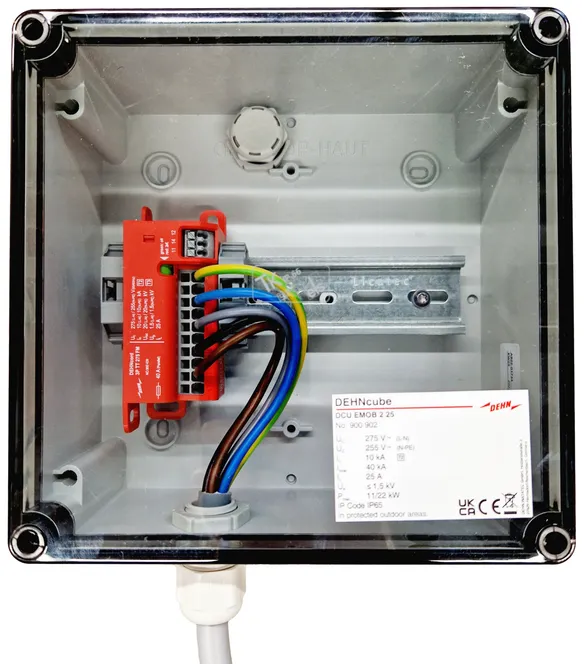

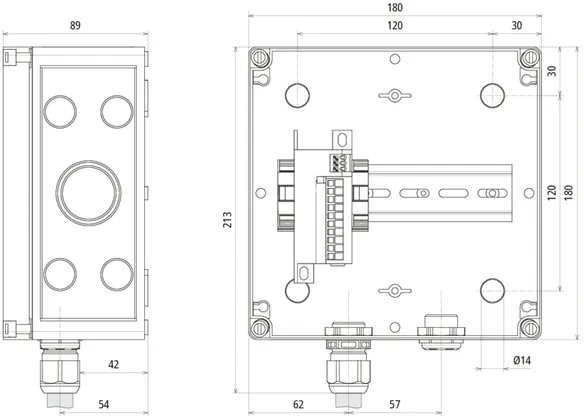

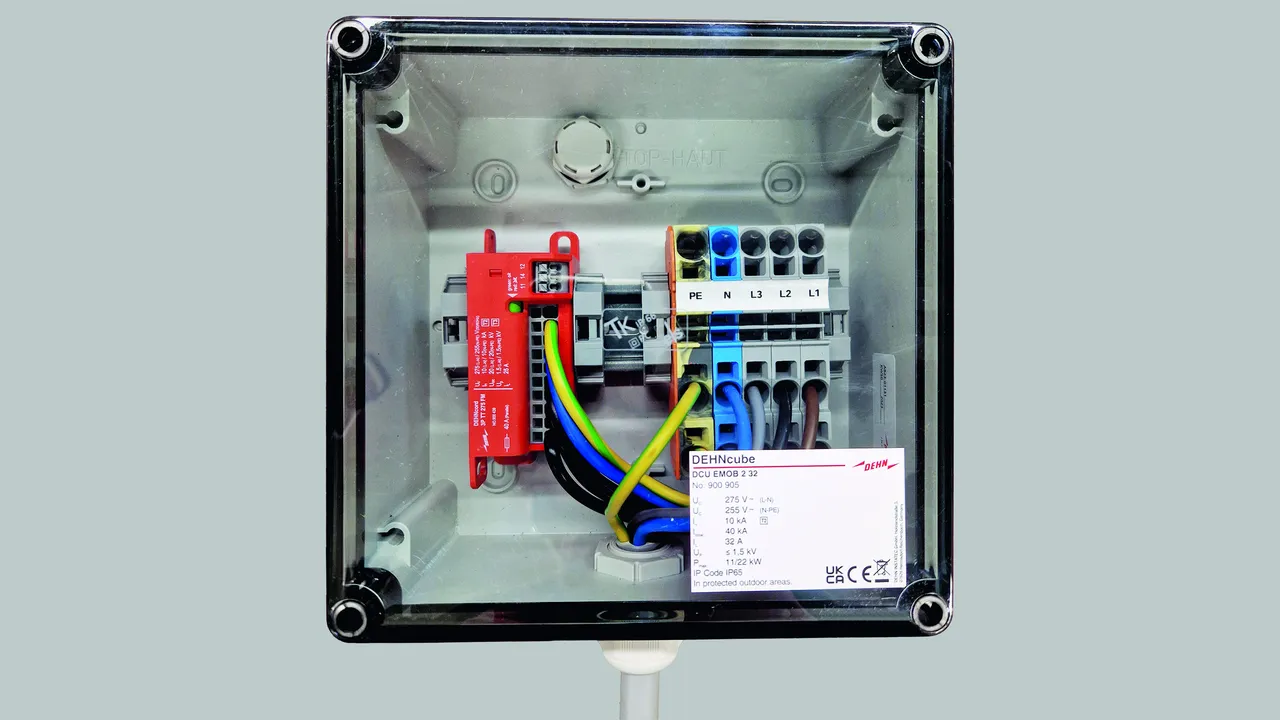

Junction box DCU EMOB 2 25
Junction box type 2+3 / II+III
as per EN 61643-11 / IEC 61643-11
EN 61439-2 / IEC 61439-2
Prewired complete unit for
universal installation upstream of the wallbox
with remote signalling contact, operating state/fault indication
Max. continuous operating voltage: 275 V AC
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20) 10 kA
Total discharge current (8/20): 40 kA
Nominal current: 25 A
Max. power: 11 / 22 kW
Dimensions: 182 x 180 x 100 mm

Brand: DEHN
Type: DCU EMOB 2 25
Part No.: 900902
or equivalent.

技术参数

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal alternating current (I_L )	25 A
Max. power	11 / 22 kW
Nominal discharge current (8/20 µs) [L-N] (I_n )	10 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	10 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	20 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Tested to	EN 61439-1 / ... IEC 61439-1
Tested to	EN 61439-2 / ... IEC 61439-2
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal alternating current (I_L )	25 A
Max. power	11 / 22 kW
Nominal discharge current (8/20 µs) [L-N] (I_n )	10 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	10 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	20 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	40 kA
Combination wave [L-N]/[N-PE] (U_OC )	20 kV
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	25 ns
Response time [L/N-PE] (t_A )	100 ns
Max. mains-side overcurrent protection (series connection)	25 A gG
Max. mains-side overcurrent protection (parallel connection)	40 A gG
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Insulation measurement	up to 500 V DC when connected
Operating state / fault indication	green / red
Cross-sectional area for push-in terminals	0.2 ... 6 mm²solid / fine-stranded
Type of remote signalling contact	Changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / fine-stranded
Place of installation	Installation in protected outdoor areas
Degree of protection	IP 65
Design	with pressure compensating element
Cover	Transparent cover with product label
Enclosure colour	grey
Input	Ölflex 5x 4 mm², length 1.5 m
Output	System-side connection with M25 screw connection
Enclosure dimensions (W x H x D)	182 x 180 x 100 mm

.产品已加入收藏夹。

进入收藏夹

商品900902加入购物车。

进入网上商店

货号 900903 DCU EMOB 2 25 C

全球贸易项目代码 4013364506206, 海关HS编码: 85371098, 总重: 2.06 kg, 包装单位: 1.00 pc(s)


附加信息

CAD文件

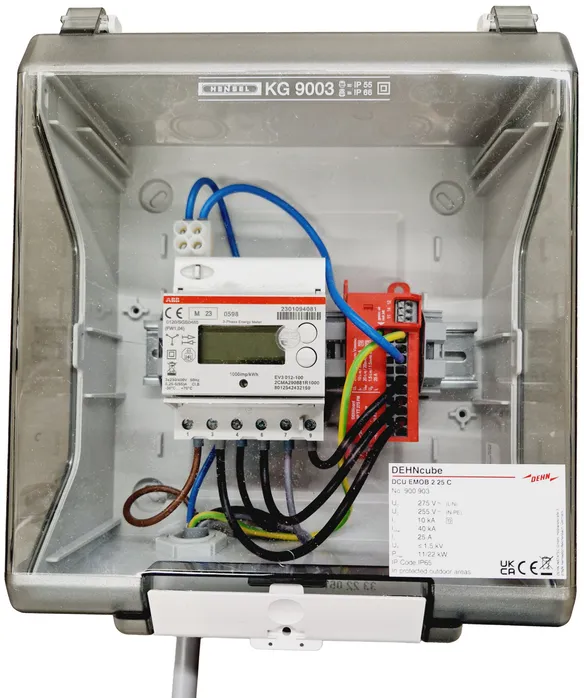

Junction box DCU EMOB 2 25
Junction box type 2+3 / II+III
as per EN 61643-11 / IEC 61643-11
EN 61439-2 / IEC 61439-2
Prewired complete unit, including
a 3-phase energy meter for
universal installation upstream of the wallbox
with remote signalling contact, operating state/fault indication
Max. continuous operating voltage: 275 V AC
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20) 10 kA
Total discharge current (8/20): 40 kA
Nominal current: 25 A
Max. power: 11 / 22 kW
Dimensions: 217 x 253 x 115 mm

Brand: DEHN
Type: DCU EMOB 2 25 C
Part No.: 900903
or equivalent.

技术参数

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal alternating current (I_L )	25 A
Max. power	11 / 22 kW
Nominal discharge current (8/20 µs) [L-N] (I_n )	10 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	10 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	20 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Tested to	EN 61439-1 / ... IEC 61439-1
Tested to	EN 61439-2 / ... IEC 61439-2
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal alternating current (I_L )	25 A
Max. power	11 / 22 kW
Nominal discharge current (8/20 µs) [L-N] (I_n )	10 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	10 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	20 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	40 kA
Combination wave [L-N]/[N-PE] (U_OC )	20 kV
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	25 ns
Response time [L/N-PE] (t_A )	100 ns
Max. mains-side overcurrent protection (series connection)	25 A gG
Max. mains-side overcurrent protection (parallel connection)	40 A gG
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Insulation measurement	up to 500 V DC when connected
Operating state / fault indication	green / red
Cross-sectional area for push-in terminals	0.2 ... 6 mm²solid / fine-stranded
Type of remote signalling contact	Changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / fine-stranded
Place of installation	Installation in protected outdoor areas
Degree of protection	IP 65
Design	with pressure compensating element
Cover	Transparent cover with product label
Enclosure colour	grey
Input	Ölflex 5x 4 mm², length 1.5 m
Output	System-side connection with M25 screw connection

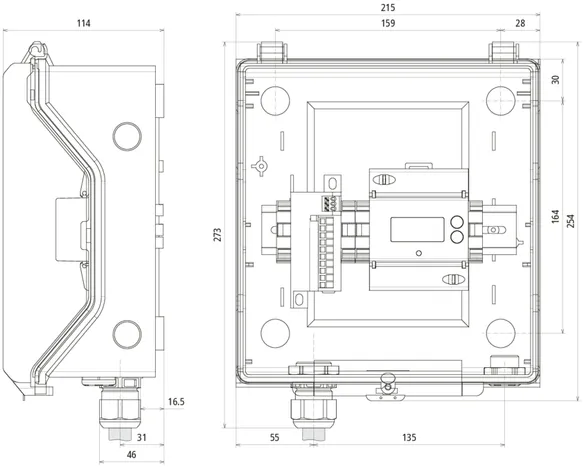

Enclosure dimensions (W x H x D)	217 x 253 x 115 mm
Meter	ABB (EV3 012-100)

.产品已加入收藏夹。

进入收藏夹

商品900903加入购物车。

进入网上商店

货号 900904 DCU EMOB 1 32

全球贸易项目代码 4013364506213, 海关HS编码: 85371098, 总重: 2.55 kg, 包装单位: 1.00 pc(s)


附加信息

CAD文件

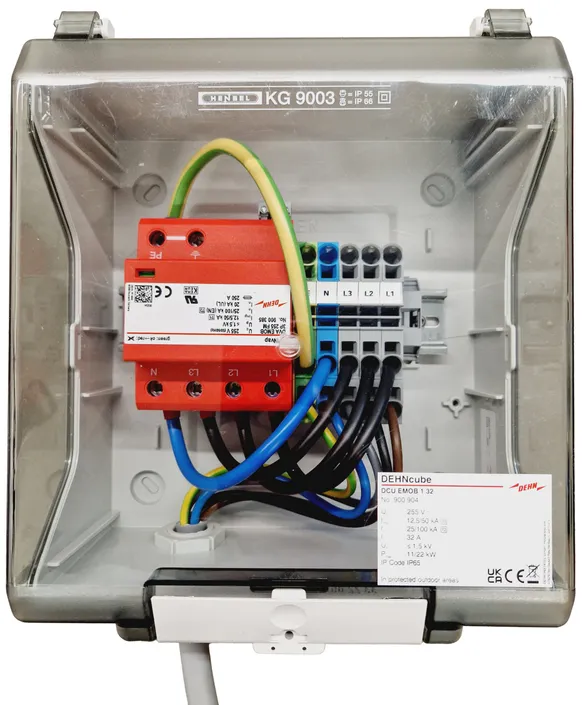

Junction box DCU EMOB 1 32
Junction box type 1+2 / I+II
as per EN 61643-11 / IEC 61643-11
EN 61439-2 / IEC 61439-2
Prewired complete unit for
universal installation upstream of the wallbox
with remote signalling contact, operating state/fault indication
Max. continuous operating voltage: 255 V AC
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 12.5 / 50 kA
Nominal discharge current (8/20) 25 / 100 kA
Nominal current: 32 A
Max. power: 11 / 22 kW
Dimensions: 217 x 253 x 115 mm

Brand: DEHN
Type: DCU EMOB 1 32
Part No.: 900904
or equivalent.

技术参数

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal alternating current (I_L )	32 A
Max. power	11 / 22 kW
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	12.5 / 50 kA
Nominal discharge current (8/20 µs) (I_n )	25 / 100 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Tested to	EN 61439-1 / ... IEC 61439-1
Tested to	EN 61439-2 / ... IEC 61439-2
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal alternating current (I_L )	32 A
Max. power	11 / 22 kW
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	12.5 / 50 kA
Specific energy [L-N]/[N-PE] (W/R)	39.06 kJ/ohms / 625.00 kJ/ohms
Nominal discharge current (8/20 µs) (I_n )	25 / 100 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [L-N]/[N-PE] (I_fi )	25 kA_rms/ 100 A_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 25 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K ≤ 25 kA_rms	40 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range [parallel]/[series] (T_U )	-40°C...+80°C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L1, L2, L3, N, PE, 9) (min.)	0,5 mm²
Cross-sectional area (L1, L2, L3, N, PE, 9) (max.)	16 mm²
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Place of installation	Installation in protected outdoor areas
Degree of protection	IP 65
Design	with pressure compensating element
Cover	Transparent cover with product label
Enclosure colour	grey
Input	Ölflex 5x 6 mm², length 1.5 m
Output	System-side connection with M25 screw connection
Enclosure dimensions (W x H x D)	217 x 253 x 115 mm

.产品已加入收藏夹。

进入收藏夹

商品900904加入购物车。

进入网上商店

货号 900905 DCU EMOB 2 32

全球贸易项目代码 4013364506244, 海关HS编码: 85371098, 总重: 2.07 kg, 包装单位: 1.00 pc(s)


附加信息

CAD文件

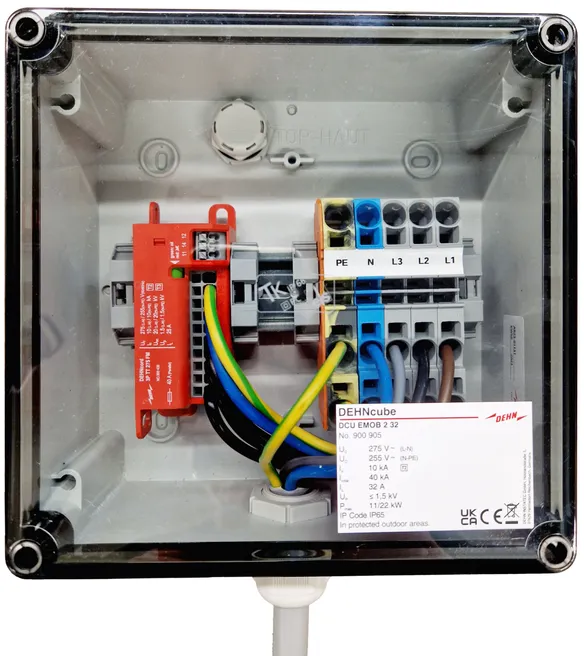

Junction box DCU EMOB 2 32
Junction box type 2+3 / II+III
as per EN 61643-11 / IEC 61643-11
EN 61439-2 / IEC 61439-2
Prewired complete unit for
universal installation upstream of the wallbox
with remote signalling contact, operating state/fault indication
Max. continuous operating voltage: 275 V AC
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20) 10 kA
Total discharge current (8/20): 40 kA
Nominal current: 32 A
Max. power: 11 / 22 kW
Dimensions: 182 x 180 x 100 mm

Brand: DEHN
Type: DCU EMOB 2 32
Part No.: 900905
or equivalent.

技术参数

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal alternating current (I_L )	32 A
Max. power	11 / 22 kW
Nominal discharge current (8/20 µs) [L-N] (I_n )	10 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	10 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	20 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Tested to	EN 61439-1 / ... IEC 61439-1
Tested to	EN 61439-2 / ... IEC 61439-2
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal alternating current (I_L )	32 A
Max. power	11 / 22 kW
Nominal discharge current (8/20 µs) [L-N] (I_n )	10 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	10 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	20 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	40 kA
Combination wave [L-N]/[N-PE] (U_OC )	20 kV
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	25 ns
Response time [L/N-PE] (t_A )	100 ns
Max. mains-side overcurrent protection (parallel connection)	40 A gG
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Insulation measurement	up to 500 V DC when connected
Operating state / fault indication	green / red
Cross-sectional area for push-in terminals	0.5 ... 16 mm²solid / fine-stranded
Type of remote signalling contact	Changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / fine-stranded
Place of installation	Installation in protected outdoor areas
Degree of protection	IP 65
Design	with pressure compensating element
Cover	Transparent cover with product label
Enclosure colour	grey
Input	Ölflex 5x 6 mm², length 1.5 m
Output	System-side connection with M25 screw connection

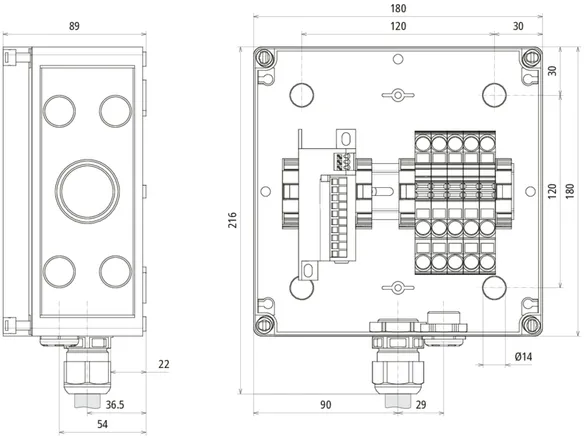

Enclosure dimensions (W x H x D)	182 x 180 x 100 mm

.产品已加入收藏夹。

进入收藏夹

商品900905加入购物车。

进入网上商店

Results for products (0)

Results for content (0)

DEHNcube EMOB

DEHNcube EMOB 2 16

货号 900901 DCU EMOB 2 16

.产品已加入收藏夹。

商品900901加入购物车。

DEHNcube EMOB 2 25

货号 900902 DCU EMOB 2 25

.产品已加入收藏夹。

商品900902加入购物车。

DEHNcube EMOB 2 25 C

货号 900903 DCU EMOB 2 25 C

.产品已加入收藏夹。

商品900903加入购物车。

DEHNcube EMOB 1 32

货号 900904 DCU EMOB 1 32

.产品已加入收藏夹。

商品900904加入购物车。

DEHNcube EMOB 2 32

货号 900905 DCU EMOB 2 32

.产品已加入收藏夹。

商品900905加入购物车。

DEHNcube EMOB

DEHNcube EMOB 2 16

货号 900901 DCU EMOB 2 16

900901.stp 您没有下载权限900901.stp

900901.igs 您没有下载权限900901.igs

900901.jt 您没有下载权限900901.jt

900901.dwg 您没有下载权限900901.dwg

900901m_D.dxf 您没有下载权限900901m_D.dxf

.产品已加入收藏夹。

商品900901加入购物车。

DEHNcube EMOB 2 25

货号 900902 DCU EMOB 2 25

900902.stp 您没有下载权限900902.stp

900902.igs 您没有下载权限900902.igs

900902.jt 您没有下载权限900902.jt

900902.dwg 您没有下载权限900902.dwg

900902m_D.dxf 您没有下载权限900902m_D.dxf

.产品已加入收藏夹。

商品900902加入购物车。

DEHNcube EMOB 2 25 C

货号 900903 DCU EMOB 2 25 C

900903.stp 您没有下载权限900903.stp

900903.igs 您没有下载权限900903.igs

900903.jt 您没有下载权限900903.jt

900903.dwg 您没有下载权限900903.dwg

900903m_D.dxf 您没有下载权限900903m_D.dxf

.产品已加入收藏夹。

商品900903加入购物车。

DEHNcube EMOB 1 32

货号 900904 DCU EMOB 1 32

900904.stp 您没有下载权限900904.stp

900904.igs 您没有下载权限900904.igs

900904.jt 您没有下载权限900904.jt

900904.dwg 您没有下载权限900904.dwg

900904m_D.dxf 您没有下载权限900904m_D.dxf

.产品已加入收藏夹。

商品900904加入购物车。

DEHNcube EMOB 2 32

货号 900905 DCU EMOB 2 32

900905.stp 您没有下载权限900905.stp

900905.igs 您没有下载权限900905.igs

900905.jt 您没有下载权限900905.jt

900905.dwg 您没有下载权限900905.dwg

900905m_D.dxf 您没有下载权限900905m_D.dxf

.产品已加入收藏夹。

商品900905加入购物车。
