Roof Conductor Holders with Angled, Flexible Brace for Roof Surfaces

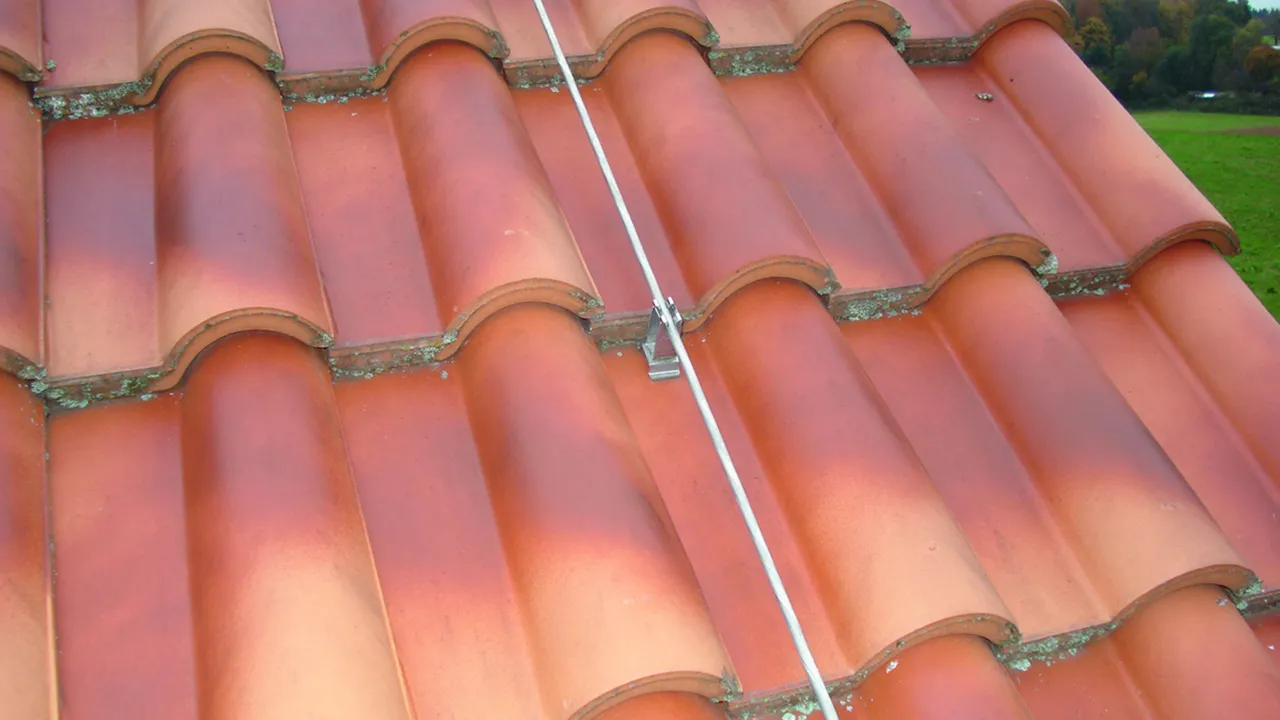

For hanging into roof tiles, with a flexible brace made of thin StSt (0.3 mm) which moulds itself to the grooves of the tile.

FLEXIsnap

Fixed to grooved tiles using the flexible brace, loose conductor routing.

4 产品

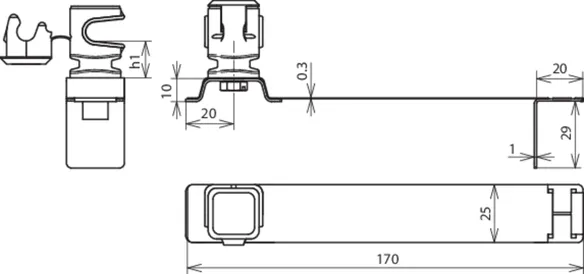

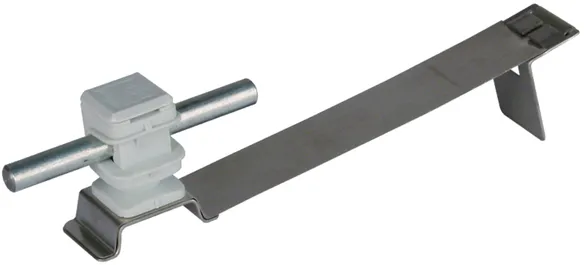

货号 204935 DLH FS 8 H16 L170 GR V2A

全球贸易项目代码 4013364029958, 海关HS编码: 85389099, 总重: 43.02 g, 包装单位: 1.00 pc(s)


附加信息

Gable roofs - FLEXIsnap roof conductor holder, height: 16 mm
Roof conductor holder with preformed brace for grooved tiles
FLEXIsnap is fixed to the grooved tiles using the flexible brace
Material of roof conductor holder: StSt
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH FS 8 H16 L170 GR V2A
Part No.: 204935
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Length of brace 170 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm

.产品已加入收藏夹。

进入收藏夹

商品204935加入购物车。

进入网上商店

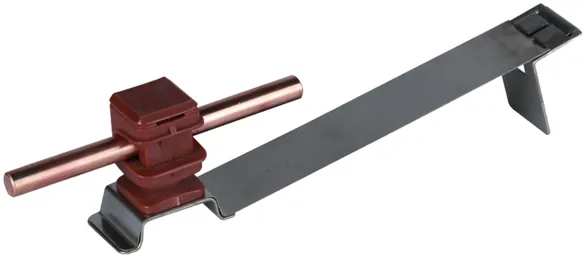

货号 204936 DLH FS 8 H16 L170 BR V2A

全球贸易项目代码 4013364029927, 海关HS编码: 85389099, 总重: 43.02 g, 包装单位: 50.00 pc(s)


附加信息

Gable roofs - FLEXIsnap roof conductor holder, height: 16 mm
Roof conductor holder with preformed brace for grooved tiles
FLEXIsnap is fixed to the grooved tiles using the flexible brace
Material of roof conductor holder: StSt
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH FS 8 H16 L170 BR V2A
Part No.: 204936
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Length of brace 170 mm
Height of conductor holder (h1) 16 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

.产品已加入收藏夹。

进入收藏夹

商品204936加入购物车。

进入网上商店

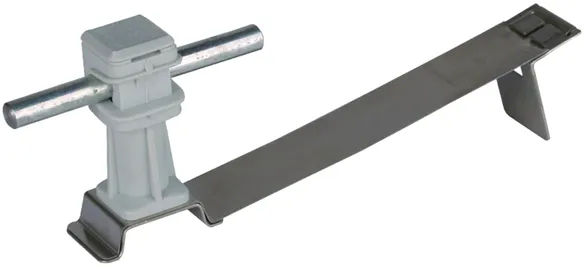

货号 204937 DLH FS 8 H36 L170 GR V2A

全球贸易项目代码 4013364029941, 海关HS编码: 85389099, 总重: 49.22 g, 包装单位: 50.00 pc(s)


附加信息

Gable roofs - FLEXIsnap roof conductor holder, height: 36 mm
Roof conductor holder with preformed brace for grooved tiles
FLEXIsnap is fixed to the grooved tiles using the flexible brace
Material of roof conductor holder: StSt
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH FS 8 H36 L170 GR V2A
Part No.: 204937
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Length of brace 170 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm

.产品已加入收藏夹。

进入收藏夹

商品204937加入购物车。

进入网上商店

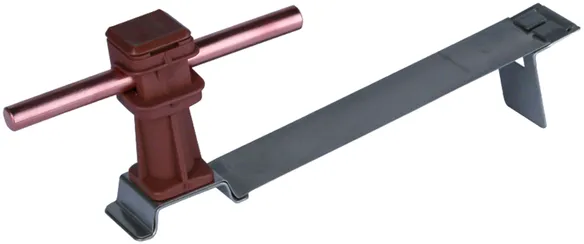

货号 204938 DLH FS 8 H36 L170 BR V2A

全球贸易项目代码 4013364029989, 海关HS编码: 85389099, 总重: 50.22 g, 包装单位: 50.00 pc(s)


附加信息

Gable roofs - FLEXIsnap roof conductor holder, height: 36 mm
Roof conductor holder with preformed brace for grooved tiles
FLEXIsnap is fixed to the grooved tiles using the flexible brace
Material of roof conductor holder: StSt
Height of conductor holder: 36 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH FS 8 H36 L170 BR V2A
Part No.: 204938
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Length of brace 170 mm
Height of conductor holder (h1) 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

.产品已加入收藏夹。

进入收藏夹

商品204938加入购物车。

进入网上商店

FLEXIgrip

Fixed to grooved tiles using the flexible brace, loose conductor routing.

2 产品

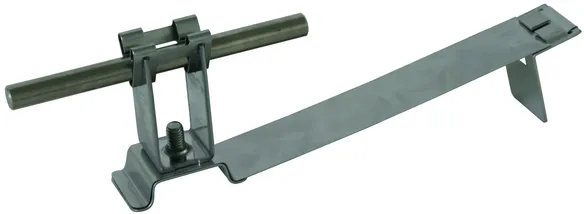

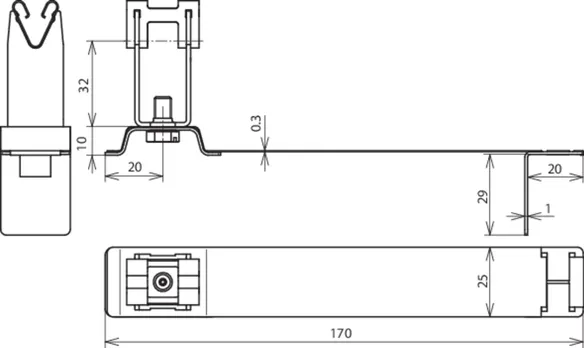

货号 204949 DLH FG 8 H32 L170 V2A

全球贸易项目代码 4013364129290, 海关HS编码: 85389099, 总重: 57.02 g, 包装单位: 50.00 pc(s)


附加信息

Gable roofs - FLEXIsnap roof conductor holder, height: 32 mm
Roof conductor holder with preformed brace for grooved tiles
FLEXIsnap is fixed to the grooved tiles using the flexible brace
Material of roof conductor holder: StSt
Height of conductor holder: 32 mm
Material of conductor holder: StSt
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH FG 8 H32 L170 V2A
Part No.: 204949
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Length of brace 170 mm
Height of conductor holder (h1) 32 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品204949加入购物车。

进入网上商店

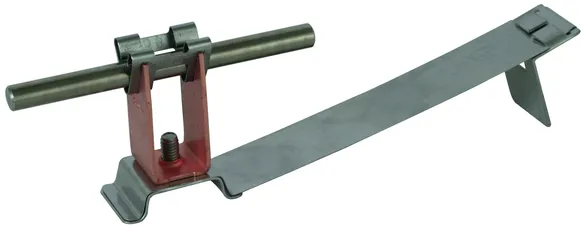

货号 204957 DLH FG 8 H32 L170 V2A GALCU

全球贸易项目代码 4013364129269, 海关HS编码: 85389099, 总重: 58.02 g, 包装单位: 50.00 pc(s)


附加信息

Gable roofs - FLEXIsnap roof conductor holder, height: 32 mm
Roof conductor holder with preformed brace for grooved tiles
FLEXIsnap is fixed to the grooved tiles using the flexible brace
Material of roof conductor holder: StSt
Height of conductor holder: 32 mm
Material of conductor holder: Cu
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH FG 8 H32 L170 V2A GALCU
Part No.: 204957
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Length of brace 170 mm
Height of conductor holder (h1) 32 mm
Material of conductor holder Cu
Conductor support Rd 8 mm
Standard EN 62561-4

.产品已加入收藏夹。

进入收藏夹

商品204957加入购物车。

进入网上商店
