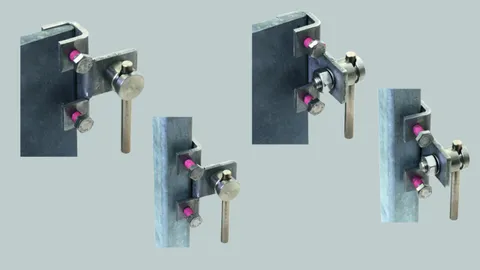

Connection clamps for steel girders for hazardous areas zone 2/22

Heavy design; for connection to steel structures.All connections secured against self-loosening:
  • Connection to the steel structure using adhesive-coated screws
  • Round conductor connection using spring washer
Suitable for use in hazardous area zone 2/22.

Vertical design with KS connector

2 产品

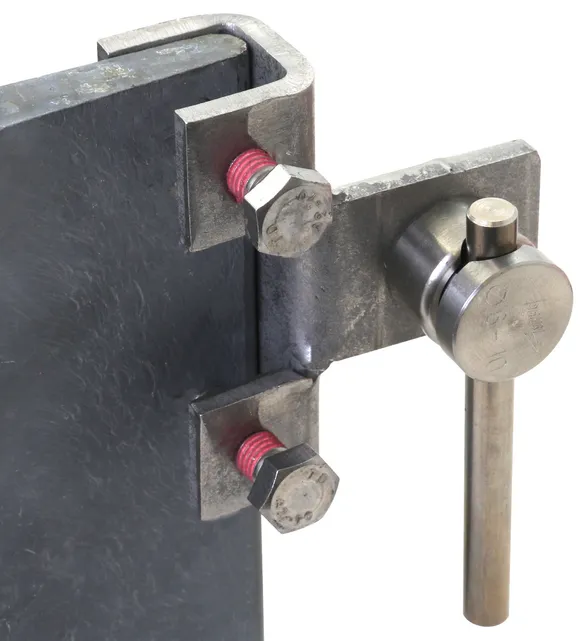

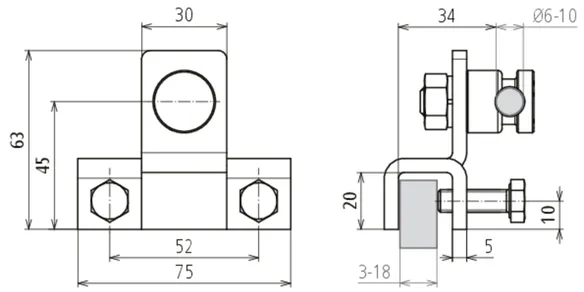

货号 372169 AK 6.10 KSV FER S KBF3 18 V2A

全球贸易项目代码 4013364463660, 海关HS编码: 85359000, 总重: 289.60 g, 包装单位: 10.00 pc(s)


附加信息

Connection clamps for steel girders, vertical, with KS connector, StSt
Connection clamps for steel girders
heavy design
for connection to
steel structures
Screws secured against self-loosening
using spring washers.
Suitable for hazardous area zone 2/22
Clamping range: 3-18 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KSV FER S KBF3 18 V2A
Part No.: 372169
or equivalent.

认证



技术参数

Clamping range 3-18 mm
Material of clamp StSt
Clamping range Rd 6-10 mm
Standard EN 62561-1
*) For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品372169加入购物车。

进入网上商店

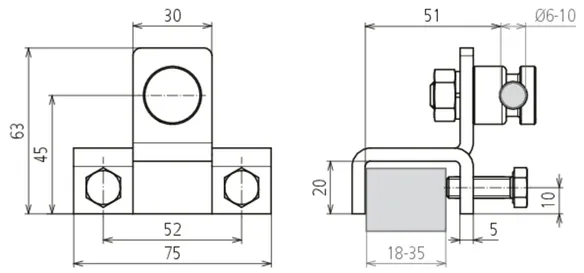

货号 372179 AK 6.10 KSV FER S KBF18 35 V2A

全球贸易项目代码 4013364463684, 海关HS编码: 85359000, 总重: 342.50 g, 包装单位: 10.00 pc(s)


附加信息

Connection clamps for steel girders, vertical, with KS connector, StSt
Connection clamps for steel girders
heavy design, for connection to
steel structures
Screws secured against self-loosening
using spring washers.
Suitable for hazardous area zone 2/22
Clamping range: 18-35 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KSV FER S KBF18 35 V2A
Part No.: 372179
or equivalent.

认证



技术参数

Clamping range 18-35 mm
Material of clamp StSt
Clamping range Rd 6-10 mm
Standard EN 62561-1
*) For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品372179加入购物车。

进入网上商店

Horizontal design with KS connector

2 产品

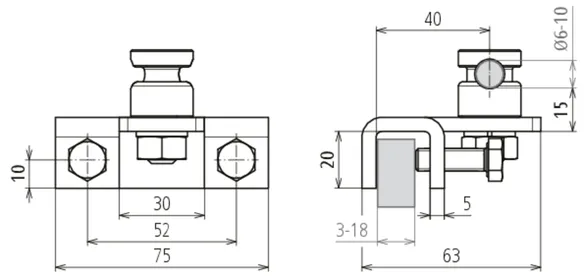

货号 372269 AK 6.10 KSV FER W KBF3 18 V2A

全球贸易项目代码 4013364463677, 海关HS编码: 85359000, 总重: 290.00 g, 包装单位: 10.00 pc(s)


附加信息

Connection clamps for steel girders, horizontal, with KS connector, StSt
Connection clamps for steel girders
heavy design, for connection to
steel structures
Screws secured against self-loosening
using spring washers.
Suitable for hazardous area zone 2/22
Clamping range: 3-18 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KSV FER W KBF3 18 V2A
Part No.: 372269
or equivalent.

认证



技术参数

Clamping range 3-18 mm
Material of clamp StSt
Clamping range Rd 6-10 mm
Standard EN 62561-1
*) For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品372269加入购物车。

进入网上商店

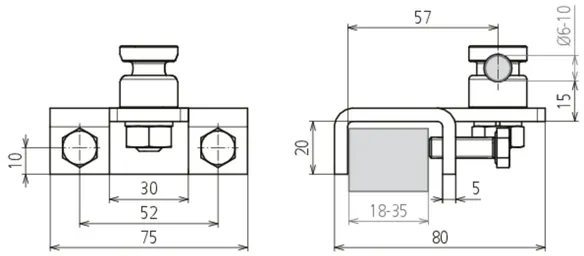

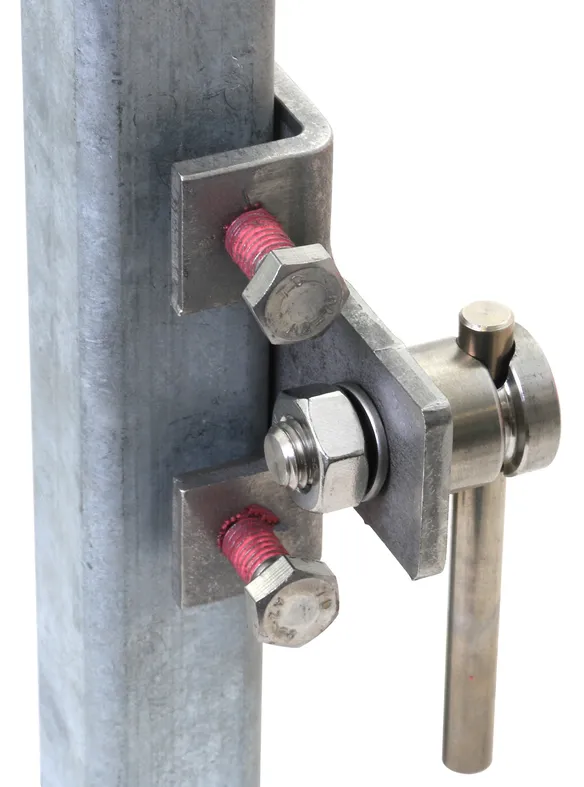

货号 372279 AK 6.10 KSV FER W KBF18 35 V2A

全球贸易项目代码 4013364463691, 海关HS编码: 85359000, 总重: 341.90 g, 包装单位: 10.00 pc(s)


附加信息

Connection clamps for steel girders, horizontal, with KS connector, StSt
Connection clamps for steel girders
heavy design, for connection to
steel structures
Screws secured against self-loosening
using spring washers.
Suitable for hazardous area zone 2/22
Clamping range: 18-35 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KSV FER W KBF18 35 V2A
Part No.: 372279
or equivalent.

认证



技术参数

Clamping range 18-35 mm
Material of clamp StSt
Clamping range Rd 6-10 mm
Standard EN 62561-1
*) For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品372279加入购物车。

进入网上商店
