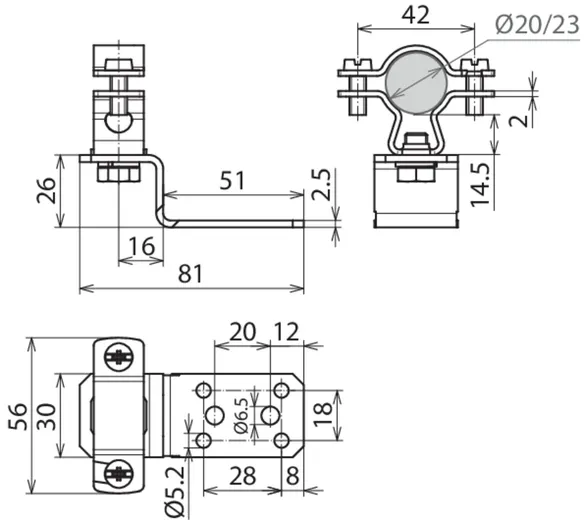

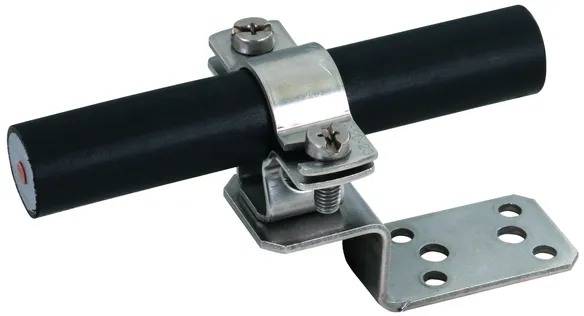

Conductor Holder for Installation on Gable Roofs and Metal Roofs

Roof conductor holder with connection lug

1 产品

货号 202853 DLH AL ZS 20 23 V2A

全球贸易项目代码 4013364354166, 海关HS编码: 85389099, 总重: 113.00 g, 包装单位: 25.00 pc(s)


附加信息

Roof conductor holder for metal roofs for HVI Conductors
Roof conductor holder with slotted two-screw saddle clamp and Z-shaped connection lug
for fixing the HVI Conductor to metal roofs
Material of roof conductor holder: StSt
Material of conductor holder: StSt
Fixing: [4x] Ø5.2 / [2x] Ø6.5 mm
Conductor support Rd: 20-23 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DLH AL ZS 20 23 V2A
Part No.: 202853
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Material of conductor holder StSt
Fixing [4x] Ø5.2 / [2x] Ø6.5 mm
Conductor support Rd 20-23 mm
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

.产品已加入收藏夹。

进入收藏夹

商品202853加入购物车。

进入网上商店

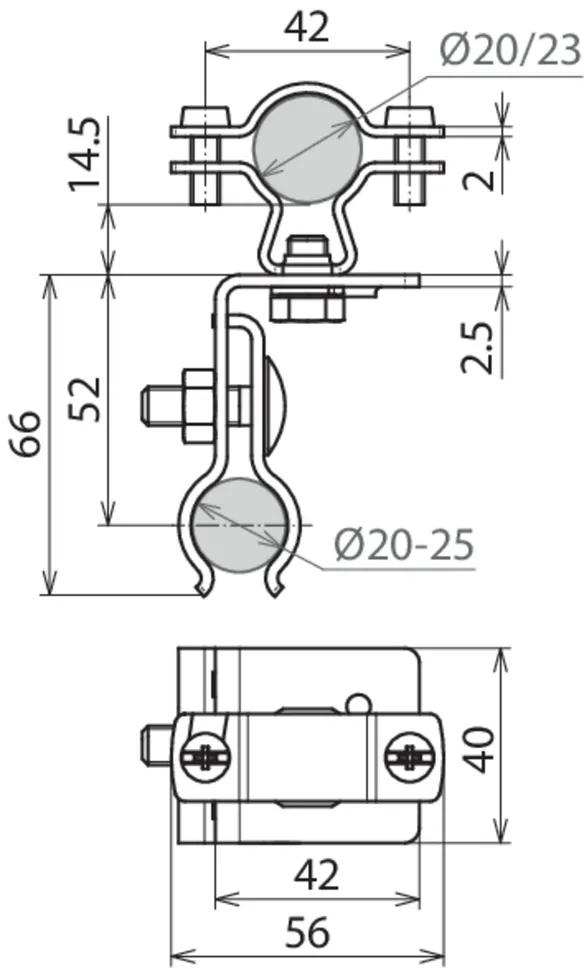

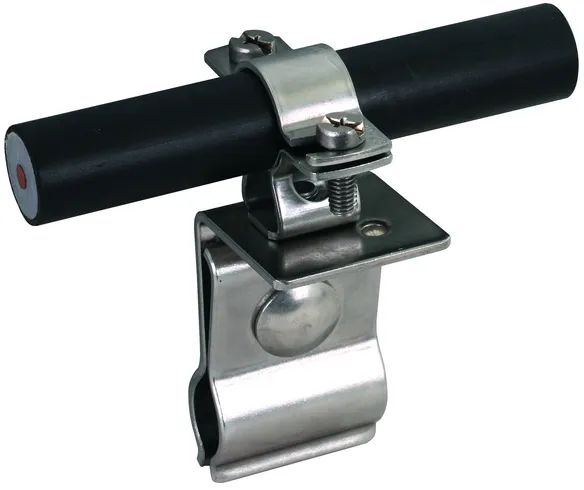

Roof conductor holders for roofs with round standing seam

1 产品

货号 202850 DLH RSF ZS 20 23 V2A

全球贸易项目代码 4013364354135, 海关HS编码: 85389099, 总重: 205.40 g, 包装单位: 25.00 pc(s)


附加信息

Roof conductor holder for fixing the HVI Conductor onto metal roofs
Roof conductor holder with two-screw saddle clamp for fixing the HVI Conductor
onto metal roofs with round standing seams
Material of roof conductor holder: StSt
Material of conductor holder: StSt
Clamping range: Ø20-25 mm
Conductor support Rd: 20-23 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DLH RSF ZS 20 23 V2A
Part No.: 202850
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Material of conductor holder StSt
Clamping range Ø20-25 mm
Conductor support Rd 20-23 mm
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

.产品已加入收藏夹。

进入收藏夹

商品202850加入购物车。

进入网上商店

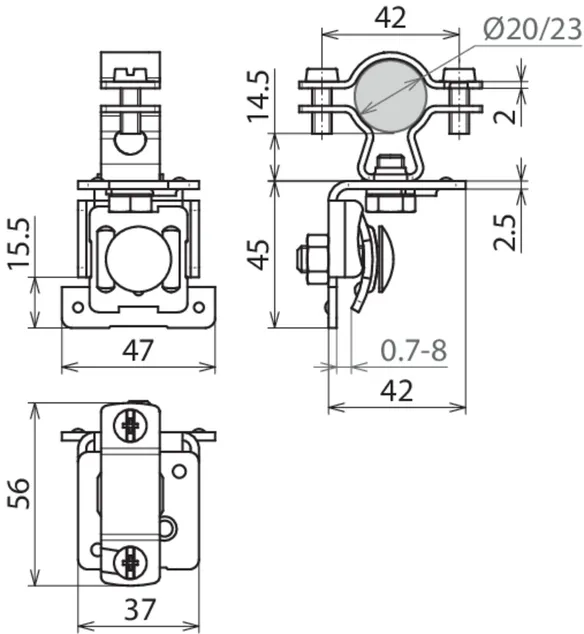

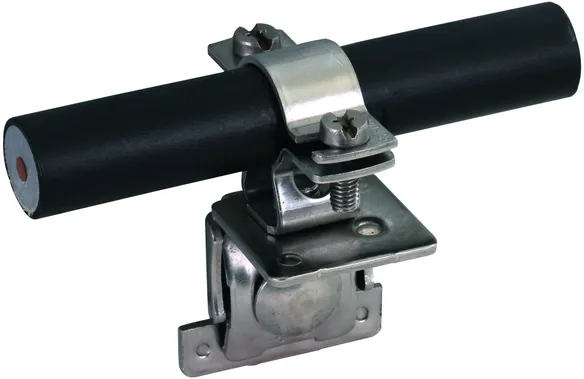

Roof conductor holder for roofs with standing seam

1 产品

货号 202852 DLH SF ZS 20 23 V2A

全球贸易项目代码 4013364354159, 海关HS编码: 85389099, 总重: 157.80 g, 包装单位: 25.00 pc(s)


附加信息

Roof conductor holder for metal roofs for HVI Conductor
Roof conductor holder with slotted two-screw clamp for fixing the
HVI Conductor on metal roofs with standing seams
Material of roof conductor holder: StSt
Material of conductor holder: StSt
Clamping range: 0.7-8 mm
Conductor support Rd: 20-23 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DLH SF ZS 20 23 V2A
Part No.: 202852
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Material of conductor holder StSt
Clamping range 0.7-8 mm
Conductor support Rd 20-23 mm
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

.产品已加入收藏夹。

进入收藏夹

商品202852加入购物车。

进入网上商店

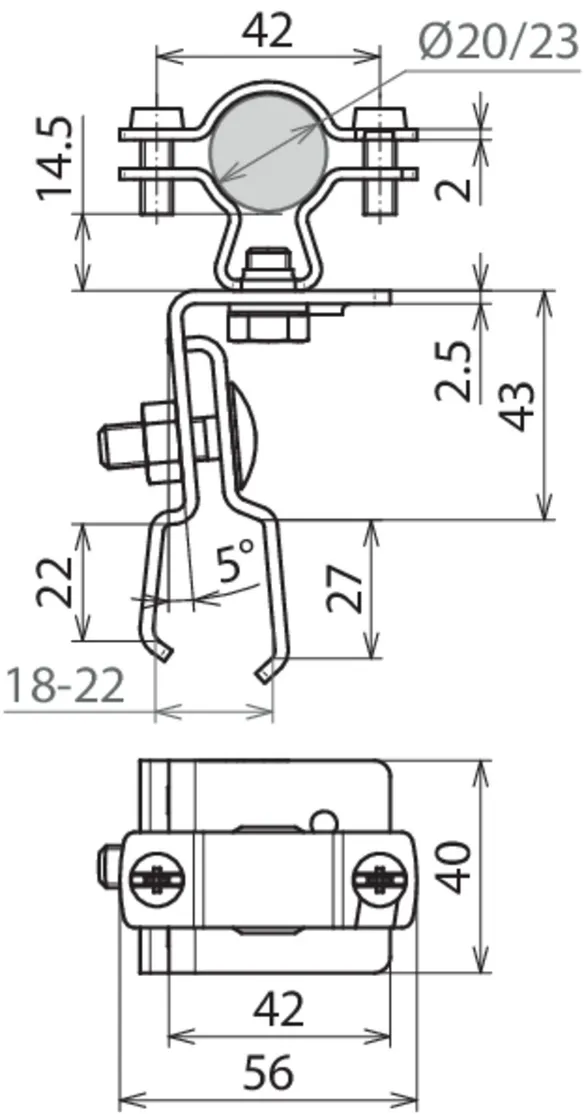

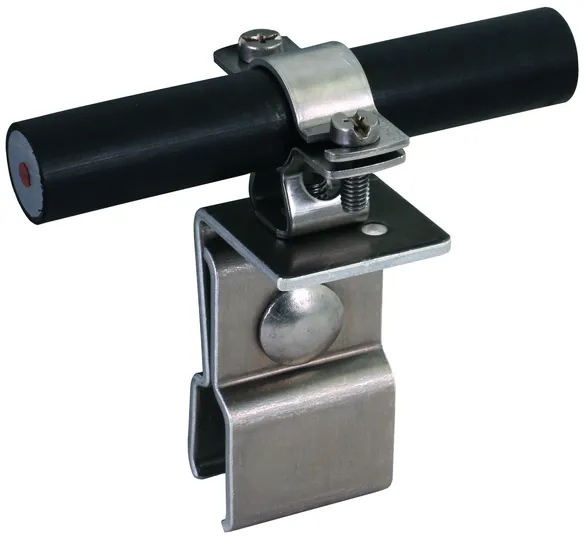

Roof conductor holder for roofs with clamping seam (e.g. RIB-ROOF Speed 500 from Zambelli)

1 产品

货号 202851 DLH KF ZS 20 23 V2A

全球贸易项目代码 4013364354142, 海关HS编码: 85389099, 总重: 212.40 g, 包装单位: 25.00 pc(s)


附加信息

Roof conductor holder for metal roof for HVI Conductor
Roof conductor holder with slotted two-screw clamp for fixing the HVI Conductor
onto metal roofs with clamping seams
Material of roof conductor holder: StSt
Material of conductor holder: StSt
Clamping range: approx. 18 / 22 mm
Conductor support Rd: 20-23 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DLH KF ZS 20 23 V2A
Part No.: 202851
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Material of conductor holder StSt
Clamping range approx. 18 / 22 mm
Conductor support Rd 20-23 mm
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

.产品已加入收藏夹。

进入收藏夹

商品202851加入购物车。

进入网上商店

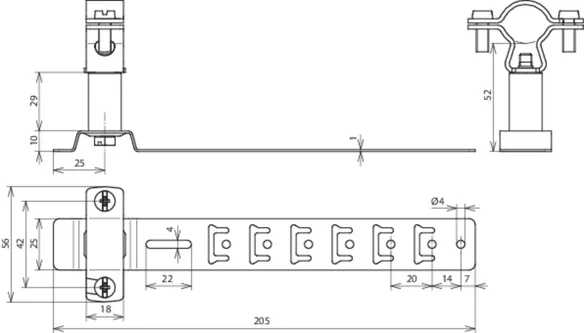

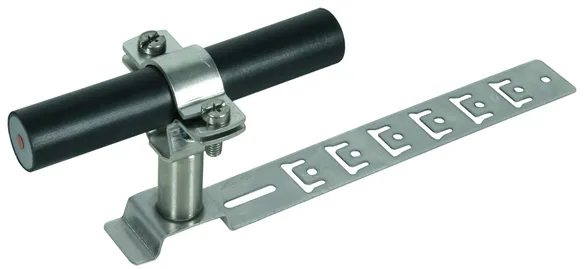

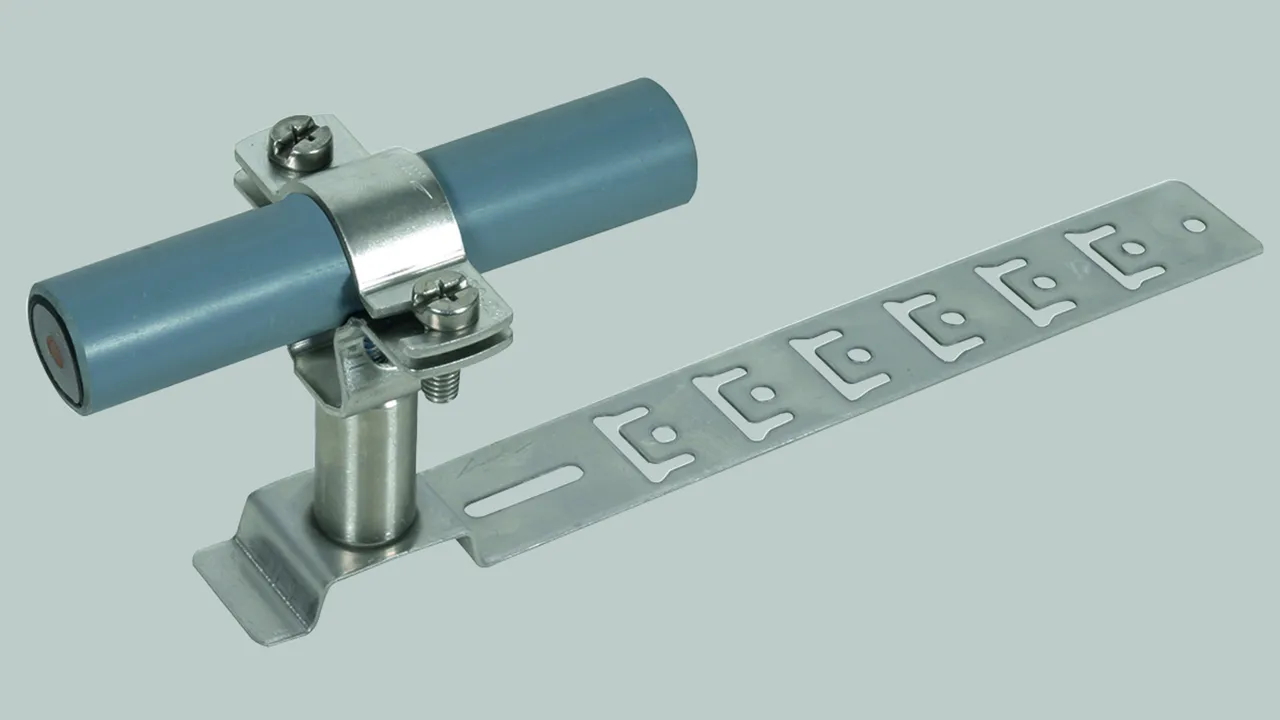

Roof conductor holder

1 产品

货号 202829 DLH ZS 20 23 H55 L205 V2A

全球贸易项目代码 4013364159822, 海关HS编码: 85389099, 总重: 119.00 g, 包装单位: 1.00 pc(s)

前代产品


附加信息

Roof conductor holder, StSt
Roof conductor holder with two-screw clamp and embossed brace
for installing HVI Conductors on the surface of gable roofs
Material of roof conductor holder: StSt
Material of conductor holder: StSt
Conductor support Rd: 20 / 23 mm
Length of brace: 205 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DLH ZS 20 23 H55 L205 V2A
Part No.: 202829
or equivalent.

认证



技术参数

Material of roof conductor holder StSt
Material of conductor holder StSt
Conductor support Rd 20 / 23 mm
Length of brace 205 mm
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

.产品已加入收藏夹。

进入收藏夹

商品202829加入购物车。

进入网上商店
