Carrier Plate for VDB Test Badge

For attaching the test badge to the down conductor or earth entry.

For round / flat conductors

1 产品

货号 480113 TS 7.10 FL30 PP V2A

全球贸易项目代码 4013364112681, 海关HS编码: 83100000, 总重: 62.80 g, 包装单位: 50.00 pc(s)

前代产品


附加信息

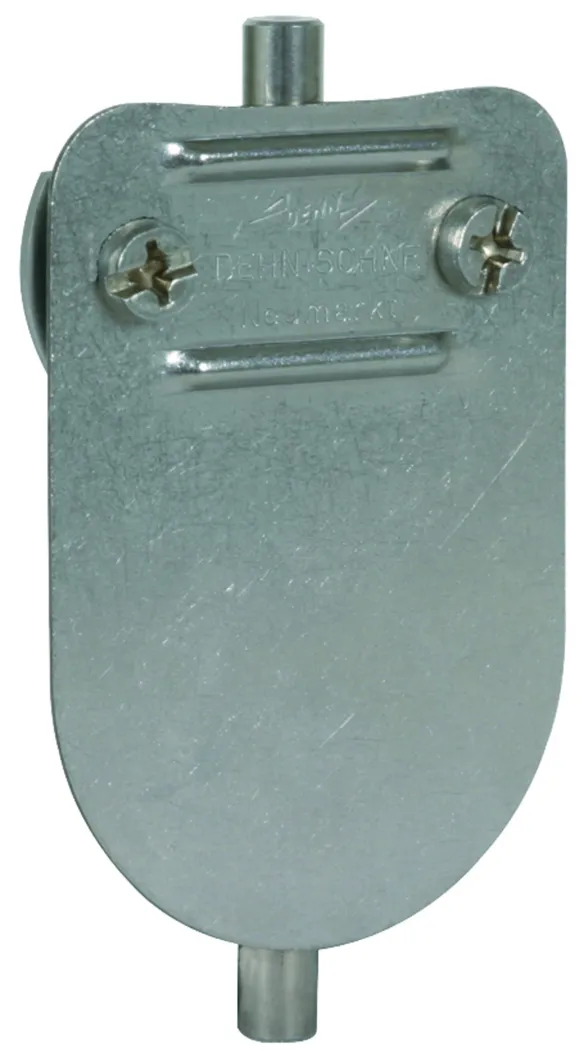

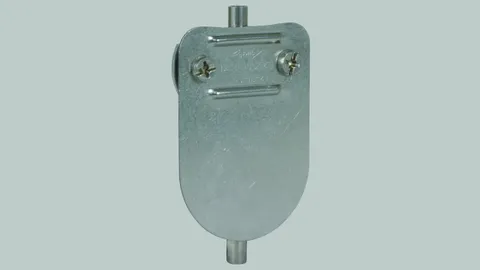

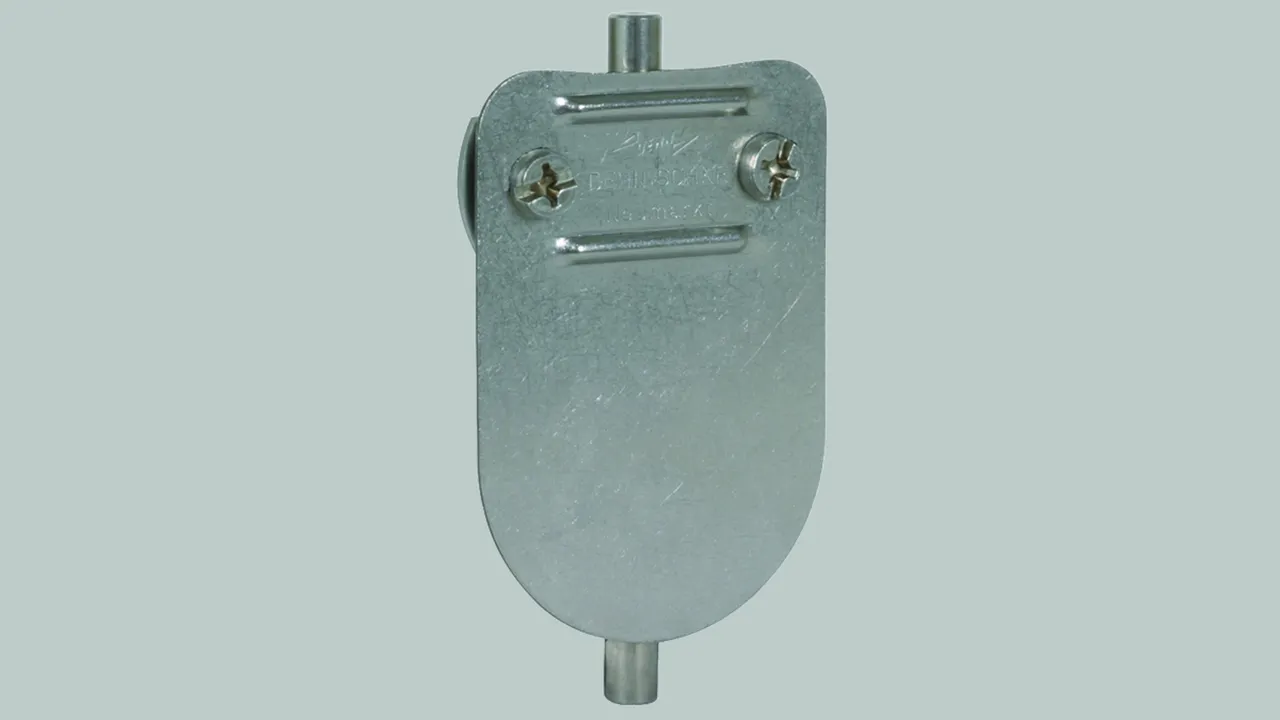

Carrier plate for VDB test badge, StSt
Carrier plate for VDB test badge
For attaching the test badge to the down conductor or earth entry
For Rd 7-10 and Fl 30 mm conductors
Material: StSt
Clamping range Rd / Fl: 7-10 / 30 mm

Brand: DEHN
Type: TS 7.10 FL30 PP V2A
Part No.: 480113
or equivalent.



技术参数

Material StSt
Clamping range Rd / Fl 7-10 / 30 mm

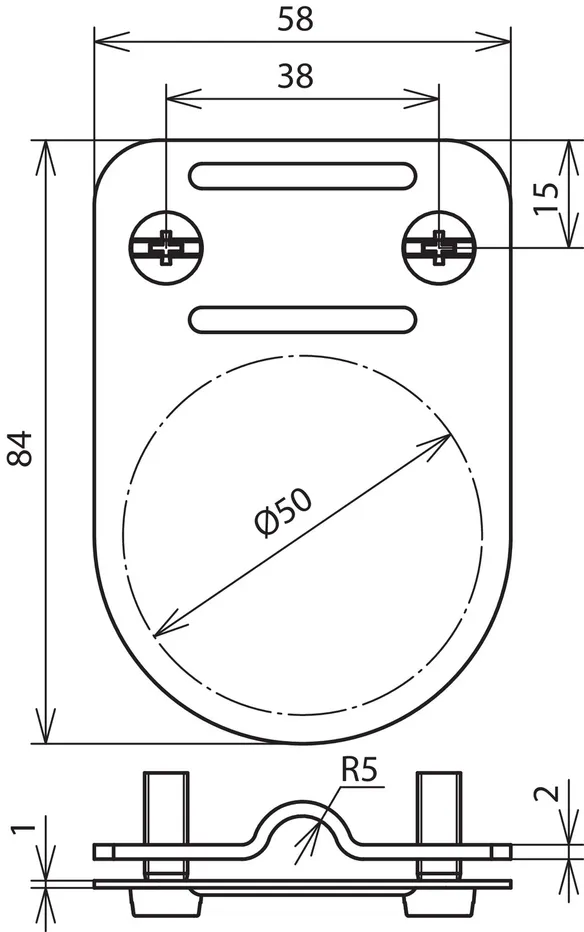

Dimensions 84 x 58 x 1 mm
