Air-Termination Stud

For installing meshed air-termination systems, for accessible flat roofs, e.g. parking decks.

The air-termination stud and the conductors may either be installed in concrete or in the joints between the decks.

1 产品

货号 108009 FP D80 ET70 8.10 V2A

全球贸易项目代码 4013364133686, 海关HS编码: 85389099, 总重: 298.40 g, 包装单位: 1.00 pc(s)

前代产品


附加信息

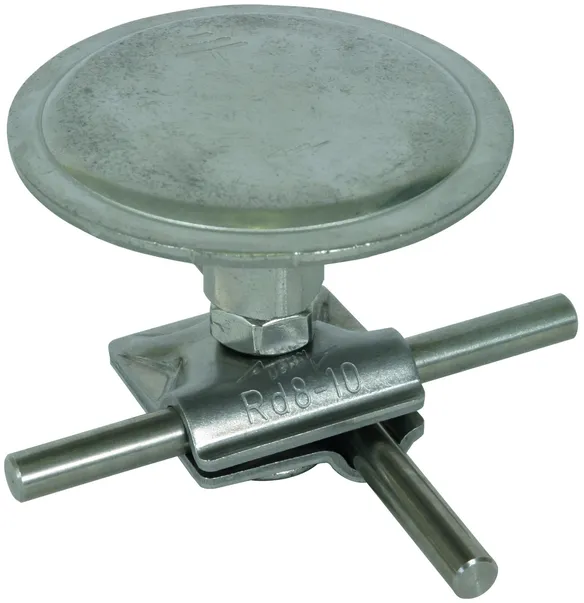

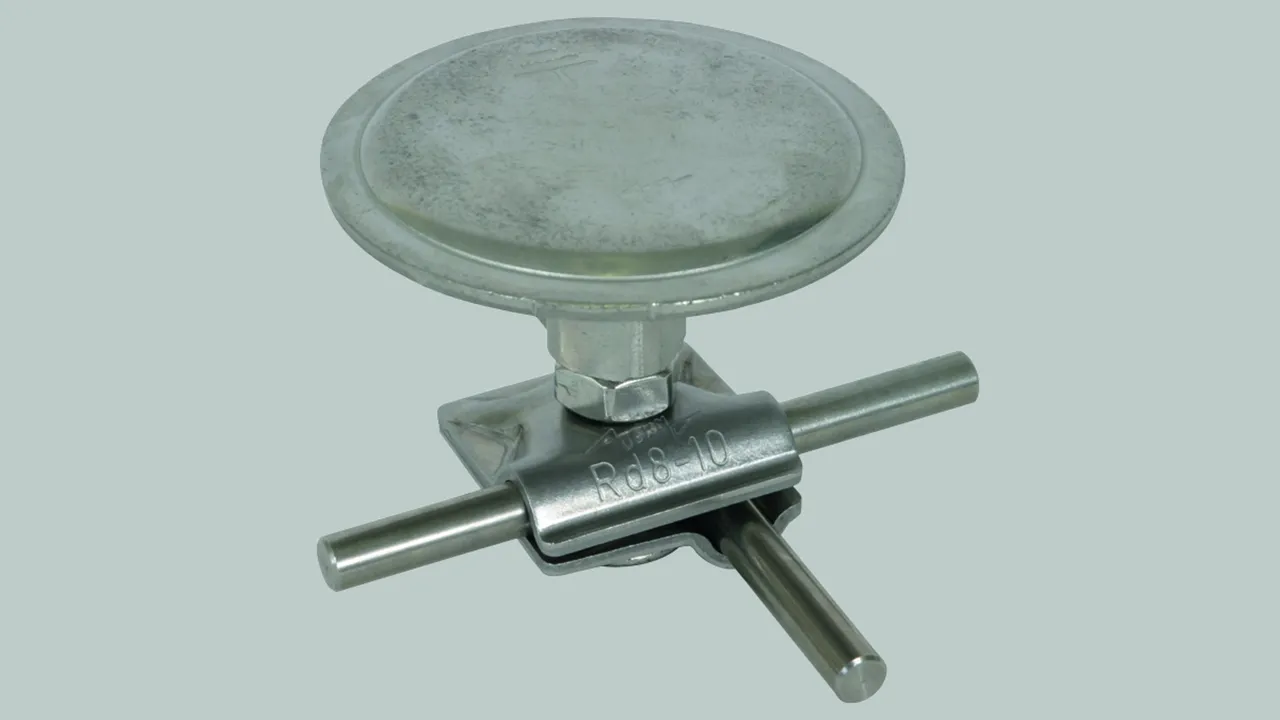

Air-termination stud, StSt
Air-termination stud for accessible flat roofs, e.g. parking decks
Material of clamp: StSt
Material of stud: StSt
Connection Rd: 8-10 mm
Installation depth: min. 70 mm
Levelling range: 18 mm

Brand: DEHN
Type: FP D80 ET70 8.10 V2A
Part No.: 108009
or equivalent.

认证



技术参数

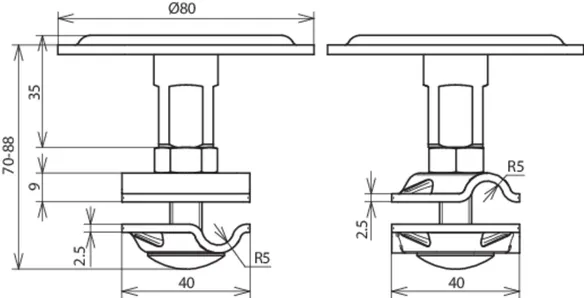

Material of clamp StSt
Material of stud StSt
Connection Rd 8-10 mm
Installation depth min. 70 mm
Levelling range 18 mm
