Clamps for Ex Zone 2/22

Clamps with spring washer for connecting round / flat conductors in Ex zone 2/22. The clamps are secured against self-loosening according to DIN EN 62305-3 Supplement 2.

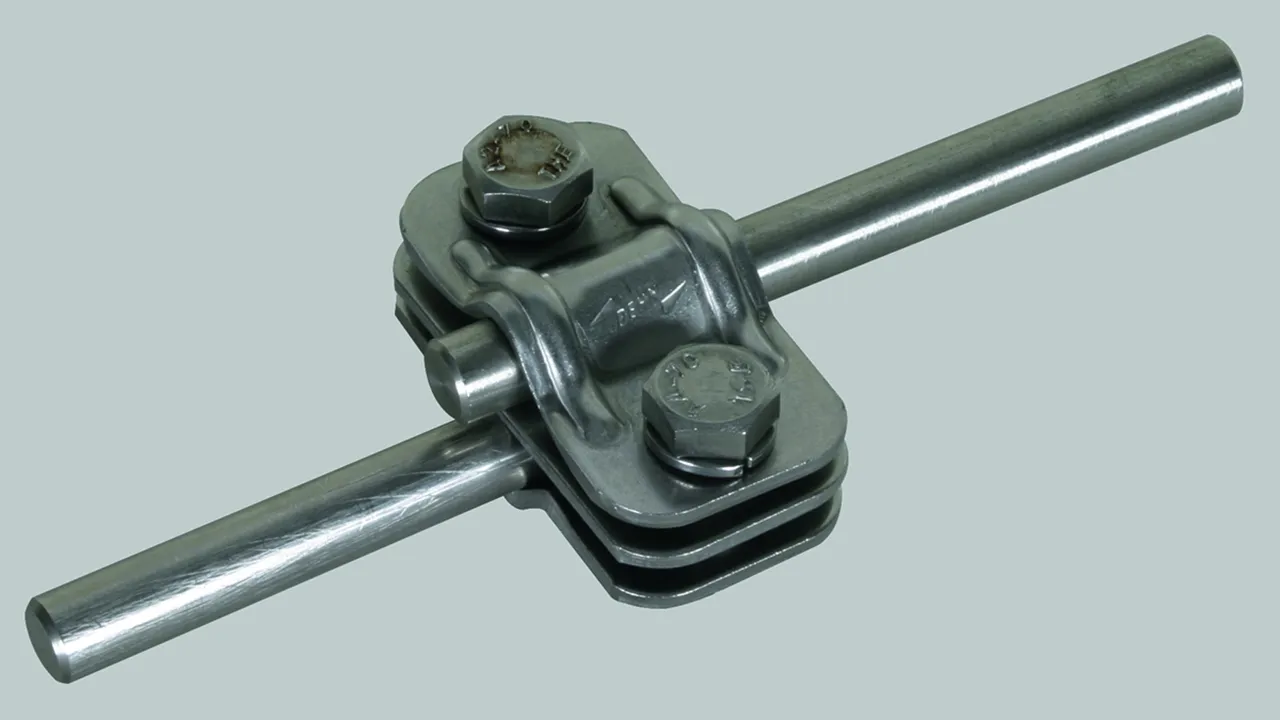

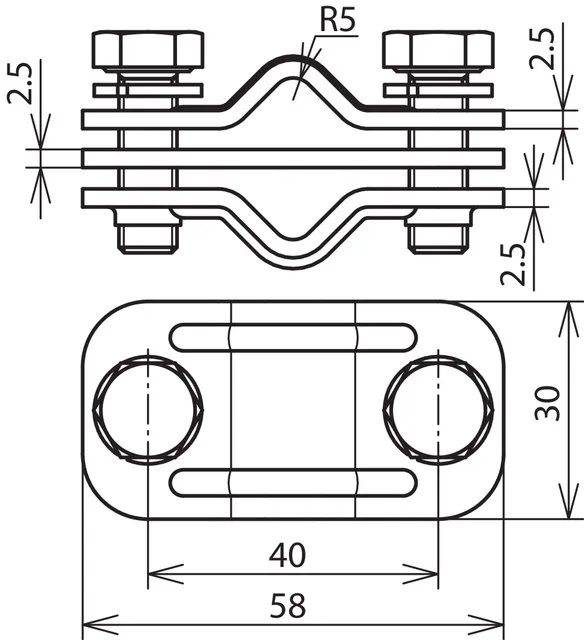

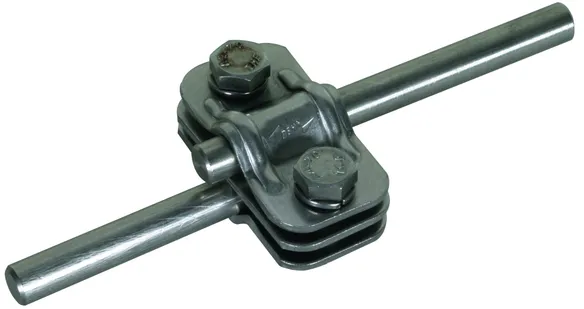

UNI disconnecting clamp 200 kA (10/350 μs) with spring washer for two round conductors

1 产品

货号 459200 UTK 200 2X10 FL30 ZP V2A

全球贸易项目代码 4013364155527, 海关HS编码: 85359000, 总重: 132.00 g, 包装单位: 1.00 pc(s)


附加信息

UNI disconnecting clamp (200 kA) for two round conductors, StSt
UNI-Disconnecting clamp for connecting an air-termination rod or earth entry to a round conductor, with intermediate plate for Rd and Fl, lightning current carrying capability up to 200 kA (10/350)
Material: StSt
Clamping range Rd / Rd: 10 / 10 mm
Clamping range Rd / Fl: 10 / 30 mm
Lightning current carrying capability (10/350 µs): *)
Standard: based on EN 62561-1

Brand: DEHN
Type: UTK 200 2X10 FL30 ZP V2A
Part No.: 459200
or equivalent.

认证



技术参数

Material StSt
Clamping range Rd / Rd 10 / 10 mm
Clamping range Rd / Fl 10 / 30 mm
Lightning current carrying capability (10/350 µs) ? *)
Standard based on EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品459200加入购物车。

进入网上商店

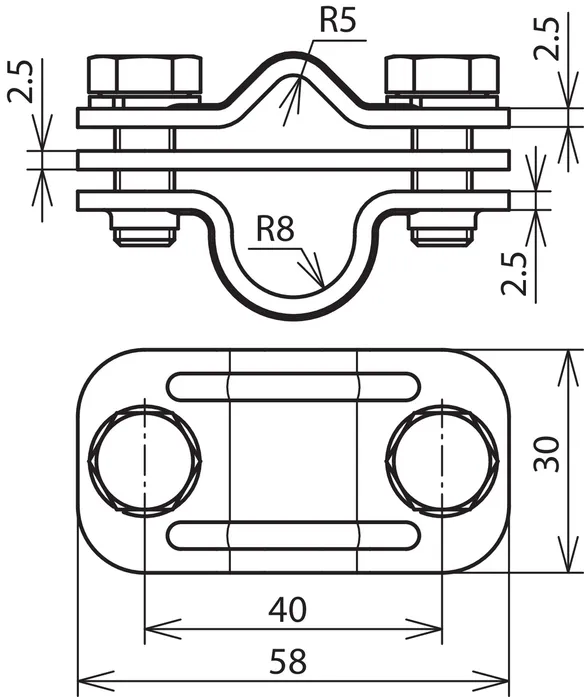

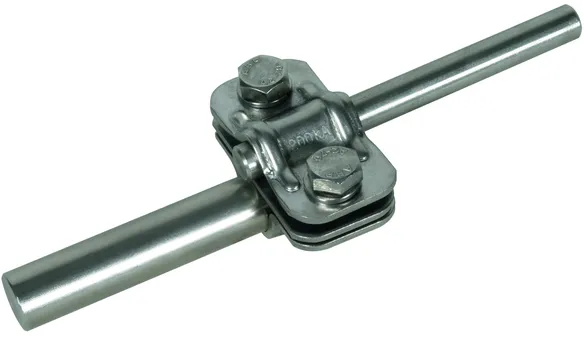

UNI disconnecting clamp 200 kA (10/350 μs) with spring washer for earth entry rods

1 产品

货号 459219 UTK 200 8.10 16 ZP V2A

全球贸易项目代码 4013364158221, 海关HS编码: 85359000, 总重: 136.00 g, 包装单位: 1.00 pc(s)


附加信息

UNI disconnecting clamp (200 kA) for earth entry rods
UNI-Disconnecting clamp for connecting an air-termination rod or earth entry to a round conductor, with intermediate plate for Rd and Fl, lightning current carrying capability up to 200 kA (10/350)
Material: StSt
Clamping range Rd / Rd: 8-10 / 16 mm
Lightning current carrying capability (10/350 µs): *)
Standard: based on EN 62561-1

Brand: DEHN
Type: UTK 200 8.10 16 ZP V2A
Part No.: 459219
or equivalent.

认证



技术参数

Material StSt
Clamping range Rd / Rd 8-10 / 16 mm
Lightning current carrying capability (10/350 µs) ? *)
Standard based on EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品459219加入购物车。

进入网上商店

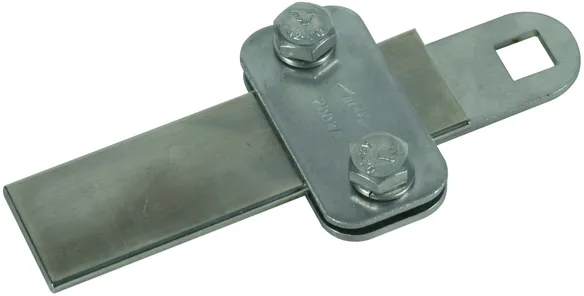

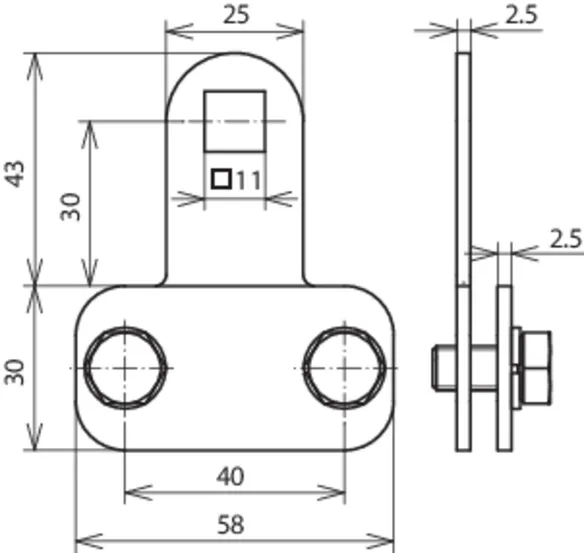

Clamping piece 200 kA (10/350 μs) with spring washer

1 产品

货号 380209 KS 200 B11.11 FL30X4 V2A

全球贸易项目代码 4013364158269, 海关HS编码: 85359000, 总重: 110.00 g, 包装单位: 1.00 pc(s)


附加信息

Clamping piece (200 kA) StSt with spring washer
Clamping piece for connecting flat material
to construction elements
Design for flat conductors
Lightning current carrying capability 200 kA (10/350)
Material: StSt
Clamping range Fl: 30 x 4 mm
Lightning current carrying capability (10/350 µs): *)
Standard: based on EN 62561-1

Brand: DEHN
Type: KS 200 B11.11 FL30X4 V2A
Part No.: 380209
or equivalent.

认证



技术参数

Material StSt
Clamping range Fl 30 x 4 mm
Lightning current carrying capability (10/350 µs) ? *)
Standard based on EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品380209加入购物车。

进入网上商店

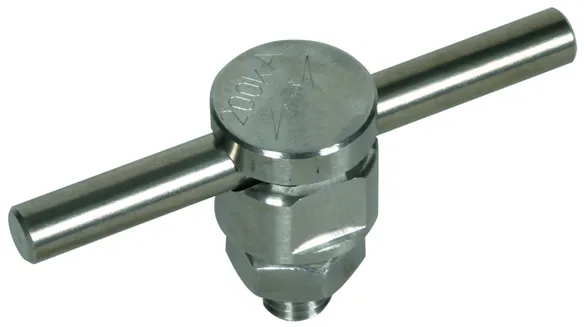

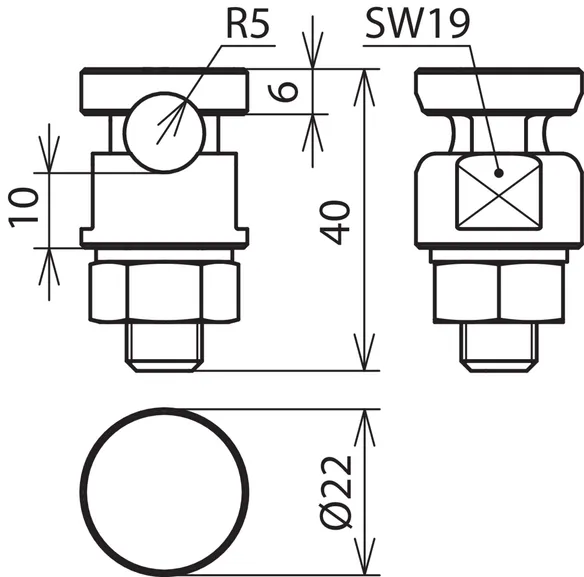

KS connector 200 kA (10/350 μs) with spring washer

1 产品

货号 301209 KSV 200 10 FER V2A

全球贸易项目代码 4013364158252, 海关HS编码: 85359000, 总重: 67.00 g, 包装单位: 1.00 pc(s)


附加信息

KS connector (200 kA) with spring washer, StSt
KS connector for connecting round conductors to flat profiles, lightning current carrying capability up to 200 kA (10/350)
Material: StSt
Clamping range Rd: 10 mm
Lightning current carrying capability (10/350 µs): *)
Standard: based on EN 62561-1

Brand: DEHN
Type: KSV 200 10 FER V2A
Part No.: 301209
or equivalent.

认证



技术参数

Material StSt
Clamping range Rd 10 mm
Lightning current carrying capability (10/350 µs) ? *)
Standard based on EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品301209加入购物车。

进入网上商店

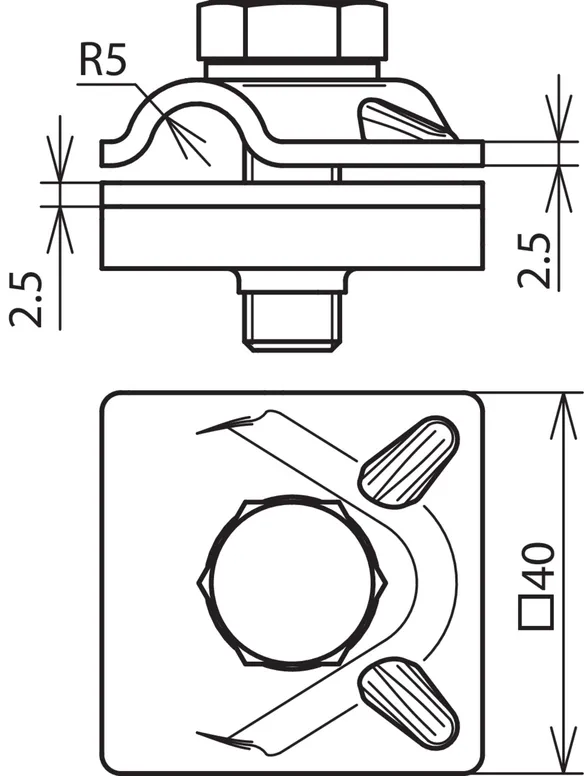

MV clamp 200 kA (10/350 μs) with spring washer for round conductors

1 产品

货号 390209 MVK 200 8.10 SKM10X30 V2A

全球贸易项目代码 4013364158245, 海关HS编码: 85359000, 总重: 103.50 g, 包装单位: 1.00 pc(s)


附加信息

MV clamp for round conductors
MV clamp for universal use as cross, T and parallel clamp, without intermediate plate for Rd, lightning current carrying capability up to 200 kA (10/350)
Material: StSt
Clamping range Rd / Rd: 8-10 mm
Lightning current carrying capability (10/350 µs): *)
Standard: based on EN 62561-1

Brand: DEHN
Type: MVK 200 8.10 SKM10X30 V2A
Part No.: 390209
or equivalent.

认证



技术参数

Material StSt
Clamping range Rd / Rd 8-10 mm
Lightning current carrying capability (10/350 µs) ? *)
Standard based on EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品390209加入购物车。

进入网上商店

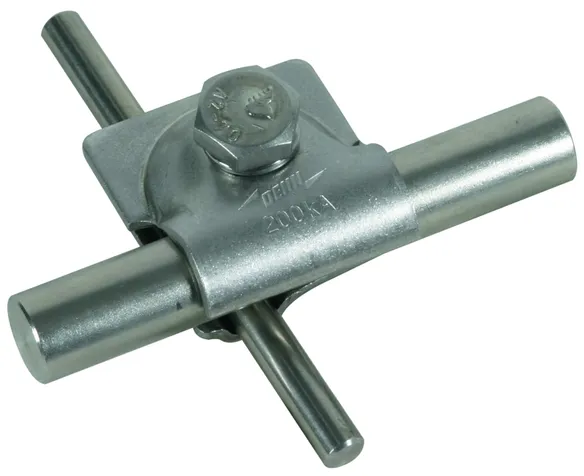

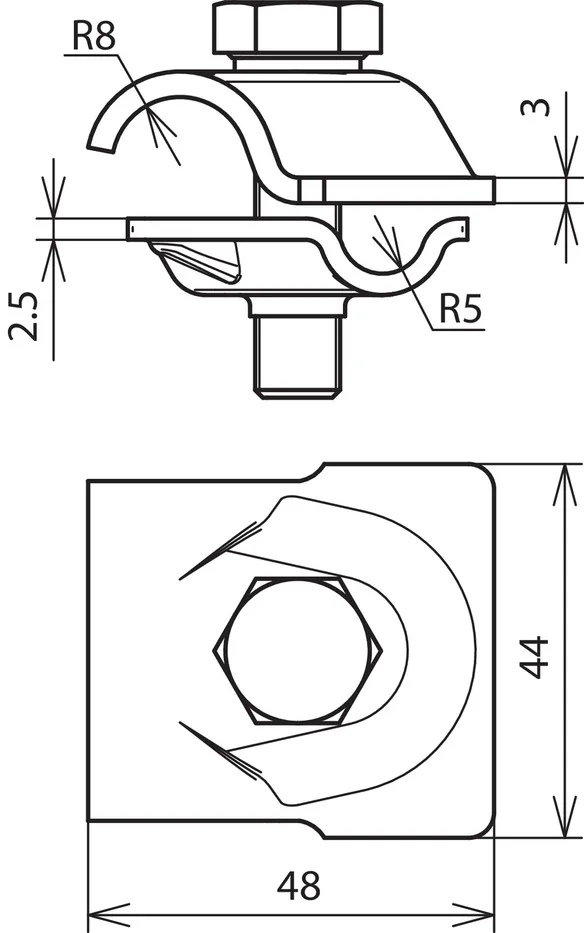

MV clamp 200 kA (10/350 μs) with spring washer for air-termination rods

1 产品

货号 392209 MVK 200 8.10 16 SKM10X40 FSC V2A

全球贸易项目代码 4013364158238, 海关HS编码: 85359000, 总重: 140.00 g, 包装单位: 1.00 pc(s)


附加信息

MV clamp for air-termination rods
MV clamp for universal use as cross, T and parallel clamp, without intermediate plate for Rd, lightning current carrying capability up to 200 kA (10/350)
Material: StSt
Clamping range Rd / Rd: 8-10 / 16 mm
Lightning current carrying capability (10/350 µs): *)
Standard: based on EN 62561-1

Brand: DEHN
Type: MVK 200 8.10 16 SKM10X40 FSC V2A
Part No.: 392209
or equivalent.

认证



技术参数

Material StSt
Clamping range Rd / Rd 8-10 / 16 mm
Lightning current carrying capability (10/350 µs) ? *)
Standard based on EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品392209加入购物车。

进入网上商店

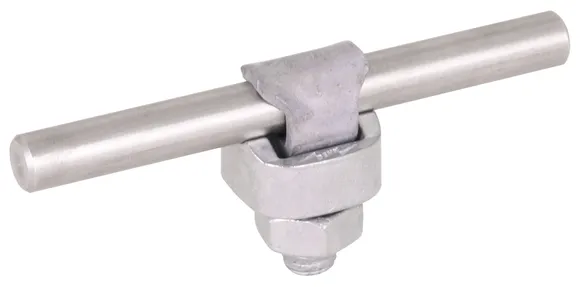

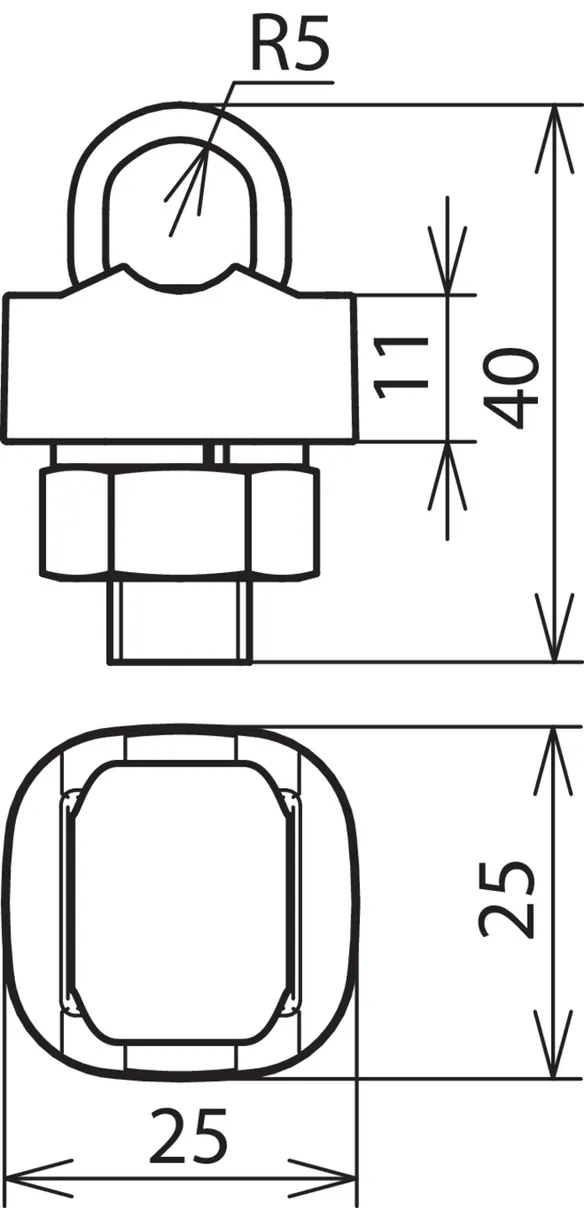

KS connector 100 kA (10/350 μs), one-piece, with spring washer

2 产品

货号 301010 KSV 7.10 FER STTZN

全球贸易项目代码 4013364067028, 海关HS编码: 85359000, 总重: 62.00 g, 包装单位: 100.00 pc(s)


附加信息

KS connector, one-piece, St/tZn
KS connector for connection to flat profiles
Material of clamping screw: St/tZn
Material of clamp: ZDC
Clamping range Rd: 7-10 mm
Type: + spring washer
Lightning current carrying capability (10/350 µs): *)
Standard: EN 62561-1

Brand: DEHN
Type: KSV 7.10 FER STTZN
Part No.: 301010
or equivalent.

认证



技术参数

Material of clamping screw St/tZn
Material of clamp ZDC
Clamping range Rd 7-10 mm
Type + spring washer
Lightning current carrying capability (10/350 µs) = *)
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品301010加入购物车。

进入网上商店

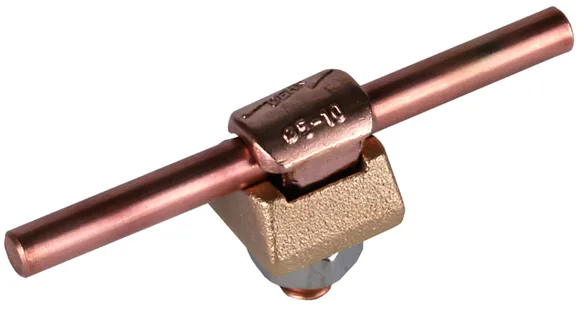

货号 301017 KSV 6.10 FER CU

全球贸易项目代码 4013364053502, 海关HS编码: 85359000, 总重: 79.60 g, 包装单位: 100.00 pc(s)


附加信息

KS connector, one-piece, Cu
KS connector for connection to flat profiles
Material of clamping screw: Cu
Material of clamp: RCB
Clamping range Rd: 6-10 mm
Connection (single-wire / multi-wire): 25-70 mm2
Type: + spring washer
Lightning current carrying capability (10/350 µs): *)
Standard: EN 62561-1

Brand: DEHN
Type: KSV 6.10 FER CU
Part No.: 301017
or equivalent.

认证



技术参数

Material of clamping screw Cu
Material of clamp RCB
Clamping range Rd 6-10 mm
Connection (single-wire / multi-wire) 25-70 mm2
Type + spring washer
Lightning current carrying capability (10/350 µs) = *)
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品301017加入购物车。

进入网上商店

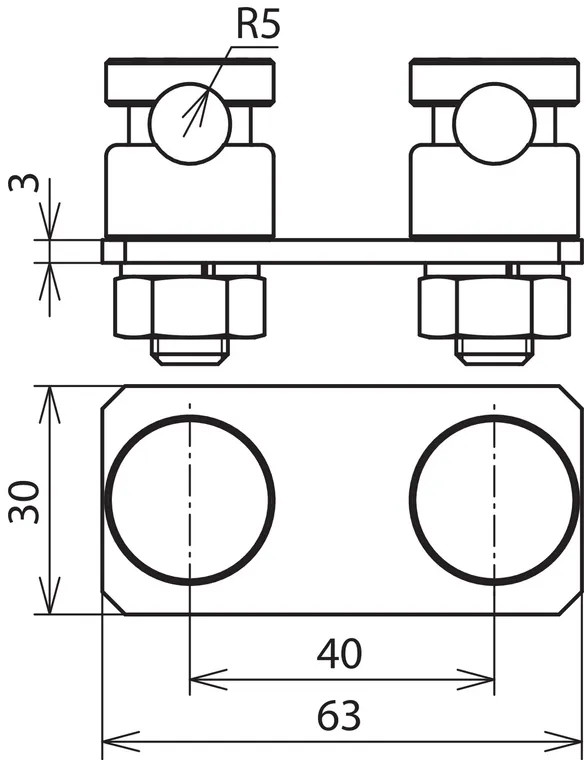

KS connector 100 kA (10/350 μs), two-piece, with spring washer

1 产品

货号 301229 AP 2X6.10 V2A

全球贸易项目代码 4013364101562, 海关HS编码: 85389099, 总重: 167.00 g, 包装单位: 1.00 pc(s)


附加信息

KS connector, two-part, distance: 40 mm, StSt
Connecting plate
For connecting the HVI® conductor to the air-termination tip
With two KS connectors including spring washer
Material of clamping screw: StSt
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Type: + spring washer
Lightning current carrying capability (10/350 µs): / *)
Standard: EN 62561-1

Brand: DEHN
Type: AP 2X6.10 V2A
Part No.: 301229
or equivalent.

认证



技术参数

Material of clamping screw StSt
Material of clamp StSt
Clamping range Rd 6-10 mm
Type + spring washer
Lightning current carrying capability (10/350 µs) = / & *)
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品301229加入购物车。

进入网上商店
