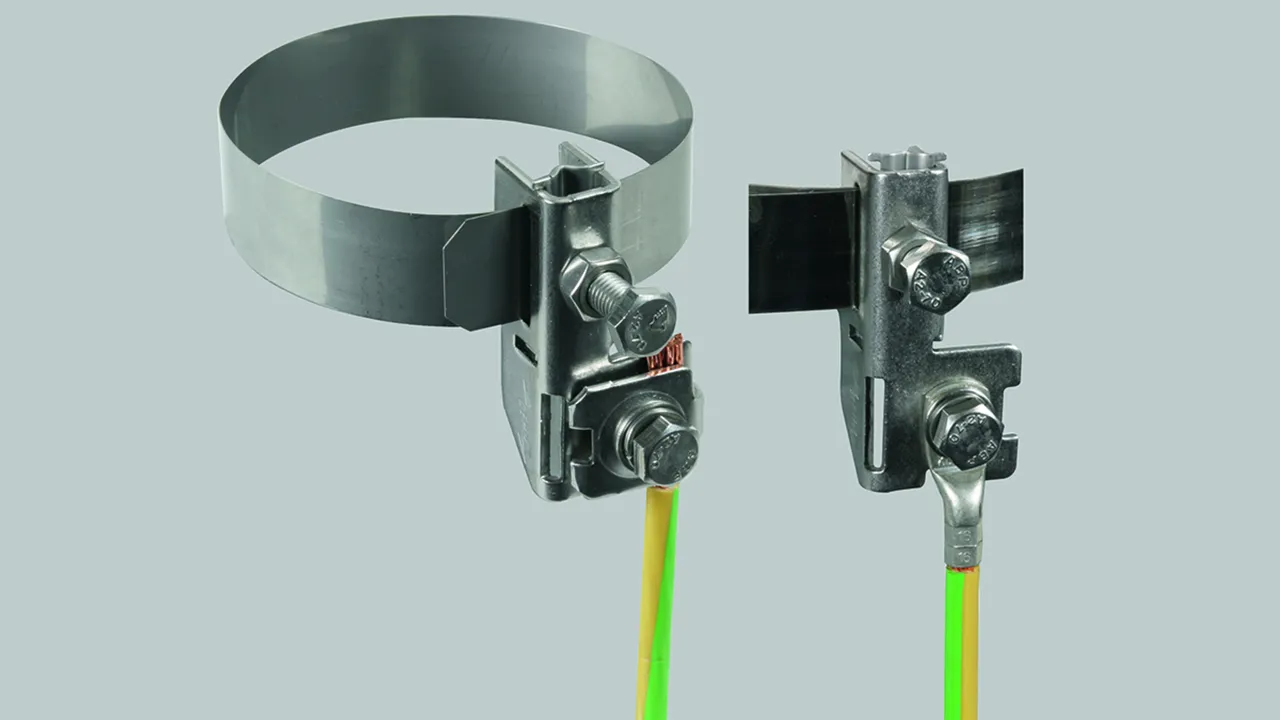

Pipe Clamp GSG for Ex Zone 2/22

Pipe clamp for electrically contacting pipes in Ex zone 2/22. The pipe clamp is secured against self-loosening according to DIN/EN 62305-3 Supplement 2.

Pipe clamps - Complete

1 产品

货号 540104 BRS 27.89 AK1X10 2X6.8 GSG V2A

全球贸易项目代码 4013364239685, 海关HS编码: 85359000, 总重: 129.00 g, 包装单位: 10.00 pc(s)


附加信息

Pipe clamp for hazardous areas, StSt, zone 2/22 tube diameter: 27-89 mm
Pipe clamp for electrically contacting pipes in hazardous
areas (zone 2/22). The pipe clamp according to
Supplement 2 of the German DIN EN 62305-3 (VDE 0185-
305-3) standard is secured against working loose.

Material: StSt
Clamping range pipe Ø: 27-89 mm (3/4-3'')
Dimensions of strap: 330 x 25 x 0.3 mm
Connection Rd: 1 x 10 mm / 1-2 x 6-8 mm
Connection (solid / stranded): 4-50 mm2
Standard: EN 62561-1

Brand: DEHN
Type: BRS 27.89 AK1X10 2X6.8 GSG V2A
Part No.: 540104
or equivalent.

认证



技术参数

Material StSt
Clamping range pipe Ø 27-89 mm (3/4-3'')

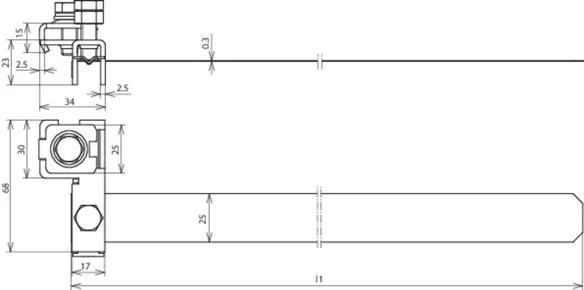

Dimensions of strap (l1 x w x d) 330 x 25 x 0.3 mm
Connection (solid / stranded) 4-50 mm2
Standard EN 62561-1
Tightening torque ≥ 15 Nm
*) For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品540104加入购物车。

进入网上商店

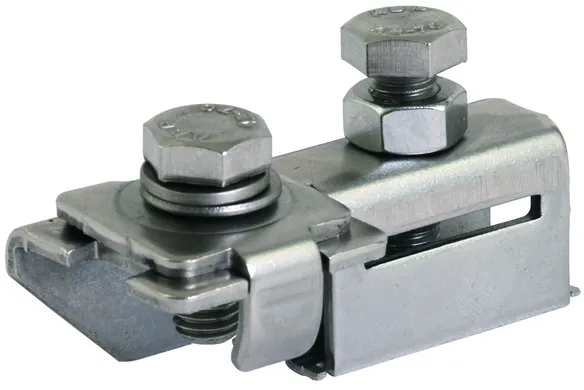

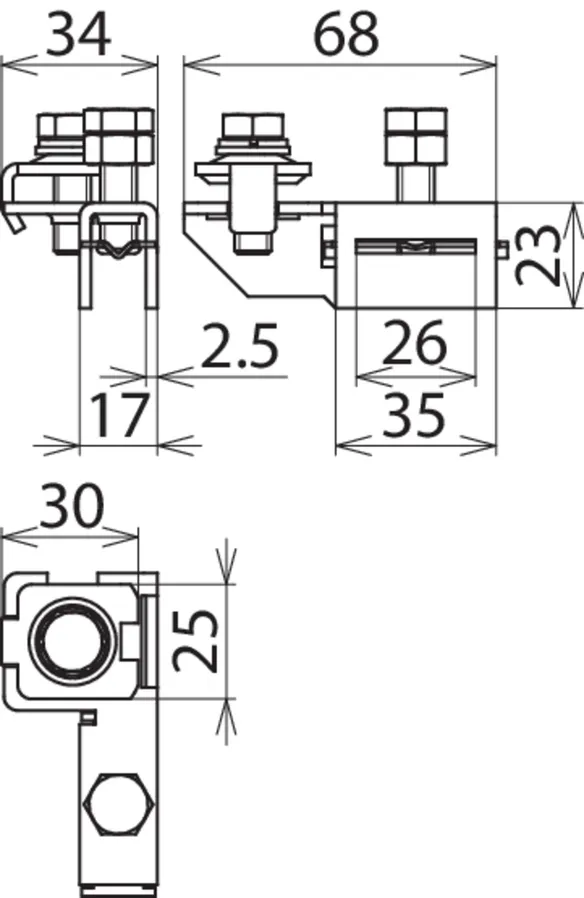

Separate grip head

For combination with endless tensioning strap (Part No. 540 901), connection cross-section 4-50 mm² (solid / stranded).

1 产品

货号 540199 SPK 27.89 BRS AK1X10 2X6.8 GSG V2A

全球贸易项目代码 4013364304741, 海关HS编码: 85359000, 总重: 110.60 g, 包装单位: 25.00 pc(s)


附加信息

Pipe clamp for hazardous areas, StSt, zone 2/22, separate grip head
Pipe clamp for electrically contacting pipes in hazardous
areas (zone 2/22). The pipe clamp according to
Supplement 2 of the German DIN EN 62305-3 (VDE 0185-
305-3) standard is secured against working loose.
Separate grip head, for combination with endless tensioning strap (Part No. 540 901)
Material: StSt
Connection Rd: 1 x 10 mm / 1-2 x 6-8 mm
Connection (solid / stranded): 4-50 mm2
Standard: EN 62561-1

Brand: DEHN
Type: SPK 27.89 BRS AK1X10 2X6.8 GSG V2A
Part No.: 540199
or equivalent.

认证



技术参数

Material StSt
Connection (solid / stranded) 4-50 mm2
Standard EN 62561-1
*) For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品540199加入购物车。

进入网上商店

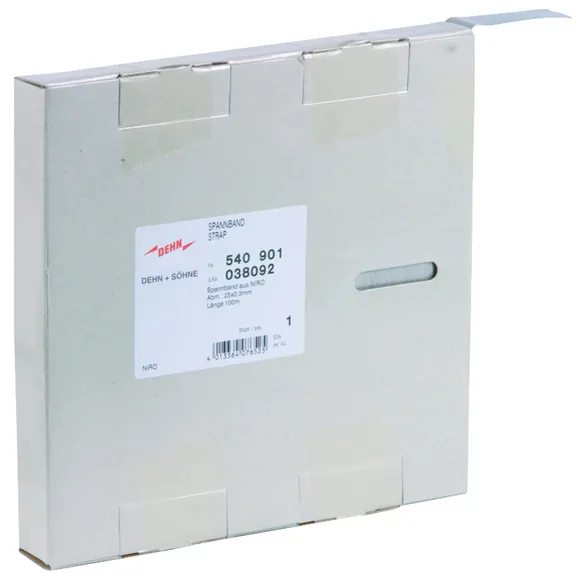

Endless tensioning strap

For cutting to length, e.g. with snips.

1 产品

货号 540901 SPB 25X0.3 L100M V2A

全球贸易项目代码 4013364076525, 海关HS编码: 73269098, 总重: 6.30 kg, 包装单位: 1.00 pc(s)


附加信息

Pipe clamps for hazardous areas, tensioning strap
Earthing pipe clamp for combination with different
fixing elements or connection components
Material: StSt
Dimensions of strap: 25 x 0.3 mm

Brand: DEHN
Type: SPB 25X0.3 L100M V2A
Part No.: 540901
or equivalent.

认证



技术参数

Material StSt
Dimensions of strap (w x d) 25 x 0.3 mm

.产品已加入收藏夹。

进入收藏夹

商品540901加入购物车。

进入网上商店
