Stripping Tool for HVI power Conductors

Tool for stripping the semi-conductive sheath and the PE insulation of the HVI power Conductor (outer diameter 27 mm)

Tool consists of a of handle and various exchangeable cutting heads
Stripping length of the HVI power Conductor is adjustable in steps of 0.2 mm (lock points) using the knob. The dial on the handle shows the length set.

HandlingPosition the cutting head at the end of the conductor and turn clockwise with light pressure to cut / strip it.The cutting head can be exchanged without tools via the bayonet coupling.

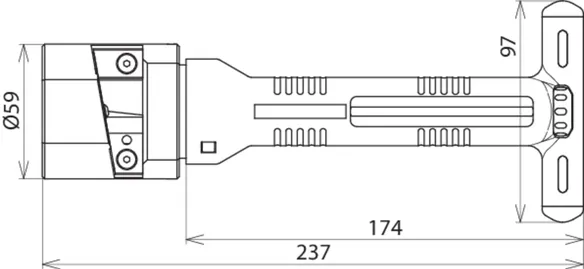

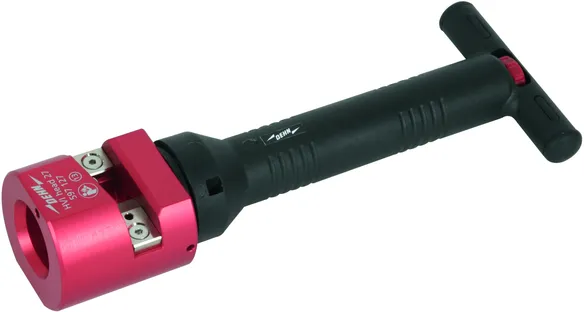

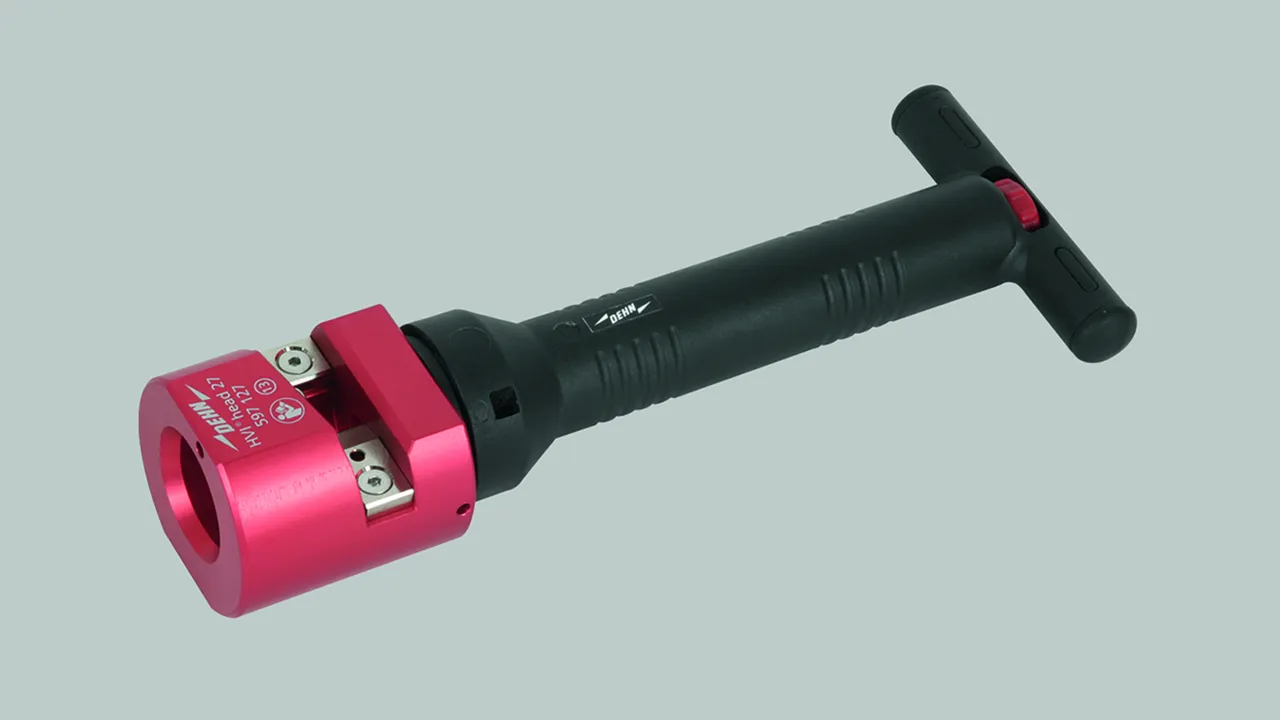

HVI strip 27

For HVI power Conductors.

1 产品

货号 597227 HVI STRIP 27

全球贸易项目代码 4013364153103, 海关HS编码: 82055980, 总重: 699.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Brand: DEHN
Type: HVI STRIP 27
Part No.: 597227
or equivalent.

技术参数

Diameter Ø conductor	27 mm
Material of moulded part	plastic / Al
Material of blade	StSt

.产品已加入收藏夹。

进入收藏夹

商品597227加入购物车。

进入网上商店

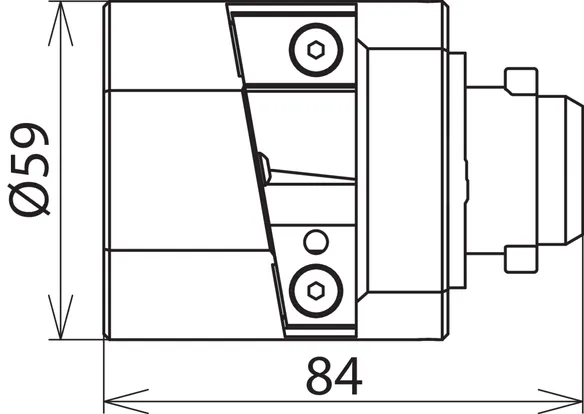

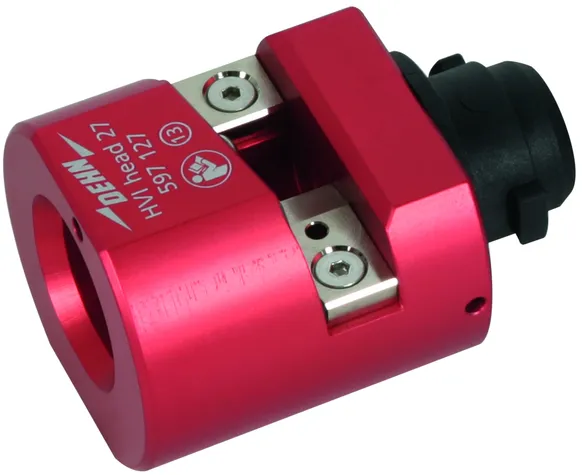

HVI head 27

For HVI power Conductors.

1 产品

货号 597127 HVI HEAD 27

全球贸易项目代码 4013364153110, 海关HS编码: 82055980, 总重: 411.80 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Brand: DEHN
Type: HVI HEAD 27
Part No.: 597127
or equivalent.

技术参数

Diameter Ø conductor	27 mm
Material of moulded part	Al
Material of blade	StSt
