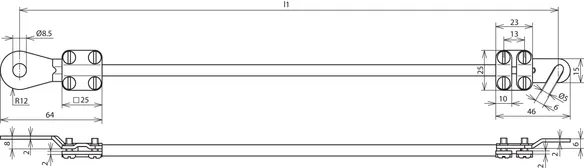

货号 410503 EL10 L0.35M 1KSO 5.6 1KSG 8

全球贸易项目代码 4013364029408, 海关HS编码: 85444290, 总重: 99.60 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 1x open cable lug, 1x closed cable lug, 0.35 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M5/M6 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 0.35 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L0.35M 1KSO 5.6 1KSG 8
Part No.: 410503
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	0.35 m
Cable lug open	M5 / M6
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	0.35 m
Cable lug open	M5 / M6
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410503加入购物车。

进入网上商店

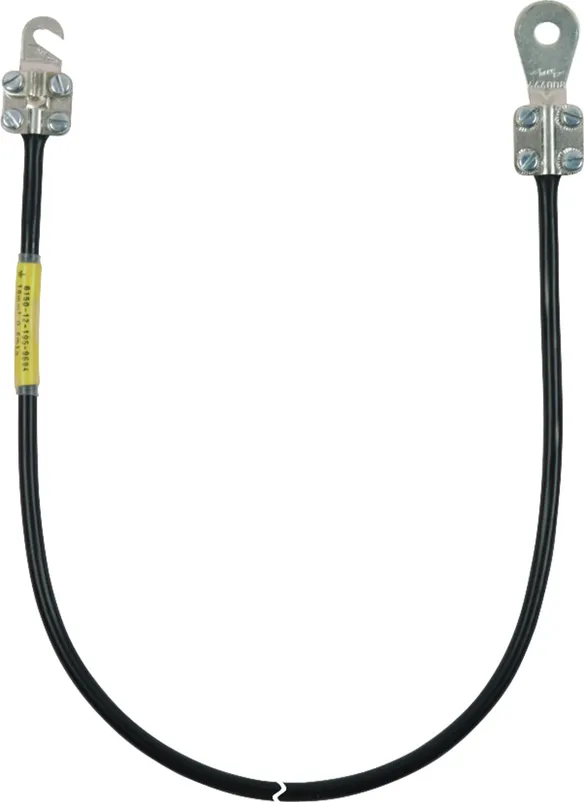

货号 410506 EL10 L0.65M 1KSO 5.6 1KSG 8

全球贸易项目代码 4013364029415, 海关HS编码: 85444290, 总重: 115.80 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 1x open cable lug, 1x closed cable lug, 0.65 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M5/M6 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 0.65 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L0.65M 1KSO 5.6 1KSG 8
Part No.: 410506
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	0.65 m
Cable lug open	M5 / M6
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	0.65 m
Cable lug open	M5 / M6
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410506加入购物车。

进入网上商店

货号 410510 EL10 L1.05M 1KSO 5.6 1KSG 8

全球贸易项目代码 4013364029422, 海关HS编码: 85444290, 总重: 185.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 1x open cable lug, 1x closed cable lug, 1.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M5/M6 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 1.05 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L1.05M 1KSO 5.6 1KSG 8
Part No.: 410510
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	1.05 m
Cable lug open	M5 / M6
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	1.05 m
Cable lug open	M5 / M6
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410510加入购物车。

进入网上商店

货号 410515 EL10 L1.55M 1KSO 5.6 1KSG 8

全球贸易项目代码 4013364029439, 海关HS编码: 85444290, 总重: 250.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 1x open cable lug, 1x closed cable lug, 1.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M5/M6 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 1.55 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L1.55M 1KSO 5.6 1KSG 8
Part No.: 410515
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	1.55 m
Cable lug open	M5 / M6
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	1.55 m
Cable lug open	M5 / M6
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410515加入购物车。

进入网上商店

货号 410520 EL10 L2.05M 1KSO 5.6 1KSG 8

全球贸易项目代码 4013364029446, 海关HS编码: 85444290, 总重: 300.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 1x open cable lug, 1x closed cable lug, 2.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M5/M6 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 2.05 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L2.05M 1KSO 5.6 1KSG 8
Part No.: 410520
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	2.05 m
Cable lug open	M5 / M6
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	2.05 m
Cable lug open	M5 / M6
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410520加入购物车。

进入网上商店

货号 410525 EL10 L2.55M 1KSO 5.6 1KSG 8

全球贸易项目代码 4013364029453, 海关HS编码: 85444290, 总重: 365.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 1x open cable lug, 1x closed cable lug, 2.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M5/M6 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 2.55 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L2.55M 1KSO 5.6 1KSG 8
Part No.: 410525
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	2.55 m
Cable lug open	M5 / M6
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	2.55 m
Cable lug open	M5 / M6
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410525加入购物车。

进入网上商店

货号 410530 EL10 L3.05M 1KSO 5.6 1KSG 8

全球贸易项目代码 4013364029460, 海关HS编码: 85444290, 总重: 425.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 1x open cable lug, 1x closed cable lug, 3.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M5/M6 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 3.05 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L3.05M 1KSO 5.6 1KSG 8
Part No.: 410530
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	3.05 m
Cable lug open	M5 / M6
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	3.05 m
Cable lug open	M5 / M6
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410530加入购物车。

进入网上商店

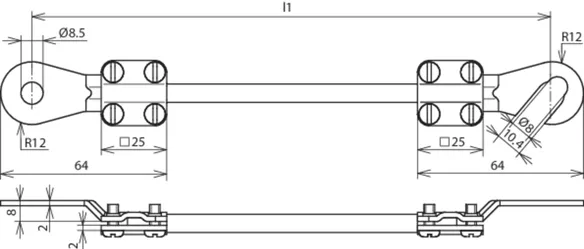

货号 410401 EL10 L0.20M 1KSO 8.10 1KSG 8

全球贸易项目代码 4013364029200, 海关HS编码: 85444290, 总重: 90.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open and closed cable lug, 0.20 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 0.20 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L0.20M 1KSO 8.10 1KSG 8
Part No.: 410401
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	0.20 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	0.20 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410401加入购物车。

进入网上商店

货号 410403 EL10 L0.35M 1KSO 8.10 1KSG 8

全球贸易项目代码 4013364029194, 海关HS编码: 85444290, 总重: 109.20 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open and closed cable lug, 0.35 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 0.35 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L0.35M 1KSO 8.10 1KSG 8
Part No.: 410403
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	0.35 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	0.35 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410403加入购物车。

进入网上商店

货号 410404 EL10 L0.45M 1KSO 8.10 1KSG 8

全球贸易项目代码 4013364029187, 海关HS编码: 85444290, 总重: 122.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open and closed cable lug, 0.45 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 0.45 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L0.45M 1KSO 8.10 1KSG 8
Part No.: 410404
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	0.45 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	0.45 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410404加入购物车。

进入网上商店

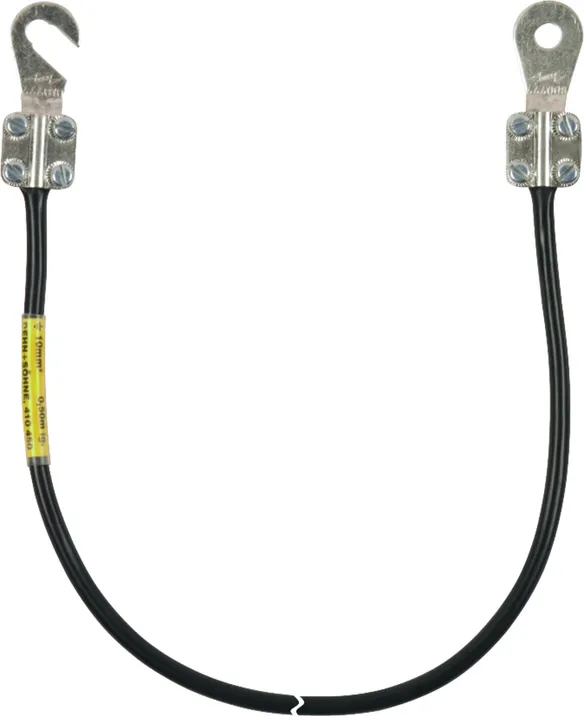

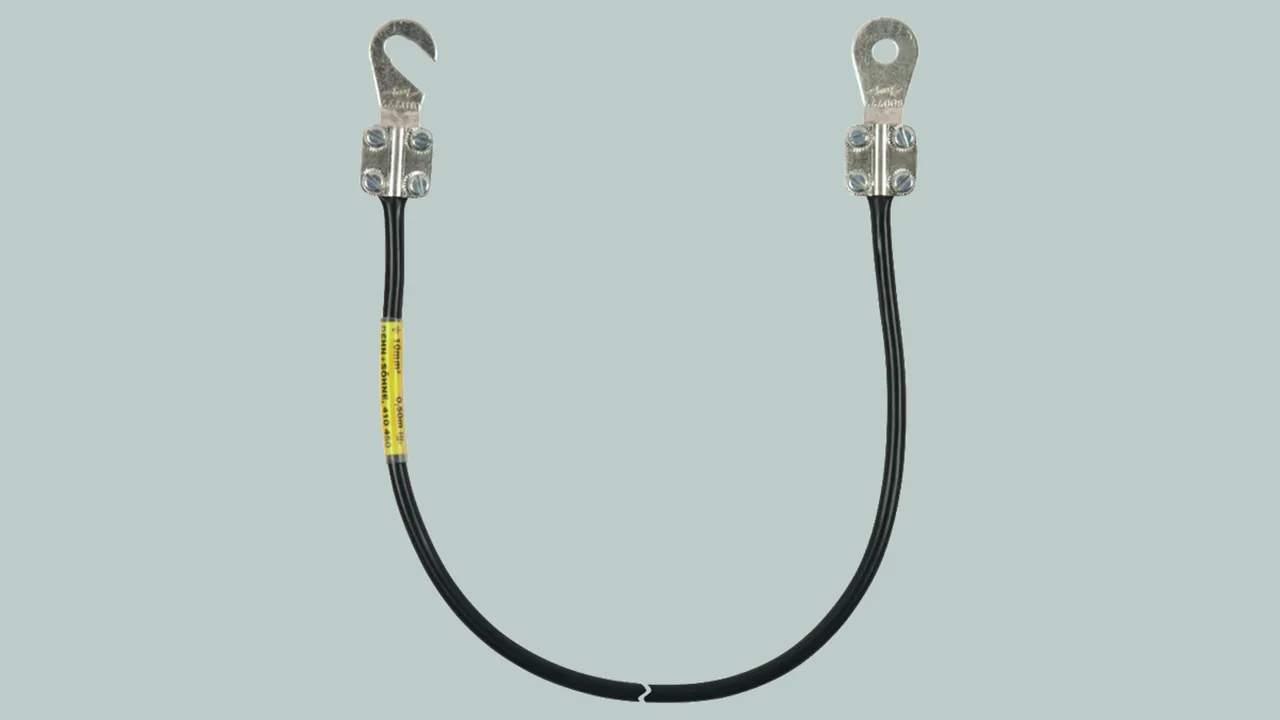

货号 410450 EL10 L0.55M 1KSO 8.10 1KSG 8

全球贸易项目代码 4013364029170, 海关HS编码: 85444290, 总重: 135.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open and closed cable lug, 0.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 0.55 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L0.55M 1KSO 8.10 1KSG 8
Part No.: 410450
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	0.55 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	0.55 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410450加入购物车。

进入网上商店

货号 410406 EL10 L0.65M 1KSO 8.10 1KSG 8

全球贸易项目代码 4013364029163, 海关HS编码: 85444290, 总重: 147.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open and closed cable lug, 0.65 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 0.65 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L0.65M 1KSO 8.10 1KSG 8
Part No.: 410406
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	0.65 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	0.65 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410406加入购物车。

进入网上商店

货号 410411 EL10 L1.05M 1KSO 8.10 1KSG 8

全球贸易项目代码 4013364029156, 海关HS编码: 85444290, 总重: 197.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open and closed cable lug, 1.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 1.05 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L1.05M 1KSO 8.10 1KSG 8
Part No.: 410411
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	1.05 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	1.05 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410411加入购物车。

进入网上商店

货号 410415 EL10 L1.55M 1KSO 8.10 1KSG 8

全球贸易项目代码 4013364029149, 海关HS编码: 85444290, 总重: 261.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open and closed cable lug, 1.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 1.55 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L1.55M 1KSO 8.10 1KSG 8
Part No.: 410415
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	1.55 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	1.55 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410415加入购物车。

进入网上商店

货号 410420 EL10 L2.05M 1KSO 8.10 1KSG 8

全球贸易项目代码 4013364029132, 海关HS编码: 85444290, 总重: 320.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open and closed cable lug, 2.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 2.05 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L2.05M 1KSO 8.10 1KSG 8
Part No.: 410420
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	2.05 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	2.05 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410420加入购物车。

进入网上商店

货号 410425 EL10 L2.55M 1KSO 8.10 1KSG 8

全球贸易项目代码 4013364029125, 海关HS编码: 85444290, 总重: 385.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open and closed cable lug, 2.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 2.55 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L2.55M 1KSO 8.10 1KSG 8
Part No.: 410425
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	2.55 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	2.55 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0,1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410425加入购物车。

进入网上商店

货号 410430 EL10 L3.05M 1KSO 8.10 1KSG 8

全球贸易项目代码 4013364029118, 海关HS编码: 85444290, 总重: 445.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open and closed cable lug, 3.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 10 mm2
Cable length: 3.05 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL10 L3.05M 1KSO 8.10 1KSG 8
Part No.: 410430
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	3.05 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	3.05 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410430加入购物车。

进入网上商店

货号 410413 EL10 L0.35M 1KSO 8.10 1KSG 10

全球贸易项目代码 4013364029279, 海关HS编码: 85444290, 总重: 110.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

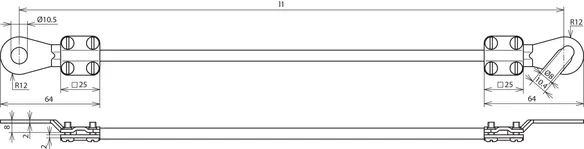

Earthing cable, open / closed cable lug, 0.35 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 10 mm2
Cable length: 0.35 m
Hole Ø: 10.5 mm

Brand: DEHN
Type: EL10 L0.35M 1KSO 8.10 1KSG 10
Part No.: 410413
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	0.35 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	0.35 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410413加入购物车。

进入网上商店

货号 410405 EL10 L0.55M 1KSO 8.10 1KSG 10

全球贸易项目代码 4013364029262, 海关HS编码: 85444290, 总重: 140.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

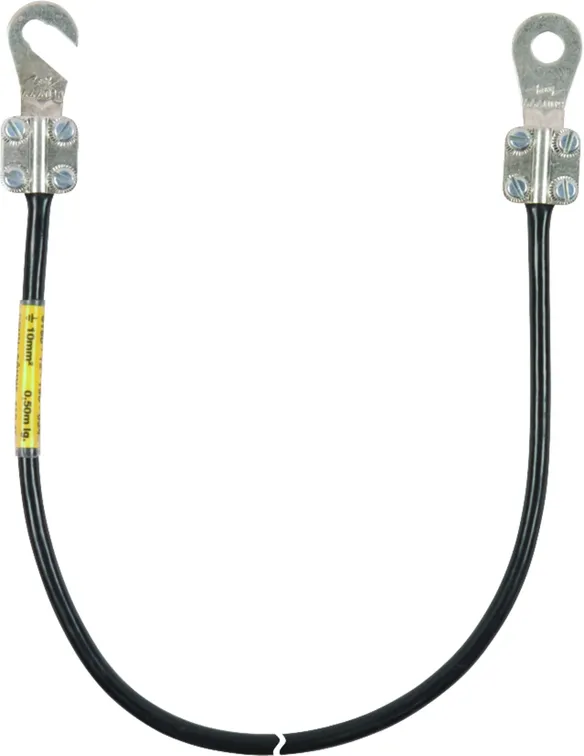

Earthing cable, open and closed cable lug, 0.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 10 mm2
Cable length: 0.55 m
Hole Ø: 10.5 mm

Brand: DEHN
Type: EL10 L0.55M 1KSO 8.10 1KSG 10
Part No.: 410405
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	0.55 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	0.55 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410405加入购物车。

进入网上商店

货号 410407 EL10 L0.65M 1KSO 8.10 1KSG 10

全球贸易项目代码 4013364029255, 海关HS编码: 85444290, 总重: 145.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open and closed cable lug, 0.65 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 10 mm2
Cable length: 0.65 m
Hole Ø: 10.5 mm

Brand: DEHN
Type: EL10 L0.65M 1KSO 8.10 1KSG 10
Part No.: 410407
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	0.65 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	0.65 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410407加入购物车。

进入网上商店

货号 410410 EL10 L1.05M 1KSO 8.10 1KSG 10

全球贸易项目代码 4013364029248, 海关HS编码: 85444290, 总重: 200.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open and closed cable lug, 1.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 10 mm2
Cable length: 1.05 m
Hole Ø: 10.5 mm

Brand: DEHN
Type: EL10 L1.05M 1KSO 8.10 1KSG 10
Part No.: 410410
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	1.05 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	1.05 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410410加入购物车。

进入网上商店

货号 410416 EL10 L1.55M 1KSO 8.10 1KSG 10

全球贸易项目代码 4013364029231, 海关HS编码: 85444290, 总重: 250.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open and closed cable lug, 1.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 10 mm2
Cable length: 1.55 m
Hole Ø: 10.5 mm

Brand: DEHN
Type: EL10 L1.55M 1KSO 8.10 1KSG 10
Part No.: 410416
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	1.55 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	1.55 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410416加入购物车。

进入网上商店

货号 410421 EL10 L2.05M 1KSO 8.10 1KSG 10

全球贸易项目代码 4013364029224, 海关HS编码: 85444290, 总重: 320.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open and closed cable lug, 2.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 10 mm2
Cable length: 2.05 m
Hole Ø: 10.5 mm

Brand: DEHN
Type: EL10 L2.05M 1KSO 8.10 1KSG 10
Part No.: 410421
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	2.05 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	2.05 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410421加入购物车。

进入网上商店

货号 410426 EL10 L2.55M 1KSO 8.10 1KSG 10

全球贸易项目代码 4013364029217, 海关HS编码: 85444290, 总重: 370.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open and closed cable lug, 2.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 10 mm2
Cable length: 2.55 m
Hole Ø: 10.5 mm

Brand: DEHN
Type: EL10 L2.55M 1KSO 8.10 1KSG 10
Part No.: 410426
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	2.55 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	2.55 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410426加入购物车。

进入网上商店

货号 410431 EL10 L3.05M 1KSO 8.10 1KSG 10

全球贸易项目代码 4013364029590, 海关HS编码: 85444290, 总重: 430.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open and closed cable lug, 3.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 10 mm2
Cable length: 3.05 m
Hole Ø: 10.5 mm

Brand: DEHN
Type: EL10 L3.05M 1KSO 8.10 1KSG 10
Part No.: 410431
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	3.05 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	3.05 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410431加入购物车。

进入网上商店

货号 416505 EL16 L0.55M 1KSO 5.6 1KSG 8

全球贸易项目代码 4013364029477, 海关HS编码: 85444290, 总重: 158.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open and closed cable lug, 0.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M5/M6 and 1x closed M8
Cable cross section: 16 mm2
Cable length: 0.55 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL16 L0.55M 1KSO 5.6 1KSG 8
Part No.: 416505
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	0.55 m
Cable lug open	M5 / M6
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	16 mm²
Cable length (l1)	0.55 m
Cable lug open	M5 / M6
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品416505加入购物车。

进入网上商店

货号 416411 EL16 L1.05M 1KSO 8.10 1KSG 8

全球贸易项目代码 4013364032545, 海关HS编码: 85444290, 总重: 266.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open and closed cable lug, 1.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 16 mm2
Cable length: 1.05 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL16 L1.05M 1KSO 8.10 1KSG 8
Part No.: 416411
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	1.05 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	16 mm²
Cable length (l1)	1.05 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品416411加入购物车。

进入网上商店

货号 416415 EL16 L1.55M KSO 8.10 KSG 8

全球贸易项目代码 4013364032439, 海关HS编码: 85444290, 总重: 364.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open and closed cable lug, 1.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 16 mm2
Cable length: 1.55 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL16 L1.55M KSO 8.10 KSG 8
Part No.: 416415
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	1.55 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	16 mm²
Cable length (l1)	1.55 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品416415加入购物车。

进入网上商店

货号 416420 EL16 L2.05M 1KSO 8.10 1KSG 8

全球贸易项目代码 4013364032446, 海关HS编码: 85444290, 总重: 464.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open and closed cable lug, 2.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 16 mm2
Cable length: 2.05 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL16 L2.05M 1KSO 8.10 1KSG 8
Part No.: 416420
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	2.05 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	16 mm²
Cable length (l1)	2.05 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品416420加入购物车。

进入网上商店

货号 416425 EL16 L2.55M 1KSO 8.10 1KSG 8

全球贸易项目代码 4013364032460, 海关HS编码: 85444290, 总重: 558.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open and closed cable lug, 2.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 16 mm2
Cable length: 2.55 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL16 L2.55M 1KSO 8.10 1KSG 8
Part No.: 416425
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	2.55 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	16 mm²
Cable length (l1)	2.55 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品416425加入购物车。

进入网上商店

货号 416430 EL16 L3.05M 1KSO 8.10 1KSG 8

全球贸易项目代码 4013364032484, 海关HS编码: 85444290, 总重: 654.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open and closed cable lug, 3.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 16 mm2
Cable length: 3.05 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL16 L3.05M 1KSO 8.10 1KSG 8
Part No.: 416430
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	3.05 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	16 mm²
Cable length (l1)	3.05 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品416430加入购物车。

进入网上商店

货号 416440 EL16 L4.05M 1KSO 8.10 1KSG 8

全球贸易项目代码 4013364032507, 海关HS编码: 85444290, 总重: 849.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open and closed cable lug, 4.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 16 mm2
Cable length: 4.05 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL16 L4.05M 1KSO 8.10 1KSG 8
Part No.: 416440
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	4.05 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	16 mm²
Cable length (l1)	4.05 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品416440加入购物车。

进入网上商店

货号 416450 EL16 L5.05M 1KSO 8.10 1KSG 8

全球贸易项目代码 4013364032521, 海关HS编码: 85444290, 总重: 1.04 kg, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open and closed cable lug, 5.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M8
Cable cross section: 16 mm2
Cable length: 5.05 m
Hole Ø: 8.5 mm

Brand: DEHN
Type: EL16 L5.05M 1KSO 8.10 1KSG 8
Part No.: 416450
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	5.05 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Colour	black ●

Cable cross section	16 mm²
Cable length (l1)	5.05 m
Cable lug open	M8 / M10
Cable lug closed	M8
Hole Ø	8.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品416450加入购物车。

进入网上商店

货号 416403 EL16 L0.35M 1KSO 8.10 1KSG 10

全球贸易项目代码 4013364029286, 海关HS编码: 85444290, 总重: 130.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open and closed cable lug, 0.35 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 16 mm2
Cable length: 0.35 m
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L0.35M 1KSO 8.10 1KSG 10
Part No.: 416403
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	0.35 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	0.35 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416403加入购物车。

进入网上商店

货号 416410 EL16 L1.05M 1KSO 8.10 1KSG 10

全球贸易项目代码 4013364032422, 海关HS编码: 85444290, 总重: 265.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open and closed cable lug, 1.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 16 mm2
Cable length: 1.05 m
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L1.05M 1KSO 8.10 1KSG 10
Part No.: 416410
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	1.05 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	1.05 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416410加入购物车。

进入网上商店

货号 416416 EL16 L1.55M 1KSO 8.10 1KSG 10

全球贸易项目代码 4013364032453, 海关HS编码: 85444290, 总重: 364.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open and closed cable lug, 1.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 16 mm2
Cable length: 1.55 m
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L1.55M 1KSO 8.10 1KSG 10
Part No.: 416416
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	1.55 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	1.55 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416416加入购物车。

进入网上商店

货号 416421 EL16 L2.05M 1KSO 8.10 1KSG 10

全球贸易项目代码 4013364036116, 海关HS编码: 85444290, 总重: 461.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open and closed cable lug, 2.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 16 mm2
Cable length: 2.05 m
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L2.05M 1KSO 8.10 1KSG 10
Part No.: 416421
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	2.05 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	2.05 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416421加入购物车。

进入网上商店

货号 416426 EL16 L2.55M 1KSO 8.10 1KSG 10

全球贸易项目代码 4013364032477, 海关HS编码: 85444290, 总重: 558.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open and closed cable lug, 2.55 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 16 mm2
Cable length: 2.55 m
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L2.55M 1KSO 8.10 1KSG 10
Part No.: 416426
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	2.55 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	2.55 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416426加入购物车。

进入网上商店

货号 416431 EL16 L3.05M 1KSO 8.10 1KSG 10

全球贸易项目代码 4013364032491, 海关HS编码: 85444290, 总重: 655.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open and closed cable lug, 3.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 16 mm2
Cable length: 3.05 m
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L3.05M 1KSO 8.10 1KSG 10
Part No.: 416431
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	3.05 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	3.05 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416431加入购物车。

进入网上商店

货号 416441 EL16 L4.05M 1KSO 8.10 1KSG 10

全球贸易项目代码 4013364032514, 海关HS编码: 85444290, 总重: 849.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open and closed cable lug, 4.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 16 mm2
Cable length: 4.05 m
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L4.05M 1KSO 8.10 1KSG 10
Part No.: 416441
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	4.05 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	4.05 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416441加入购物车。

进入网上商店

货号 416451 EL16 L5.05M 1KSO 8.10 1KSG 10

全球贸易项目代码 4013364032538, 海关HS编码: 85444290, 总重: 1.04 kg, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open and closed cable lug, 5.05 m long
Earthing cable, open / closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 1x open M8/M10 and 1x closed M10
Cable cross section: 16 mm2
Cable length: 5.05 m
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L5.05M 1KSO 8.10 1KSG 10
Part No.: 416451
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	5.05 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	5.05 m
Cable lug open	M8 / M10
Cable lug closed	M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416451加入购物车。

进入网上商店

Earthing Cables with Cable Lugs open / closed

Cable lug, 1x open M5 / M6 and 1x closed M8

货号 410503 EL10 L0.35M 1KSO 5.6 1KSG 8

.产品已加入收藏夹。

商品410503加入购物车。

货号 410506 EL10 L0.65M 1KSO 5.6 1KSG 8

.产品已加入收藏夹。

商品410506加入购物车。

货号 410510 EL10 L1.05M 1KSO 5.6 1KSG 8

.产品已加入收藏夹。

商品410510加入购物车。

货号 410515 EL10 L1.55M 1KSO 5.6 1KSG 8

.产品已加入收藏夹。

商品410515加入购物车。

货号 410520 EL10 L2.05M 1KSO 5.6 1KSG 8

.产品已加入收藏夹。

商品410520加入购物车。

货号 410525 EL10 L2.55M 1KSO 5.6 1KSG 8

.产品已加入收藏夹。

商品410525加入购物车。

货号 410530 EL10 L3.05M 1KSO 5.6 1KSG 8

.产品已加入收藏夹。

商品410530加入购物车。

Cable lug, 1x open M8 / M10 and 1x closed M8

货号 410401 EL10 L0.20M 1KSO 8.10 1KSG 8

.产品已加入收藏夹。

商品410401加入购物车。

货号 410403 EL10 L0.35M 1KSO 8.10 1KSG 8

.产品已加入收藏夹。

商品410403加入购物车。

货号 410404 EL10 L0.45M 1KSO 8.10 1KSG 8

.产品已加入收藏夹。

商品410404加入购物车。

货号 410450 EL10 L0.55M 1KSO 8.10 1KSG 8

.产品已加入收藏夹。

商品410450加入购物车。

货号 410406 EL10 L0.65M 1KSO 8.10 1KSG 8

.产品已加入收藏夹。

商品410406加入购物车。

货号 410411 EL10 L1.05M 1KSO 8.10 1KSG 8

.产品已加入收藏夹。

商品410411加入购物车。

货号 410415 EL10 L1.55M 1KSO 8.10 1KSG 8

.产品已加入收藏夹。

商品410415加入购物车。

货号 410420 EL10 L2.05M 1KSO 8.10 1KSG 8

.产品已加入收藏夹。

商品410420加入购物车。

货号 410425 EL10 L2.55M 1KSO 8.10 1KSG 8

.产品已加入收藏夹。

商品410425加入购物车。

货号 410430 EL10 L3.05M 1KSO 8.10 1KSG 8

.产品已加入收藏夹。

商品410430加入购物车。

Cable lug, 1x open M8 / M10 and 1x closed M10

货号 410413 EL10 L0.35M 1KSO 8.10 1KSG 10

.产品已加入收藏夹。

商品410413加入购物车。

货号 410405 EL10 L0.55M 1KSO 8.10 1KSG 10

.产品已加入收藏夹。

商品410405加入购物车。

货号 410407 EL10 L0.65M 1KSO 8.10 1KSG 10

.产品已加入收藏夹。

商品410407加入购物车。

货号 410410 EL10 L1.05M 1KSO 8.10 1KSG 10

.产品已加入收藏夹。

商品410410加入购物车。

货号 410416 EL10 L1.55M 1KSO 8.10 1KSG 10

.产品已加入收藏夹。

商品410416加入购物车。

货号 410421 EL10 L2.05M 1KSO 8.10 1KSG 10

.产品已加入收藏夹。

商品410421加入购物车。

货号 410426 EL10 L2.55M 1KSO 8.10 1KSG 10

.产品已加入收藏夹。

商品410426加入购物车。

货号 410431 EL10 L3.05M 1KSO 8.10 1KSG 10

.产品已加入收藏夹。

商品410431加入购物车。

Cable lug, 1x open M5 / M6 and 1x closed M8
