Earthing Cable Lugs

For mounting on site with integrated strain relief (second half of clamping part).Please observe the following parameters for mounting:
  • Stripping approx. 15 mm
  • Wire end ferrule acc. to DIN 46228
  • Tightening torque of the locking nut screws ≥ 3 Nm

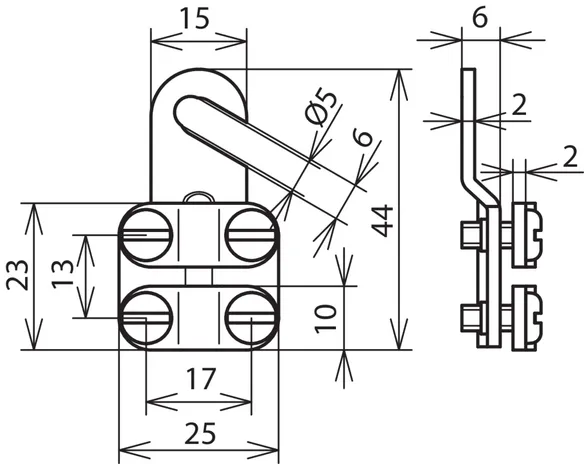

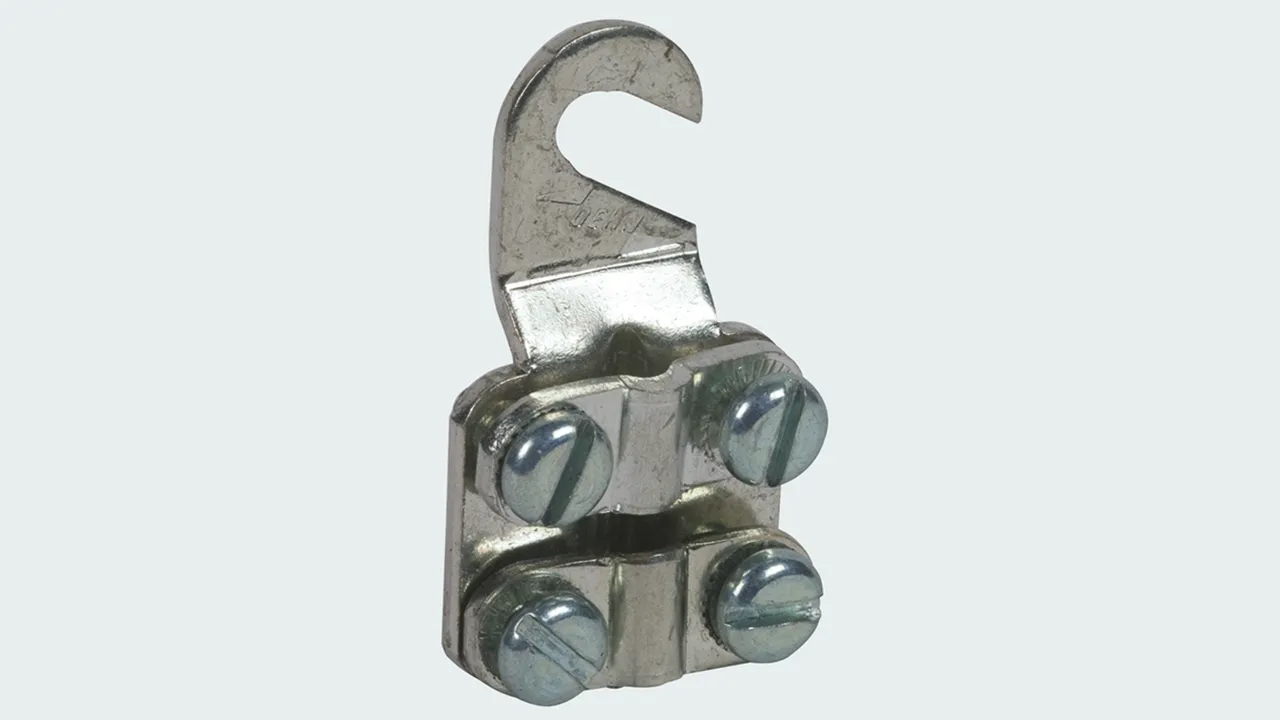

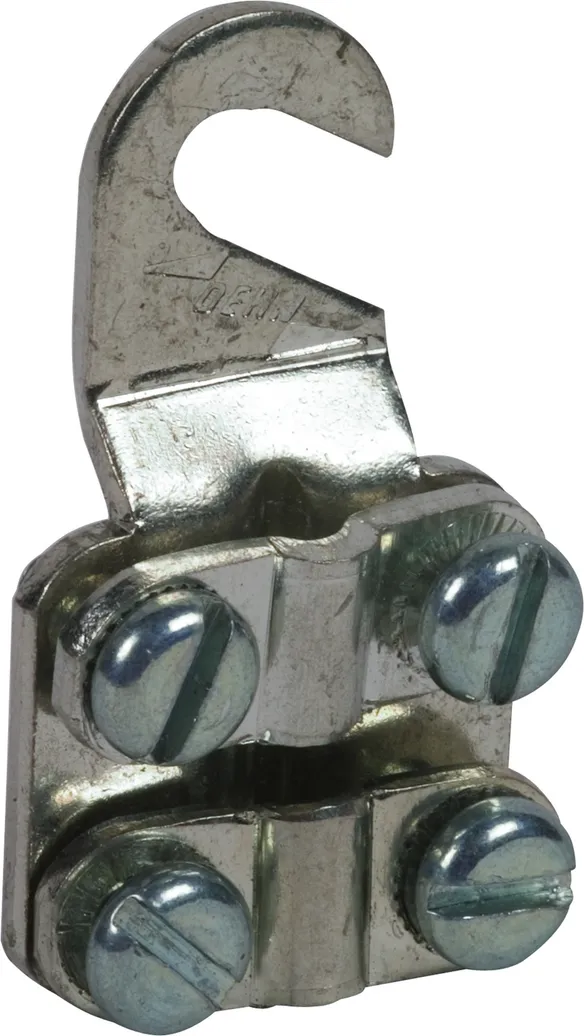

Open M5 / M6

1 产品

货号 444006 EKSO 5.6 AQ6 16 CUGALZN

全球贸易项目代码 4013364029323, 海关HS编码: 85369095, 总重: 29.80 g, 包装单位: 100.00 pc(s)


附加信息

Earthing cable lug, open, M5 / M6
Separate earthing cable lug
Open
Cable cross section: 6-16 mm2
Cable lug fitting: M5 / M6
Material: Cu/gal Sn

Brand: DEHN
Type: EKSO 5.6 AQ6 16 CUGALZN
Part No.: 444006
or equivalent.



技术参数

Cable cross section 6-16 mm2
Cable lug fitting M5 / M6
Material Cu /gal Sn

.产品已加入收藏夹。

进入收藏夹

商品444006加入购物车。

进入网上商店

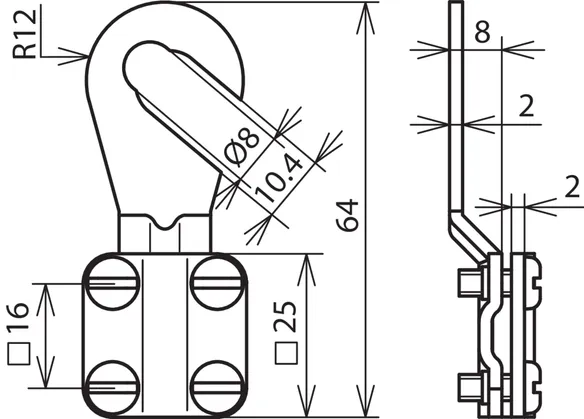

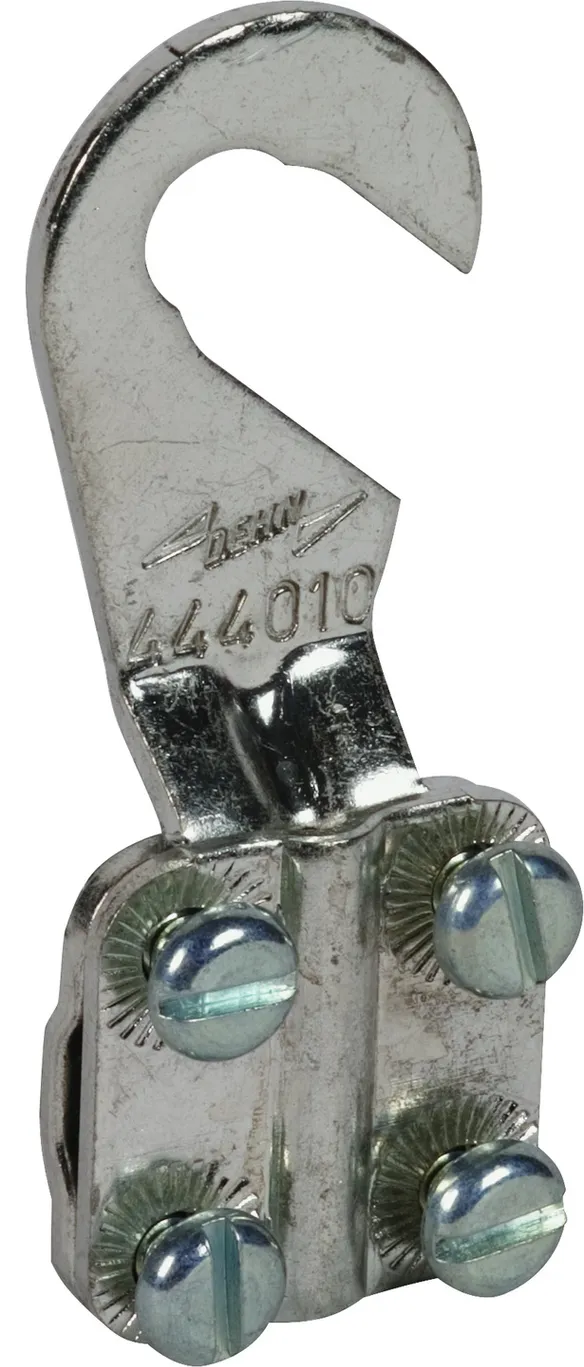

Open M8 / M10

1 产品

货号 444010 EKSO 8.10 AQ6 16 CUGALZN

全球贸易项目代码 4013364029316, 海关HS编码: 85369095, 总重: 34.80 g, 包装单位: 100.00 pc(s)


附加信息

Earthing cable lug, open, M8 / M10
Separate earthing cable lug
Open
Cable cross section: 6-16 mm2
Cable lug fitting: M8 / M10
Material: Cu/gal Sn

Brand: DEHN
Type: EKSO 8.10 AQ6 16 CUGALZN
Part No.: 444010
or equivalent.



技术参数

Cable cross section 6-16 mm2
Cable lug fitting M8 / M10
Material Cu /gal Sn

.产品已加入收藏夹。

进入收藏夹

商品444010加入购物车。

进入网上商店

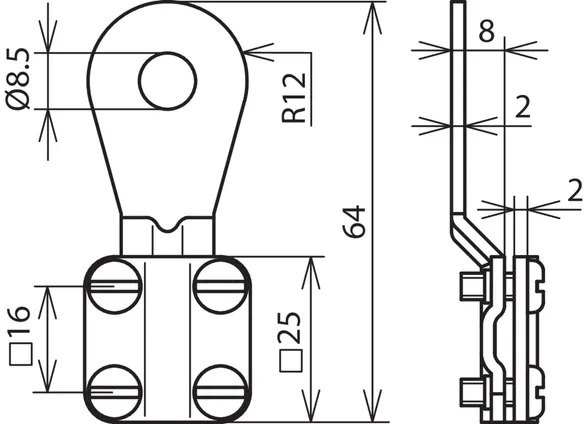

Closed M8

1 产品

货号 444008 EKSG 8 AQ6 16 CUGALZN

全球贸易项目代码 4013364029293, 海关HS编码: 85369095, 总重: 37.20 g, 包装单位: 1.00 pc(s)


附加信息

Earthing cable lug, closed, M8
Separate earthing cable lug
Closed
Cable cross section: 6-16 mm2
Cable lug fitting: M8
Material: Cu/gal Sn

Brand: DEHN
Type: EKSG 8 AQ6 16 CUGALZN
Part No.: 444008
or equivalent.



技术参数

Cable cross section 6-16 mm2
Cable lug fitting M8
Material Cu /gal Sn

.产品已加入收藏夹。

进入收藏夹

商品444008加入购物车。

进入网上商店

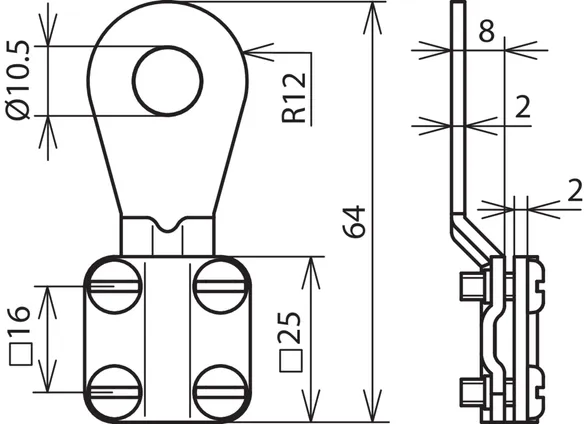

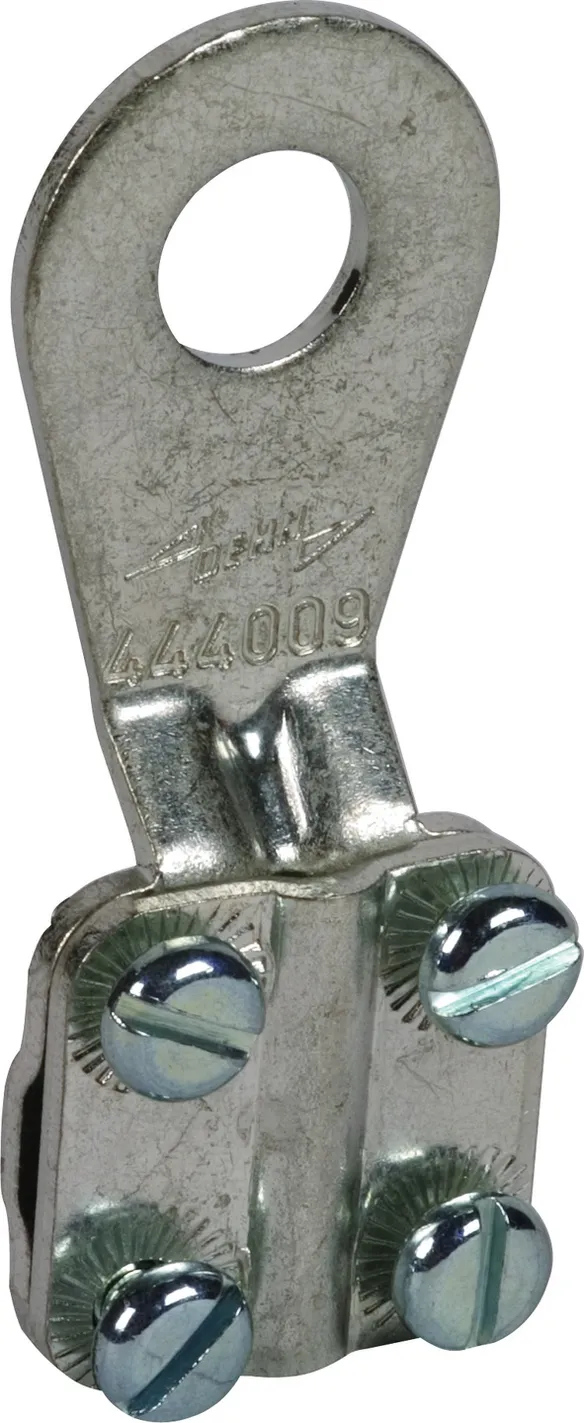

Closed M10

1 产品

货号 444009 EKSG 10 AQ6 16 CUGALZN

全球贸易项目代码 4013364029309, 海关HS编码: 85369095, 总重: 36.70 g, 包装单位: 1.00 pc(s)


附加信息

Earthing cable lug, closed, M10
Separate earthing cable lug
Closed
Cable cross section: 6-16 mm2
Cable lug fitting: M10
Material: Cu/gal Sn

Brand: DEHN
Type: EKSG 10 AQ6 16 CUGALZN
Part No.: 444009
or equivalent.



技术参数

Cable cross section 6-16 mm2
Cable lug fitting M10
Material Cu /gal Sn

.产品已加入收藏夹。

进入收藏夹

商品444009加入购物车。

进入网上商店
