Earthing Clamps

For connecting earthing conductors to pipes, with wing screw M8.

Small design

1 产品

货号 435805 EK 4.45 AQ6 16 TGTZN

全球贸易项目代码 4013364029798, 海关HS编码: 85369095, 总重: 317.00 g, 包装单位: 1.00 pc(s)


附加信息

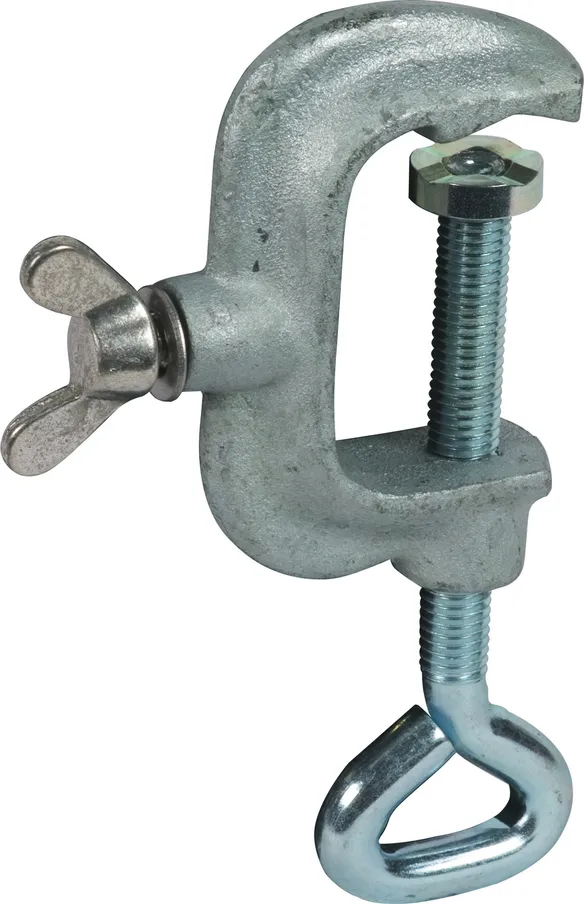

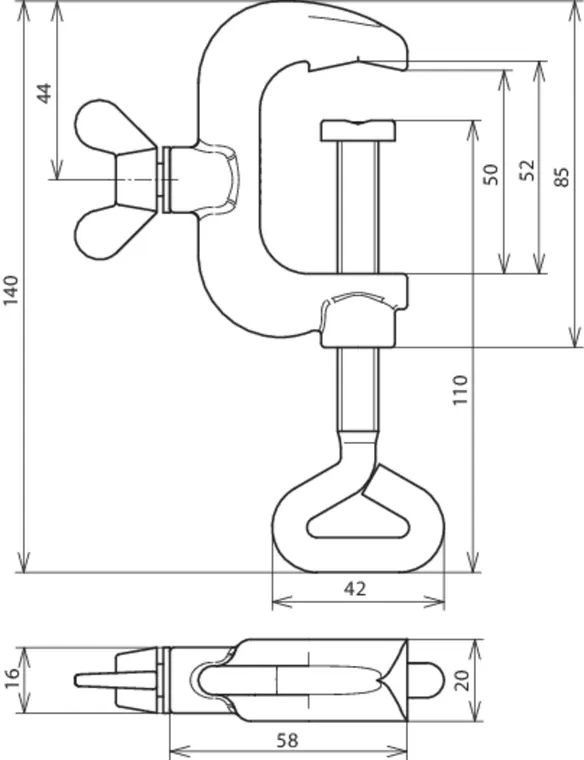

Earthing clamp, small
Earthing clamp for connecting earthing conductors to pipelines
Material of clamp body: MCI/tZn
Material of spindle: St/gal Zn
Clamping range pipe Ø : 4-45 mm (3/8-1 1/4'')
Connection cross-section: 6-16 mm2

Brand: DEHN
Type: EK 4.45 AQ6 16 TGTZN
Part No.: 435805
or equivalent.

认证



技术参数

Material of clamp body MCI/tZn
Material of spindle St/gal Zn
Clamping range pipe Ø 4-45 mm (3/8-1 1/4'')
Connection cross-section 6-16 mm2

.产品已加入收藏夹。

进入收藏夹

商品435805加入购物车。

进入网上商店

Large design

1 产品

货号 435803 EK 12.60 AQ6 16 TGTZN

全球贸易项目代码 4013364029781, 海关HS编码: 85369095, 总重: 468.20 g, 包装单位: 1.00 pc(s)


附加信息

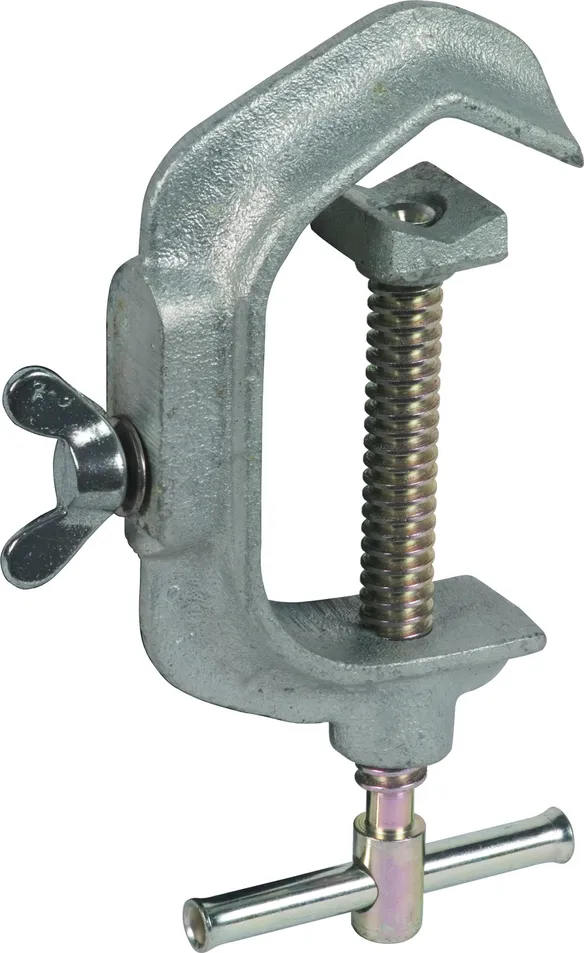

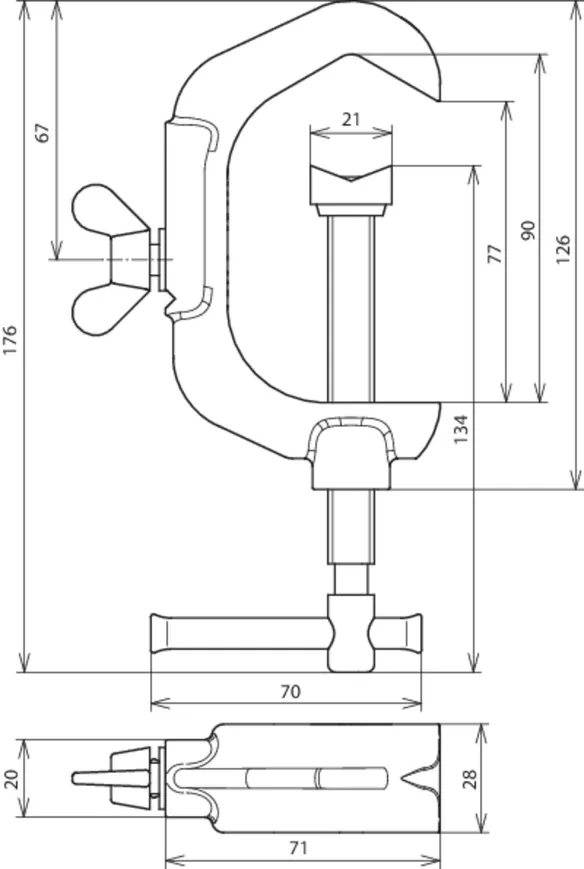

Earthing clamp, large
Earthing clamp for connecting earthing conductors to pipelines
Material of clamp body: MCI/tZn
Material of spindle: St/gal Zn
Clamping range pipe Ø : 12-60 mm (1/2-2'')
Connection cross-section: 6-16 mm2

Brand: DEHN
Type: EK 12.60 AQ6 16 TGTZN
Part No.: 435803
or equivalent.

认证



技术参数

Material of clamp body MCI/tZn
Material of spindle St/gal Zn
Clamping range pipe Ø 12-60 mm (1/2-2'')
Connection cross-section 6-16 mm2

.产品已加入收藏夹。

进入收藏夹

商品435803加入购物车。

进入网上商店
