Earthing Busbars

With slot and anti-rotation protection, for fixing to the earthing pipe.

3 connections

1 产品

货号 465801 ESS 3P M10X35 STTZN

全球贸易项目代码 4013364030091, 海关HS编码: 85359000, 总重: 321.00 g, 包装单位: 1.00 pc(s)


附加信息

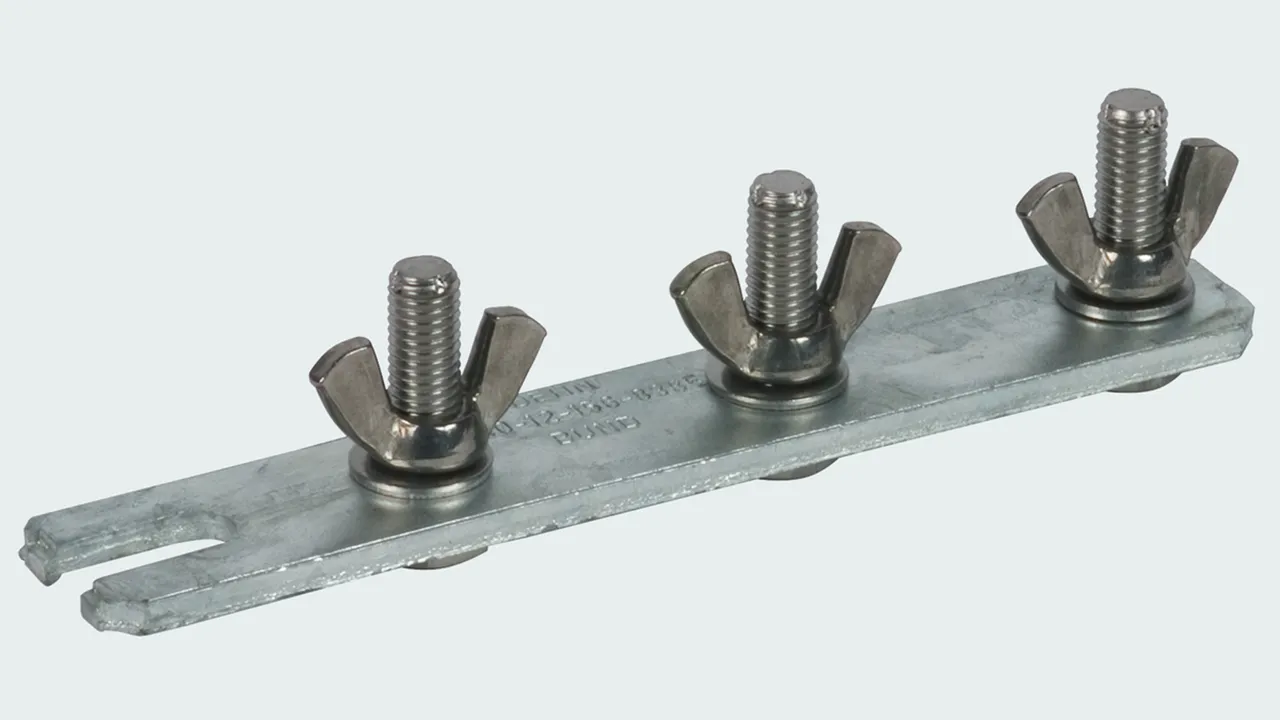

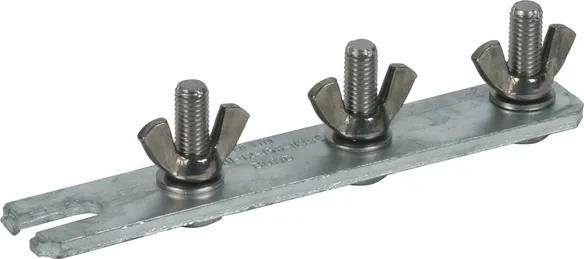

Earthing busbar, three-pole, St/tZn
Three-pole earthing busbar with slot and anti-rotation protection, for fixing to the earthing pipe

Design: three-pole
Material of busbar: St/tZn
Length: 181 mm
Screw: M10 x 35 mm

Brand: DEHN
Type: ESS 3P M10X35 STTZN
Part No.: 465801
or equivalent.

认证



技术参数

Material of busbar St/tZn
Length 181 mm
Screw di M10 x 35 mm

.产品已加入收藏夹。

进入收藏夹

商品465801加入购物车。

进入网上商店

5 connections

1 产品

货号 466192 ESS 5P M10X35 STTZN

全球贸易项目代码 4013364030084, 海关HS编码: 85359000, 总重: 550.00 g, 包装单位: 1.00 pc(s)


附加信息

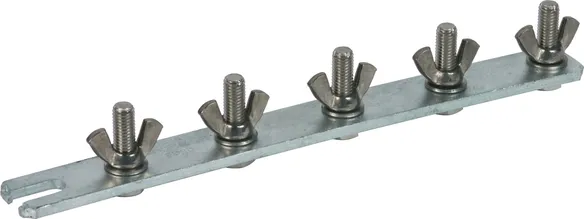

Earthing busbar, five-pole, St/tZn
Five-pole earthing busbar with slot and anti-rotation feature, for fixing to the earthing pipe

Design: five-pole
Material of busbar: St/tZn

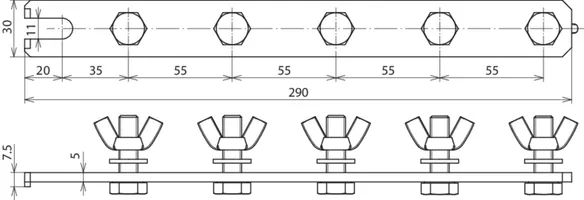

Length: 290 mm
Screw: M10 x 35 mm

Brand: DEHN
Type: ESS 5P M10X35 STTZN
Part No.: 466192
or equivalent.

认证



技术参数

Material of busbar St/tZn
Length 290 mm
Screw di M10 x 35 mm

.产品已加入收藏夹。

进入收藏夹

商品466192加入购物车。

进入网上商店
