Wood Screws with Threaded Head

Hanger bolt for fixing conductor, flat strip and rod holders with female thread.

2 产品

货号 528850 HSC 8X32 AGM8X13 STGALZN

全球贸易项目代码 4013364020955, 海关HS编码: 73181290, 总重: 15.10 g, 包装单位: 1.00 pc(s)


附加信息

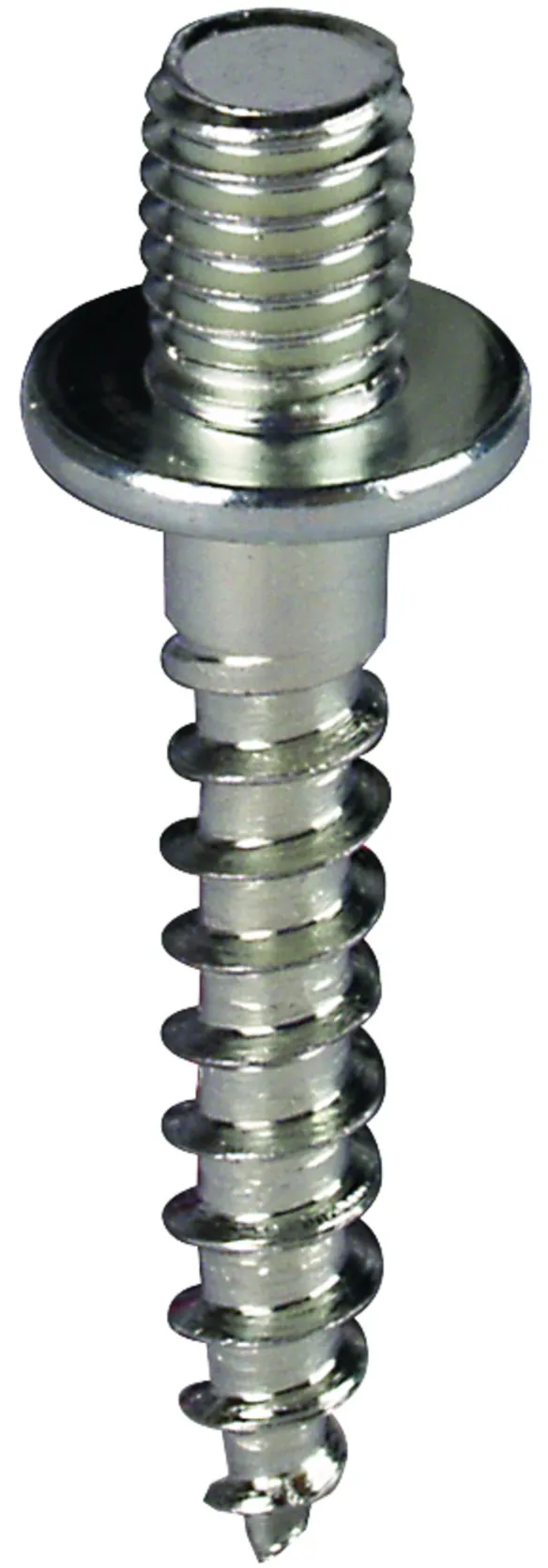

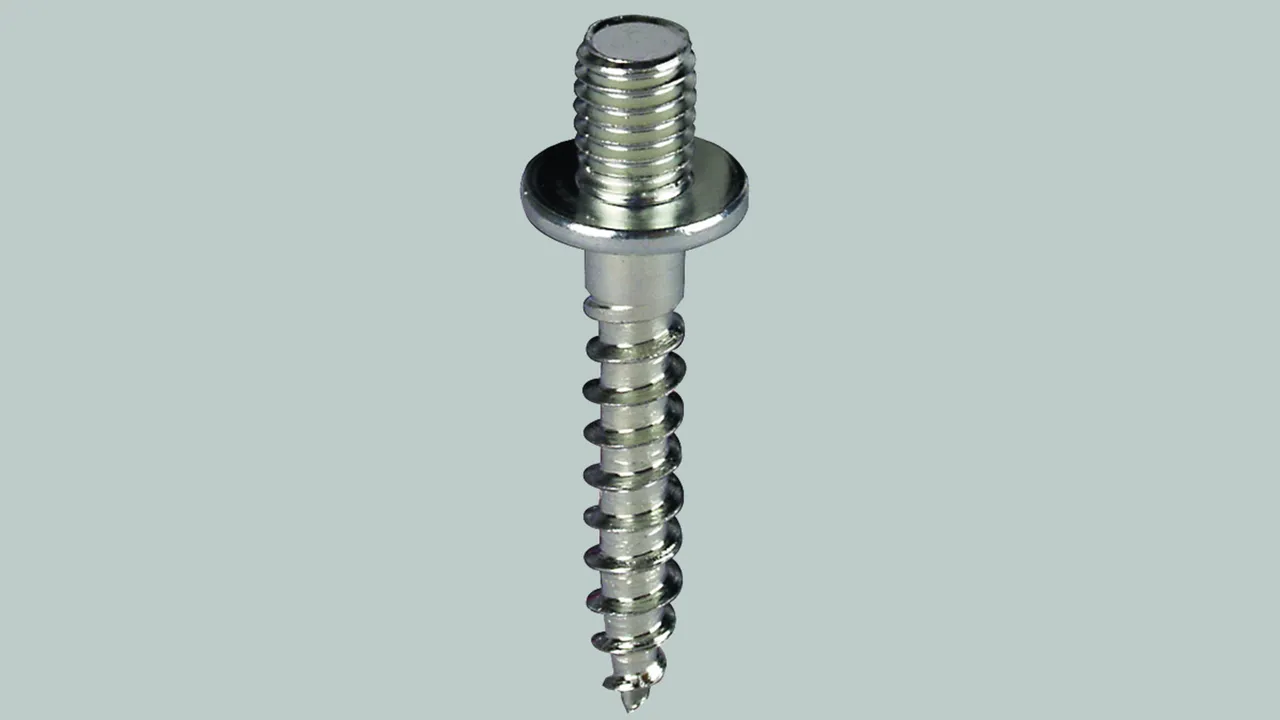

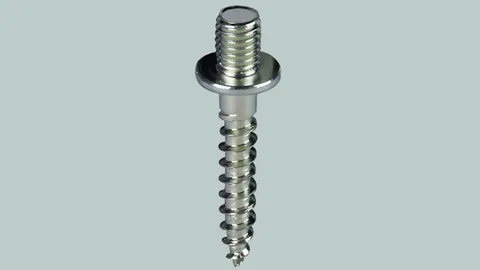

Wood screws with M8 threaded head, St/gal Zn
Wood screw with threaded head
Rigid screw for fixing conductor holders with M8 female
thread
Material: St/gal Zn
Thread: M8
Total length: 53 mm

Brand: DEHN
Type: HSC 8X32 AGM8X13 STGALZN
Part No.: 528850
or equivalent.

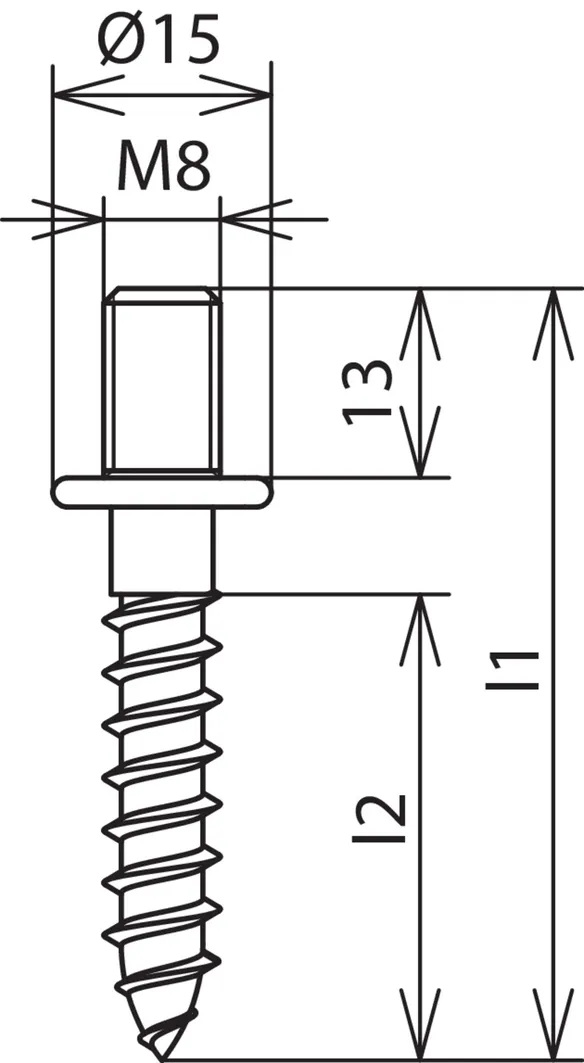

技术参数

Material St/gal Zn
Thread M8
Total length (l1) 53 mm
Thread length (l2) 32 mm

.产品已加入收藏夹。

进入收藏夹

商品528850加入购物车。

进入网上商店

货号 528870 HSC 8X42 AGM8X13 STGALZN

全球贸易项目代码 4013364020962, 海关HS编码: 73181290, 总重: 22.00 g, 包装单位: 1.00 pc(s)


附加信息

Wood screws with M8 threaded head, St/gal Zn
Wood screw with threaded head
Rigid screw for fixing conductor holders with M8 female
thread
Material: St/gal Zn
Thread: M8
Total length: 73 mm

Brand: DEHN
Type: HSC 8X42 AGM8X13 STGALZN
Part No.: 528870
or equivalent.



技术参数

Material St/gal Zn
Thread M8
Total length (l1) 73 mm
Thread length (l2) 42 mm

.产品已加入收藏夹。

进入收藏夹

商品528870加入购物车。

进入网上商店
