Hammer Inserts for Tubular Earth Rods

For driving in tubular earth rods with a vibration hammer.

详情

Hammer inserts for earth rods and tubular earth electrodes
lorem ipsum

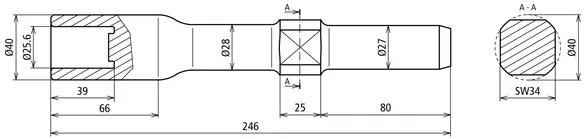

Design Wacker Neuson

1 产品

货号 648005 HE RE 25 R27 VH WN STBLANK

全球贸易项目代码 4013364129160, 海关HS编码: 82079099, 总重: 1.46 kg, 包装单位: 1.00 pc(s)


附加信息

Hammer inserts for tubular earth rods
Hammer insert for tubular earth electrodes
For driving down earth rods with a vibration hammer
Type: EH 22/400, EH 23/230, EH 24/042/200, BH 23 and BHF 30
Adapter: round Ø27 x 80 mm
Material: St/bare

Brand: DEHN
Type: HE RE 25 R27 VH WN STBLANK
Part No.: 648005
or equivalent.



技术参数

Type EH 22/400, EH 23/230, EH 24/042/200, BH 23 and BHF 30
Adapter round Ø27 x 80 mm
Material St/bare
Hole (d1 x l1) 25.6 x 39 mm
Length 246 mm
Earth rod diameter 25 mm
Earth rod type RE

.产品已加入收藏夹。

进入收藏夹

商品648005加入购物车。

进入网上商店

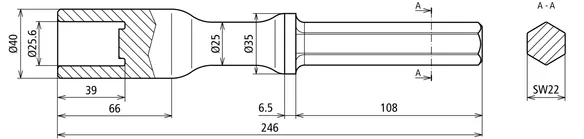

Design Atlas Copco

1 产品

货号 648007 HE RE 25 SW22 VH AC STBLANK

全球贸易项目代码 4013364129177, 海关HS编码: 82079099, 总重: 1.46 kg, 包装单位: 1.00 pc(s)


附加信息

Hammer inserts for tubular earth rods
Hammer insert for tubular earth electrodes
For driving down earth rods with a vibration hammer
Type: Cobra 149+248 and Pionjär 120+130
Adapter: hexagon, wrench size 22 x 108 mm
Material: St/bare

Brand: DEHN
Type: HE RE 25 SW22 VH AC STBLANK
Part No.: 648007
or equivalent.



技术参数

Type Cobra 149+248 and Pionjär 120+130
Adapter hexagon, wrench size 22 x 108 mm
Material St/bare
Hole (d1 x l1) 25.6 x 39 mm
Length 246 mm
Earth rod diameter 25 mm
Earth rod type RE

.产品已加入收藏夹。

进入收藏夹

商品648007加入购物车。

进入网上商店

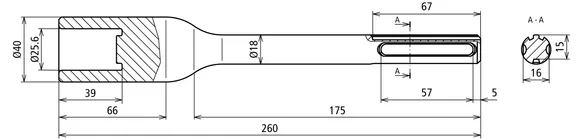

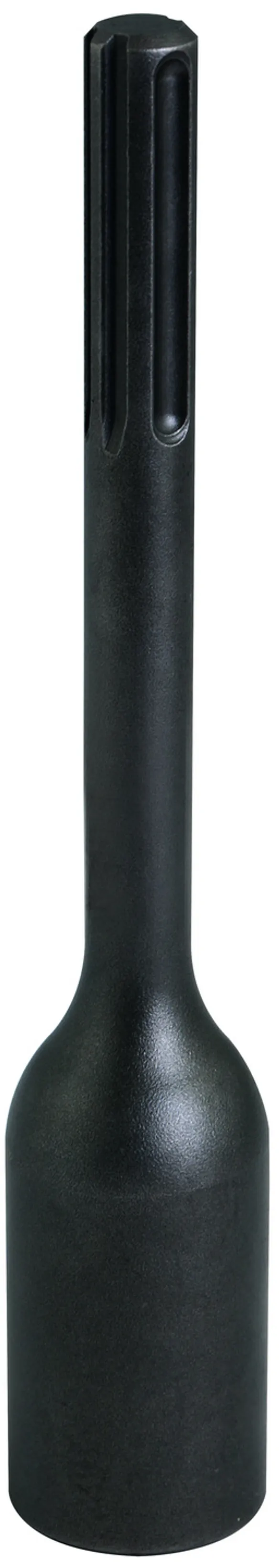

Design SDS-max

1 产品

货号 648009 HE RE 25 SDS MAX VH STBLANK

全球贸易项目代码 4013364315501, 海关HS编码: 82079099, 总重: 973.00 g, 包装单位: 1.00 pc(s)


附加信息

Hammer inserts for tubular earth rods
Hammer insert for tubular earth electrodes
For driving down earth rods with a vibration hammer
Type: vibration / impact hammer with SDS-max adapter
Adapter: round Ø18 x 175 mm
Material: St/bare

Brand: DEHN
Type: HE RE 25 SDS MAX VH STBLANK
Part No.: 648009
or equivalent.



技术参数

Type vibration / impact hammer with SDS-max adapter
Adapter round Ø18 x 175 mm
Material St/bare
Hole (d1 x l1) 25.6 x 39 mm
Length 260 mm
Earth rod diameter 25 mm
Earth rod type RE
Note: It is recommended to use a hammer with a minimum striking force of 26 joules. The maximum drive-in depth depends on the soil conditions.

.产品已加入收藏夹。

进入收藏夹

商品648009加入购物车。

进入网上商店

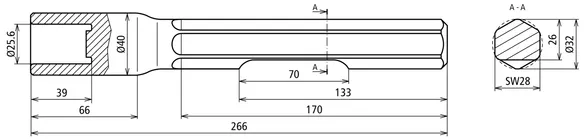

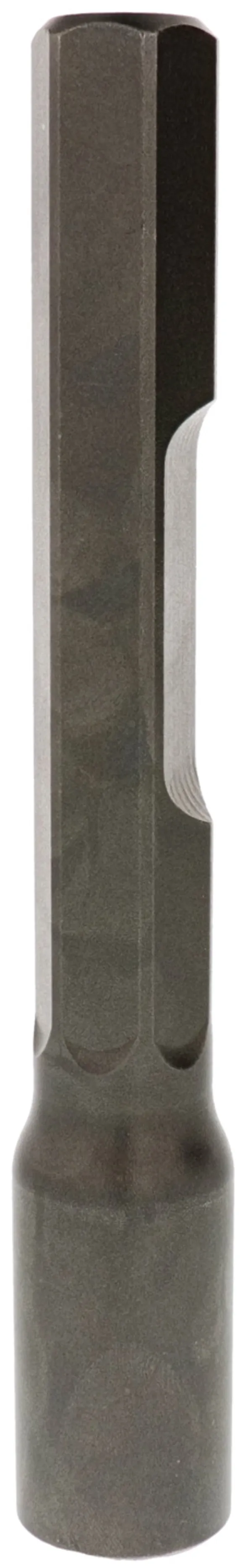

Design Bosch / Hilti / Milwaukee

1 产品

货号 648029 HE RE 25 SW28 VH BO STBLANK

全球贸易项目代码 4013364236059, 海关HS编码: 82079099, 总重: 1.60 kg, 包装单位: 1.00 pc(s)


附加信息

Hammer inserts for tubular earth rods
Hammer insert for tubular earth electrodes
For driving earth rods into the ground with a vibration hammer
Type: GSH 27, GSH 27 VC, TE 3000 AVR (up to 2021 model), K 2628 H
Adapter: hexagon AF28
Material: St/bare

Brand: DEHN
Type: HE RE 25 SW28 VH BO STBLANK
Part No.: 648029
or equivalent.



技术参数

Type GSH 27, GSH 27 VC, TE 3000 AVR (up to 2021 model), K 2628 H
Adapter hexagon AF28
Material St/bare
Hole (d1 x l1) 25.6 x 39 mm
Length 266 mm
Earth rod diameter 25 mm
Earth rod type RE

.产品已加入收藏夹。

进入收藏夹

商品648029加入购物车。

进入网上商店

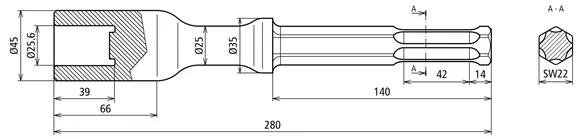

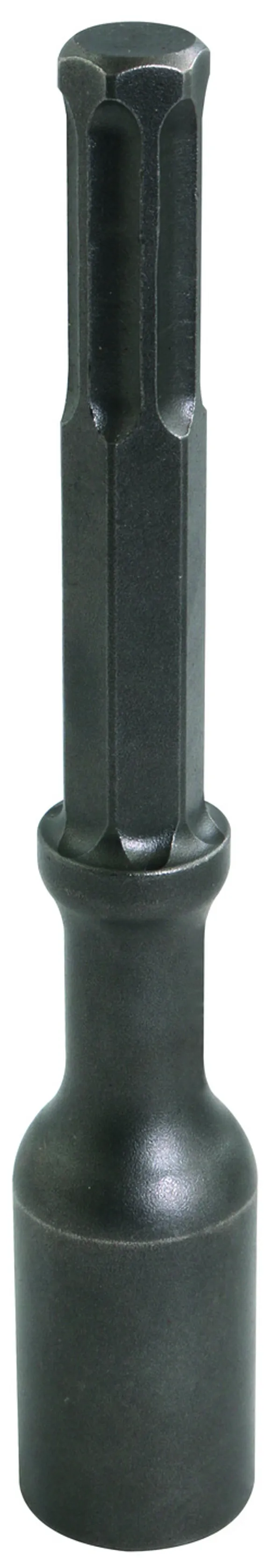

Design Hilti TE-S

1 产品

货号 648031 HE RE 25 TES VH HI STBLANK

全球贸易项目代码 4013364293182, 海关HS编码: 82079099, 总重: 1.51 kg, 包装单位: 1.00 pc(s)


附加信息

Hammer inserts for tubular earth electrodes
Hammer inserts for for tubular earth electrodes for
driving earth rods into the ground with a vibration hammer
Type: vibration / impact hammer with TE-S adapter
Adapter: Hilti TE-S
Material: St/bare

Brand: DEHN
Type: HE RE 25 TES VH HI STBLANK
Part No.: 648031
or equivalent.



技术参数

Type vibration / impact hammer with TE-S adapter
Adapter Hilti TE-S
Material St/bare
Hole (d1 x l1) 25,6 x 39 mm
Length 280 mm
Earth rod diameter 25 mm
Earth rod type RE
