Earthing Spikes
:quality(98)/www.dehn.cn/store/f/57107675/HDVORSCHAU/634145_16-9.jpg)
:quality(98)/www.dehn.cn/store/f/57107675/HDVORSCHAU/634145_16-9.jpg)

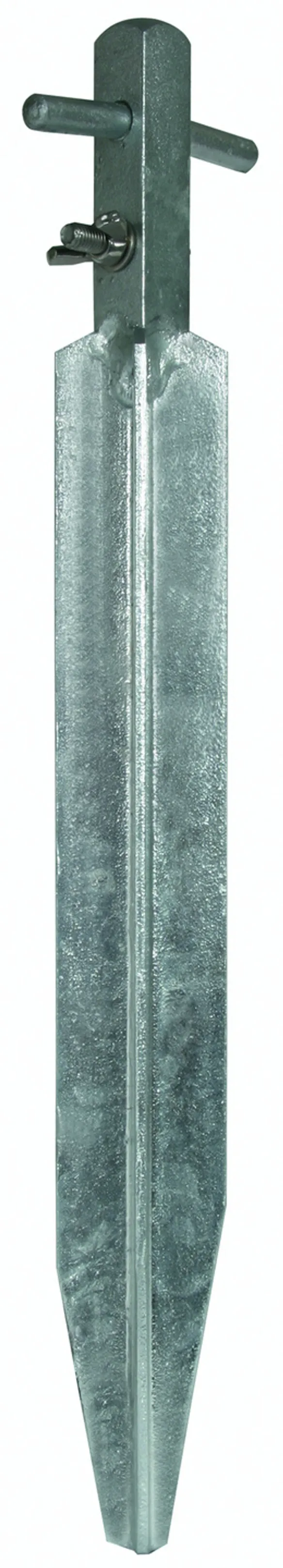

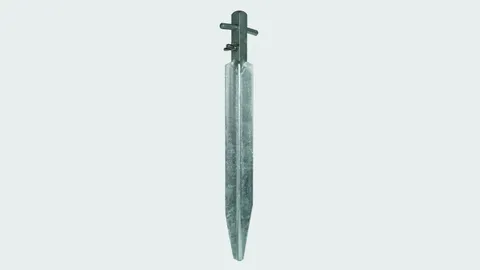

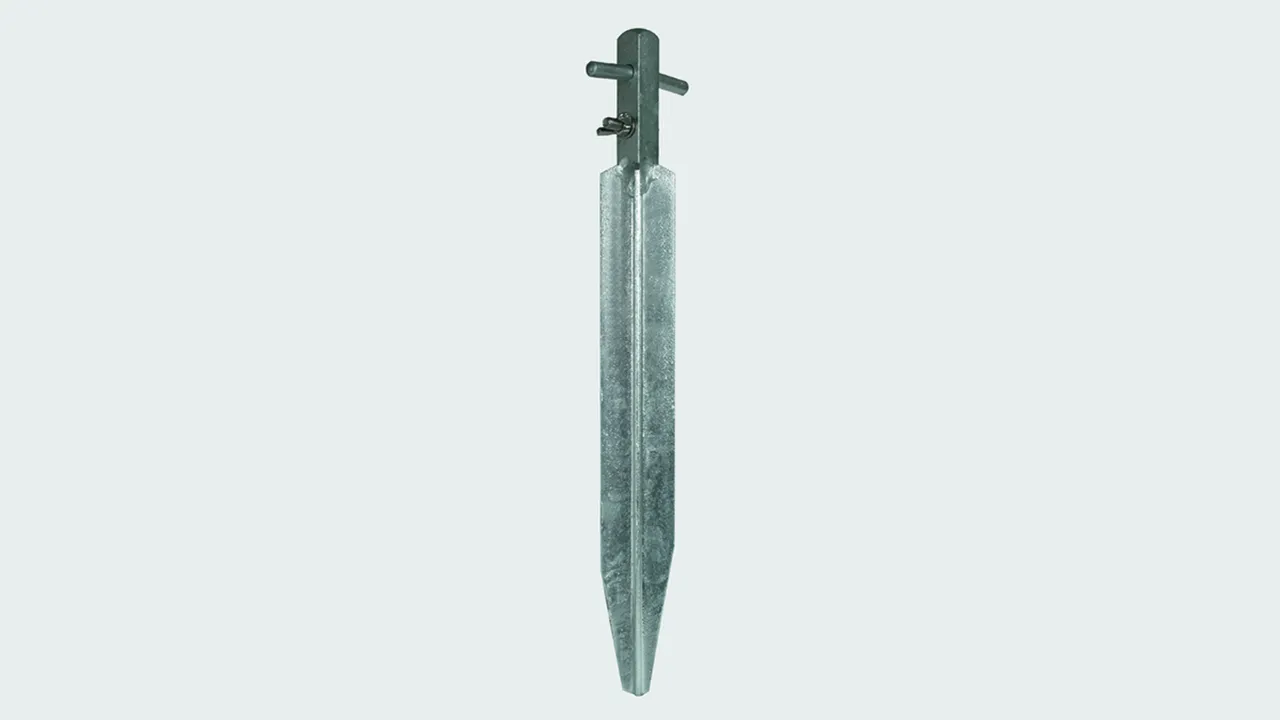

For earthing of mobile objects such as vehicles, power generators, etc.
货号 634145 ES 50X50X3 450 V2A
全球贸易项目代码 4013364125735, 海关HS编码: 85359000, 总重: 1.21 kg, 包装单位: 1.00 pc(s)
前代产品:quality(98)/www.dehn.cn/store/f/57107686/HDVORSCHAU/634145.jpg)
:quality(98)/www.dehn.cn/store/f/57107686/HDVORSCHAU/634145.jpg)
:quality(98)/www.dehn.cn/store/f/57107687/HDVORSCHAU/634145m_D.jpg)
:quality(98)/www.dehn.cn/store/f/57107687/HDVORSCHAU/634145m_D.jpg)

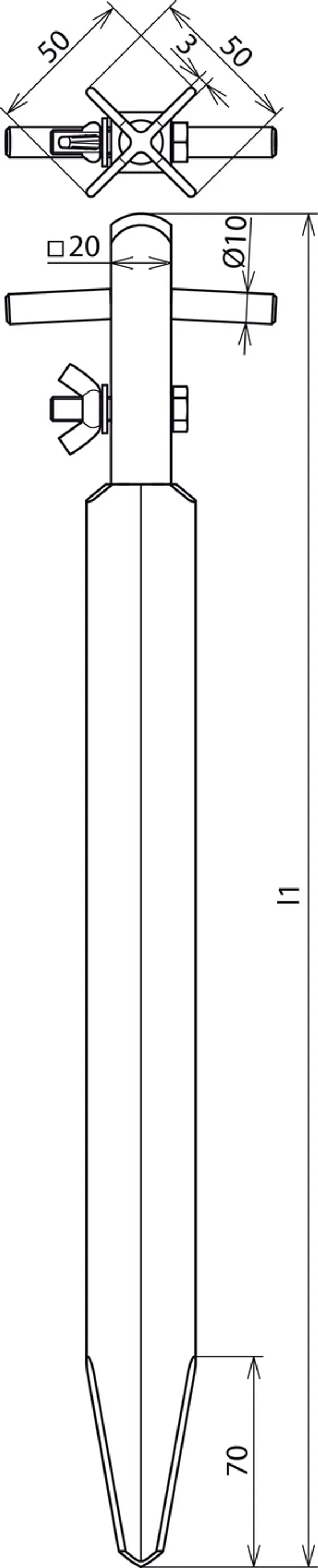

技术参数
| Material of profile | St/tZn |
| Profile | 50 x 50 x 3 mm |
| Length (l1) | 450 mm |
| Screw | di M8 x 40 mm |
| Nut | wing nut M8 |
货号 634160 ES 50X50X3 600 V2A
全球贸易项目代码 4013364125728, 海关HS编码: 85359000, 总重: 1.60 kg, 包装单位: 1.00 pc(s)
前代产品:quality(98)/www.dehn.cn/store/f/57107695/HDVORSCHAU/634145.jpg)
:quality(98)/www.dehn.cn/store/f/57107695/HDVORSCHAU/634145.jpg)
:quality(98)/www.dehn.cn/store/f/57107696/HDVORSCHAU/634145m_D.jpg)
:quality(98)/www.dehn.cn/store/f/57107696/HDVORSCHAU/634145m_D.jpg)
技术参数
| Material of profile | St/tZn |
| Profile | 50 x 50 x 3 mm |
| Length (l1) | 600 mm |
| Screw | di M8 x 40 mm |
| Nut | wing nut M8 |
