Connecting components 200 kA (10/350 μs)

For use in class of LPS I and II (LPL I, II).
Clamps are tested with a 200 kA (10/350 µs) lightning impulse current, based on EN 62561-1.

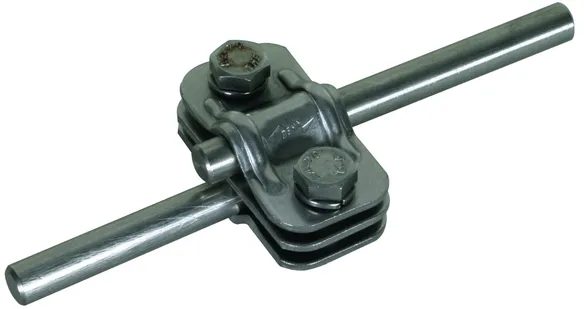

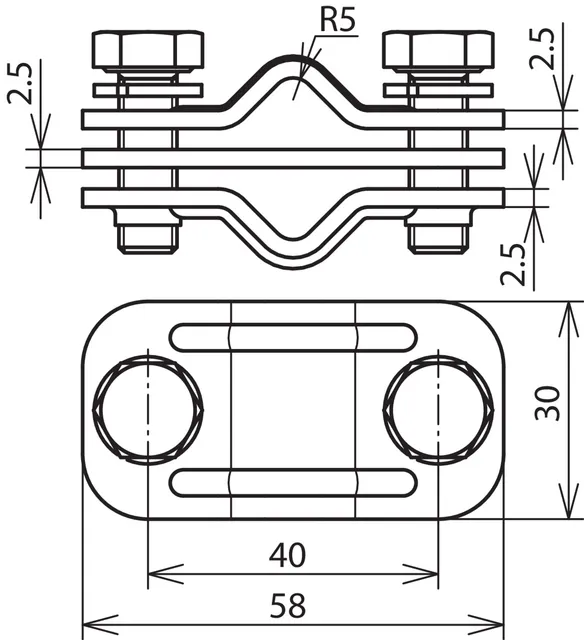

UNI disconnecting clamp for two round conductors

1 产品

货号 459200 UTK 200 2X10 FL30 ZP V2A

全球贸易项目代码 4013364155527, 海关HS编码: 85359000, 总重: 132.00 g, 包装单位: 1.00 pc(s)


附加信息

UNI disconnecting clamp (200 kA) for two round conductors, StSt
UNI disconnecting clamp for connecting an air-termination rod or
earth entry to a round conductor, with intermediate plate for Rd and Fl,
lightning current carrying capability up to 200 kA (10/350)
Material: StSt
Clamping range Rd / Rd: 10 / 10 mm
Clamping range Rd / Fl: 10 / 30 mm
Standard: based on EN 62561-1

Brand: DEHN
Type: UTK 200 2X10 FL30 ZP V2A
Part No.: 459200
or equivalent.

认证



技术参数

Material StSt
Clamping range Rd / Rd 10 / 10 mm
Clamping range Rd / Fl 10 / 30 mm
Lightning current carrying capability (10/350 µs) ? *)
Standard based on EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品459200加入购物车。

进入网上商店

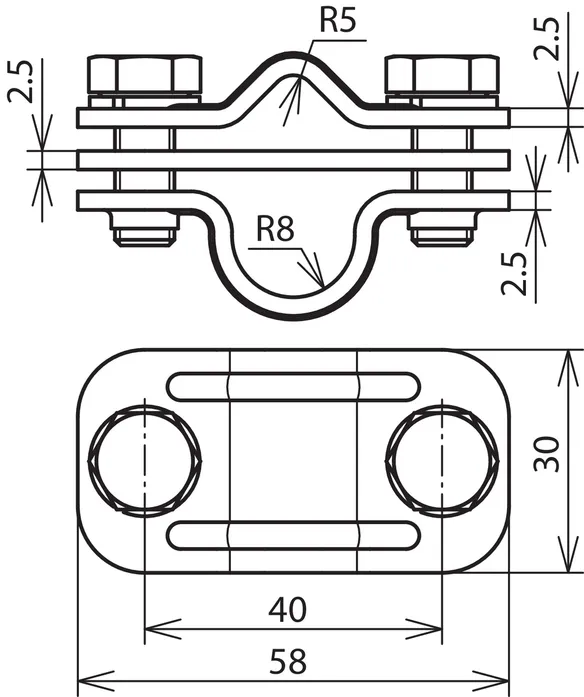

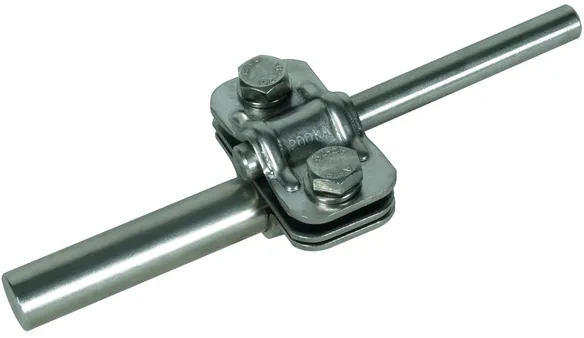

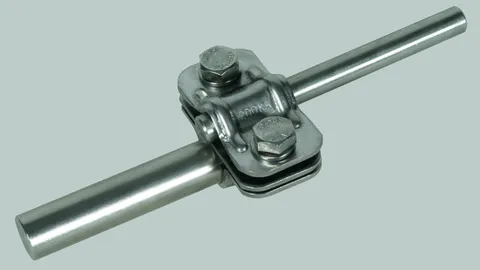

UNI disconnecting clamp for earth entry rods

1 产品

货号 459219 UTK 200 8.10 16 ZP V2A

全球贸易项目代码 4013364158221, 海关HS编码: 85359000, 总重: 136.00 g, 包装单位: 1.00 pc(s)


附加信息

UNI disconnecting clamp (200 kA) for earth entry rods
UNI disconnecting clamp for connecting an air-termination rod or
earth entry to a round conductor, with intermediate plate for Rd and Fl,
lightning current carrying capability up to 200 kA (10/350)
Material: StSt
Clamping range Rd / Rd: 8-10 / 16 mm
Standard: based on EN 62561-1

Brand: DEHN
Type: UTK 200 8.10 16 ZP V2A
Part No.: 459219
or equivalent.

认证



技术参数

Material StSt
Clamping range Rd / Rd 8-10 / 16 mm
Lightning current carrying capability (10/350 µs) ? *)
Standard based on EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品459219加入购物车。

进入网上商店

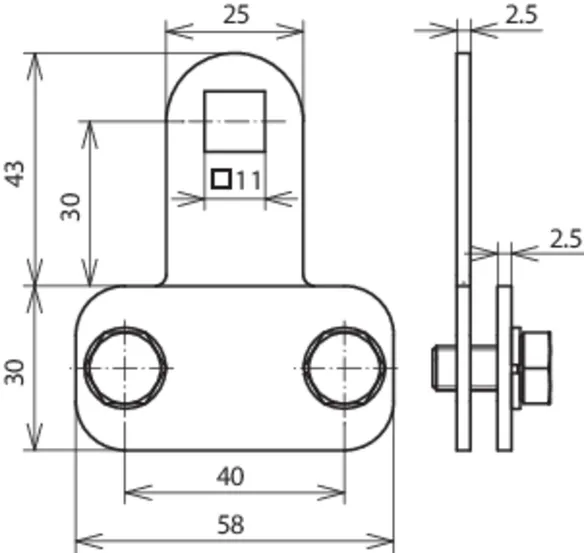

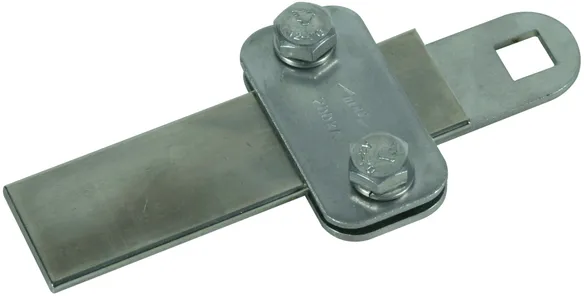

Clamping piece

1 产品

货号 380209 KS 200 B11.11 FL30X4 V2A

全球贸易项目代码 4013364158269, 海关HS编码: 85359000, 总重: 110.00 g, 包装单位: 1.00 pc(s)


附加信息

Clamping piece (200 kA) StSt with spring washer
Clamping piece for connecting flat material to structural parts
Version for flat conductors
Lightning current carrying capability 200 kA (10/350)
Material: StSt
Clamping range Fl: 30 x 4 mm
Standard: based on EN 62561-1

Brand: DEHN
Type: KS 200 B11.11 FL30X4 V2A
Part No.: 380209
or equivalent.

认证



技术参数

Material StSt
Clamping range Fl 30 x 4 mm
Lightning current carrying capability (10/350 µs) ? *)
Standard based on EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品380209加入购物车。

进入网上商店

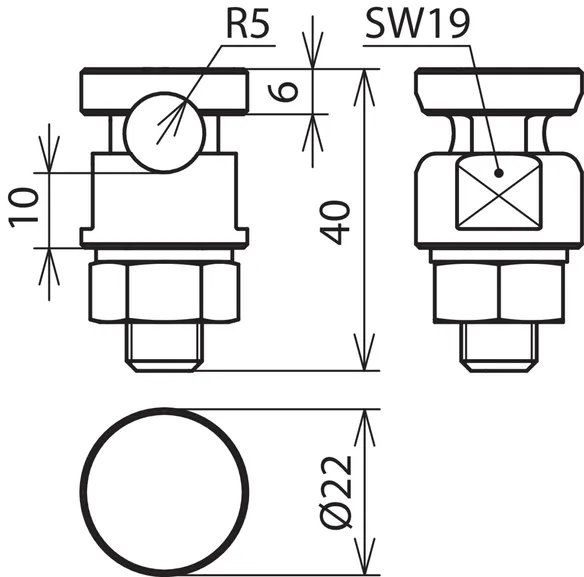

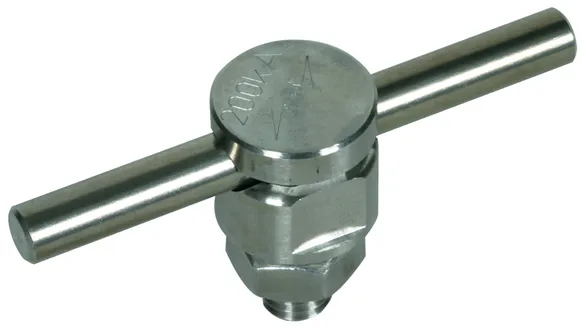

KS connector

1 产品

货号 301209 KSV 200 10 FER V2A

全球贸易项目代码 4013364158252, 海关HS编码: 85359000, 总重: 67.00 g, 包装单位: 1.00 pc(s)


附加信息

KS connector (200 kA) with spring washer, StSt
KS connector for connecting round conductors to flat profiles
Lightning current carrying capability up to 200 kA (10/350)
Material: StSt
Clamping range Rd: 10 mm
Standard: based on EN 62561-1

Brand: DEHN
Type: KSV 200 10 FER V2A
Part No.: 301209
or equivalent.

认证



技术参数

Material StSt
Clamping range Rd 10 mm
Lightning current carrying capability (10/350 µs) ? *)
Standard based on EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品301209加入购物车。

进入网上商店

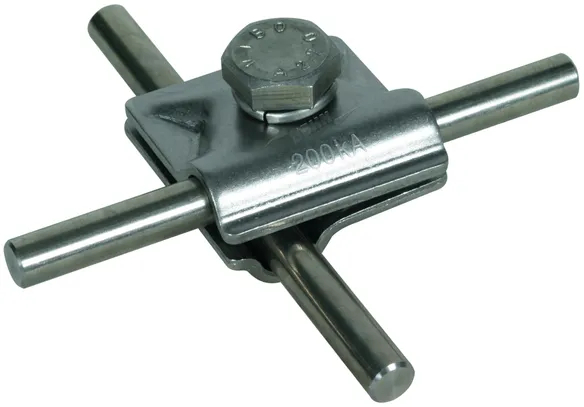

MV clamp for round conductors

1 产品

货号 390209 MVK 200 8.10 SKM10X30 V2A

全球贸易项目代码 4013364158245, 海关HS编码: 85359000, 总重: 103.50 g, 包装单位: 1.00 pc(s)


附加信息

MV clamp for round conductors
MV clamp for universal use as a cross, T and parallel clamp
without intermediate plate for Rd
Lightning current carrying capability up to 200 kA (10/350)
Material: StSt
Clamping range Rd / Rd: 8-10 mm
Standard: based on EN 62561-1

Brand: DEHN
Type: MVK 200 8.10 SKM10X30 V2A
Part No.: 390209
or equivalent.

认证



技术参数

Material StSt
Clamping range Rd / Rd 8-10 mm
Lightning current carrying capability (10/350 µs) ? *)
Standard based on EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品390209加入购物车。

进入网上商店

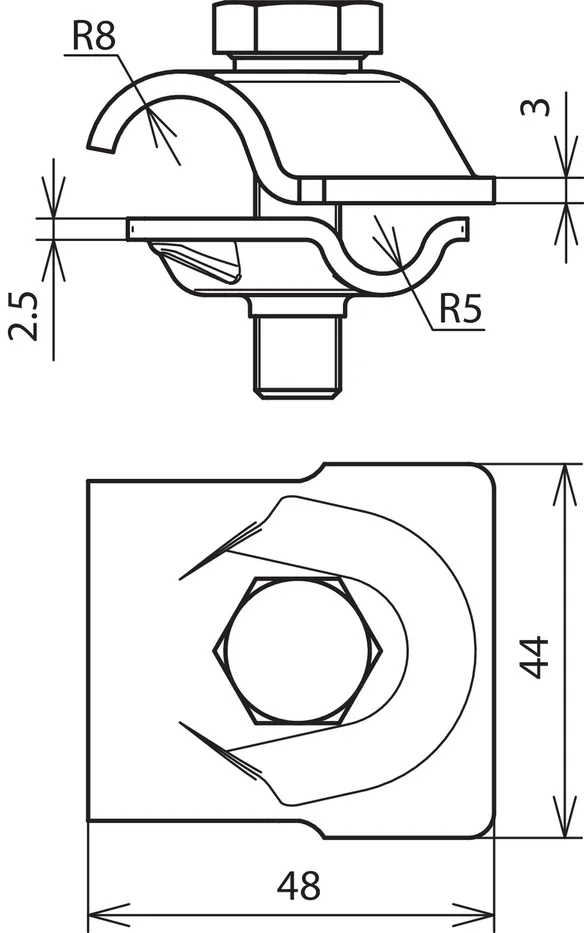

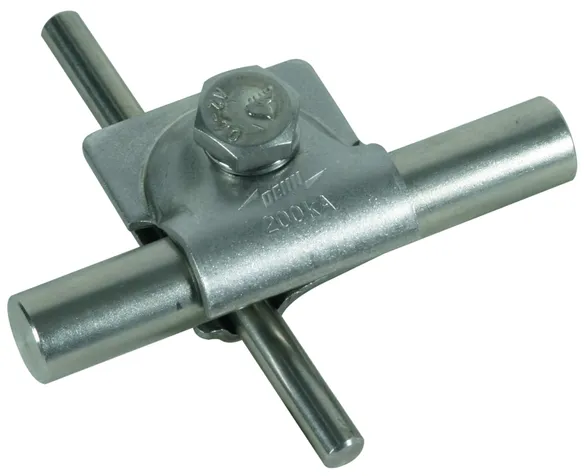

MV clamp for air-termination rods

1 产品

货号 392209 MVK 200 8.10 16 SKM10X40 FSC V2A

全球贸易项目代码 4013364158238, 海关HS编码: 85359000, 总重: 140.00 g, 包装单位: 1.00 pc(s)


附加信息

MV clamp for air-termination rods
MV clamp for universal use as a cross, T and parallel clamp
Without intermediate plate for Rd
Lightning current carrying capability up to 200 kA (10/350)
Material: StSt
Clamping range Rd / Rd: 8-10 / 16 mm
Standard: based on EN 62561-1

Brand: DEHN
Type: MVK 200 8.10 16 SKM10X40 FSC V2A
Part No.: 392209
or equivalent.

认证



技术参数

Material StSt
Clamping range Rd / Rd 8-10 / 16 mm
Lightning current carrying capability (10/350 µs) ? *)
Standard based on EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品392209加入购物车。

进入网上商店
