货号 410903 EL10 L0.35M 2KSG 10

全球贸易项目代码 4013364029033, 海关HS编码: 85444290, 总重: 110.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x closed cable lug, 0.35 m long
Earthing cable, closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x closed M10
Cable cross section: 10 mm2
Cable length : 0.35 m
Hole Ø: 10.5 mm

Brand: DEHN
Type: EL10 L0.35M 2KSG 10
Part No.: 410903
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	0.35 m
Cable lug closed	2x M10
Hole Ø	10.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	0.35 m
Cable lug closed	2x M10
Hole Ø	10.5 mm
Conductor	Cu, highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410903加入购物车。

进入网上商店

货号 410905 EL10 L0.55M 2KSG 10

全球贸易项目代码 4013364029040, 海关HS编码: 85444290, 总重: 140.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

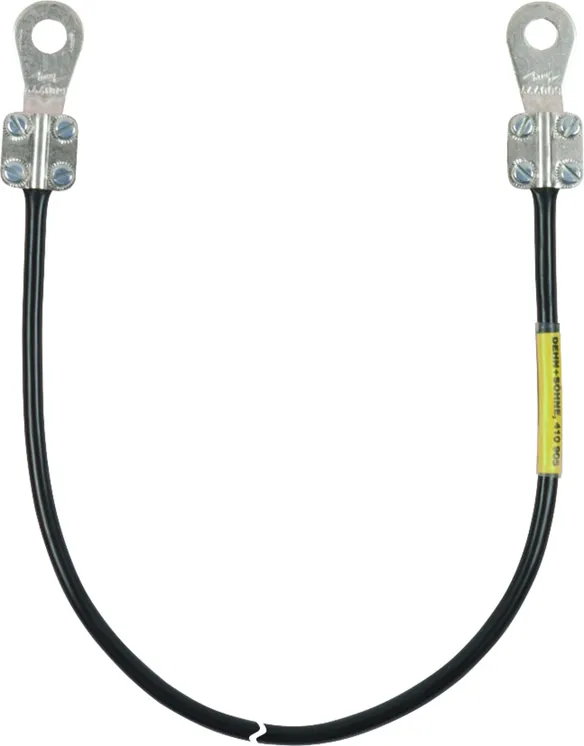

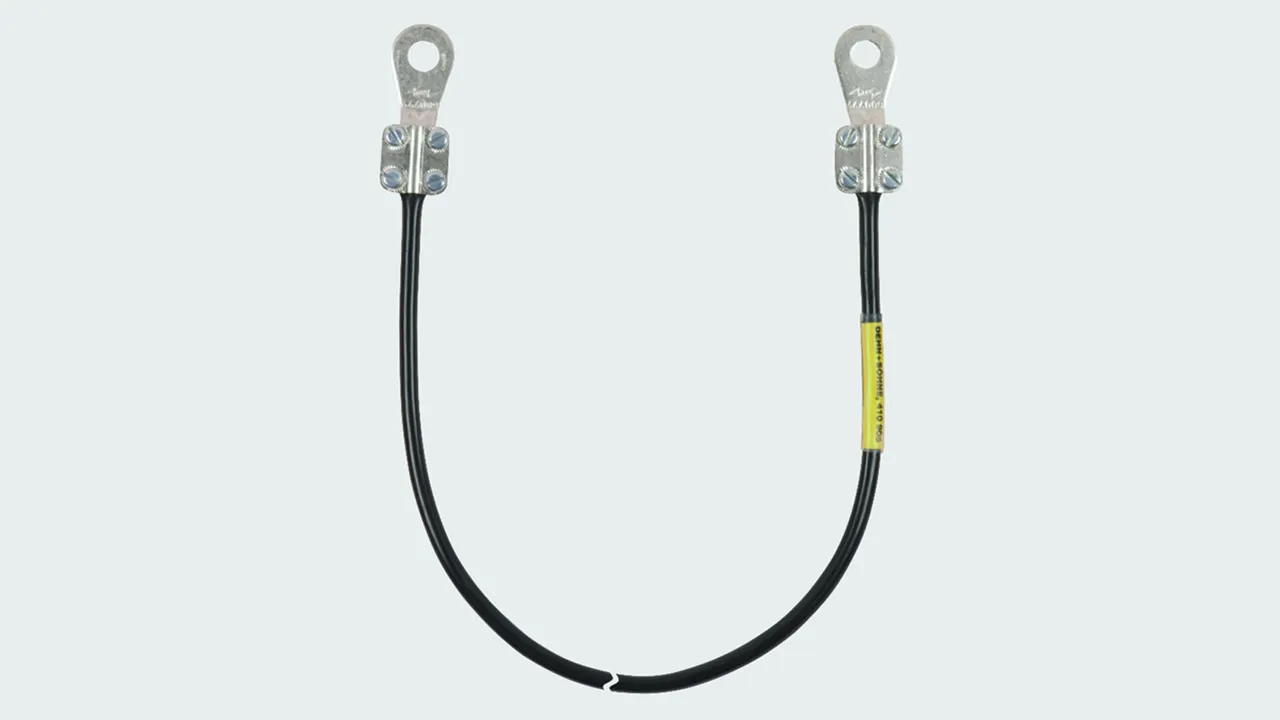

Earthing cable, 2x closed cable lug, 0.55 m long
Earth cable, closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x closed M10
Cable cross section: 10 mm2
Cable length : 0.55 m
Hole Ø: 10.5 mm

Brand: DEHN
Type: EL10 L0.55M 2KSG 10
Part No.: 410905
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	0.55 m
Cable lug closed	2x M10
Hole Ø	10.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	0.55 m
Cable lug closed	2x M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410905加入购物车。

进入网上商店

货号 410906 EL10 L0.65M 2KSG 10

全球贸易项目代码 4013364029057, 海关HS编码: 85444290, 总重: 140.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x closed cable lug, 0.65 m long
Earth cable, closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x closed M10
Cable cross section: 10 mm2
Cable length : 0.65 m
Hole Ø: 10.5 mm

Brand: DEHN
Type: EL10 L0.65M 2KSG 10
Part No.: 410906
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	0.65 m
Cable lug closed	2x M10
Hole Ø	10.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	0.65 m
Cable lug closed	2x M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410906加入购物车。

进入网上商店

货号 410910 EL10 L1.05M 2KSG 10

全球贸易项目代码 4013364029064, 海关HS编码: 85444290, 总重: 200.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x closed cable lug, 1.05 m long
Earth cable, closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x closed M10
Cable cross section: 10 mm2
Cable length : 1.05 m
Hole Ø: 10.5 mm

Brand: DEHN
Type: EL10 L1.05M 2KSG 10
Part No.: 410910
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	1.05 m
Cable lug closed	2x M10
Hole Ø	10.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	1.05 m
Cable lug closed	2x M10
Hole Ø	10.5 mm
Conductor	Cu highlyflexible
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410910加入购物车。

进入网上商店

货号 410915 EL10 L1.55M 2KSG 10

全球贸易项目代码 4013364029071, 海关HS编码: 85444290, 总重: 260.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x closed cable lug, 1.55 m long
Earth cable, closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x closed M10
Cable cross section: 10 mm2
Cable length : 1.55 m
Hole Ø: 10.5 mm

Brand: DEHN
Type: EL10 L1.55M 2KSG 10
Part No.: 410915
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	1.55 m
Cable lug closed	2x M10
Hole Ø	10.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	1.55 m
Cable lug closed	2x M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410915加入购物车。

进入网上商店

货号 410920 EL10 L2.05M 2KSG 10

全球贸易项目代码 4013364029088, 海关HS编码: 85444290, 总重: 320.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable with cable lug 2x closed, 2.05 m long
Earthing cable, cable lugs closed
Made of highly flexible copper wire, frost-proof
Cable lug, 2x closed M10
Cable cross section: 10 mm2
Cable length : 2.05 m
Hole Ø: 10.5 mm

Brand: DEHN
Type: EL10 L2.05M 2KSG 10
Part No.: 410920
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	2.05 m
Cable lug closed	2x M10
Hole Ø	10.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	2.05 m
Cable lug closed	2x M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410920加入购物车。

进入网上商店

货号 410925 EL10 L2.55M 2KSG 10

全球贸易项目代码 4013364029095, 海关HS编码: 85444290, 总重: 380.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x closed cable lug, 2.55 m long
Earth cable, closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x closed M10
Cable cross section: 10 mm2
Cable length : 2.55 m
Hole Ø: 10.5 mm

Brand: DEHN
Type: EL10 L2.55M 2KSG 10
Part No.: 410925
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	2.55 m
Cable lug closed	2x M10
Hole Ø	10.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	2.55 m
Cable lug closed	2x M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410925加入购物车。

进入网上商店

货号 410930 EL10 L3.05M 2KSG 10

全球贸易项目代码 4013364029101, 海关HS编码: 85444290, 总重: 440.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x closed cable lug, 3.05 m long
Earthing cable, closed cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x closed M10
Cable cross section: 10 mm2
Cable length : 3.05 m
Hole Ø: 10.5 mm

Brand: DEHN
Type: EL10 L3.05M 2KSG 10
Part No.: 410930
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	3.05 m
Cable lug closed	2x M10
Hole Ø	10.5 mm
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	3.05 m
Cable lug closed	2x M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410930加入购物车。

进入网上商店

货号 416903 EL16 L0.35M 2KSG 10

全球贸易项目代码 4013364028944, 海关HS编码: 85444290, 总重: 132.10 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable with cable lug 2x closed, 0.35 m long
Earthing cable, cable lugs closed
Made of highly flexible copper wire, frost-proof
Cable lug, 2x closed M10
Cable cross section: 16 mm2
Cable length : 0.35 m
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L0.35M 2KSG 10
Part No.: 416903
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	0.35 m
Cable lug closed	2x M10
Hole Ø	10.5 mm
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	0.35 m
Cable lug closed	2x M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416903加入购物车。

进入网上商店

货号 416905 EL16 L0.55M 2KSG 10

全球贸易项目代码 4013364028951, 海关HS编码: 85444290, 总重: 180.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x closed cable lug, 0.55 m long
Earthing cable, closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 2x closed M10
Cable cross section: 16 mm2
Cable length : 0.55 m
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L0.55M 2KSG 10
Part No.: 416905
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	0.55 m
Cable lug closed	2x M10
Hole Ø	10.5 mm
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	0.55 m
Cable lug closed	2x M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416905加入购物车。

进入网上商店

货号 416906 EL16 L0.65M 2KSG 10

全球贸易项目代码 4013364028968, 海关HS编码: 85444290, 总重: 190.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x closed cable lug, 0.65 m long
Earthing cable, closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 2x closed M10
Cable cross section: 16 mm2
Cable length : 0.65 m
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L0.65M 2KSG 10
Part No.: 416906
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	0.65 m
Cable lug closed	2x M10
Hole Ø	10.5 mm
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	0.65 m
Cable lug closed	2x M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416906加入购物车。

进入网上商店

货号 416910 EL16 L1.05M 2KSG 10

全球贸易项目代码 4013364028975, 海关HS编码: 85444290, 总重: 265.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x closed cable lug, 1.05 m long
Earthing cable, closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 2x closed M10
Cable cross section: 16 mm2
Cable length : 1.05 m
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L1.05M 2KSG 10
Part No.: 416910
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	1.05 m
Cable lug closed	2x M10
Hole Ø	10.5 mm
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	1.05 m
Cable lug closed	2x M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416910加入购物车。

进入网上商店

货号 416915 EL16 L1.55M 2KSG 10

全球贸易项目代码 4013364028982, 海关HS编码: 85444290, 总重: 365.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x closed cable lug, 1.55 m long
Earthing cable, closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 2x closed M10
Cable cross section: 16 mm2
Cable length : 1.55 m
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L1.55M 2KSG 10
Part No.: 416915
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	1.55 m
Cable lug closed	2x M10
Hole Ø	10.5 mm
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	1.55 m
Cable lug closed	2x M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416915加入购物车。

进入网上商店

货号 416920 EL16 L2.05M 2KSG 10

全球贸易项目代码 4013364028999, 海关HS编码: 85444290, 总重: 455.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x closed cable lug, 2.05 m long
Earthing cable, closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 2x closed M10
Cable cross section: 16 mm2
Cable length : 2.05 m
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L2.05M 2KSG 10
Part No.: 416920
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	2.05 m
Cable lug closed	2x M10
Hole Ø	10.5 mm
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	2.05 m
Cable lug closed	2x M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416920加入购物车。

进入网上商店

货号 416925 EL16 L2.55M 2KSG 10

全球贸易项目代码 4013364029002, 海关HS编码: 85444290, 总重: 550.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x closed cable lug, 2.55 m long
Earthing cable, closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 2x closed M10
Cable cross section: 16 mm2
Cable length : 2.55 m
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L2.55M 2KSG 10
Part No.: 416925
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	2.55 m
Cable lug closed	2x M10
Hole Ø	10.5 mm
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	2.55 m
Cable lug closed	2x M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416925加入购物车。

进入网上商店

货号 416930 EL16 L3.05M 2KSG 10

全球贸易项目代码 4013364029019, 海关HS编码: 85444290, 总重: 660.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x closed cable lug, 3.05 m long
Earthing cable, closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 2x closed M10
Cable cross section: 16 mm2
Cable length : 3.05 m
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L3.05M 2KSG 10
Part No.: 416930
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	3.05 m
Cable lug closed	2x M10
Hole Ø	10.5 mm
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	3.05 m
Cable lug closed	2x M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416930加入购物车。

进入网上商店

货号 416970 EL16 L7.05M 2KSG 10

全球贸易项目代码 4013364029026, 海关HS编码: 85444290, 总重: 1.46 kg, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x closed cable lug, 7.05 m long
Earthing cable, closed cable lugs
Made of highly flexible copper wire, frost-proof
Cable lug, 2x closed M10
Cable cross section: 16 mm2
Cable length : 7.05 m
Hole Ø: 10.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L7.05M 2KSG 10
Part No.: 416970
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	7.05 m
Cable lug closed	2x M10
Hole Ø	10.5 mm
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	7.05 m
Cable lug closed	2x M10
Hole Ø	10.5 mm
Conductor	Cu highly flexible
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416970加入购物车。

进入网上商店

Earthing Cables with Cable Lugs closed

Cable lug, 2x closed M10

货号 410903 EL10 L0.35M 2KSG 10

.产品已加入收藏夹。

商品410903加入购物车。

货号 410905 EL10 L0.55M 2KSG 10

.产品已加入收藏夹。

商品410905加入购物车。

货号 410906 EL10 L0.65M 2KSG 10

.产品已加入收藏夹。

商品410906加入购物车。

货号 410910 EL10 L1.05M 2KSG 10

.产品已加入收藏夹。

商品410910加入购物车。

货号 410915 EL10 L1.55M 2KSG 10

.产品已加入收藏夹。

商品410915加入购物车。

货号 410920 EL10 L2.05M 2KSG 10

.产品已加入收藏夹。

商品410920加入购物车。

货号 410925 EL10 L2.55M 2KSG 10

.产品已加入收藏夹。

商品410925加入购物车。

货号 410930 EL10 L3.05M 2KSG 10

.产品已加入收藏夹。

商品410930加入购物车。

Cable lug, 2x closed M10

货号 416903 EL16 L0.35M 2KSG 10

.产品已加入收藏夹。

商品416903加入购物车。

货号 416905 EL16 L0.55M 2KSG 10

.产品已加入收藏夹。

商品416905加入购物车。

货号 416906 EL16 L0.65M 2KSG 10

.产品已加入收藏夹。

商品416906加入购物车。

货号 416910 EL16 L1.05M 2KSG 10

.产品已加入收藏夹。

商品416910加入购物车。

货号 416915 EL16 L1.55M 2KSG 10

.产品已加入收藏夹。

商品416915加入购物车。

货号 416920 EL16 L2.05M 2KSG 10

.产品已加入收藏夹。

商品416920加入购物车。

货号 416925 EL16 L2.55M 2KSG 10

.产品已加入收藏夹。

商品416925加入购物车。

货号 416930 EL16 L3.05M 2KSG 10

.产品已加入收藏夹。

商品416930加入购物车。

货号 416970 EL16 L7.05M 2KSG 10

.产品已加入收藏夹。

商品416970加入购物车。
