货号 410003 EL10 L0.35M 2KSO 8.10

全球贸易项目代码 4013364028722, 海关HS编码: 85444290, 总重: 105.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

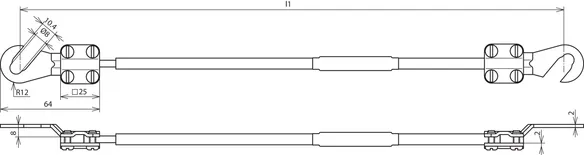

Earthing cable, open cable lugs, 0.35 m long
Earthin cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 10 mm2
Cable length : 0.35 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL10 L0.35M 2KSO 8.10
Part No.: 410003
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	0.35 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	0.35 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0,1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410003加入购物车。

进入网上商店

货号 410005 EL10 L0.55M 2KSO 8.10

全球贸易项目代码 4013364028715, 海关HS编码: 85444290, 总重: 120.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

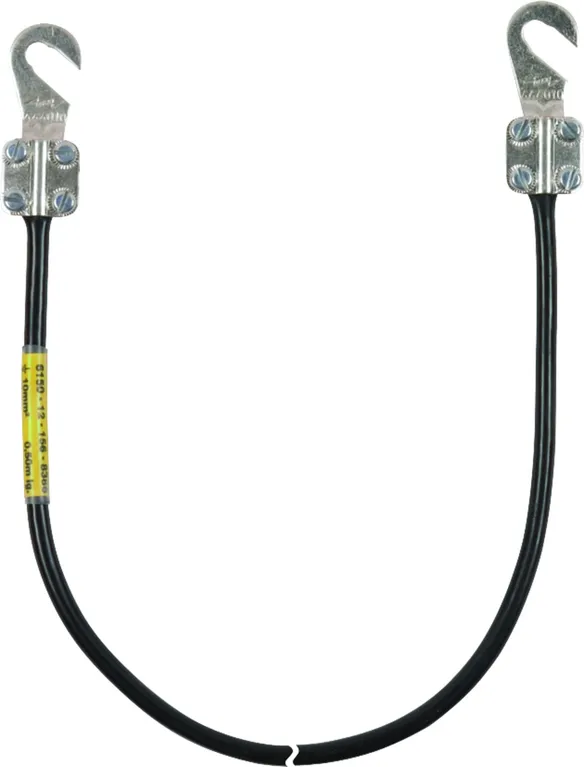

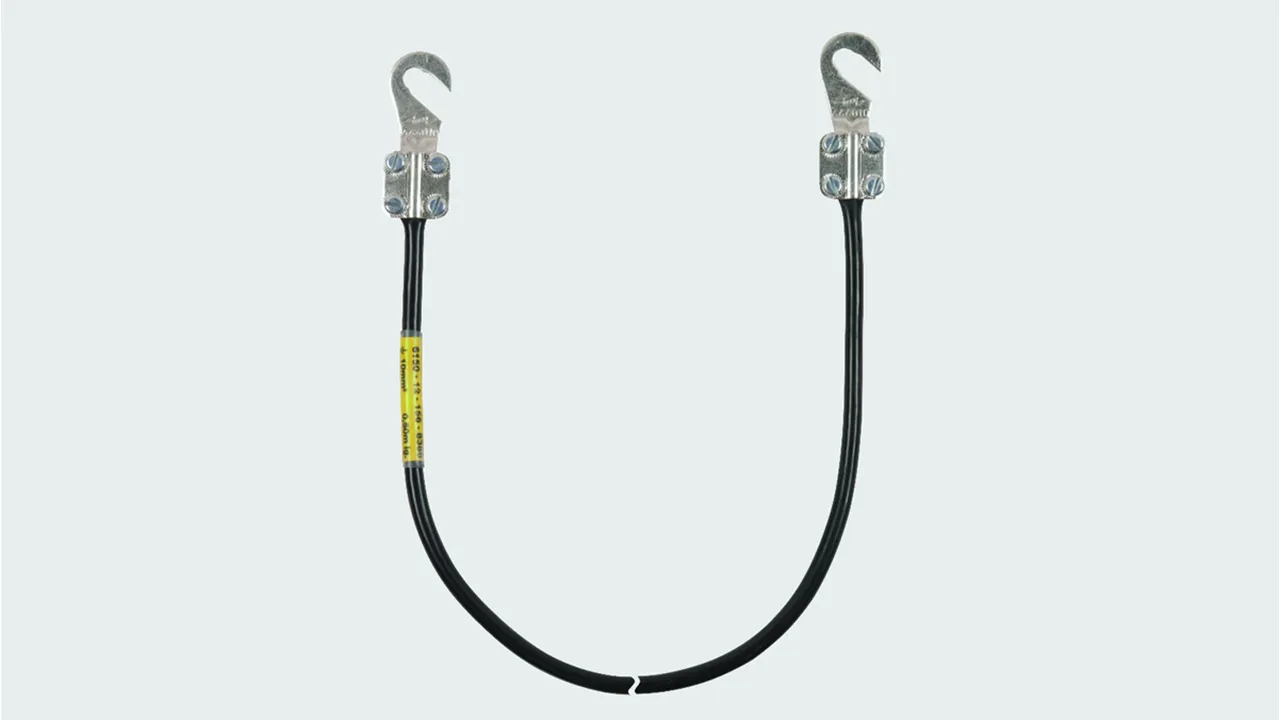

Earthing cable, open cable lugs, 0.55 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 10 mm2
Cable length : 0.55 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL10 L0.55M 2KSO 8.10
Part No.: 410005
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	0.55 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	0.55 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0,1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410005加入购物车。

进入网上商店

货号 410006 EL10 L0.65M 2KSO 8.10

全球贸易项目代码 4013364028708, 海关HS编码: 85444290, 总重: 140.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open cable lugs, 0.65 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 10 mm2
Cable length : 0.65 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL10 L0.65M 2KSO 8.10
Part No.: 410006
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	0.65 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	0.65 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0,1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410006加入购物车。

进入网上商店

货号 410010 EL10 L1.05M 2KSO 8.10

全球贸易项目代码 4013364028692, 海关HS编码: 85444290, 总重: 190.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open cable lugs, 1.05 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 10 mm2
Cable length : 1.05 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL10 L1.05M 2KSO 8.10
Part No.: 410010
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	1.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	1.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0,1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410010加入购物车。

进入网上商店

货号 410015 EL10 L1.55M 2KSO 8.10

全球贸易项目代码 4013364028685, 海关HS编码: 85444290, 总重: 248.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open cable lugs, 1.55 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 10 mm2
Cable length : 1.55 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL10 L1.55M 2KSO 8.10
Part No.: 410015
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	1.55 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	1.55 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0,1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410015加入购物车。

进入网上商店

货号 410020 EL10 L2.05M 2KSO 8.10

全球贸易项目代码 4013364028678, 海关HS编码: 85444290, 总重: 300.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open cable lugs, 2.05 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 10 mm2
Cable length : 2.05 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL10 L2.05M 2KSO 8.10
Part No.: 410020
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	2.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	2.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0,1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410020加入购物车。

进入网上商店

货号 410025 EL10 L2.55M 2KSO 8.10

全球贸易项目代码 4013364028661, 海关HS编码: 85444290, 总重: 370.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open cable lugs, 2.55 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 10 mm2
Cable length : 2.55 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL10 L2.55M 2KSO 8.10
Part No.: 410025
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	2.55 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	2.55 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0,1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410025加入购物车。

进入网上商店

货号 410030 EL10 L3.05M 2KSO 8.10

全球贸易项目代码 4013364028654, 海关HS编码: 85444290, 总重: 438.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open cable lugs, 3.05 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 10 mm2
Cable length : 3.05 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL10 L3.05M 2KSO 8.10
Part No.: 410030
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	3.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	3.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0,1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410030加入购物车。

进入网上商店

货号 410035 EL10 L3.55M 2KSO 8.10

全球贸易项目代码 4013364028647, 海关HS编码: 85444290, 总重: 490.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open cable lugs, 3.55 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 10 mm2
Cable length : 3.55 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL10 L3.55M 2KSO 8.10
Part No.: 410035
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	3.55 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	3.55 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0,1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410035加入购物车。

进入网上商店

货号 410040 EL10 L4.05M 2KSO 8.10

全球贸易项目代码 4013364028630, 海关HS编码: 85444290, 总重: 550.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open cable lugs, 4.05 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 10 mm2
Cable length : 4.05 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL10 L4.05M 2KSO 8.10
Part No.: 410040
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	4.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	4.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0,1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410040加入购物车。

进入网上商店

货号 410050 EL10 L5.05M 2KSO 8.10

全球贸易项目代码 4013364028623, 海关HS编码: 85444290, 总重: 680.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open cable lugs, 5.05 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 10 mm2
Cable length : 5.05 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL10 L5.05M 2KSO 8.10
Part No.: 410050
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	5.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	5.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0,1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410050加入购物车。

进入网上商店

货号 410060 EL10 L6.05M 2KSO 8.10

全球贸易项目代码 4013364028616, 海关HS编码: 85444290, 总重: 800.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open cable lugs, 6.05 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 10 mm2
Cable length : 6.05 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL10 L6.05M 2KSO 8.10
Part No.: 410060
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	6.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	6.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0,1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410060加入购物车。

进入网上商店

货号 410070 EL10 L7.05M 2KSO 8.10

全球贸易项目代码 4013364028609, 海关HS编码: 85444290, 总重: 920.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open cable lugs, 7.05 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 10 mm2
Cable length : 7.05 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL10 L7.05M 2KSO 8.10
Part No.: 410070
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	7.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	7.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0,1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410070加入购物车。

进入网上商店

货号 410099 EL10 L10.0M 2KSO 8.10

全球贸易项目代码 4013364028593, 海关HS编码: 85444290, 总重: 1.27 kg, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open cable lugs, 10.0 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 10 mm2
Cable length : 10.0 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL10 L10.0M 2KSO 8.10
Part No.: 410099
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	10.0 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	10.0 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0,1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410099加入购物车。

进入网上商店

货号 410140 EL10 L14.0M 2KSO 8.10

全球贸易项目代码 4013364028586, 海关HS编码: 85444290, 总重: 1.78 kg, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open cable lugs, 14.0 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 10 mm2
Cable length : 14.0 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL10 L14.0M 2KSO 8.10
Part No.: 410140
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	14.0 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	14.0 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0,1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410140加入购物车。

进入网上商店

货号 410150 EL10 L15.0M 2KSO 8.10

全球贸易项目代码 4013364028579, 海关HS编码: 85444290, 总重: 1.87 kg, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open cable lugs, 15.0 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 10 mm2
Cable length : 15.0 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL10 L15.0M 2KSO 8.10
Part No.: 410150
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	15.0 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	15.0 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0,1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410150加入购物车。

进入网上商店

货号 410199 EL10 L20.0M 2KSO 8.10

全球贸易项目代码 4013364028562, 海关HS编码: 85444290, 总重: 2.48 kg, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open cable lugs, 20.0 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 10 mm2
Cable length : 20.0 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL10 L20.0M 2KSO 8.10
Part No.: 410199
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	20.0 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	20.0 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0,1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410199加入购物车。

进入网上商店

货号 410299 EL10 L30.0M 2KSO 8.10

全球贸易项目代码 4013364028555, 海关HS编码: 85444290, 总重: 3.66 kg, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, open cable lugs, 30.0 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 10 mm2
Cable length : 30.0 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL10 L30.0M 2KSO 8.10
Part No.: 410299
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	30.0 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	30.0 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0,1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410299加入购物车。

进入网上商店

货号 410603 EL10 L0.35M 1KSO 8.10 1KSO 5.6

全球贸易项目代码 4013364029330, 海关HS编码: 85444290, 总重: 100.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

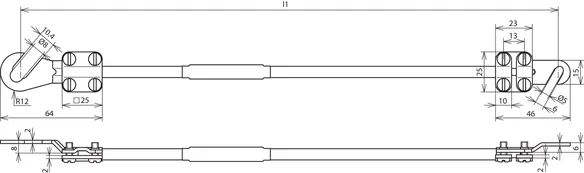

Earthing cable, 2x open cable lug, 0.35 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 1x M8/M10 and 1x M5/M6
Cable cross section: 10 mm2
Cable length : 0.35 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL10 L0.35M 1KSO 8.10 1KSO 5.6
Part No.: 410603
or equivalent.

技术参数

Cable cross section	10 mm²
Cable length (l1)	0.35 m
Cable lug open	1x M8 / M10 1x M5 / M6
Conductor	Cu highly flexible
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	0.35 m
Cable lug open	1x M8 / M10 1x M5 / M6
Conductor	Cu highly flexible
Single wire diameter	0,1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410603加入购物车。

进入网上商店

货号 410605 EL10 L0.55M 1KSO 8.10 1KSO 5.6

全球贸易项目代码 4013364029347, 海关HS编码: 85444290, 总重: 120.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

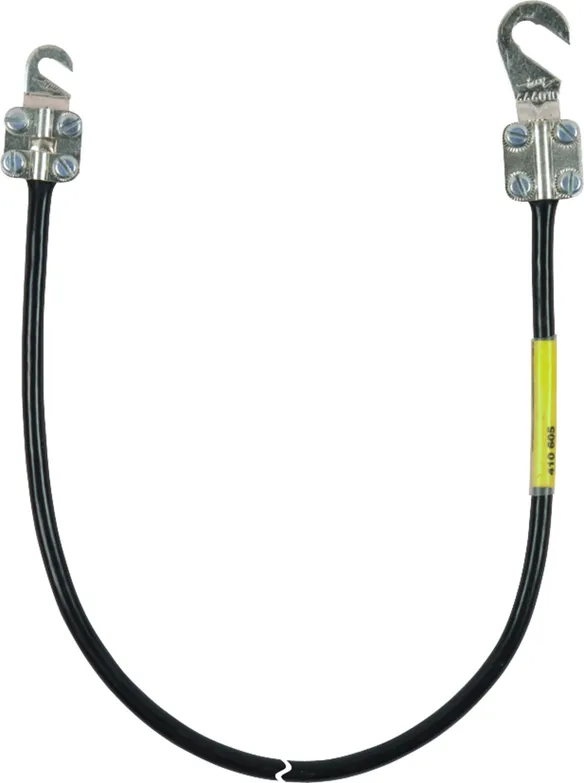

Earthing cable, 2x open cable lug, 0.55 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 1x M8/M10 and 1x M5/M6
Cable cross section: 10 mm2
Cable length : 0.55 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL10 L0.55M 1KSO 8.10 1KSO 5.6
Part No.: 410605
or equivalent.

技术参数

Cable cross section	10 mm²
Cable length (l1)	0.55 m
Cable lug open	1x M8 / M10 1x M5 / M6
Conductor	Cu highly flexible
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	0.55 m
Cable lug open	1x M8 / M10 1x M5 / M6
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410605加入购物车。

进入网上商店

货号 410610 EL10 L1.05M 1KSO 8.10 1KSO 5.6

全球贸易项目代码 4013364029354, 海关HS编码: 85444290, 总重: 185.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 1.05 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 1x M8/M10 and 1x M5/M6
Cable cross section: 10 mm2
Cable length : 1.05 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL10 L1.05M 1KSO 8.10 1KSO 5.6
Part No.: 410610
or equivalent.

技术参数

Cable cross section	10 mm²
Cable length (l1)	1.05 m
Cable lug open	1x M8 / M10 1x M5 / M6
Conductor	Cu highly flexible
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	1.05 m
Cable lug open	1x M8 / M10 1x M5 / M6
Conductor	Cu highly flexible
Single wire diameter	0,1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410610加入购物车。

进入网上商店

货号 410615 EL10 L1.55M 1KSO 8.10 1KSO 5.6

全球贸易项目代码 4013364029361, 海关HS编码: 85444290, 总重: 240.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 1.55 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 1x M8/M10 and 1x M5/M6
Cable cross section: 10 mm2
Cable length : 1.55 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL10 L1.55M 1KSO 8.10 1KSO 5.6
Part No.: 410615
or equivalent.

认证

技术参数

Cable cross section	10 mm²
Cable length (l1)	1.55 m
Cable lug open	1x M8 / M10 1x M5 / M6
Conductor	Cu highly flexible
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	1.55 m
Cable lug open	1x M8 / M10 1x M5 / M6
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410615加入购物车。

进入网上商店

货号 410620 EL10 L2.05M 1KSO 8.10 1KSO 5.6

全球贸易项目代码 4013364029378, 海关HS编码: 85444290, 总重: 305.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 2.05 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 1x M8/M10 and 1x M5/M6
Cable cross section: 10 mm2
Cable length : 2.05 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL10 L2.05M 1KSO 8.10 1KSO 5.6
Part No.: 410620
or equivalent.

技术参数

Cable cross section	10 mm²
Cable length (l1)	2.05 m
Cable lug open	1x M8 / M10 1x M5 / M6
Conductor	Cu highly flexible
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	2.05 m
Cable lug open	1x M8 / M10 1x M5 / M6
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410620加入购物车。

进入网上商店

货号 410625 EL10 L2.55M 1KSO 8.10 1KSO 5.6

全球贸易项目代码 4013364029385, 海关HS编码: 85444290, 总重: 365.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 2.55 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 1x M8/M10 and 1x M5/M6
Cable cross section: 10 mm2
Cable length : 2.55 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL10 L2.55M 1KSO 8.10 1KSO 5.6
Part No.: 410625
or equivalent.

技术参数

Cable cross section	10 mm²
Cable length (l1)	2.55 m
Cable lug open	1x M8 / M10 1x M5 / M6
Conductor	Cu highly flexible
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	2.55 m
Cable lug open	1x M8 / M10 1x M5 / M6
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410625加入购物车。

进入网上商店

货号 410630 EL10 L3.05M 1KSO 8.10 1KSO 5.6

全球贸易项目代码 4013364029392, 海关HS编码: 85444290, 总重: 430.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 3.05 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 1x M8/M10 and 1x M5/M6
Cable cross section: 10 mm2
Cable length : 3.05 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL10 L3.05M 1KSO 8.10 1KSO 5.6
Part No.: 410630
or equivalent.

技术参数

Cable cross section	10 mm²
Cable length (l1)	3.05 m
Cable lug open	1x M8 / M10 1x M5 / M6
Conductor	Cu highly flexible
Colour	black ●

Cable cross section	10 mm²
Cable length (l1)	3.05 m
Cable lug open	1x M8 / M10 1x M5 / M6
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品410630加入购物车。

进入网上商店

货号 416003 EL16 L0.35M 2KSO 8.10

全球贸易项目代码 4013364028937, 海关HS编码: 85444290, 总重: 126.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 0.35 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 16 mm2
Cable length : 0.35 m
Cable lug material: Cu/gal Sn
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L0.35M 2KSO 8.10
Part No.: 416003
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	0.35 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	0.35 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0,1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416003加入购物车。

进入网上商店

货号 416005 EL16 L0.55M 2KSO 8.10

全球贸易项目代码 4013364028920, 海关HS编码: 85444290, 总重: 165.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 0.55 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 16 mm2
Cable length : 0.55 m
Cable lug material: Cu/gal Sn
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L0.55M 2KSO 8.10
Part No.: 416005
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	0.55 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	0.55 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416005加入购物车。

进入网上商店

货号 416006 EL16 L0.65M 2KSO 8.10

全球贸易项目代码 4013364028913, 海关HS编码: 85444290, 总重: 183.60 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 0.65 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 16 mm2
Cable length : 0.65 m
Cable lug material: Cu/gal Sn
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L0.65M 2KSO 8.10
Part No.: 416006
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	0.65 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	0.65 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416006加入购物车。

进入网上商店

货号 416010 EL16 L1.05M 2KSO 8.10

全球贸易项目代码 4013364028906, 海关HS编码: 85444290, 总重: 262.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 1.05 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 16 mm2
Cable length : 1.05 m
Cable lug material: Cu/gal Sn
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L1.05M 2KSO 8.10
Part No.: 416010
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	1.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	1.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416010加入购物车。

进入网上商店

货号 416015 EL16 L1.55M 2KSO 8.10

全球贸易项目代码 4013364028890, 海关HS编码: 85444290, 总重: 360.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 1.55 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 16 mm2
Cable length : 1.55 m
Cable lug material: Cu/gal Sn
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L1.55M 2KSO 8.10
Part No.: 416015
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	1.55 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	1.55 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416015加入购物车。

进入网上商店

货号 416020 EL16 L2.05M 2KSO 8.10

全球贸易项目代码 4013364028883, 海关HS编码: 85444290, 总重: 460.50 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 2.05 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 16 mm2
Cable length : 2.05 m
Cable lug material: Cu/gal Sn
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L2.05M 2KSO 8.10
Part No.: 416020
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	2.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	2.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416020加入购物车。

进入网上商店

货号 416025 EL16 L2.55M 2KSO 8.10

全球贸易项目代码 4013364028876, 海关HS编码: 85444290, 总重: 545.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 2.55 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 16 mm2
Cable length : 2.55 m
Cable lug material: Cu/gal Sn
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L2.55M 2KSO 8.10
Part No.: 416025
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	2.55 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	2.55 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416025加入购物车。

进入网上商店

货号 416030 EL16 L3.05M 2KSO 8.10

全球贸易项目代码 4013364028869, 海关HS编码: 85444290, 总重: 650.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 3.05 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 16 mm2
Cable length : 3.05 m
Cable lug material: Cu/gal Sn
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L3.05M 2KSO 8.10
Part No.: 416030
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	3.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	3.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416030加入购物车。

进入网上商店

货号 416035 EL16 L3.55M 2KSO 8.10

全球贸易项目代码 4013364028852, 海关HS编码: 85444290, 总重: 748.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 3.55 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 16 mm2
Cable length : 3.55 m
Cable lug material: Cu/gal Sn
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L3.55M 2KSO 8.10
Part No.: 416035
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	3.55 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	3.55 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416035加入购物车。

进入网上商店

货号 416040 EL16 L4.05M 2KSO 8.10

全球贸易项目代码 4013364028845, 海关HS编码: 85444290, 总重: 830.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 4.05 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 16 mm2
Cable length : 4.05 m
Cable lug material: Cu/gal Sn
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L4.05M 2KSO 8.10
Part No.: 416040
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	4.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	4.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416040加入购物车。

进入网上商店

货号 416050 EL16 L5.05M 2KSO 8.10

全球贸易项目代码 4013364028838, 海关HS编码: 85444290, 总重: 1.04 kg, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 5.05 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 16 mm2
Cable length : 5.05 m
Cable lug material: Cu/gal Sn
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L5.05M 2KSO 8.10
Part No.: 416050
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	5.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	5.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416050加入购物车。

进入网上商店

货号 416060 EL16 L6.05M 2KSO 8.10

全球贸易项目代码 4013364028821, 海关HS编码: 85444290, 总重: 1.24 kg, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 6.05 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 16 mm2
Cable length : 6.05 m
Cable lug material: Cu/gal Sn
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L6.05M 2KSO 8.10
Part No.: 416060
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	6.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	6.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416060加入购物车。

进入网上商店

货号 416070 EL16 L7.05M 2KSO 8.10

全球贸易项目代码 4013364028814, 海关HS编码: 85444290, 总重: 1.44 kg, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 7.05 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 16 mm2
Cable length : 7.05 m
Cable lug material: Cu/gal Sn
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L7.05M 2KSO 8.10
Part No.: 416070
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	7.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	7.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416070加入购物车。

进入网上商店

货号 416080 EL16 L8.05M 2KSO 8.10

全球贸易项目代码 4013364028807, 海关HS编码: 85444290, 总重: 1.60 kg, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 8.05 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 16 mm2
Cable length : 8.05 m
Cable lug material: Cu/gal Sn
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L8.05M 2KSO 8.10
Part No.: 416080
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	8.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	8.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416080加入购物车。

进入网上商店

货号 416100 EL16 L10.05M 2KSO 8.10

全球贸易项目代码 4013364042933, 海关HS编码: 85444290, 总重: 2.01 kg, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 10.05 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 16 mm2
Cable length : 10.05 m
Cable lug material: Cu/gal Sn
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L10.05M 2KSO 8.10
Part No.: 416100
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	10.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	10.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416100加入购物车。

进入网上商店

货号 416120 EL16 L12.05M 2KSO 8.10

全球贸易项目代码 4013364028791, 海关HS编码: 85444290, 总重: 2.43 kg, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 12.05 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 16 mm2
Cable length : 12.05 m
Cable lug material: Cu/gal Sn
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L12.05M 2KSO 8.10
Part No.: 416120
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	12.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	12.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416120加入购物车。

进入网上商店

货号 416140 EL16 L14.05M 2KSO 8.10

全球贸易项目代码 4013364028784, 海关HS编码: 85444290, 总重: 2.73 kg, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 14.05 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 16 mm2
Cable length : 14.05 m
Cable lug material: Cu/gal Sn
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L14.05M 2KSO 8.10
Part No.: 416140
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	14.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	14.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0,1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416140加入购物车。

进入网上商店

货号 416150 EL16 L15.05M 2KSO 8.10

全球贸易项目代码 4013364028777, 海关HS编码: 85444290, 总重: 3.01 kg, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 15.05 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 16 mm2
Cable length : 15.05 m
Cable lug material: Cu/gal Sn
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L15.05M 2KSO 8.10
Part No.: 416150
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	15.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	15.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416150加入购物车。

进入网上商店

货号 416200 EL16 L20.05M 2KSO 8.10

全球贸易项目代码 4013364028760, 海关HS编码: 85444290, 总重: 3.95 kg, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 20.05 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 16 mm2
Cable length : 20.05 m
Cable lug material: Cu/gal Sn
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L20.05M 2KSO 8.10
Part No.: 416200
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	20.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	20.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416200加入购物车。

进入网上商店

货号 416220 EL16 L22.05M 2KSO 8.10

全球贸易项目代码 4013364028753, 海关HS编码: 85444290, 总重: 4.38 kg, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 22.05 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 16 mm2
Cable length : 22.05 m
Cable lug material: Cu/gal Sn
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L22.05M 2KSO 8.10
Part No.: 416220
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	22.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	22.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416220加入购物车。

进入网上商店

货号 416280 EL16 L28.05M 2KSO 8.10

全球贸易项目代码 4013364028746, 海关HS编码: 85444290, 总重: 5.64 kg, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 28.05 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 16 mm2
Cable length : 28.05 m
Cable lug material: Cu/gal Sn
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L28.05M 2KSO 8.10
Part No.: 416280
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	28.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	28.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416280加入购物车。

进入网上商店

货号 416300 EL16 L30.05M 2KSO 8.10

全球贸易项目代码 4013364028739, 海关HS编码: 85444290, 总重: 5.94 kg, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 30.05 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 16 mm2
Cable length : 30.05 m
Cable lug material: Cu/gal Sn
Standard: EN 62561-1

Brand: DEHN
Type: EL16 L30.05M 2KSO 8.10
Part No.: 416300
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	30.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	black ●
Standard	EN 62561-1

Cable cross section	16 mm²
Cable length (l1)	30.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0.1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn
Standard	EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品416300加入购物车。

进入网上商店

货号 416516 EL16 L1.55M 1KSO 8.10 1KSO 5.6

全球贸易项目代码 4013364032408, 海关HS编码: 85444290, 总重: 341.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 1.55 m long
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 1x M8/M10 and 1x M5/M6
Cable cross section: 16 mm2
Cable length : 1.55 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL16 L1.55M 1KSO 8.10 1KSO 5.6
Part No.: 416516
or equivalent.

认证

技术参数

Cable cross section	16 mm²
Cable length (l1)	1.55 m
Cable lug open	1x M8 / M10 1x M5 / M6
Conductor	Cu highly flexible
Colour	black ●

Cable cross section	16 mm²
Cable length (l1)	1.55 m
Cable lug open	1x M8 / M10 1x M5 / M6
Conductor	Cu highly flexible
Single wire diameter	0,1 mm
Operating voltage resistance (AC / DC)	600 V
Temperature range	-40 °C ... +150 °C
Colour	black ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品416516加入购物车。

进入网上商店

货号 417005 EL16 L0.55M 2KSO 8.10 GG

全球贸易项目代码 4013364031982, 海关HS编码: 85444290, 总重: 168.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 0.55 m long, green/yellow
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 16 mm2
Cable length : 0.55 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL16 L0.55M 2KSO 8.10 GG
Part No.: 417005
or equivalent.

技术参数

Cable cross section	16 mm²
Cable length (l1)	0.55 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	green ● / yellow ●

Cable cross section	16 mm²
Cable length (l1)	0.55 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0.07 mm
Temperature range	-40 °C ... +90 °C
Colour	green ● / yellow ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品417005加入购物车。

进入网上商店

货号 417010 EL16 L1.05M 2KSO 8.10 GG

全球贸易项目代码 4013364031975, 海关HS编码: 85444290, 总重: 259.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 1.05 m long, green/yellow
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 16 mm2
Cable length : 1.05 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL16 L1.05M 2KSO 8.10 GG
Part No.: 417010
or equivalent.

技术参数

Cable cross section	16 mm²
Cable length (l1)	1.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	green ● / yellow ●

Cable cross section	16 mm²
Cable length (l1)	1.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0.07 mm
Temperature range	-40 °C ... +90 °C
Colour	green ● / yellow ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品417010加入购物车。

进入网上商店

货号 417015 EL16 L1.55M 2KSO 8.10 GG

全球贸易项目代码 4013364031968, 海关HS编码: 85444290, 总重: 353.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 1.55 m long, green/yellow
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 16 mm2
Cable length : 1.55 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL16 L1.55M 2KSO 8.10 GG
Part No.: 417015
or equivalent.

技术参数

Cable cross section	16 mm²
Cable length (l1)	1.55 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	green ● / yellow ●

Cable cross section	16 mm²
Cable length (l1)	1.55 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0.07 mm
Temperature range	-40 °C ... +90 °C
Colour	green ● / yellow ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品417015加入购物车。

进入网上商店

货号 417020 EL16 L2.05M 2KSO 8.10 GG

全球贸易项目代码 4013364031951, 海关HS编码: 85444290, 总重: 447.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 2.05 m long, green/yellow
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 16 mm2
Cable length : 2.05 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL16 L2.05M 2KSO 8.10 GG
Part No.: 417020
or equivalent.

技术参数

Cable cross section	16 mm²
Cable length (l1)	2.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	green ● / yellow ●

Cable cross section	16 mm²
Cable length (l1)	2.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0.07 mm
Temperature range	-40 °C ... +90 °C
Colour	green ● / yellow ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品417020加入购物车。

进入网上商店

货号 417030 EL16 L3.05M 2KSO 8.10 GG

全球贸易项目代码 4013364031944, 海关HS编码: 85444290, 总重: 635.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 3.05 m long, green/yellow
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 16 mm2
Cable length : 3.05 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL16 L3.05M 2KSO 8.10 GG
Part No.: 417030
or equivalent.

技术参数

Cable cross section	16 mm²
Cable length (l1)	3.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	green ● / yellow ●

Cable cross section	16 mm²
Cable length (l1)	3.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0.07 mm
Temperature range	-40 °C ... +90 °C
Colour	green ● / yellow ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品417030加入购物车。

进入网上商店

货号 417050 EL16 L5.05M 2KSO 8.10 GG

全球贸易项目代码 4013364031937, 海关HS编码: 85444290, 总重: 1.01 kg, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 5.05 m long, green/yellow
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 16 mm2
Cable length : 5.05 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL16 L5.05M 2KSO 8.10 GG
Part No.: 417050
or equivalent.

技术参数

Cable cross section	16 mm²
Cable length (l1)	5.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	green ● / yellow ●

Cable cross section	16 mm²
Cable length (l1)	5.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0.07 mm
Temperature range	-40 °C ... +90 °C
Colour	green ● / yellow ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品417050加入购物车。

进入网上商店

货号 417100 EL16 L10.05M 2KSO 8.10 GG

全球贸易项目代码 4013364031920, 海关HS编码: 85444290, 总重: 1.95 kg, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 10.05 m long, green/yellow
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 16 mm2
Cable length : 10.05 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL16 L10.05M 2KSO 8.10 GG
Part No.: 417100
or equivalent.

技术参数

Cable cross section	16 mm²
Cable length (l1)	10.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highlyflexible
Colour	green ● / yellow ●

Cable cross section	16 mm²
Cable length (l1)	10.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highlyflexible
Single wire diameter	0.07 mm
Temperature range	-40 °C ... +90 °C
Colour	green ● / yellow ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品417100加入购物车。

进入网上商店

货号 417115 EL16 L15.05M 2KSO 8.10 GG

全球贸易项目代码 4013364031913, 海关HS编码: 85444290, 总重: 2.89 kg, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 15.05 m long, green/yellow
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 16 mm2
Cable length : 15.05 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL16 L15.05M 2KSO 8.10 GG
Part No.: 417115
or equivalent.

技术参数

Cable cross section	16 mm²
Cable length (l1)	15.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	green ● / yellow ●

Cable cross section	16 mm²
Cable length (l1)	15.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0.07 mm
Temperature range	-40 °C ... +90 °C
Colour	green ● / yellow ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品417115加入购物车。

进入网上商店

货号 417120 EL16 L20.05M 2KSO 8.10 GG

全球贸易项目代码 4013364031906, 海关HS编码: 85444290, 总重: 3.83 kg, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 20.5 m long, green/yellow
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 16 mm2
Cable length : 20.05 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL16 L20.05M 2KSO 8.10 GG
Part No.: 417120
or equivalent.

技术参数

Cable cross section	16 mm²
Cable length (l1)	20.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	green ● / yellow ●

Cable cross section	16 mm²
Cable length (l1)	20.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0.07 mm
Temperature range	-40 °C ... +90 °C
Colour	green ● / yellow ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品417120加入购物车。

进入网上商店

货号 417125 EL16 L25.05M 2KSO 8.10 GG

全球贸易项目代码 4013364031890, 海关HS编码: 85444290, 总重: 4.77 kg, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 25.05 m long, green/yellow
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 16 mm2
Cable length : 25.05 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL16 L25.05M 2KSO 8.10 GG
Part No.: 417125
or equivalent.

技术参数

Cable cross section	16 mm²
Cable length (l1)	25.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	green ● / yellow ●

Cable cross section	16 mm²
Cable length (l1)	25.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0.07 mm
Temperature range	-40 °C ... +90 °C
Colour	green ● / yellow ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品417125加入购物车。

进入网上商店

货号 417130 EL16 L30.05M 2KSO 8.10 GG

全球贸易项目代码 4013364031883, 海关HS编码: 85444290, 总重: 5.71 kg, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 30.05 m long, green/yellow
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 16 mm2
Cable length : 30.05 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL16 L30.05M 2KSO 8.10 GG
Part No.: 417130
or equivalent.

技术参数

Cable cross section	16 mm²
Cable length (l1)	30.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	green ● / yellow ●

Cable cross section	16 mm²
Cable length (l1)	30.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0.07 mm
Temperature range	-40 °C ... +90 °C
Colour	green ● / yellow ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品417130加入购物车。

进入网上商店

货号 417150 EL16 L50.05M 2KSO 8.10 GG

全球贸易项目代码 4013364031876, 海关HS编码: 85444290, 总重: 9.47 kg, 包装单位: 1.00 pc(s)


Open PDF

附加信息

Earthing cable, 2x open cable lug, 50.05 m long, green/yellow
Earthing cable, open cable lugs
Made of highly flexible copper conductor, frost-proof
Cable lug, 2x open, 2x M8/M10
Cable cross section: 16 mm2
Cable length : 50.05 m
Cable lug material: Cu/gal Sn

Brand: DEHN
Type: EL16 L50.05M 2KSO 8.10 GG
Part No.: 417150
or equivalent.

技术参数

Cable cross section	16 mm²
Cable length (l1)	50.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Colour	green ● / yellow ●

Cable cross section	16 mm²
Cable length (l1)	50.05 m
Cable lug open	2x M8 / M10
Conductor	Cu highly flexible
Single wire diameter	0.07 mm
Temperature range	-40 °C ... +90 °C
Colour	green ● / yellow ●
Cable lug material	Cu/gal Sn
Screw	eh M4 x 10 mm
Material of screw	St/gal Zn

.产品已加入收藏夹。

进入收藏夹

商品417150加入购物车。

进入网上商店

Earthing Cables with Cable Lugs open

Cable lug, 2x open, 2x M8 / M10

货号 410003 EL10 L0.35M 2KSO 8.10

.产品已加入收藏夹。

商品410003加入购物车。

货号 410005 EL10 L0.55M 2KSO 8.10

.产品已加入收藏夹。

商品410005加入购物车。

货号 410006 EL10 L0.65M 2KSO 8.10

.产品已加入收藏夹。

商品410006加入购物车。

货号 410010 EL10 L1.05M 2KSO 8.10

.产品已加入收藏夹。

商品410010加入购物车。

货号 410015 EL10 L1.55M 2KSO 8.10

.产品已加入收藏夹。

商品410015加入购物车。

货号 410020 EL10 L2.05M 2KSO 8.10

.产品已加入收藏夹。

商品410020加入购物车。

货号 410025 EL10 L2.55M 2KSO 8.10

.产品已加入收藏夹。

商品410025加入购物车。

货号 410030 EL10 L3.05M 2KSO 8.10

.产品已加入收藏夹。

商品410030加入购物车。

货号 410035 EL10 L3.55M 2KSO 8.10

.产品已加入收藏夹。

商品410035加入购物车。

货号 410040 EL10 L4.05M 2KSO 8.10

.产品已加入收藏夹。

商品410040加入购物车。

货号 410050 EL10 L5.05M 2KSO 8.10

.产品已加入收藏夹。

商品410050加入购物车。

货号 410060 EL10 L6.05M 2KSO 8.10

.产品已加入收藏夹。

商品410060加入购物车。

货号 410070 EL10 L7.05M 2KSO 8.10

.产品已加入收藏夹。

商品410070加入购物车。

货号 410099 EL10 L10.0M 2KSO 8.10

.产品已加入收藏夹。

商品410099加入购物车。

货号 410140 EL10 L14.0M 2KSO 8.10

.产品已加入收藏夹。

商品410140加入购物车。

货号 410150 EL10 L15.0M 2KSO 8.10

.产品已加入收藏夹。

商品410150加入购物车。

货号 410199 EL10 L20.0M 2KSO 8.10

.产品已加入收藏夹。

商品410199加入购物车。

货号 410299 EL10 L30.0M 2KSO 8.10

.产品已加入收藏夹。

商品410299加入购物车。

Cable lug, 2x open, 1x M8 / M10 and 1x M5 / M6

货号 410603 EL10 L0.35M 1KSO 8.10 1KSO 5.6

.产品已加入收藏夹。

商品410603加入购物车。

货号 410605 EL10 L0.55M 1KSO 8.10 1KSO 5.6

.产品已加入收藏夹。

商品410605加入购物车。

货号 410610 EL10 L1.05M 1KSO 8.10 1KSO 5.6

.产品已加入收藏夹。

商品410610加入购物车。

货号 410615 EL10 L1.55M 1KSO 8.10 1KSO 5.6

.产品已加入收藏夹。

商品410615加入购物车。

货号 410620 EL10 L2.05M 1KSO 8.10 1KSO 5.6

.产品已加入收藏夹。

商品410620加入购物车。

货号 410625 EL10 L2.55M 1KSO 8.10 1KSO 5.6

.产品已加入收藏夹。

商品410625加入购物车。

货号 410630 EL10 L3.05M 1KSO 8.10 1KSO 5.6

.产品已加入收藏夹。

商品410630加入购物车。

Cable lug, 2x open, 2x M8 / M10

货号 416003 EL16 L0.35M 2KSO 8.10
