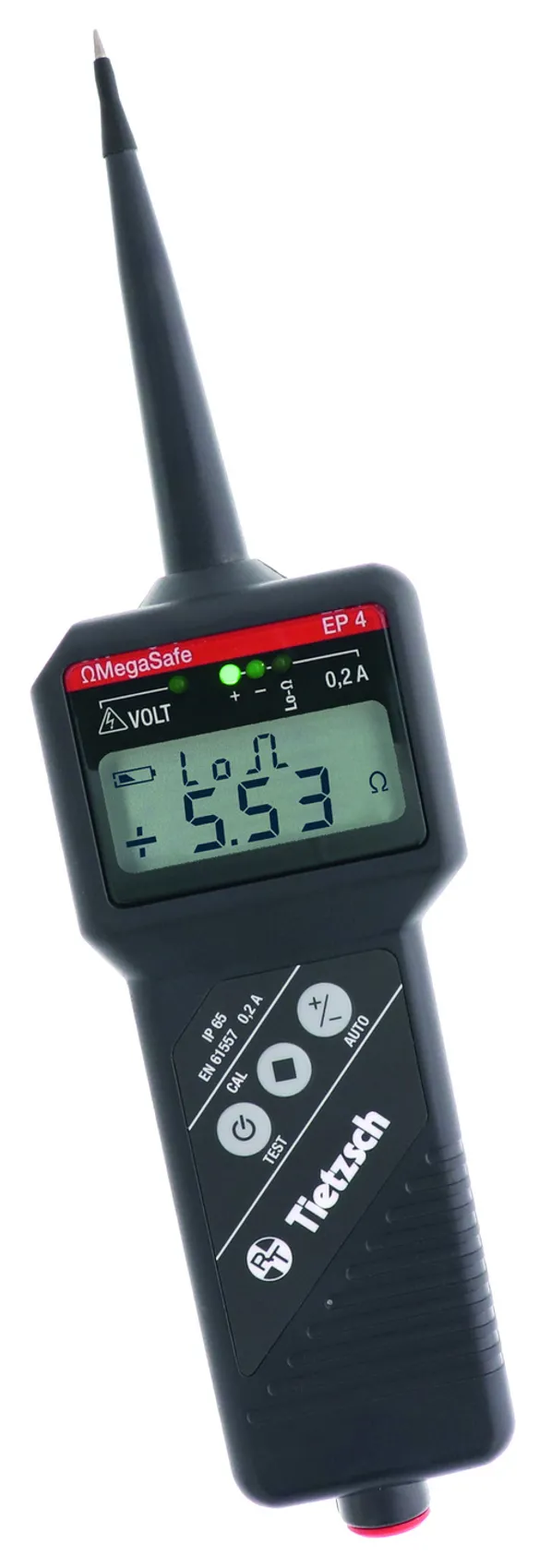

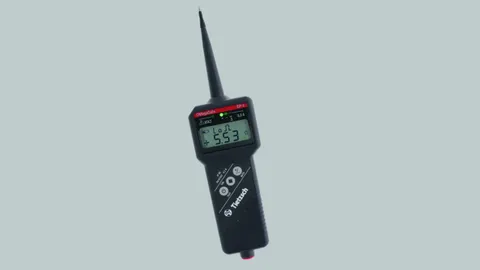

EP4 Continuity Tester

Continuity tester for measuring the resistance of e.g. air-termination and down conductors and subsequently installed reinforcing bars of buildings. The tester is suited for measuring the resistance of earth-termination systems according to DIN 18014 with a test current of 200 mA.

1 产品

货号 578370 DGP EP4

全球贸易项目代码 4013364110953, 海关HS编码: 90303320, 总重: 350.00 g, 包装单位: 1.00 pc(s)


附加信息

Continuity tester EP4
Continuity tester EP4 for measuring resistances
on,
for example, air-termination systems, down conductors, earthing systems and
subsequently used reinforcing bars
of structures with a test current
of 200 mA.
Digital LCD display
Different measuring ranges from 0.01 ohms to 2,000 kohms
Measuring current 200 mA ranging up to 10 ohms
Automatic measured value storage
Quick compensation of the measuring line

Brand: DEHN
Type: DGP EP4
Part No.: 578370
or equivalent.

认证

技术参数

Display	digital LCD display
Resistance measuring range	0.01 Ω to 2,000 kΩ
Measuring current	200 mA in the range up to 10 Ω acc. to EN 61557-4
Dimensions (l x w x d)	230 x 60 x 40 mm
