SPD test device
:quality(98)/www.dehn.cn/store/f/57262882/HDVORSCHAU/910511a2_16-9.jpg)
:quality(98)/www.dehn.cn/store/f/57262882/HDVORSCHAU/910511a2_16-9.jpg)

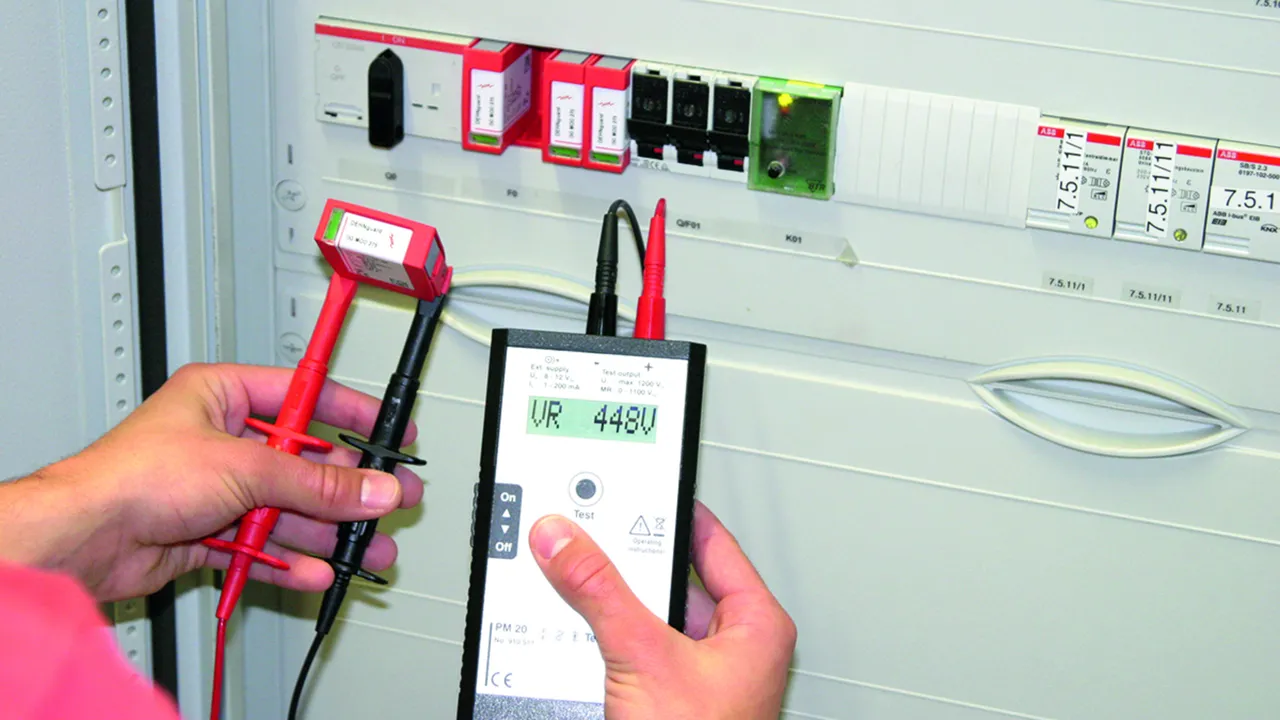

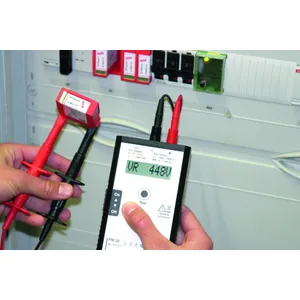

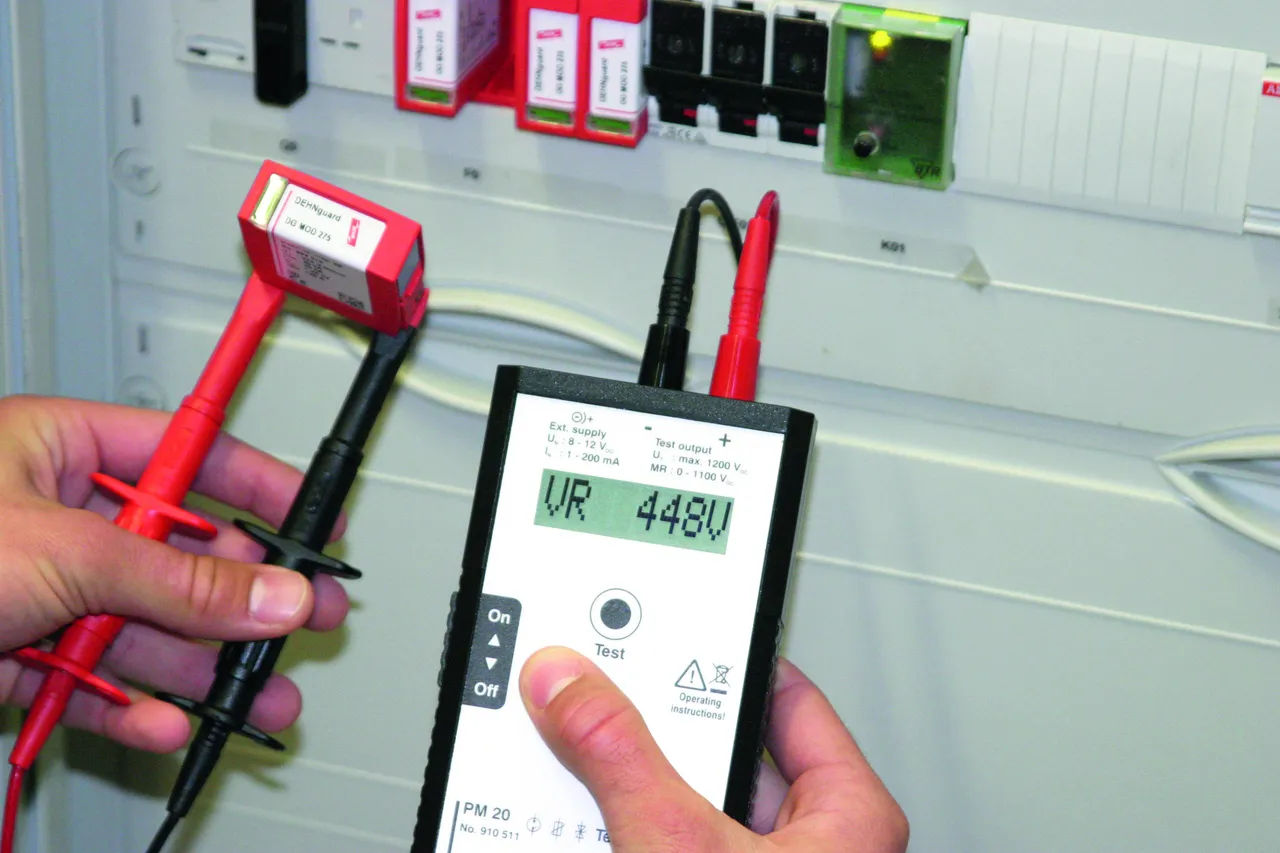

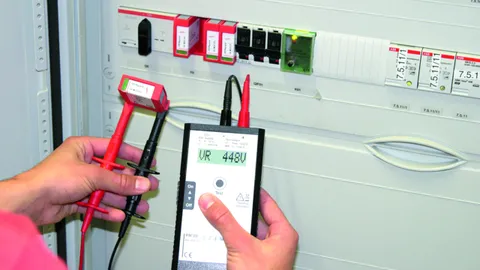

- For routine tests of surge protective devices
- Compact dimensions
- Suitable for mains and battery operation
- Low battery indicator
- Test leads included in delivery
详情
:quality(98)/www.dehn.cn/store/f/57262884/HDVORSCHAU/910511a1_Web2.jpg)
:quality(98)/www.dehn.cn/store/f/57262884/HDVORSCHAU/910511a1_Web2.jpg)
:quality(98)/www.dehn.cn/store/f/57262883/HDVORSCHAU/910511a1_Web1.jpg)
:quality(98)/www.dehn.cn/store/f/57262883/HDVORSCHAU/910511a1_Web1.jpg)
:quality(98)/www.dehn.cn/store/f/57262886/HDVORSCHAU/910511a3.jpg)
:quality(98)/www.dehn.cn/store/f/57262886/HDVORSCHAU/910511a3.jpg)
:quality(98)/www.dehn.cn/store/f/57262885/HDVORSCHAU/910511_Web3.jpg)
:quality(98)/www.dehn.cn/store/f/57262885/HDVORSCHAU/910511_Web3.jpg)
货号 910511 PM 20
全球贸易项目代码 4013364111424, 海关HS编码: 90308900, 总重: 1.47 kg, 包装单位: 1.00 pc(s)
前代产品图片
:quality(98)/www.dehn.cn/store/f/57262892/HDVORSCHAU/910511.jpg)
:quality(98)/www.dehn.cn/store/f/57262892/HDVORSCHAU/910511.jpg)
认证
技术参数
| Nominal voltage (UN ) | 8-12 V d.c. |
| Test parameter: Test voltage | max. 1200 V d.c. |
| Test parameter: Test current (reference voltage) | 1 mA d.c., constant |

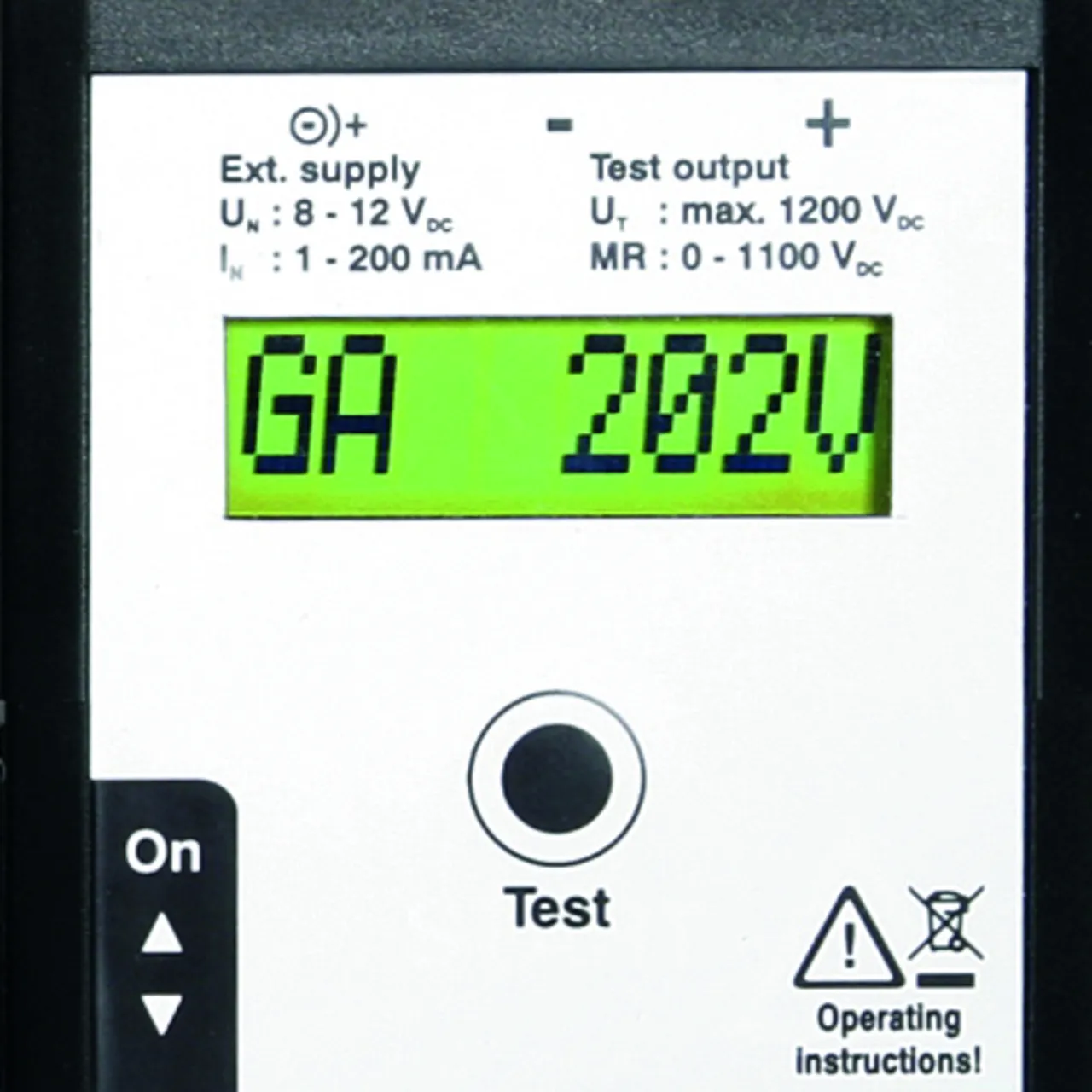

| Measured value indication | alphanumeric, eight-digit LCD |

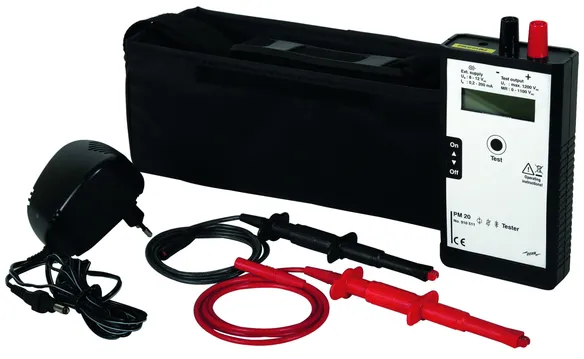

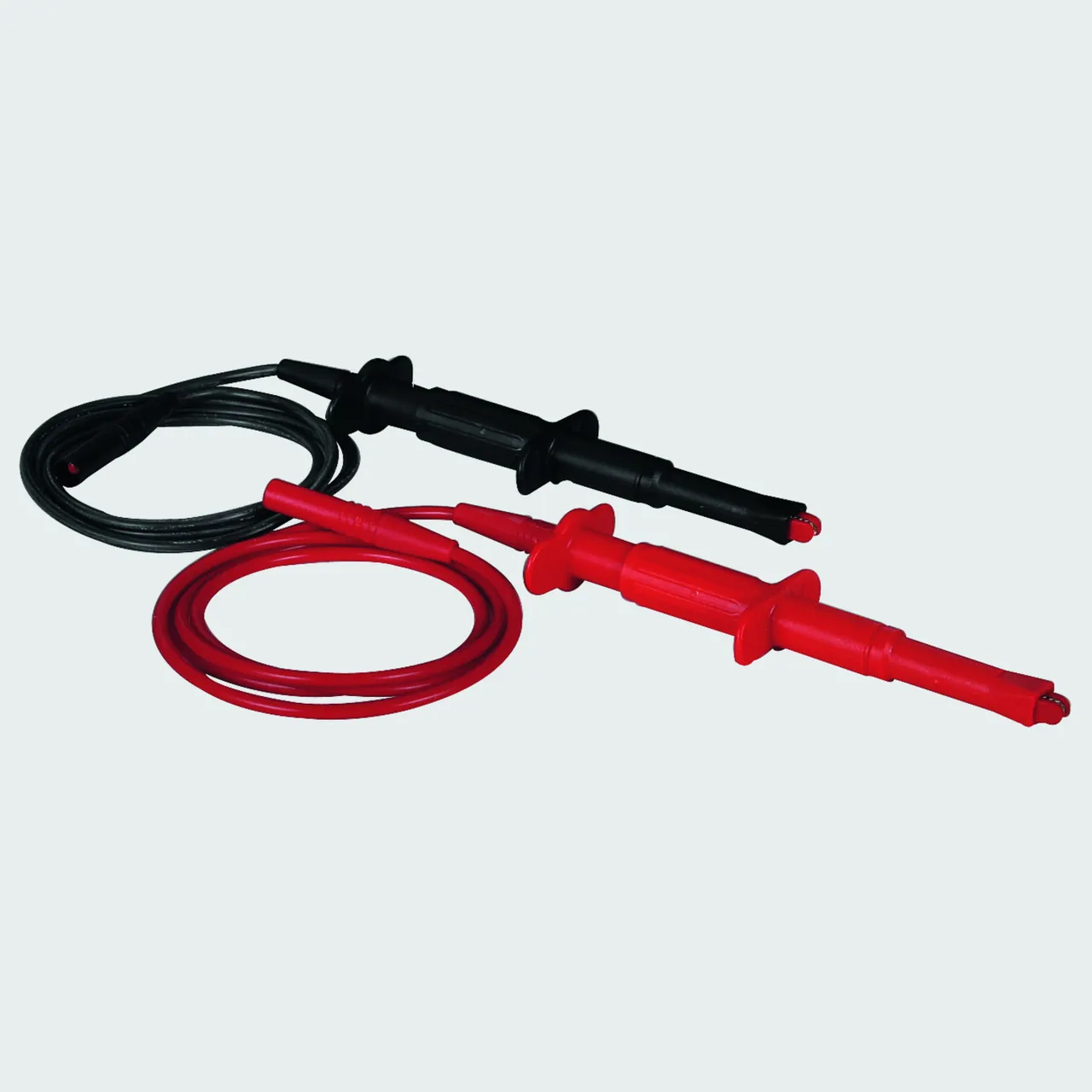

| Accessories included in delivery | 2 test leads (each 1 m long), 2 safety tapping test clips, 1 plug-in power supply unit (230 V a.c.), 1 storage bag |
