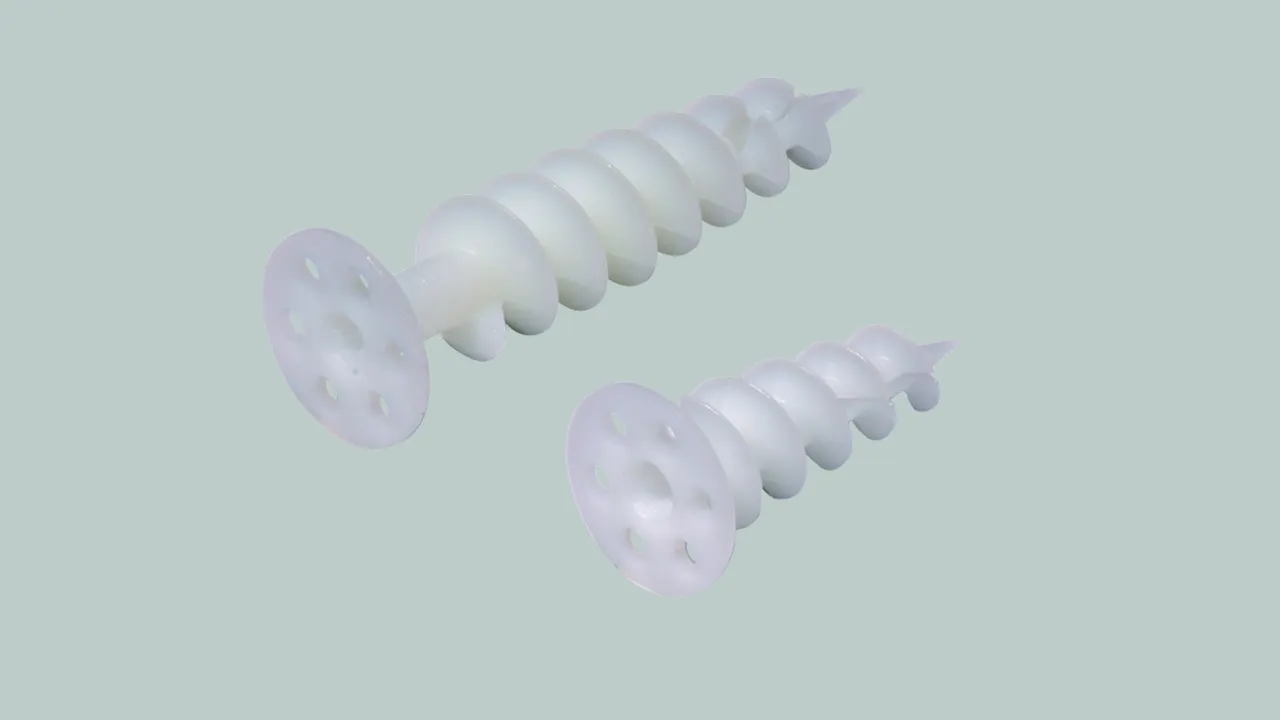

Anchors for Rigid Foam Boards

For fixing conductor, flat strip and rod holders in external thermal insulation composite systems.
With star drive (TX40).
Mounting with wood screws Ø4.5 mm.

This anchor may only be used for fixing conductor holders if there is no additional traction on the down conductor.

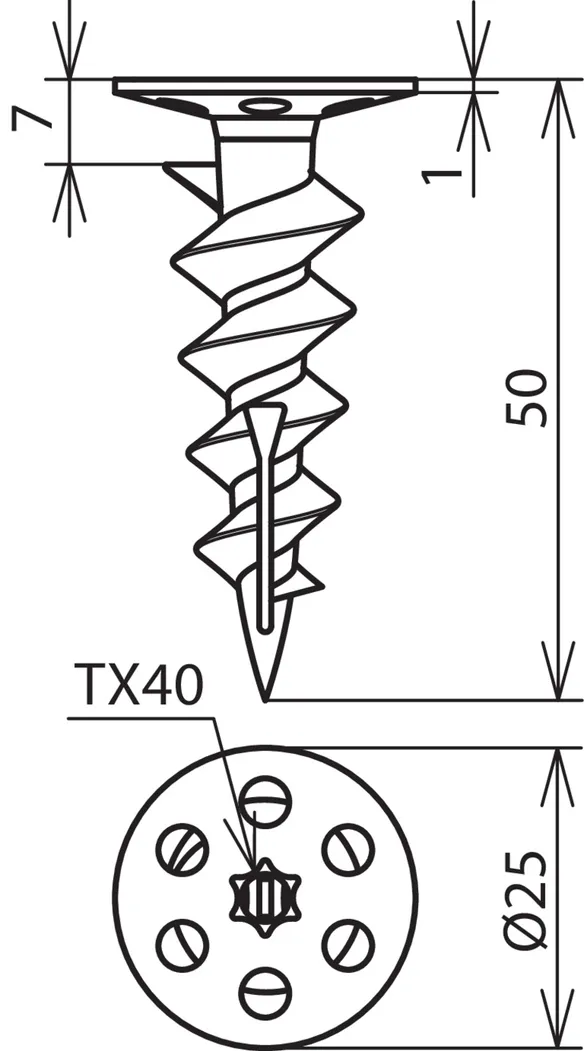

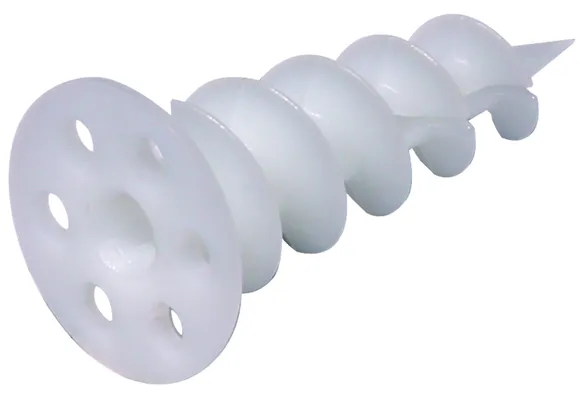

Short design

1 产品

货号 200600 HSPD HS4.5 L50 PA

全球贸易项目代码 4013364098220, 海关HS编码: 39269097, 总重: 5.60 g, 包装单位: 50.00 pc(s)


附加信息

Anchor for rigid foam boards, short
Anchor for rigid foam boards
For fixing conductor and rod holders in external thermal
insulation composite systems
To be mounted with wood screws Ø4.5 mm
Material: PA
Thickness of insulating material: 60 mm
Anchoring depth / length: 50 mm
Working load of styrofoam PS20: 35 N
Working load of rigid foam plates: 60 N

Brand: DEHN
Type: HSPD HS4.5 L50 PA
Part No.: 200600
or equivalent.



技术参数

Material PA
Thickness of insulating material 60 mm
Anchoring depth / length 50 mm

.产品已加入收藏夹。

进入收藏夹

商品200600加入购物车。

进入网上商店

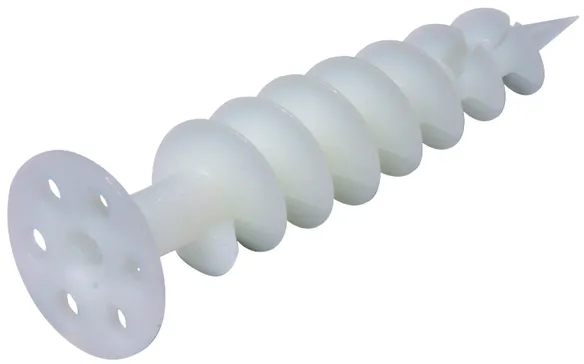

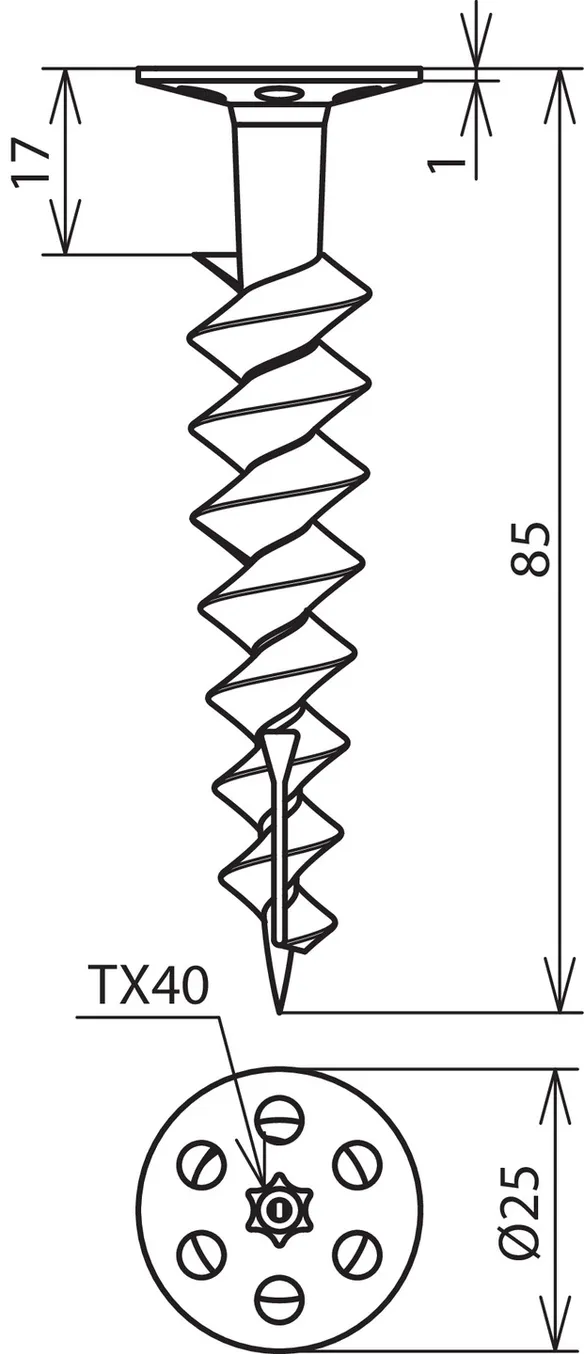

Long design

1 产品

货号 200601 HSPD HS4.5 L85 PA

全球贸易项目代码 4013364098237, 海关HS编码: 39269097, 总重: 8.60 g, 包装单位: 50.00 pc(s)


附加信息

Anchor for rigid foam boards, short
Anchor for rigid foam boards
For fixing conductor and rod holders in external thermal
insulation composite systems
To be mounted with wood screws Ø4.5 mm
Material: PA
Thickness of insulating material: 100 mm
Anchoring depth / length: 85 mm
Working load of styrofoam PS20: 60 N
Working load of rigid foam plates: 85 N

Brand: DEHN
Type: HSPD HS4.5 L85 PA
Part No.: 200601
or equivalent.



技术参数

Material PA
Thickness of insulating material 100 mm
Anchoring depth / length 85 mm

.产品已加入收藏夹。

进入收藏夹

商品200601加入购物车。

进入网上商店
