Wire Straighteners

For straightening round conductors made of different materials (HDG steel, Cu and Al).

5 guide pulleys, with handles

1 产品

货号 597004 DRG 5RO 7.10 HG STGALZN

全球贸易项目代码 4013364027701, 海关HS编码: 84625900, 总重: 6.27 kg, 包装单位: 1.00 pc(s)


附加信息

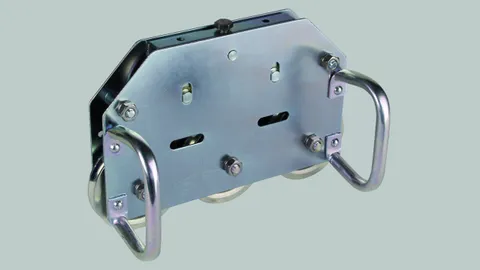

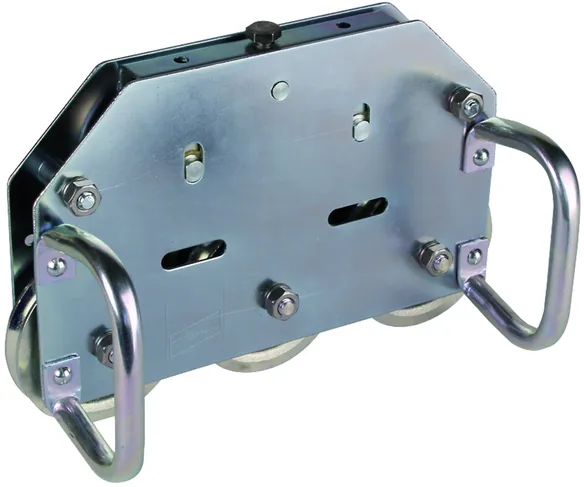

Wire straightener with 5 guide pulleys
Wire straighteners for straightening round conductors
made of different materials (HDG steel, Cu and Al)
5 guide pulleys, with handles
Material: St/gal Zn
Support Rd: 7-10 mm
Material of guide pulleys: St/gal Zn

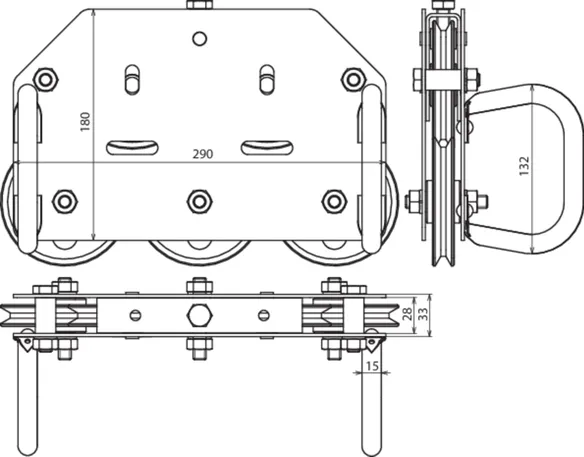

Dimensions: approx. 180 x 290 mm

Brand: DEHN
Type: DRG 5RO 7.10 HG STGALZN
Part No.: 597004
or equivalent.



技术参数

Material St/gal Zn
Support Rd 7-10 mm
Material of guide pulleys St/gal Zn
Dimensions approx. 180 x 290 mm

.产品已加入收藏夹。

进入收藏夹

商品597004加入购物车。

进入网上商店

10 guide pulleys, with handles

1 产品

货号 597005 DRG 10RO 7.10 HG STGALZN

全球贸易项目代码 4013364027718, 海关HS编码: 84625900, 总重: 15.70 kg, 包装单位: 1.00 pc(s)


附加信息

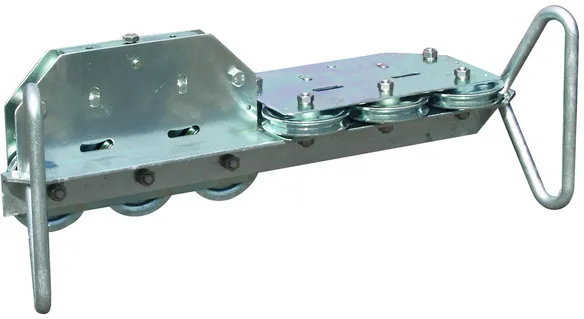

Wire straightener with 10 guide pulleys
Wire straighteners for straightening round conductors
made of different materials (HDG steel, Cu and Al)
Material: St/gal Zn
Support Rd: 7-10 mm
Material of guide pulleys: St/gal Zn

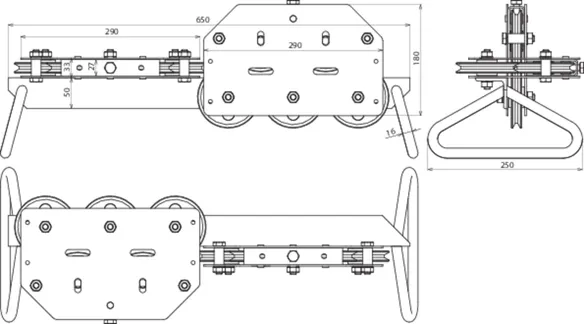

Dimensions: approx. 650 x 180 mm

Brand: DEHN
Type: DRG 10RO 7.10 HG STGALZN
Part No.: 597005
or equivalent.



技术参数

Material St/gal Zn
Support Rd 7-10 mm
Material of guide pulleys St/gal Zn
Dimensions approx. 650 x 180 mm

.产品已加入收藏夹。

进入收藏夹

商品597005加入购物车。

进入网上商店

10 guide pulleys, movable on rubber wheels

With wire unwinding device, for handling coils (St/tZn, Cu and Al) with an inner diameter of 450-800 mm and widths up to 150 mm.

1 产品

货号 597006 DRG 10RO 7.10 FB STTZN

全球贸易项目代码 4013364029606, 海关HS编码: 84625900, 总重: 42.80 kg, 包装单位: 1.00 pc(s)


附加信息

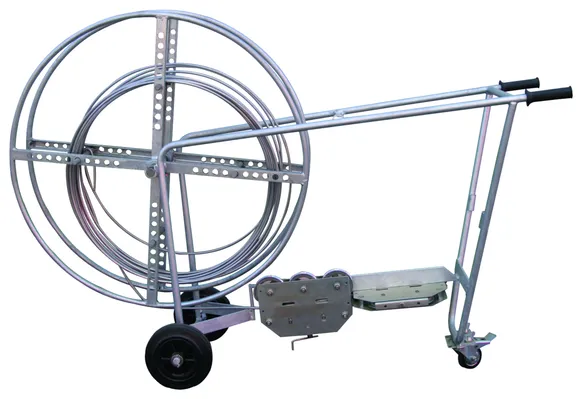

Wire straightener with 10 guide pulleys (movable on rubber wheels)
Wire straighteners for straightening round conductors
made of different materials (HDG steel, Cu and Al)
10 guide pulleys, movable on rubber wheels,
with wire unwinding device
Material: St/tZn
Support Rd: 7-10 mm
Material of guide pulleys: St/gal Zn

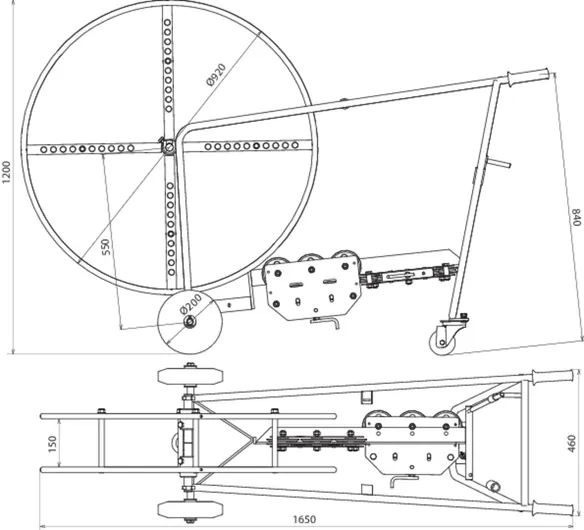

Dimensions: approx. 1650 x 1200 mm

Brand: DEHN
Type: DRG 10RO 7.10 FB STTZN
Part No.: 597006
or equivalent.



技术参数

Material St/tZn
Support Rd 7-10 mm
Material of guide pulleys St/gal Zn
Dimensions approx. 1650 x 1200 mm

.产品已加入收藏夹。

进入收藏夹

商品597006加入购物车。

进入网上商店
