Earthing Pipe Clamps

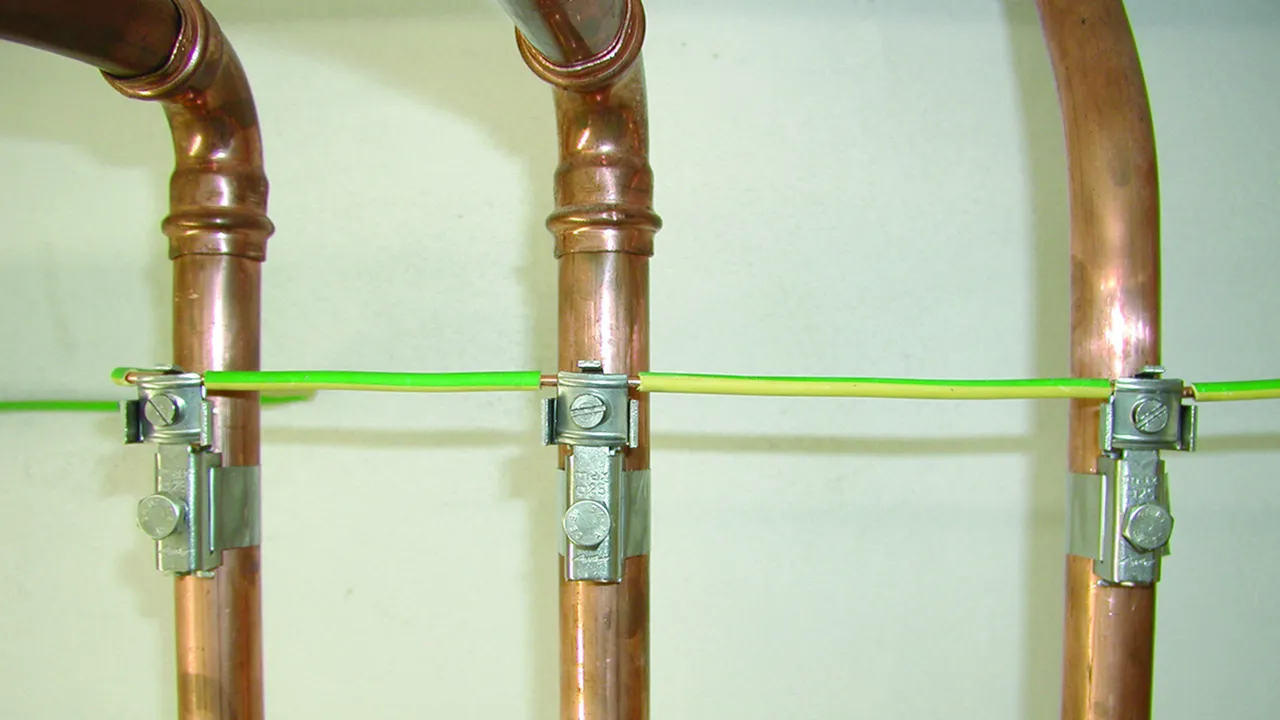

Earthing pipe clamps for integrating pipes into the protective and functional equipotential bonding according to IEC 60364-4-41/5-54, with continuously adjustable tensioning strap.

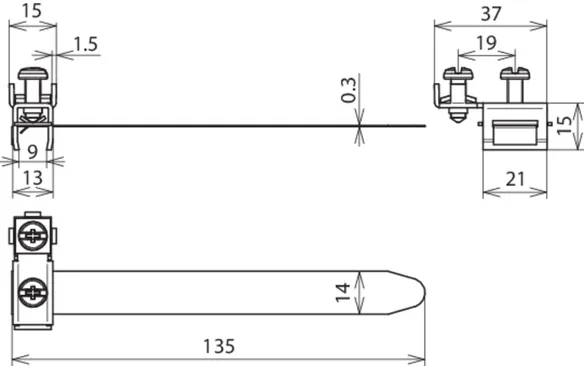

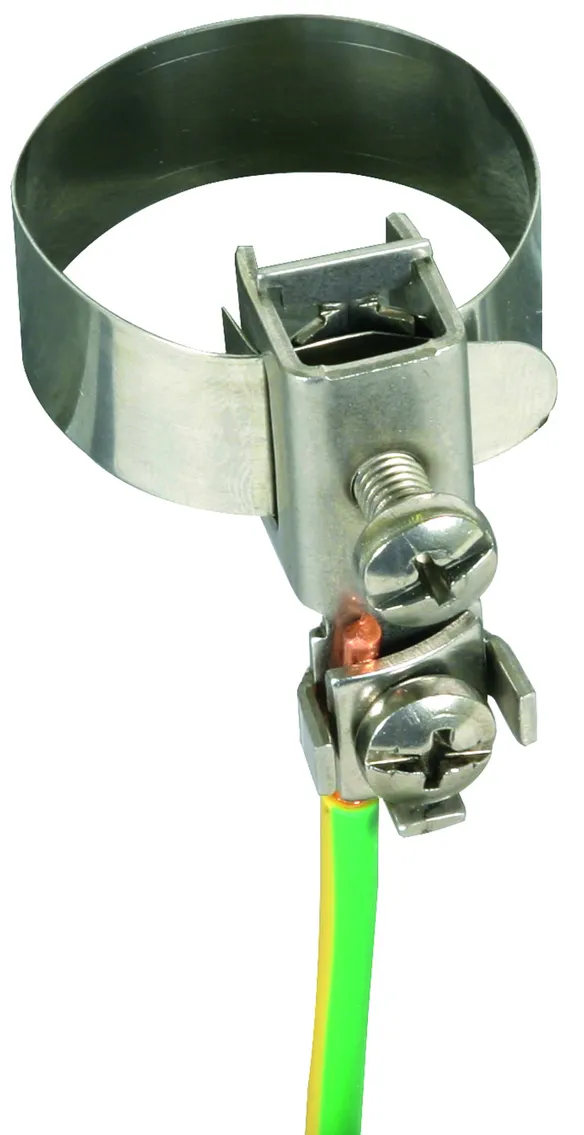

Type BRS17

For connecting 1 or 2 conductors or through-wiring,
connection cross-section 2.5-10 mm2 (solid).

1 产品

货号 540920 BRS 10.27 AQ2.5 10 V2A

全球贸易项目代码 4013364144194, 海关HS编码: 85359000, 总重: 29.00 g, 包装单位: 10.00 pc(s)

前代产品


附加信息

BRS 17 earthing pipe clamp, StSt
Earthing pipe clamp
For integrating pipes into the equipotential bonding
with continuously adjustable tensioning strap
Material: StSt
Clamping range pipe Ø: 10-27 mm (1/8-3/4'')
Dimensions of strap: 135 x 14 x 0.3 mm
Connection (solid): 2.5-10 mm2

Brand: DEHN
Type: BRS 10.27 AQ2.5 10 V2A
Part No.: 540920
or equivalent.



技术参数

Material StSt
Clamping range pipe Ø 10-27 mm (1/8-3/4'')
Dimensions of strap (l1 x w x d) 135 x 14 x 0.3 mm
Connection (solid) 2.5-10 mm2

.产品已加入收藏夹。

进入收藏夹

商品540920加入购物车。

进入网上商店

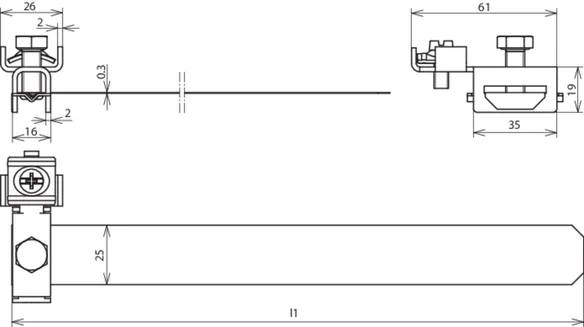

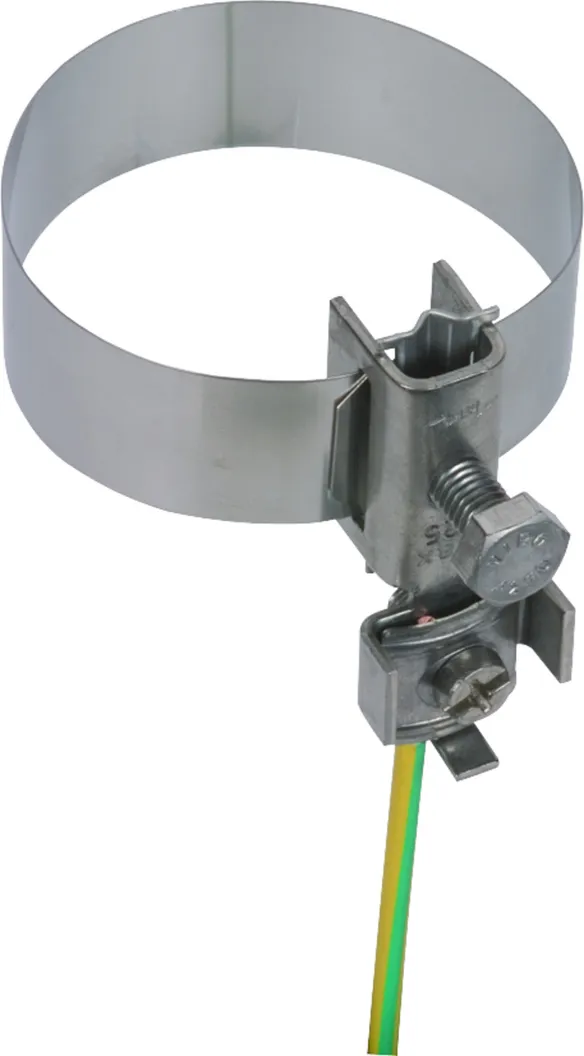

Type standard

For connecting 1 or 2 conductors or through-wiring, connection cross-section 4-25 mm² (solid / stranded).

3 产品

货号 540910 BRS 27.60 AQ4 25 V2A

全球贸易项目代码 4013364025684, 海关HS编码: 85359000, 总重: 71.20 g, 包装单位: 10.00 pc(s)

前代产品


附加信息

Earthing pipe clamp, standard, StSt (27-60 mm)
Earthing pipe clamp
For integrating pipes into the equipotential bonding
with continuously adjustable tensioning strap
Material: StSt
Clamping range pipe Ø: 27-60 mm (3/4-2'')
Dimensions of strap: 240 x 25 x 0.3 mm
Connection (solid / stranded): 4-25 mm2
Standard: EN 62561-1

Brand: DEHN
Type: BRS 27.60 AQ4 25 V2A
Part No.: 540910
or equivalent.

认证



技术参数

Material StSt
Clamping range pipe Ø 27-60 mm (3/4-2'')
Dimensions of strap (l1 x w x d) 240 x 25 x 0.3 mm
Connection (solid / stranded) 4-25 mm2
Standard EN 62561-1
*) For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品540910加入购物车。

进入网上商店

货号 540911 BRS 27.114 AQ4 25 V2A

全球贸易项目代码 4013364025691, 海关HS编码: 85359000, 总重: 76.00 g, 包装单位: 10.00 pc(s)


附加信息

Earthing pipe clamp, standard, StSt (27-114 mm)
Earthing pipe clamp
For integrating pipes into the equipotential bonding
with continuously adjustable tensioning strap
Material: StSt
Clamping range pipe Ø: 27-114 mm (3/4-4'')
Dimensions of strap: 410 x 25 x 0.3 mm
Connection (solid / stranded): 4-25 mm2
Standard: EN 62561-1

Brand: DEHN
Type: BRS 27.114 AQ4 25 V2A
Part No.: 540911
or equivalent.

认证



技术参数

Material StSt
Clamping range pipe Ø 27-114 mm (3/4-4'')
Dimensions of strap (l1 x w x d) 410 x 25 x 0.3 mm
Connection (solid / stranded) 4-25 mm2
Standard EN 62561-1
*) For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品540911加入购物车。

进入网上商店

货号 540912 BRS 27.168 AQ4 25 V2A

全球贸易项目代码 4013364035362, 海关HS编码: 85359000, 总重: 93.90 g, 包装单位: 10.00 pc(s)


附加信息

Earthing pipe clamp, standard, StSt (27-168 mm)
Earthing pipe clamp
For integrating pipes into the equipotential bonding
with continuously adjustable tensioning strap
Material: StSt
Clamping range pipe Ø: 27-168 mm (3/4-6'')
Dimensions of strap: 570 x 25 x 0.3 mm
Connection (solid / stranded): 4-25 mm2
Standard: EN 62561-1

Brand: DEHN
Type: BRS 27.168 AQ4 25 V2A
Part No.: 540912
or equivalent.

认证



技术参数

Material StSt
Clamping range pipe Ø 27-168 mm (3/4-6'')
Dimensions of strap (l1 x w x d) 570 x 25 x 0.3 mm
Connection (solid / stranded) 4-25 mm2
Standard EN 62561-1
*) For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品540912加入购物车。

进入网上商店

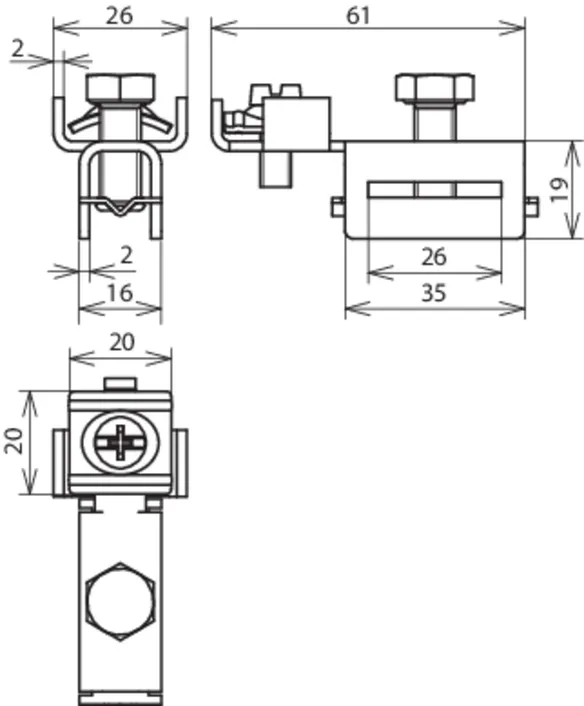

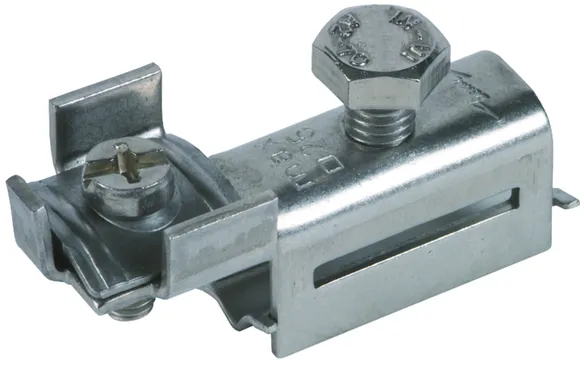

Separate grip head

For combination with endless tensioning strap (Part No. 540 901), connection cross-section 4-25 mm² (solid / stranded).

1 产品

货号 540900 SPK 25 BRS AQ4 25 V2A

全球贸易项目代码 4013364076532, 海关HS编码: 85359000, 总重: 57.00 g, 包装单位: 50.00 pc(s)


附加信息

Earthing pipe clamp, separate grip head, StSt
Earthing pipe clamp
For integrating pipes into the equipotential bonding
with continuously adjustable tensioning strap
Separate grip head, for combination with endless tensioning strap (Part No. 540 901), cross-sectional area 4-25 mm2
Material: StSt
Connection: 4-25 mm2
Standard: EN 62561-1

Brand: DEHN
Type: SPK 25 BRS AQ4 25 V2A
Part No.: 540900
or equivalent.

认证



技术参数

Material StSt
Connection 4-25 mm2
Standard EN 62561-1
*) For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品540900加入购物车。

进入网上商店

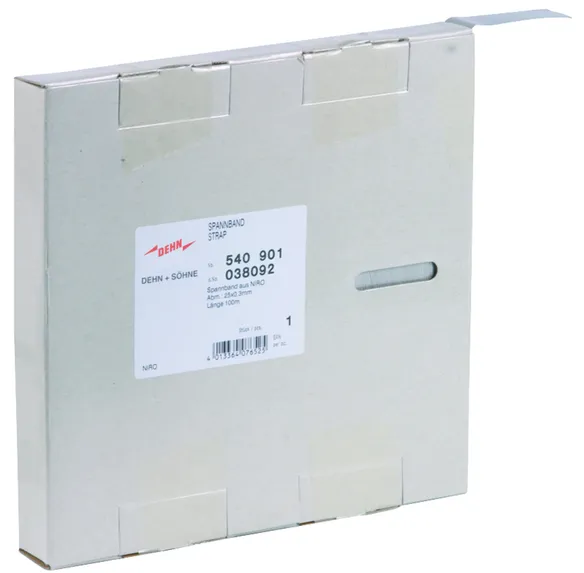

Endless tensioning strap

For cutting to length, e.g with snips.

1 产品

货号 540901 SPB 25X0.3 L100M V2A

全球贸易项目代码 4013364076525, 海关HS编码: 73269098, 总重: 6.30 kg, 包装单位: 1.00 pc(s)


附加信息

Pipe clamps for hazardous areas, tensioning strap
Earthing pipe clamp for combination with different
fixing elements or connection components
Material: StSt
Length: 100 m

Brand: DEHN
Type: SPB 25X0.3 L100M V2A
Part No.: 540901
or equivalent.

认证



技术参数

Material StSt
Dimensions of strap (w x d) 25 x 0.3 mm
Length 100 m

.产品已加入收藏夹。

进入收藏夹

商品540901加入购物车。

进入网上商店
