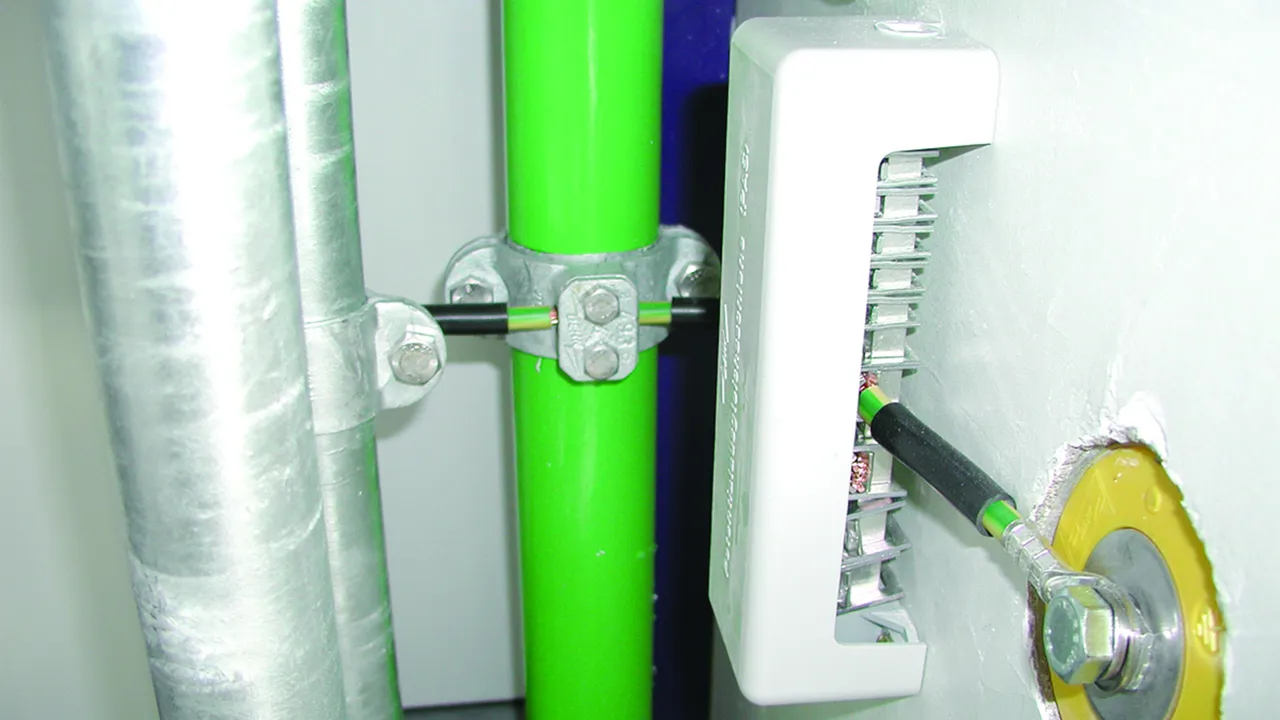

Equipotential Bonding Busbars R15 with Terminal Block System / Kit

Equipotential bonding busbars for protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 and lightning equipotential bonding according to IEC/EN 62305-3

Tested according to DIN VDE 0609
15 modules
Grey plastic bar frames and cover (halogen-free)
Sealable / labelable cover
Terminal block, St/gal Zn

Type A

Terminals for:
7 conductors 2.5-25 mm² (solid / stranded).
2 conductors 16-95 mm² (solid / stranded) or Rd Ø8-10 mm.
1 conductor Fl up to 30 x 4 mm.

1 产品

货号 563010 PAS AH RK 7X25 2X8.10 1XFL30

全球贸易项目代码 4013364027800, 海关HS编码: 85359000, 总重: 469.10 g, 包装单位: 1.00 pc(s)

前代产品


Open PDF

附加信息

CAD文件

Equipotential bonding bars R15, type A
R15 equipotential bonding bar with terminal block system For main equipotential bonding according to DIN VDE
0100 Part 410/540 and lightning equipotential
bonding according to EN 62305
Connection (solid / stranded): 7x 2,5-25 mm2
Connection Rd (solid / stranded / cable): 2x 8-10 mm or 16-95 mm2
Connection Fl: 1x -30 x 4 mm
Clamping bar: brass/gal Sn
Cross section: 100 mm2
Fixing: [4x] 6 x 12 mm
Standard: EN 62561-1

Brand: DEHN
Type: PAS AH RK 7X25 2X8.10 1XFL30
Part No.: 563010
or equivalent.

认证

技术参数

Clamping bar	brass/gal Sn
Cross section	100 mm²
Fixing	[4x] 6 x 12 mm
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Connection (solid / stranded)	7x 2,5-25 mm²
Connection Rd (solid / stranded / cable)	2x 8-10 mm or 16-95 mm²
Connection Fl	1x -30 x 4 mm
Clamping bar	brass/gal Sn
Cross section	100 mm²
Fixing	[4x] 6 x 12 mm
Lightning current carrying capability (10/350 µs)	= *⁾
Short-circuit current (50 Hz) (1 s; ≤ 300 °C)	9.2 kA *⁾
Continuous current test (25 A; ≤ 45 K)	passed *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品563010加入购物车。

进入网上商店

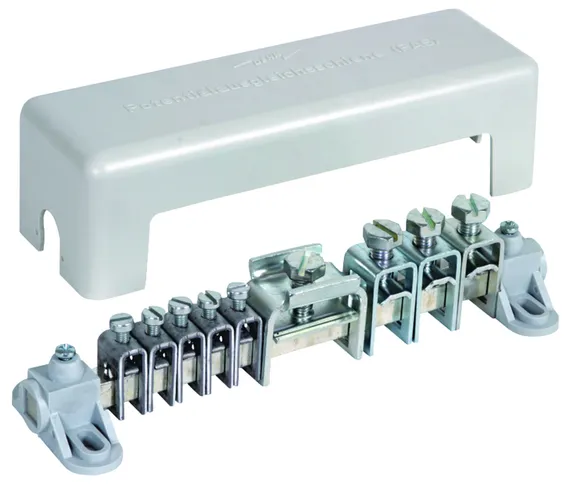

Type B

Terminals for:
5 conductors 2.5-25 mm² (solid / stranded).
3 conductors 16-95 mm² (solid / stranded) or Rd Ø8-10 mm.
1 conductor Fl up to 30 x 4 mm.

1 产品

货号 563020 PAS AH RK 5X25 3X8.10 1XFL30

全球贸易项目代码 4013364027817, 海关HS编码: 85359000, 总重: 481.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

CAD文件

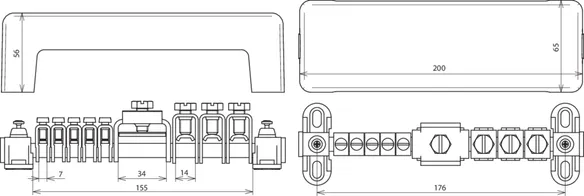

Equipotential bonding bars R15, type B
R15 equipotential bonding bar with terminal block system For main equipotential bonding according to DIN VDE
0100 Part 410/540 and lightning equipotential
bonding according to EN 62305
Connection (solid / stranded): 5x 2,5-25 mm2
Connection Rd (solid / stranded / cable): 3x 8-10 mm or 16-95 mm2
Connection Fl: 1x -30 x 4 mm
Clamping bar: brass/gal Sn
Cross section: 100 mm2
Fixing: [4x] 6 x 12 mm
Standard: EN 62561-1

Brand: DEHN
Type: PAS AH RK 5X25 3X8.10 1XFL30
Part No.: 563020
or equivalent.

认证

技术参数

Clamping bar	brass/gal Sn
Cross section	100 mm²
Fixing	[4x] 6 x 12 mm
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Connection (solid / stranded)	5x 2,5-25 mm²
Connection Rd (solid / stranded / cable)	3x 8-10 mm or 16-95 mm²
Connection Fl	1x -30 x 4 mm
Clamping bar	brass/gal Sn
Cross section	100 mm²
Fixing	[4x] 6 x 12 mm
Lightning current carrying capability (10/350 µs)	= *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品563020加入购物车。

进入网上商店

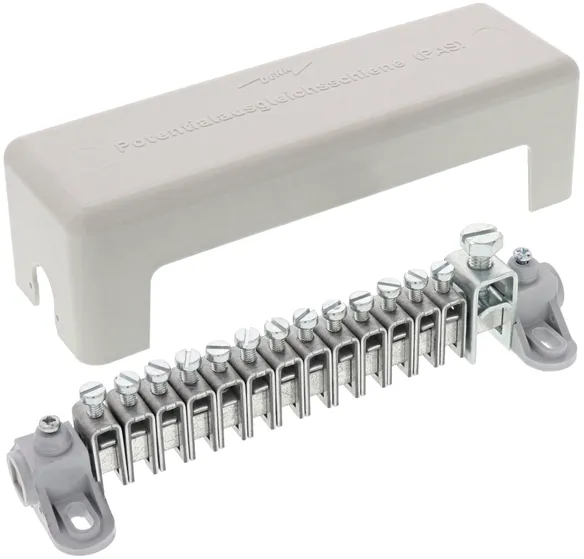

Type C

Terminals for:
13 conductors 2.5-25 mm² (solid / stranded).
1 conductor 16-95 mm² (solid / stranded) or Rd Ø8-10 mm.

1 产品

货号 563030 PAS AH RK 13X25 1X8.10

全球贸易项目代码 4013364027824, 海关HS编码: 85359000, 总重: 444.20 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

CAD文件

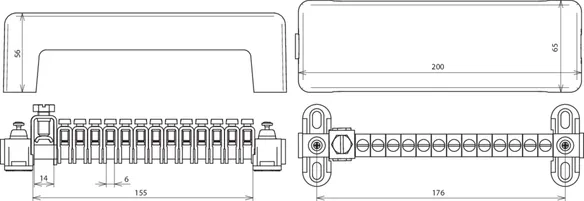

Equipotential bonding bars R15, type C
R15 equipotential bonding bar with terminal block system For main equipotential bonding according to DIN VDE
0100 Part 410/540 and lightning equipotential
bonding according to EN 62305
Connection (solid / stranded): 13x 2,5-25 mm2
Connection Rd (solid / stranded / cable): 1x 8-10 mm or 16-95 mm2
Clamping bar: brass/gal Sn
Cross section: 100 mm2
Fixing: [4x] 6 x 12 mm
Standard: EN 62561-1

Brand: DEHN
Type: PAS AH RK 13X25 1X8.10
Part No.: 563030
or equivalent.

认证

技术参数

Clamping bar	brass/gal Sn
Cross section	100 mm²
Fixing	[4x] 6 x 12 mm
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Connection (solid / stranded)	13x 2,5-25 mm²
Connection Rd (solid / stranded / cable)	1x 8-10 mm or 16-95 mm²
Clamping bar	brass/gal Sn
Cross section	100 mm²
Fixing	[4x] 6 x 12 mm
Lightning current carrying capability (10/350 µs)	= *⁾
Continuous current test (25 A; ≤ 45 K)	passed ^*)
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品563030加入购物车。

进入网上商店

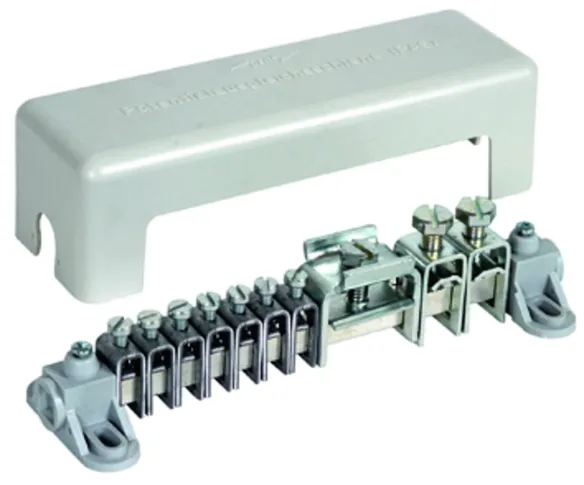

Type D

Terminals for:
7 conductors 2.5-25 mm² (solid / stranded).
2 conductors 16-95 mm² (solid / stranded) or Rd Ø8-10 mm.
1 conductor Fl up to 40 x 5 mm.

1 产品

货号 563040 PAS AH RK 7X25 2X8.10 1XFL40

全球贸易项目代码 4013364082861, 海关HS编码: 85359000, 总重: 460.00 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

CAD文件

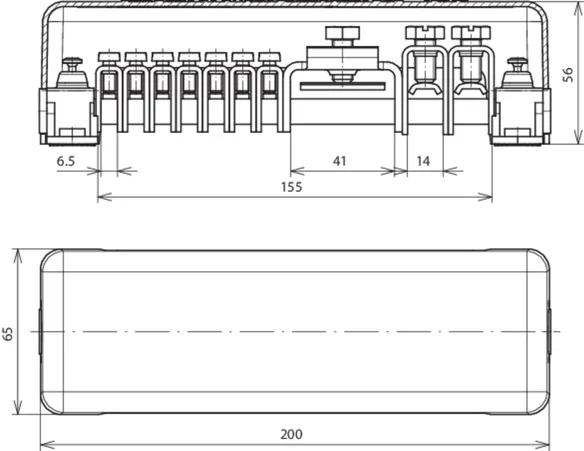

R15 equipotential bonding bar, type D
R15 equipotential bonding bar with terminal block system For main equipotential bonding according to DIN VDE
0100 Part 410/540 and lightning equipotential
bonding according to EN 62305
Connection (solid / stranded): 7x 2.5-25 mm2
Connection Rd (solid / stranded / cable): 2x 8-10 mm or 16-95 mm2
Connection Fl: 1x -40 x 5 mm
Clamping bar: brass/gal Sn
Cross section: 100 mm2
Fixing: [4x] 6 x 12 mm
Standard: EN 62561-1

Brand: DEHN
Type: PAS AH RK 7X25 2X8.10 1XFL40
Part No.: 563040
or equivalent.

认证

技术参数

Clamping bar	brass/gal Sn
Cross section	100 mm²
Fixing	[4x] 6 x 12 mm
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Connection (solid / stranded)	7x 2.5-25 mm²
Connection Rd (solid / stranded / cable)	2x 8-10 mm or 16-95 mm²
Connection Fl	1x -40 x 5 mm
Clamping bar	brass/gal Sn
Cross section	100 mm²
Fixing	[4x] 6 x 12 mm
Lightning current carrying capability (10/350 µs)	= *⁾
Short-circuit current (50 Hz) (1 s; ≤ 300 °C)	9.4 kA *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品563040加入购物车。

进入网上商店
