Wedge Connector

With latches for T, cross and parallel connections for use in concrete foundations.

1 产品

货号 308001 KV FE UNI

全球贸易项目代码 4013364027947, 海关HS编码: 85389099, 总重: 220.80 g, 包装单位: 25.00 pc(s)


附加信息

Wedge connector for T, cross and parallel connections
Wedge connector

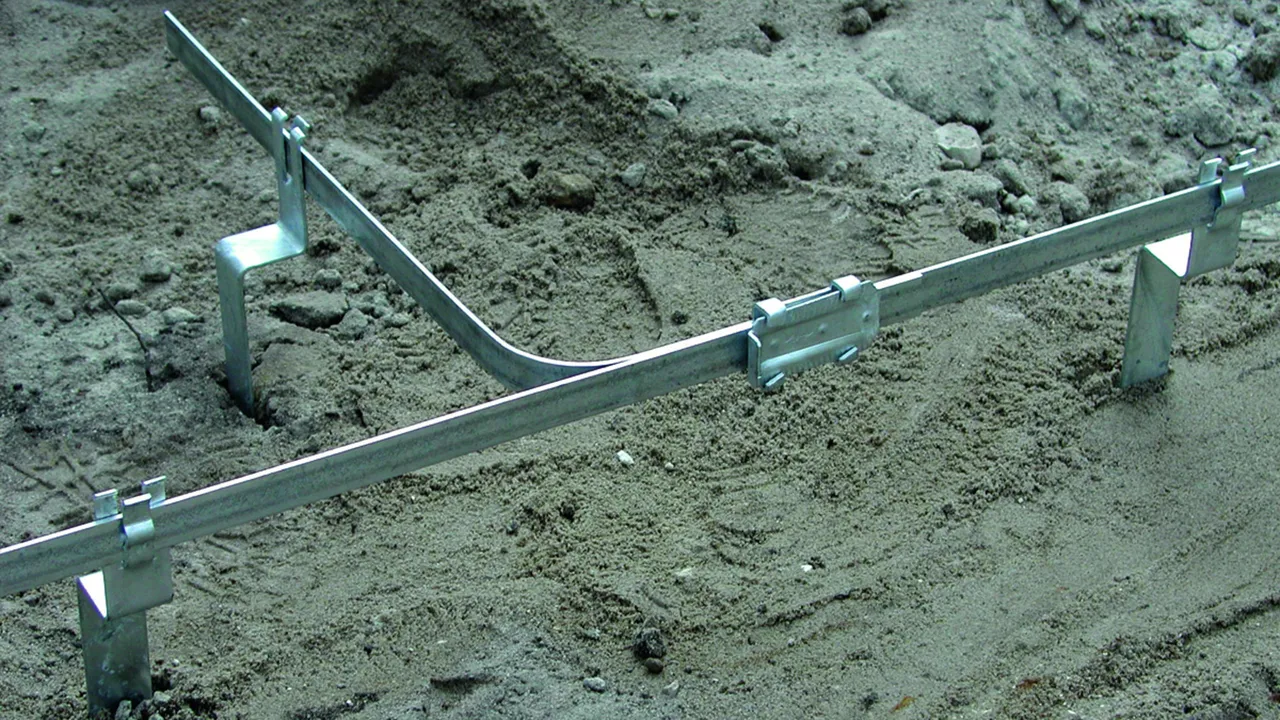

For T, cross and parallel connections for use in
concrete foundations
With lock-in position in the wedge
Material: St/tZn
Clamping range Rd / Fl: 10 / 30 x 3.5-40 x 4 mm
Clamping range Fl / Fl: 30 x 3.5-40 x 4 / 30 x 3.5-40 x 4 mm
Material of wedge: St/tZn

Brand: DEHN
Type: KV FE UNI
Part No.: 308001
or equivalent.



技术参数

Material St/tZn
Clamping range Rd / Fl 10 / 30 x 3.5-40 x 4 mm
Clamping range Fl / Fl 30 x 3.5-40 x 4 / 30 x 3.5-40 x 4 mm
