Connecting Clamps for Reinforcements

Clamps for connecting reinforcing steel mesh or bar with round and flat conductors

Arrangement:
(II) = parallel
(+) = cross

详情

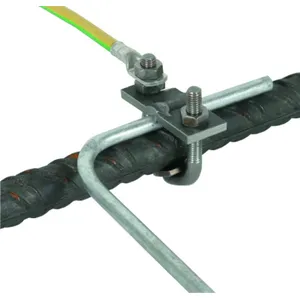

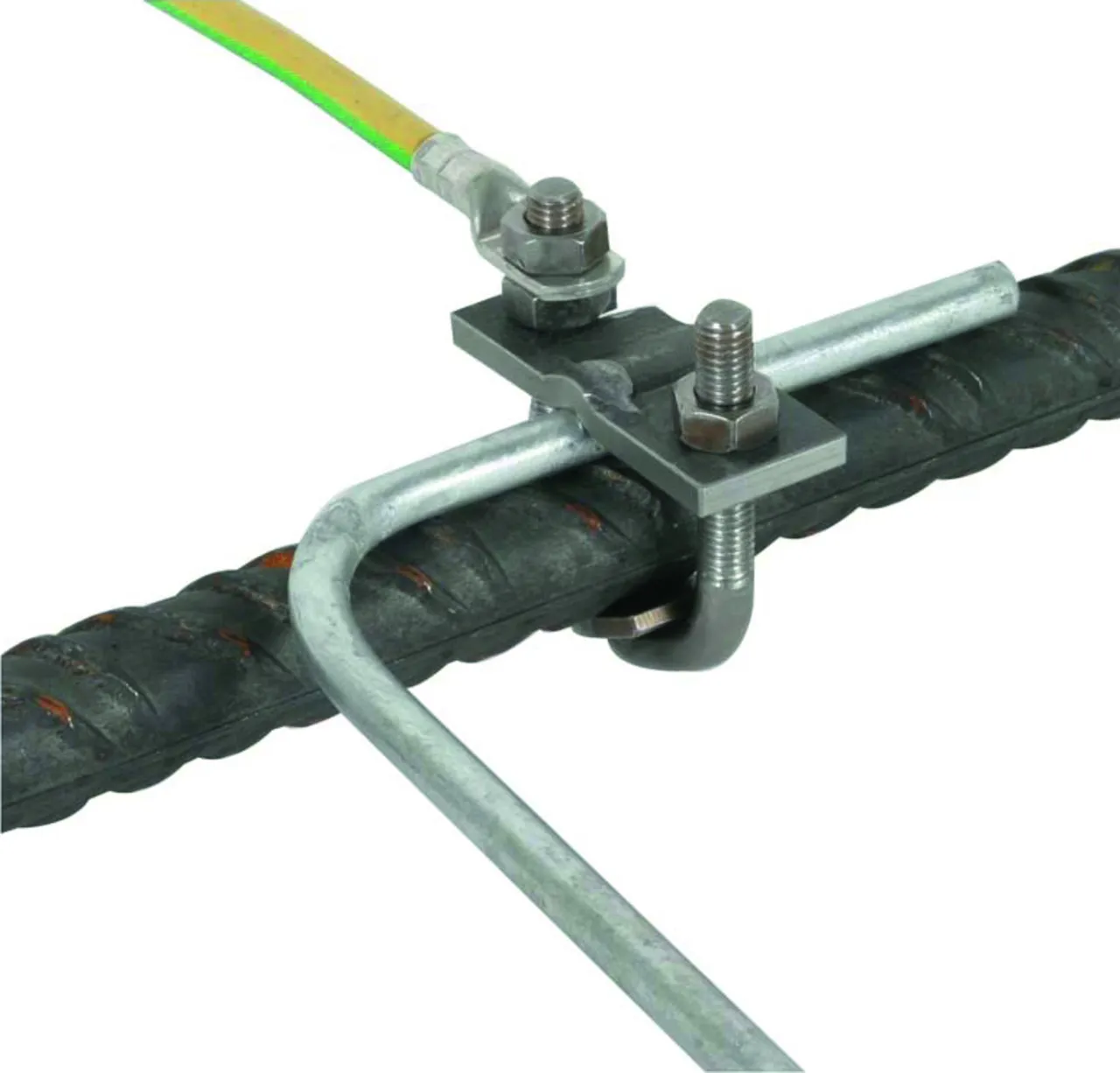

Figure 4: U-bolt clamp with cable lug

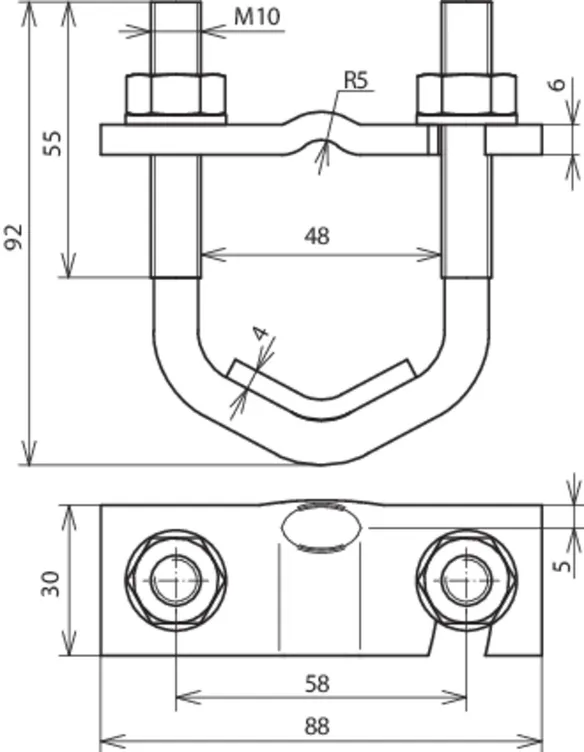

Figure 3: U-bolt clamp Part No. 308 045

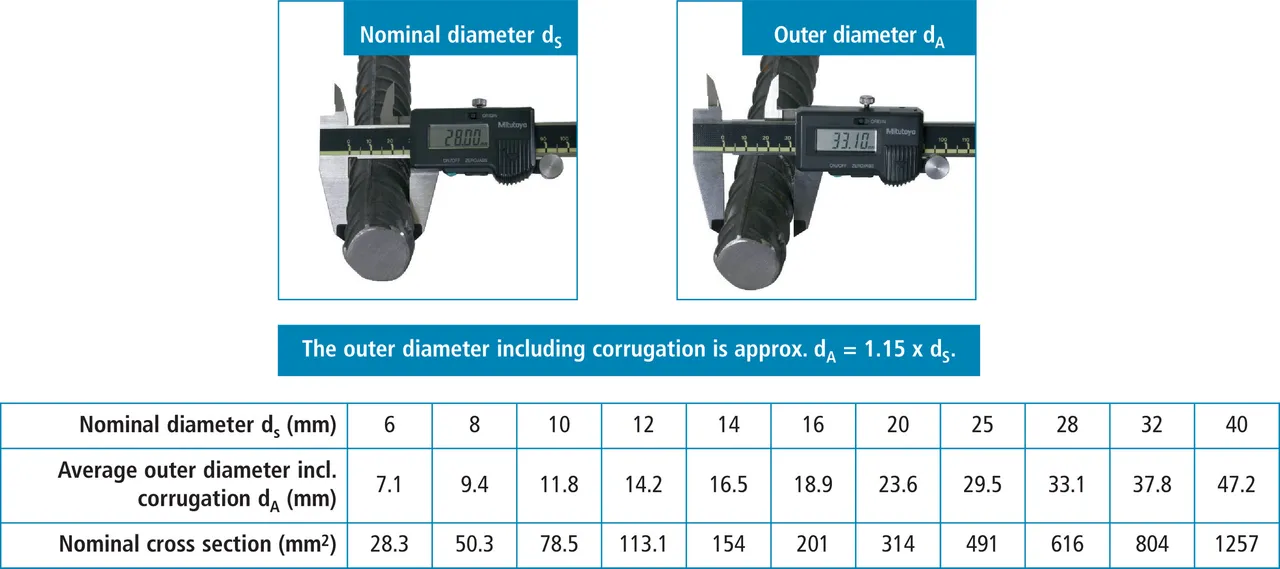

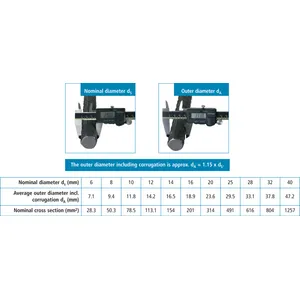

Figure 1: Diameters of reinforcing steels.
Ref.: Steel for the reinforcement of concrete according to DIN EN 10080:2005.

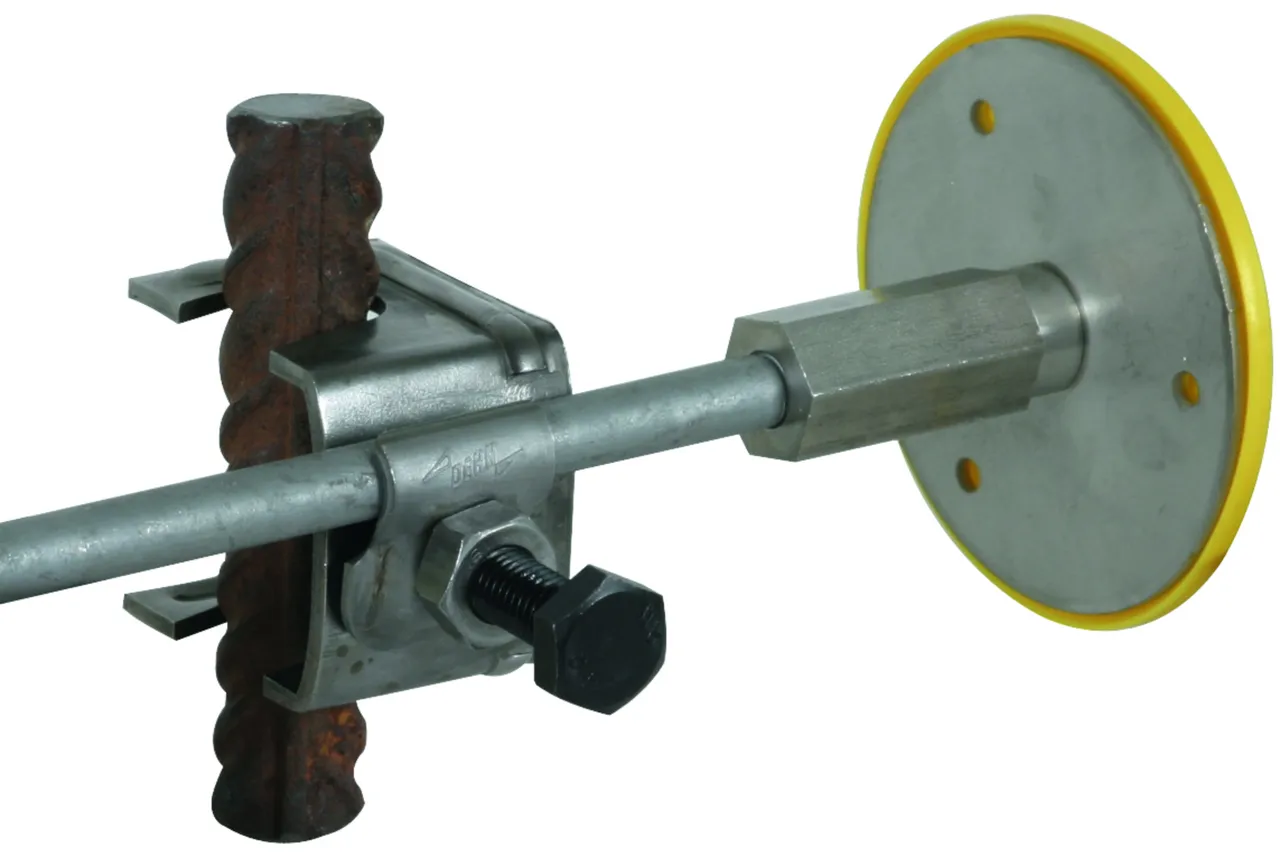

Figure 5: Connecting clamp Part No. 308 035
Figure 3: U-bolt clamp Part No. 308 046

For T, cross and parallel connections

1 产品

货号 308025 VK A UNI ST

全球贸易项目代码 4013364035881, 海关HS编码: 85359000, 总重: 102.00 g, 包装单位: 50.00 pc(s)


附加信息

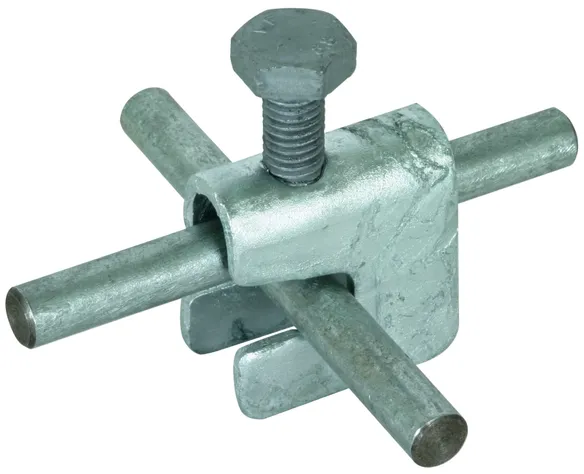

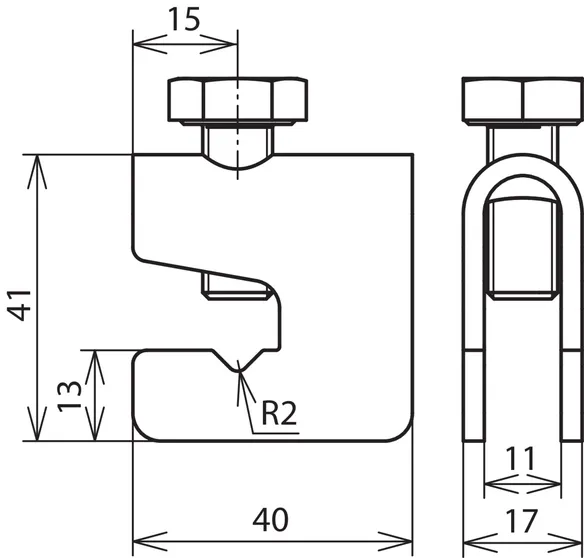

Connecting clamps for reinforcements, St/tZn
Connecting clamp for connecting reinforcing steel
mesh and reinforcements with round conductors
For T, cross and parallel connections
Material: St/tZn
Clamping range Rd / Rd: (+) 6-10 / 6-10 mm
Clamping range Rd / Fl: (+) 6-10 / 30 mm
Clamping range Fl / Fl: (II) 30 / 30 mm
Standard: EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.): 9 kA

Brand: DEHN
Type: VK A UNI ST
Part No.: 308025
or equivalent.

认证



技术参数

Material St/tZn
Clamping range Rd / Rd (+) 6-10 / 6-10 mm
Clamping range Rd / Fl (+) 6-10 / 30 mm
Clamping range Fl / Fl (II) 30 / 30 mm
Screw di M10 x 25 mm
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 9 kA

.产品已加入收藏夹。

进入收藏夹

商品308025加入购物车。

进入网上商店

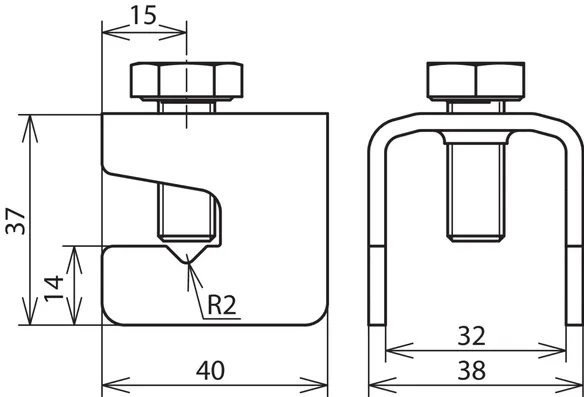

For T, cross and parallel connections

1 产品

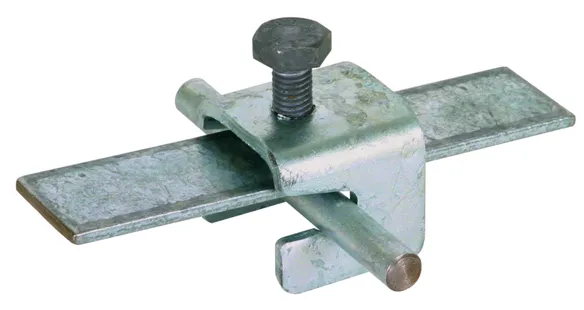

货号 308026 VK 6.10 FL30 FL30 BSB STTZN

全球贸易项目代码 4013364035874, 海关HS编码: 85359000, 总重: 111.00 g, 包装单位: 25.00 pc(s)


附加信息

Connecting clamps for reinforcements, St/tZn
Connecting clamp for connecting reinforcing steel
mesh and reinforcements with flat conductors
For T, cross and parallel connections
Material: St/tZn
Clamping range Rd / Fl: (+) 6-10 / 30 mm
Clamping range Fl / Fl: (+ / II) 30 / 30 mm
Standard: EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.): 13 kA

Brand: DEHN
Type: VK 6.10 FL30 FL30 BSB STTZN
Part No.: 308026
or equivalent.

认证



技术参数

Material St/tZn
Clamping range Rd / Fl (+) 6-10 / 30 mm
Clamping range Fl / Fl (+ / II) 30 / 30 mm
Screw di M10 x 25 mm
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 13 kA
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品308026加入购物车。

进入网上商店

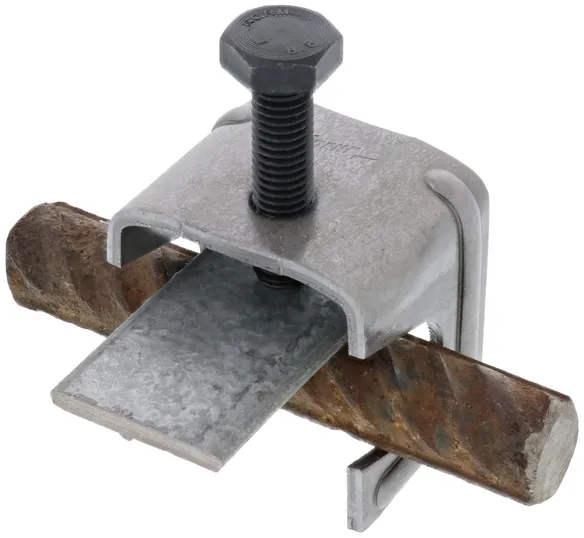

For T and cross connections

Note: recommended tightening torque ≥ 10 Nm

1 产品

货号 308030 VK A R22 F40 STBL

全球贸易项目代码 4013364030749, 海关HS编码: 85359000, 总重: 130.00 g, 包装单位: 50.00 pc(s)


附加信息

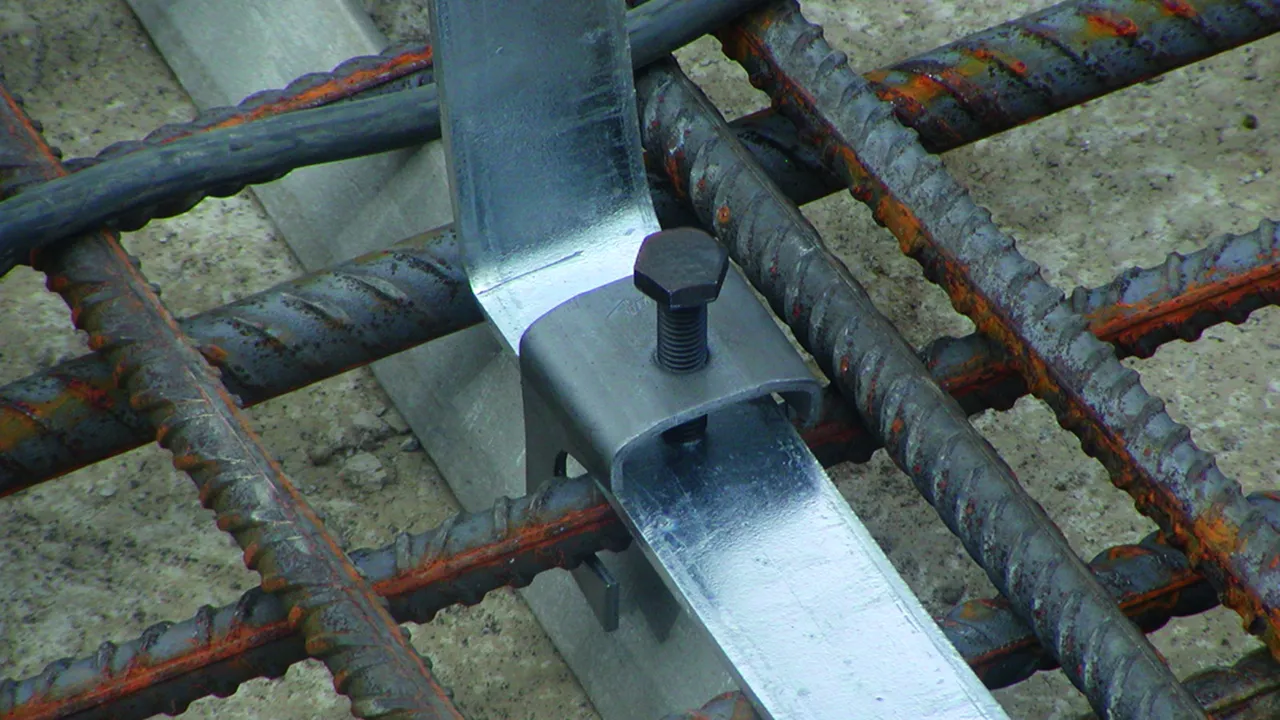

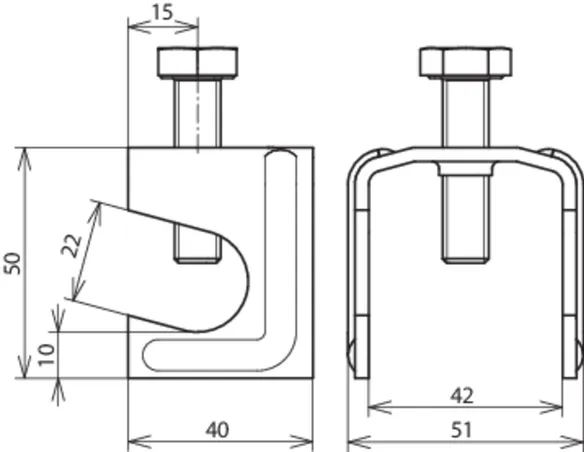

Connecting clamps for reinforcements, St/bare
Connecting clamp for connecting reinforcing steel
mesh reinforcements bar with flat conductors
For T and cross connections
Material: St/bare
Clamping range Rd / Fl: (+) 6-22 / 30-40 mm
Standard: EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.): 1.0 kA

Brand: DEHN
Type: VK A R22 F40 STBL
Part No.: 308030
or equivalent.

认证



技术参数

Material St/bare
Clamping range Rd / Fl (+) 6-22 / 30-40 mm
Screw di M10 x 40 mm
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 1.0 kA
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品308030加入购物车。

进入网上商店

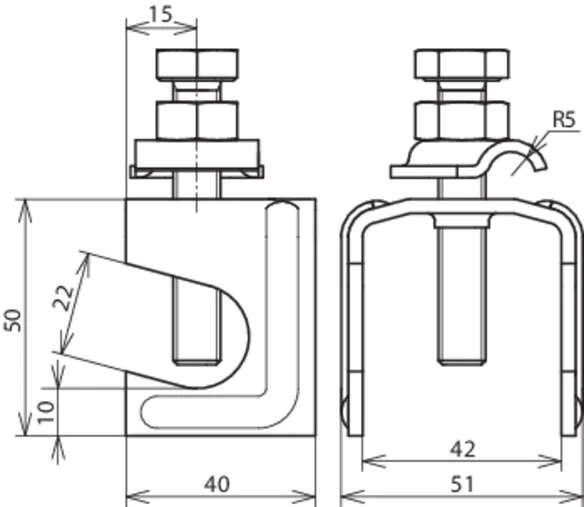

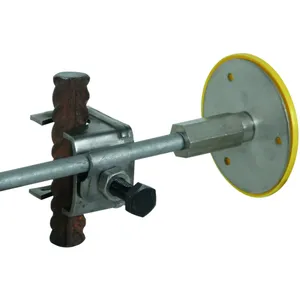

For T, cross and parallel connections with clamping piece

For flexible connection of round conductors or for fixed earthing terminals while fixing in the formwork.

1 产品

货号 308035 VK 6.22 FL40 KB6.10 BSB STBL

全球贸易项目代码 4013364123472, 海关HS编码: 85359000, 总重: 169.60 g, 包装单位: 25.00 pc(s)


附加信息

Connecting clamps for reinforcements, St/bare
Connecting clamp for reinforcements for connecting reinforcements to round conductors
For T, cross and parallel connections
With clamping piece for flexible connection of round conductors or fixed earthing terminals
while fixing in the formwork

Material: St/bare
Clamping range Rd / Rd: (+/II) 6-22 / 6-10 mm
Clamping range Rd / Fl: (+) 6-22 / 40 mm
Standard: EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.): 1.0 kA

Brand: DEHN
Type: VK 6.22 FL40 KB6.10 BSB STBL
Part No.: 308035
or equivalent.

认证



技术参数

Material St/bare
Clamping range Rd / Rd (+/II) 6-22 / 6-10 mm
Clamping range Rd / Fl (+) 6-22 / 40 mm
Screw di M10 x 60 mm
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 1.0 kA
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品308035加入购物车。

进入网上商店

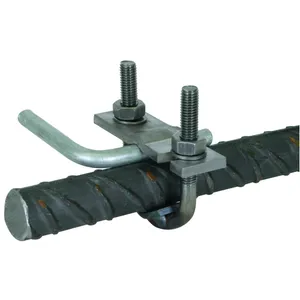

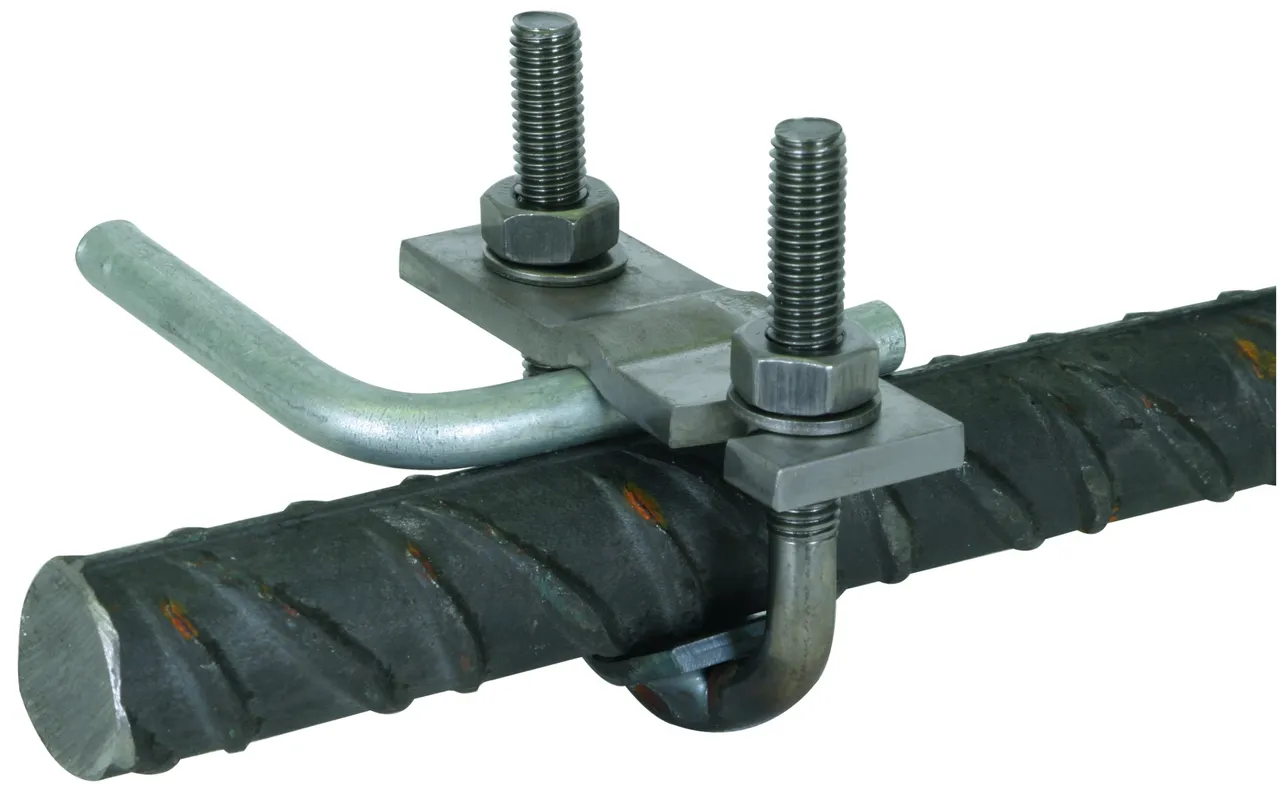

U-bolt clamp for large diameters

1 产品

货号 308045 BVK 16.48 6.10 FL40 BSB STBL

全球贸易项目代码 4013364124455, 海关HS编码: 85359000, 总重: 266.50 g, 包装单位: 25.00 pc(s)


附加信息

U-bolt clamp for large diameters, St/bare
U-bolt clamp for reinforcements
for large diameters
For connecting reinforcements with round conductors
For cross, T and parallel connections
Material: St/bare
Clamping range Rd / Rd: (II) 16-48 / 6-10 mm
Clamping range Rd / Fl: (II) 16-48 / 30-40 mm
Standard: EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.): 16 kA

Brand: DEHN
Type: BVK 16.48 6.10 FL40 BSB STBL
Part No.: 308045
or equivalent.

认证



技术参数

Material St/bare
Clamping range Rd / Rd (II) 16-48 / 6-10 mm
Clamping range Rd / Fl (II) 16-48 / 30-40 mm
Screw U-bolt M10 x 48 mm
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 16 kA
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品308045加入购物车。

进入网上商店

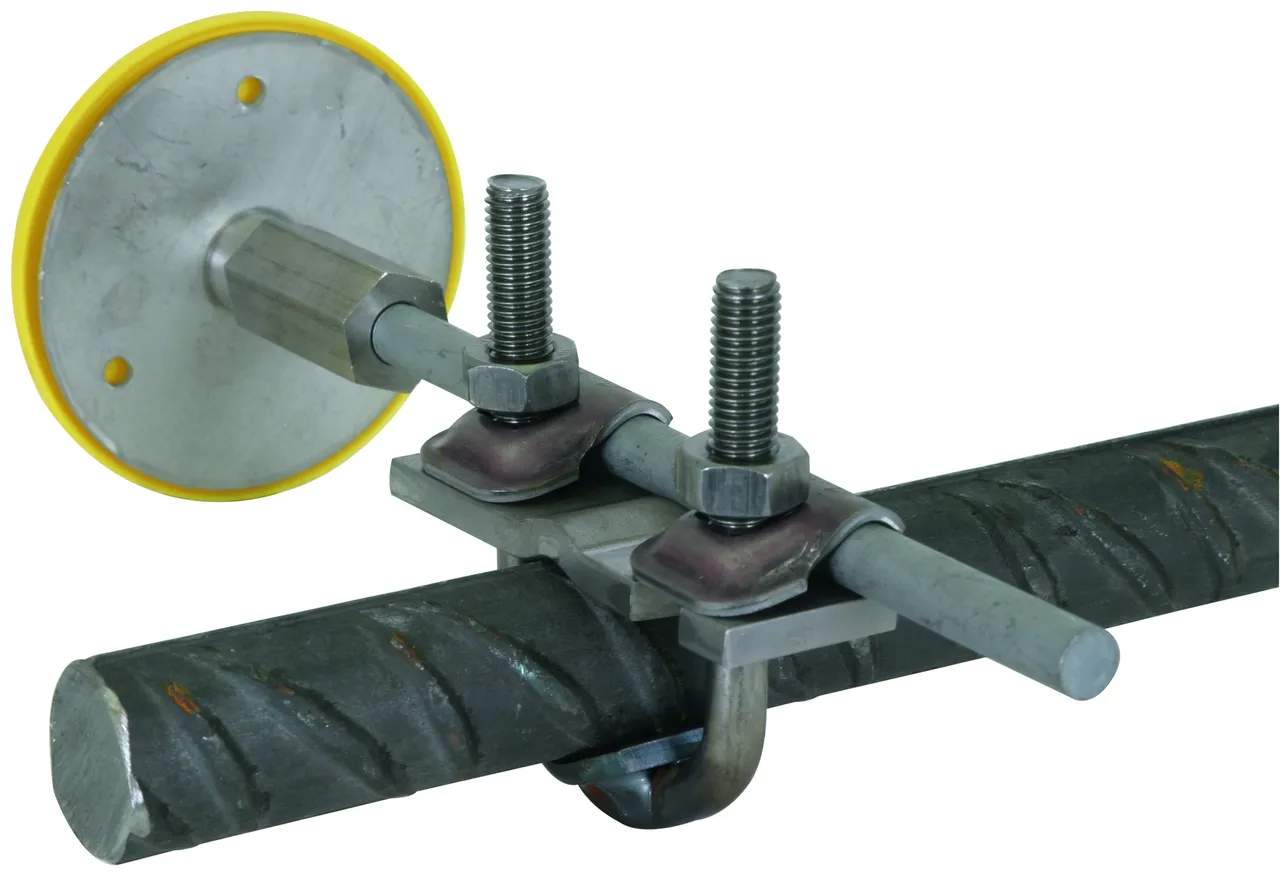

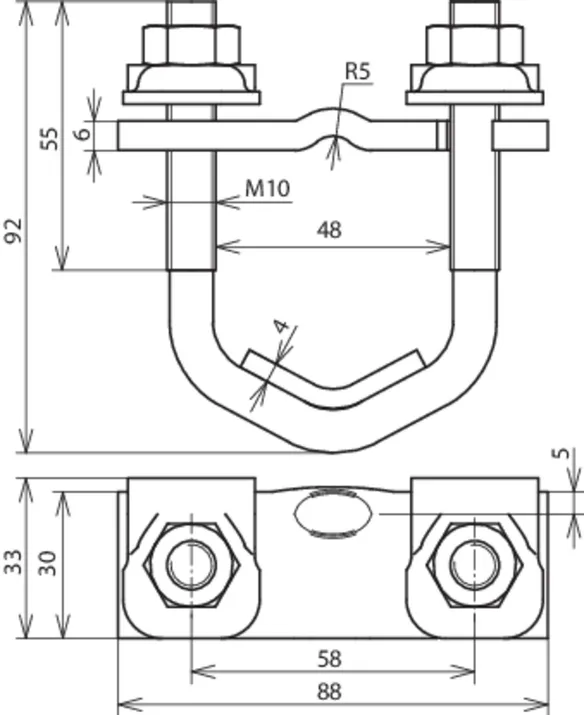

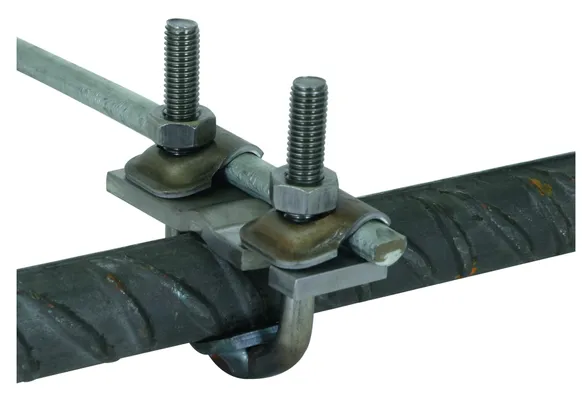

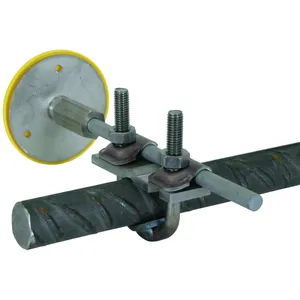

U-bolt clamp for large diameters with two additional clamping pieces

For cross connections of round conductors (6-10 mm) or for fixing and simultaneous connection of fixed earthing terminals.

1 产品

货号 308046 BVK 16.48 FL40 KB6.10 BSB STBL

全球贸易项目代码 4013364124462, 海关HS编码: 85359000, 总重: 292.40 g, 包装单位: 25.00 pc(s)


附加信息

U-bolt clamps, St/bare
U-bolt clamp for reinforcements
for large diameters
For connecting reinforcements with round conductors
For T, cross and parallel connections
With clamping piece for flexible connection of round conductors or fixed earthing terminals with
simultaneous fixing in the formwork

Material: St/bare
Clamping range Rd / Rd: (+/II) 16-48 / 6-10 mm
Clamping range Rd / Fl: (II) 16-48 / 30-40 mm
Standard: EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.): 9.9 kA

Brand: DEHN
Type: BVK 16.48 FL40 KB6.10 BSB STBL
Part No.: 308046
or equivalent.

认证



技术参数

Material St/bare
Clamping range Rd / Rd (+/II) 16-48 / 6-10 mm
Clamping range Rd / Fl (II) 16-48 / 30-40 mm
Screw U-bolt M10 x 48 mm
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 9.9 kA
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品308046加入购物车。

进入网上商店

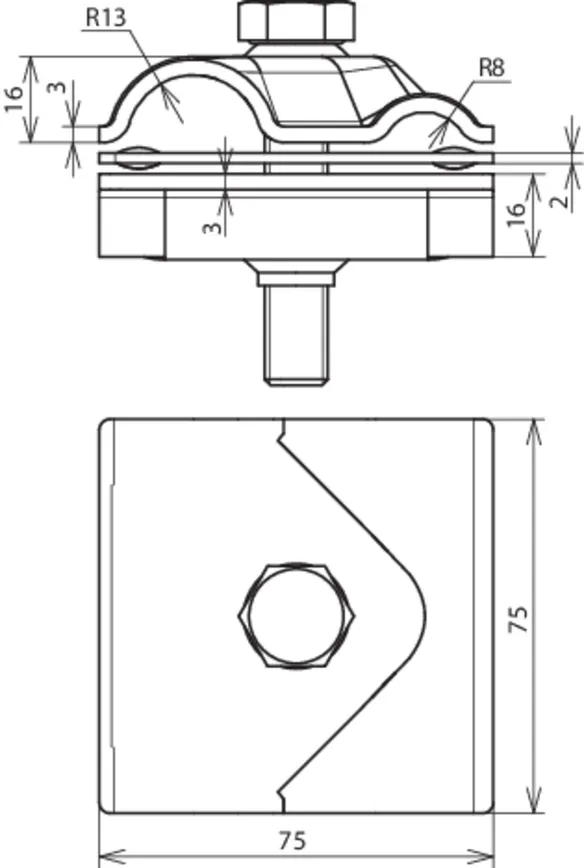

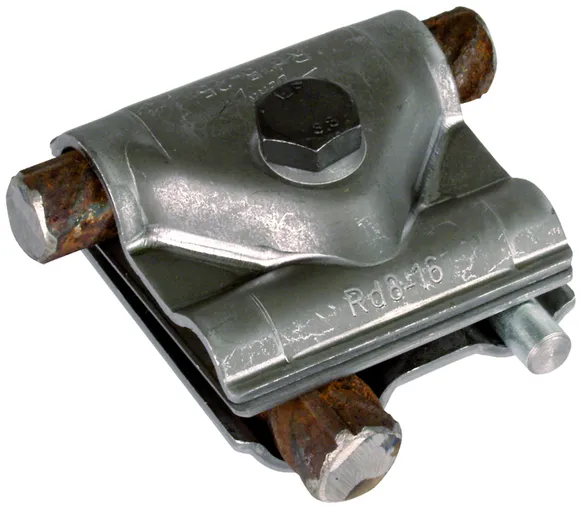

MAXI MV clamps

For T, cross and parallel connections.

1 产品

货号 308040 MAMVK 8.16 15.25 STBL

全球贸易项目代码 4013364055902, 海关HS编码: 85359000, 总重: 462.30 g, 包装单位: 20.00 pc(s)


附加信息

MAXI MV clamps, St/bright
MAXI MV clamps
For connecting reinforcements to round conductors
For cross, T and parallel connections
Material: St/bare
Clamping range Rd / Rd: (+/II) 8-16 / 15-25 mm
Standard: EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.): 10.2 kA

Brand: DEHN
Type: MAMVK 8.16 15.25 STBL
Part No.: 308040
or equivalent.

认证



技术参数

Material St/bare
Clamping range Rd / Rd (+/II) 8-16 / 15-25 mm
Screw di M12 x 65 mm
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 10.2 kA
Approvals UL 467
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品308040加入购物车。

进入网上商店

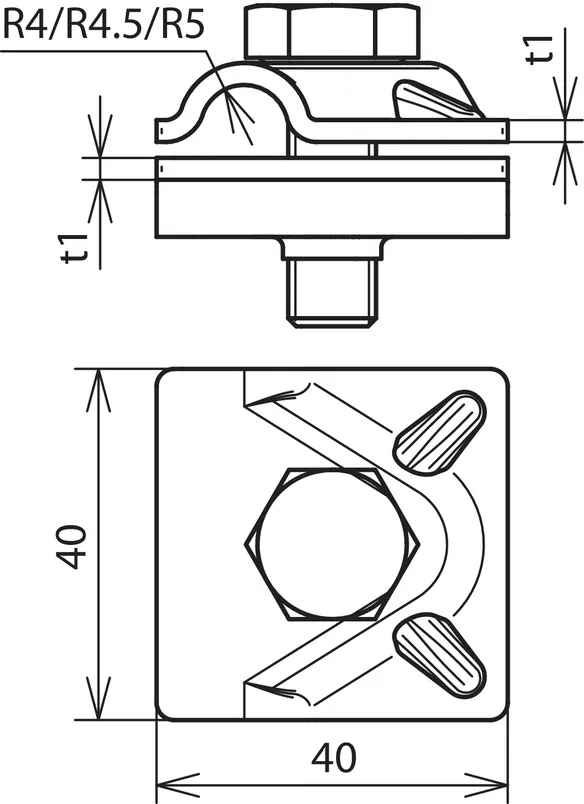

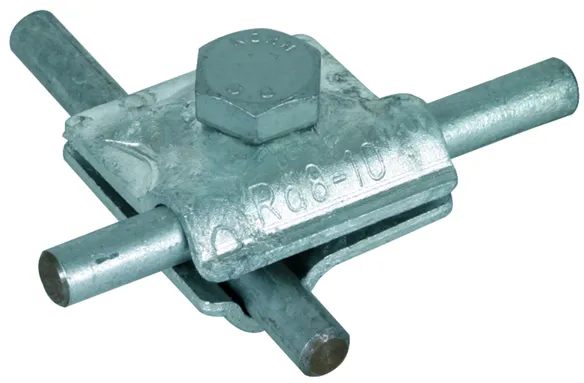

MV clamps with hexagon screw

Threaded base part.

2 产品

货号 390050 MVK 8.10 SKM10X30 STTZN

全球贸易项目代码 4013364095991, 海关HS编码: 85359000, 总重: 101.00 g, 包装单位: 50.00 pc(s)


附加信息

MV clamp with hexagon screw, St/tZn
MV clamp
Multipurpose connecting clamp for universal use as a
cross clamp, T clamp and parallel clamp,
for round conductors
capable of carrying lightning current
tested according to EN 62561-1
with hexagon screw and threaded base part
Material: St/tZn
Clamping range Rd: 8-10 mm
Standard: EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.): 7.3 kA

Brand: DEHN
Type: MVK 8.10 SKM10X30 STTZN
Part No.: 390050
or equivalent.

认证



技术参数

Material St/tZn
Clamping range Rd 8-10 mm
Screw di M10 x 30 mm
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 7.3 kA
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品390050加入购物车。

进入网上商店

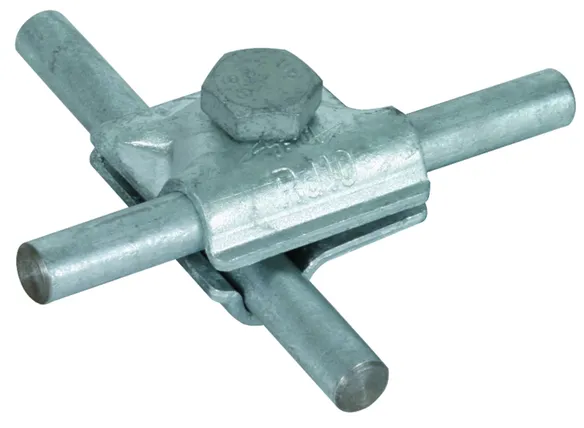

货号 391050 MVK 10 SKM10X35 STTZN

全球贸易项目代码 4013364087064, 海关HS编码: 85359000, 总重: 103.00 g, 包装单位: 50.00 pc(s)


附加信息

MV clamp with hexagon screw, St/tZn
MV clamp
Multipurpose connecting clamp for universal use as a
cross clamp, T clamp and parallel clamp,
for round conductors
capable of carrying lightning current
tested according to EN 62561-1
with hexagon screw and threaded base part
Material: St/tZn
Clamping range Rd: 10 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 10 SKM10X35 STTZN
Part No.: 391050
or equivalent.

认证



技术参数

Material St/tZn
Clamping range Rd 10 mm
Screw di M10 x 35 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品391050加入购物车。

进入网上商店

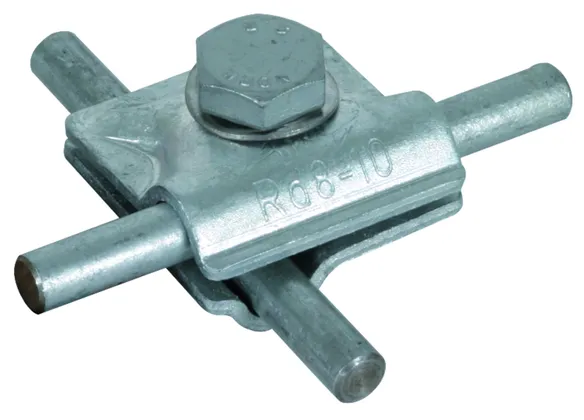

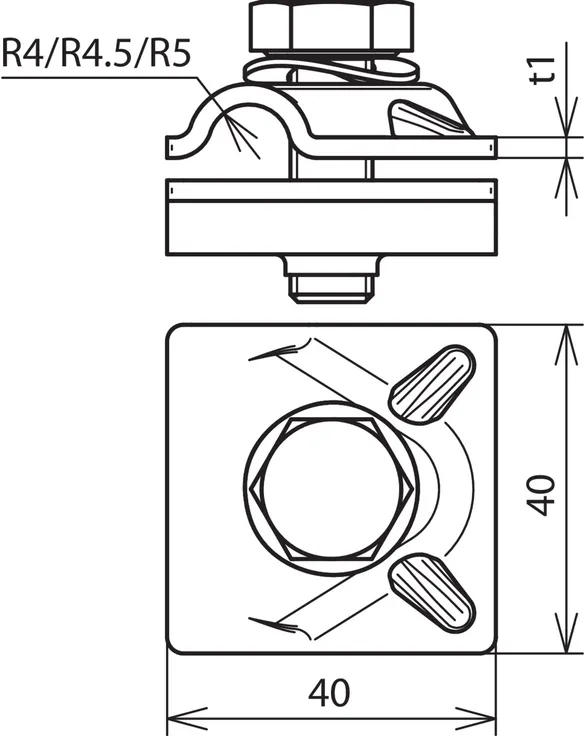

MV clamps with hexagon screw and spring washer

Threaded base part.

1 产品

货号 390550 MVK 8.10 SKM10X30 FSC STTZN

全球贸易项目代码 4013364096042, 海关HS编码: 85359000, 总重: 92.00 g, 包装单位: 50.00 pc(s)


附加信息

MV clamp with hexagon screw and spring washer, St/tZn
MV clamp
Multipurpose connecting clamp for universal use as a
cross clamp, T clamp and parallel clamp,
for round conductors
capable of carrying lightning current
tested according to EN 62561-1
with hexagon screw, spring washer and threaded base part
Material: St/tZn
Clamping range Rd: 8-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 SKM10X30 FSC STTZN
Part No.: 390550
or equivalent.

认证



技术参数

Material St/tZn
Clamping range Rd 8-10 mm
Screw di M10 x 30 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品390550加入购物车。

进入网上商店

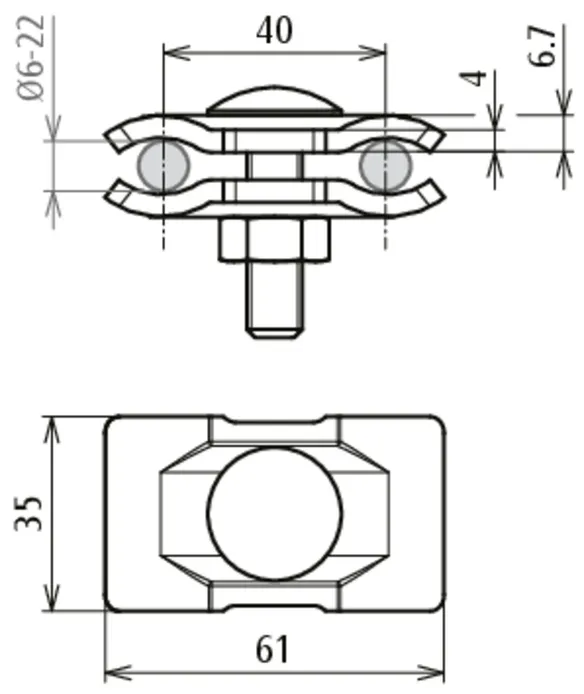

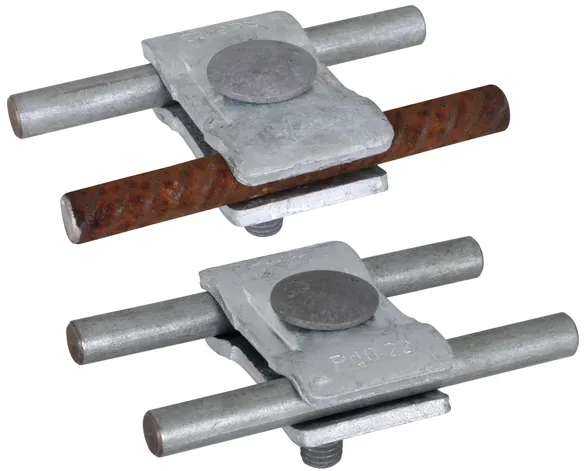

Parallel connectors with truss head screw

2 产品

货号 306121 PV 6.22 FRM10X40 STBLANK

全球贸易项目代码 4013364284920, 海关HS编码: 85359000, 总重: 163.16 g, 包装单位: 50.00 pc(s)


附加信息

Parallel connector with one screw, St/blank
Parallel connector for connecting two conductors in parallel arrangement
Material: St/bare
Clamping range Rd / Rd: 6-22 / 6-22 mm
Standard: EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.): 6.1 kA

Brand: DEHN
Type: PV 6.22 FRM10X40 STBLANK
Part No.: 306121
or equivalent.

认证



技术参数

Material St/bare
Clamping range Rd / Rd 6-22 / 6-22 mm
Screw e M10 x 40 mm
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 6.1 kA

.产品已加入收藏夹。

进入收藏夹

商品306121加入购物车。

进入网上商店

货号 306122 PV 6.22 FRM10X40 STTZN

全球贸易项目代码 4013364284937, 海关HS编码: 85359000, 总重: 167.12 g, 包装单位: 50.00 pc(s)


附加信息

Parallel connector with one screw, St/tZn
Parallel connector for connecting two conductors in parallel arrangement
Material: St/tZn
Clamping range Rd / Rd: 6-22 / 6-22 mm
Standard: EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.): 6.1 kA

Brand: DEHN
Type: PV 6.22 FRM10X40 STTZN
Part No.: 306122
or equivalent.

认证



技术参数

Material St/tZn
Clamping range Rd / Rd 6-22 / 6-22 mm
Screw e M10 x 40 mm
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 6.1 kA

.产品已加入收藏夹。

进入收藏夹

商品306122加入购物车。

进入网上商店

Cookies

我们使用cookies。请阅读链接中我们的个人信息保护政策。如果您继续访问我们的网站，即表明您同意我们的个人信息保护政策。

个人信息保护政策
