Spacers

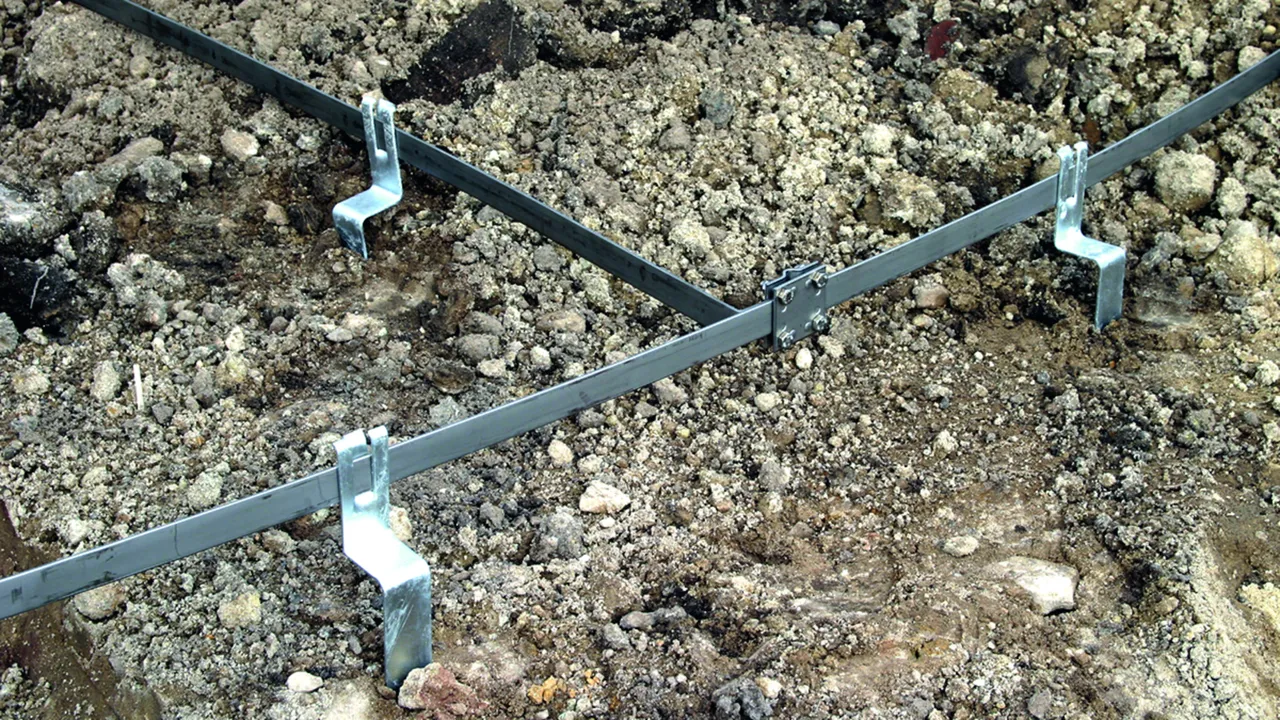

For the installation of earthing conductors in the foundation slab.
With catch lug to avoid loosening of the conductor.

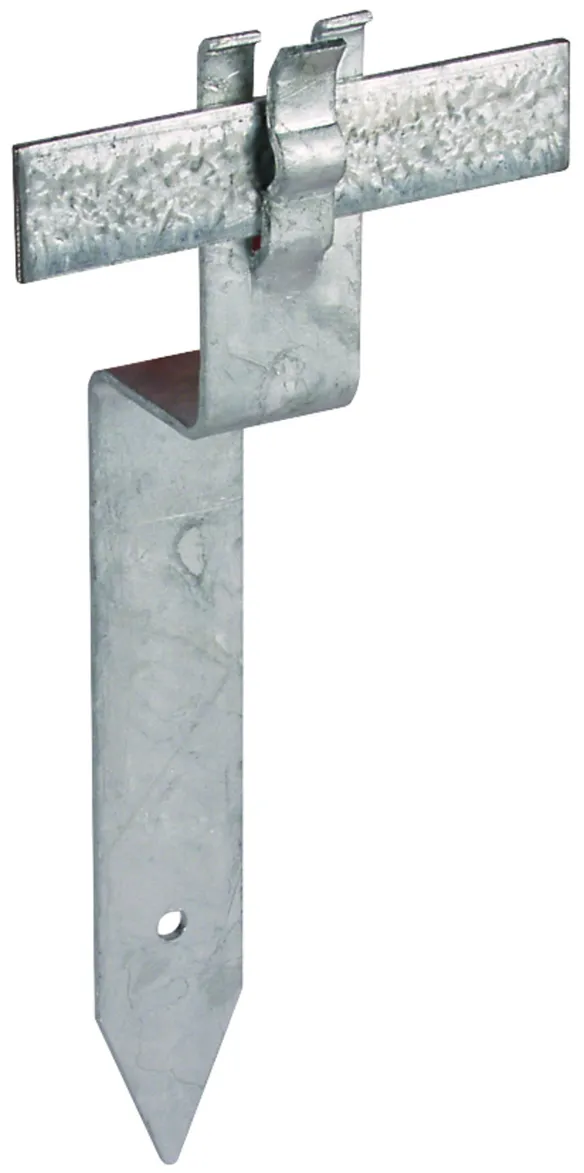

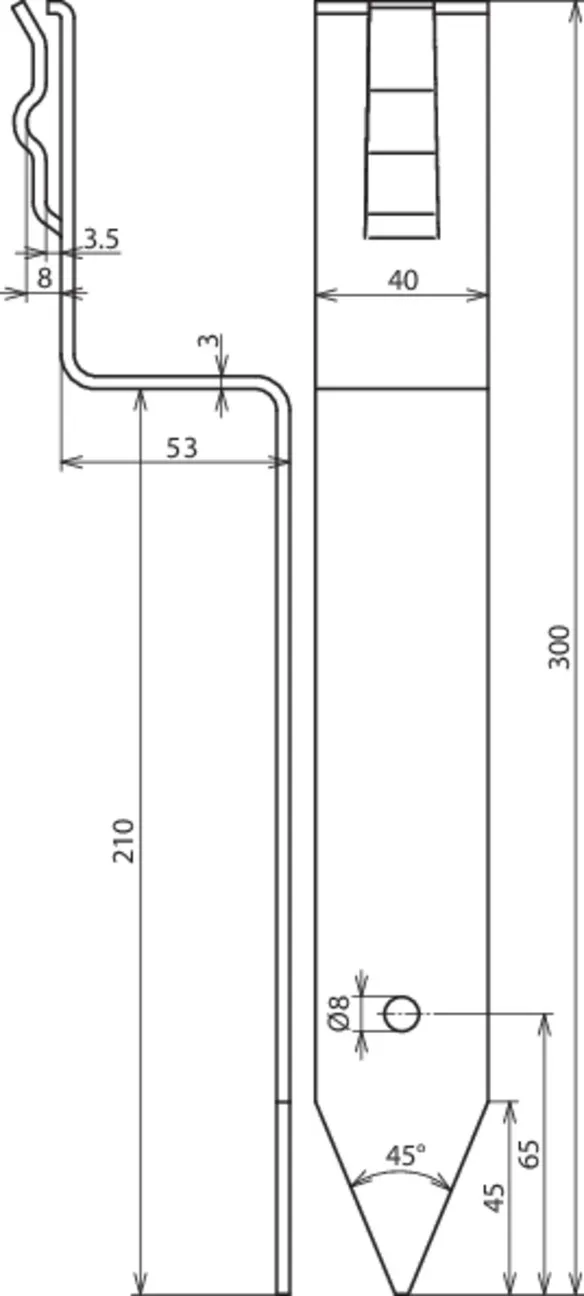

Angled and reinforced design

1 产品

货号 290001 AH FE RF V G

全球贸易项目代码 4013364027909, 海关HS编码: 85389099, 总重: 331.94 g, 包装单位: 25.00 pc(s)


附加信息

Spacer, angled and reinforced, St/tZn
Spacer
For installing earth conductors into the foundation level,
with safety lug to stop the conductor from coming loose
Reinforced angled type
Material: St/tZn
Support Fl: 40 mm
Support Rd: 8-10 mm
Length: 300 mm

Brand: DEHN
Type: AH FE RF V G
Part No.: 290001
or equivalent.



技术参数

Material St/tZn
Support Fl 40 mm
Support Rd 8-10 mm
Length 300 mm

.产品已加入收藏夹。

进入收藏夹

商品290001加入购物车。

进入网上商店

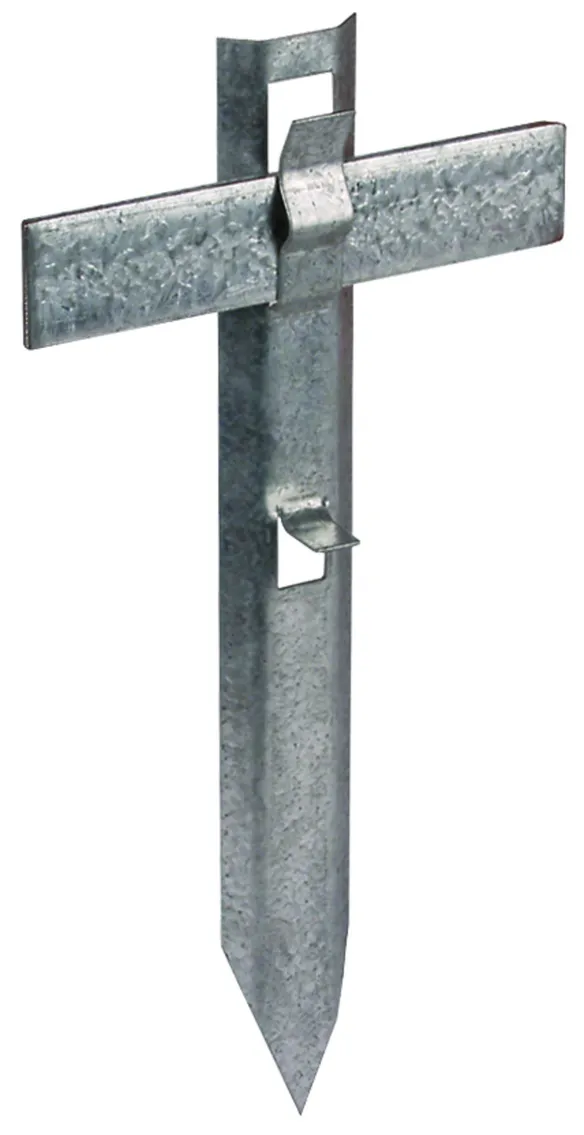

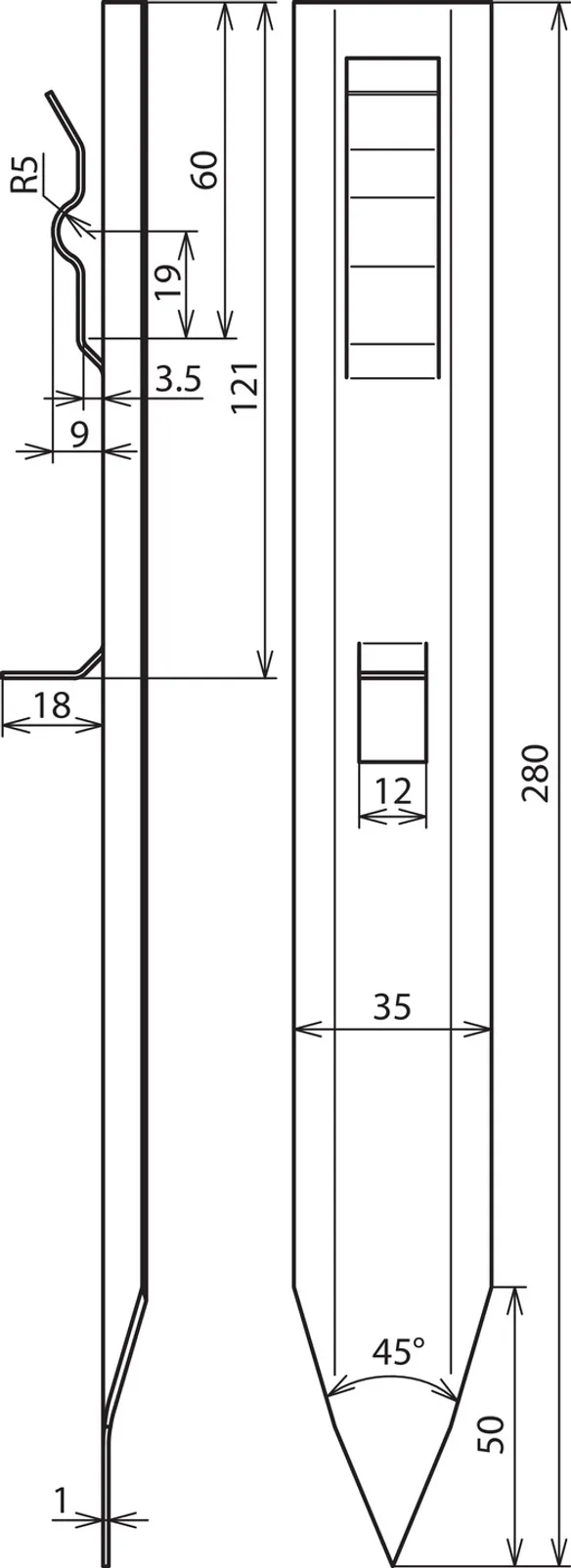

Straight design

1 产品

货号 290002 AH FE RF

全球贸易项目代码 4013364027893, 海关HS编码: 85389099, 总重: 91.92 g, 包装单位: 50.00 pc(s)


附加信息

Spacer, straight, St/tZn
Spacer
For installing earth conductors into the foundation level,
with safety lug against loosening of the conductor
Straight type
Material: St/tZn
Support Fl: 40 mm
Support Rd: 8-10 mm
Length: 280 mm

Brand: DEHN
Type: AH FE RF
Part No.: 290002
or equivalent.



技术参数

Material St/tZn
Support Fl 40 mm
Support Rd 8-10 mm
Length 280 mm

.产品已加入收藏夹。

进入收藏夹

商品290002加入购物车。

进入网上商店
