End Pieces

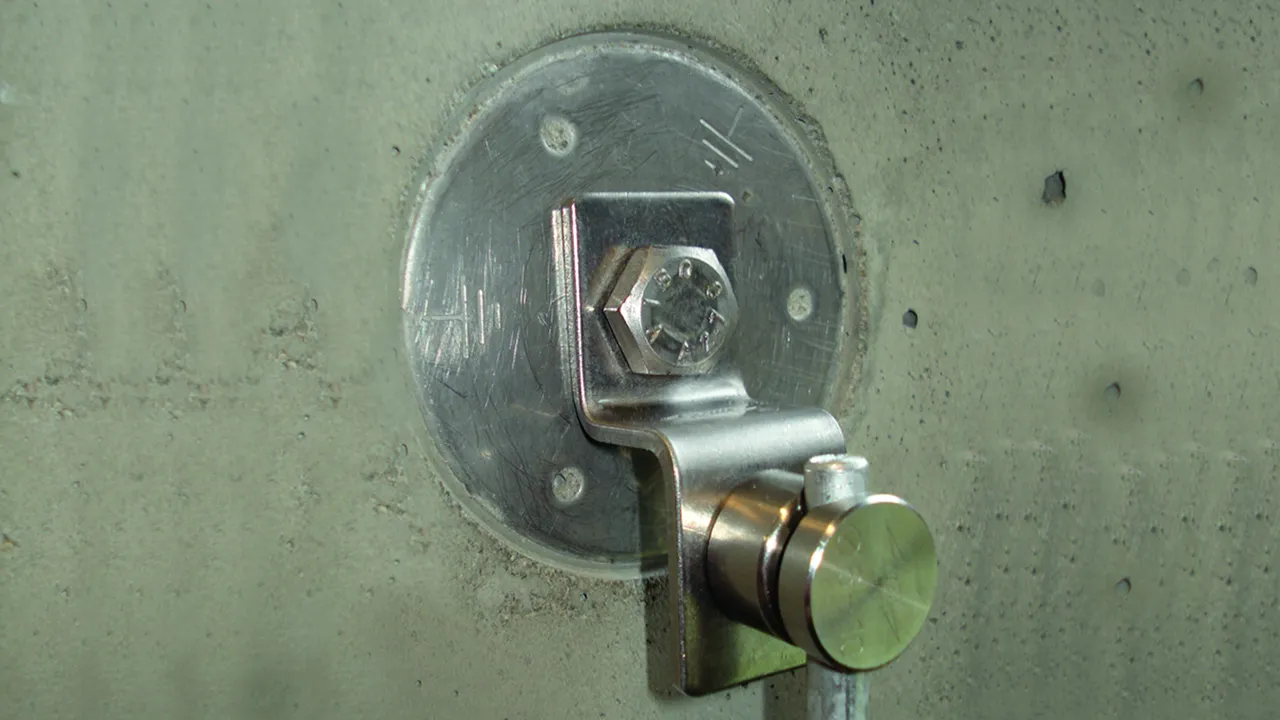

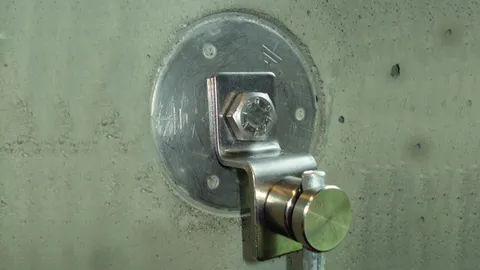

Screwed to the fixed earthing terminal to connect, e.g. an equipotential bonding bar or structural parts such as steel girders, etc.

Basic design

Universal use for M10 and M12 connections, e.g. at the fixed earthing terminal.

For connection of Rd, e.g. with KS connector (Part No. 301 019), or Fl with M10 or M12 screws and nuts.

1 产品

货号 390499 ES ZF 2XB18 V2A

全球贸易项目代码 4013364127517, 海关HS编码: 85359000, 总重: 58.20 g, 包装单位: 50.00 pc(s)

前代产品


附加信息

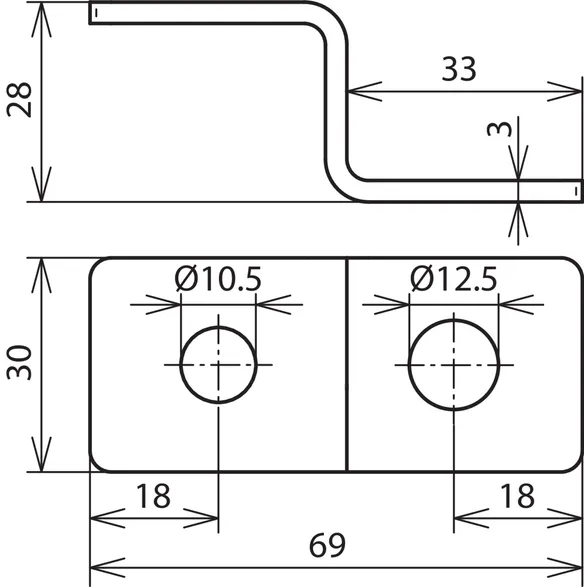

End piece, basic design, StSt
End pieces
for screwing on to the fixed earthing terminal
for connection to e.g. an equipotential bonding bar
for universal use with M10 and M12 connections
for connecting Rd, e.g. with KS connector (Part No. 301 019)
or Fl with M10 screws and nuts
Material: StSt
Hole Ø: 10.5 / 12.5 mm

Brand: DEHN
Type: ES ZF 2XB18 V2A
Part No.: 390499
or equivalent.

认证



技术参数

Material StSt
Hole Ø 10.5 / 12.5 mm

.产品已加入收藏夹。

进入收藏夹

商品390499加入购物车。

进入网上商店

Design with square holes

Dimensions 11x11 mm, for connecting Rd, e.g. with KS connector (Part No. 301 019), or Fl with M10 screws and nuts.

1 产品

货号 390479 ES ZF 2X11.11 1XB13 V2A

全球贸易项目代码 4013364035324, 海关HS编码: 85359000, 总重: 75.90 g, 包装单位: 50.00 pc(s)

前代产品


附加信息

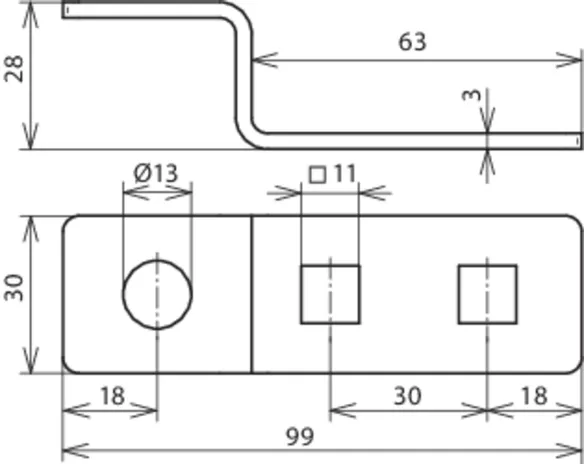

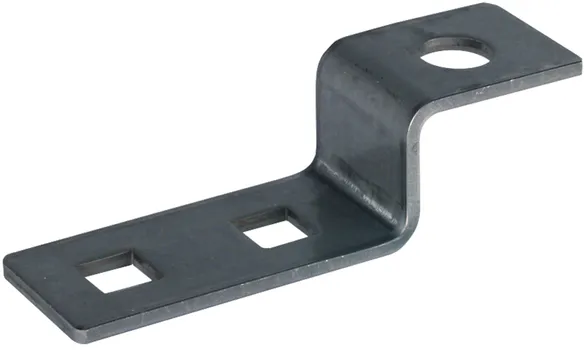

End piece with square hole, StSt
End piece
Screwed to the fixed earthing terminal for connection
of, e.g. an equipotential bonding bar with square holes 11x11 mm
For connecting Rd, e.g. with KS connector (Part No. 301 019) or Fl with M10 screws and nuts
Material: StSt
Hole Ø: 13 mm

Brand: DEHN
Type: ES ZF 2X11.11 1XB13 V2A
Part No.: 390479
or equivalent.

认证



技术参数

Material StSt
Distance of holes 30 mm
Hole Ø 13 mm

.产品已加入收藏夹。

进入收藏夹

商品390479加入购物车。

进入网上商店

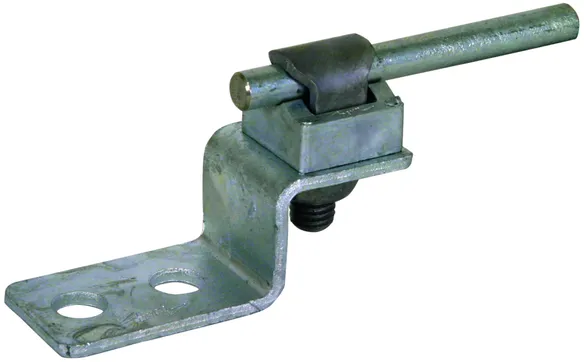

Design with holes and KS connector

With holes Ø11 mm.

1 产品

货号 363010 ES ZF 2XB11 KSV 7.10 STTZN

全球贸易项目代码 4013364045743, 海关HS编码: 85359000, 总重: 126.40 g, 包装单位: 50.00 pc(s)


附加信息

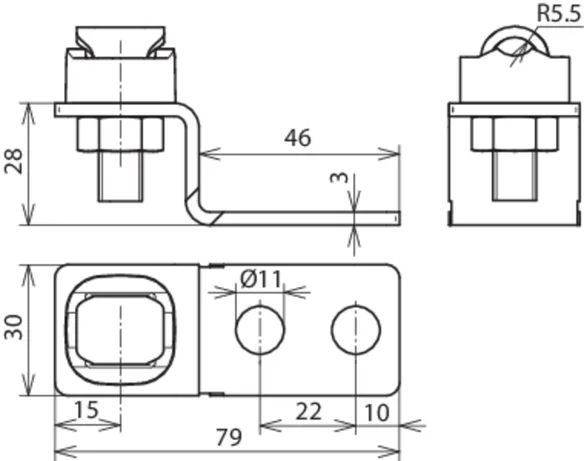

End piece with hole and KS connector, St/tZn
End piece
Screwed to the fixed earthing terminal for connection
of, e.g. an equipotential bonding bar with connection holes Ø11 mm and KS connector
Material: St/tZn
Hole Ø: 11 mm
Clamping range Rd: 7-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: ES ZF 2XB11 KSV 7.10 STTZN
Part No.: 363010
or equivalent.

认证



技术参数

Material St/tZn
Distance of holes 22 mm
Hole Ø 11 mm
Clamping range Rd 7-10 mm
Standard EN 62561-1
*) For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品363010加入购物车。

进入网上商店

Design with holes

With holes Ø11 mm.

1 产品

货号 363000 ES ZF 3XB11 STTZN

全球贸易项目代码 4013364045750, 海关HS编码: 85359000, 总重: 68.00 g, 包装单位: 50.00 pc(s)


附加信息

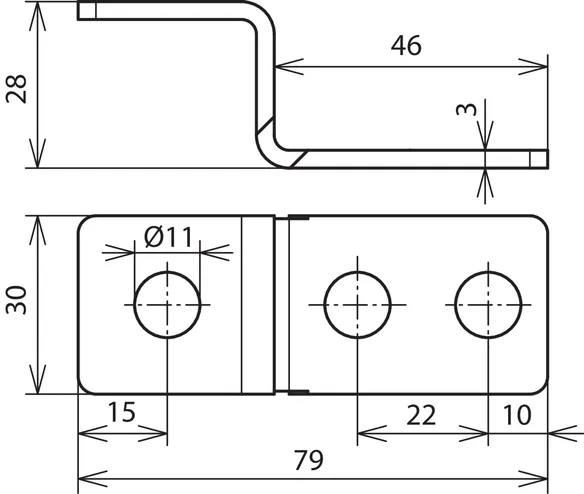

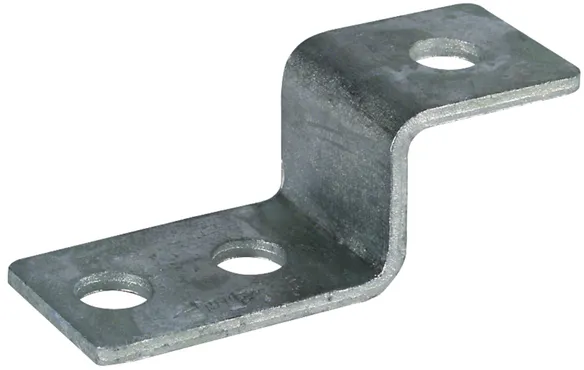

End piece with hole, St/tZn
End piece
For screwing to the fixed earthing terminal for connection
of, e.g. an equipotential bonding bar with connection holes Ø11 mm, without KS connector
Material: St/tZn
Hole Ø: 11 mm

Brand: DEHN
Type: ES ZF 3XB11 STTZN
Part No.: 363000
or equivalent.

认证



技术参数

Material St/tZn
Distance of holes 22 mm
Hole Ø 11 mm

.产品已加入收藏夹。

进入收藏夹

商品363000加入购物车。

进入网上商店
