Connecting Clamps for Fixed Earthing Terminals and Reinforcement

For connecting the reinforcement with clamping piece.
For round conductors or fixed earthing terminals with simultaneous fixing in the formwork.

Arrangement:
(II) = parallel
(+) = cross

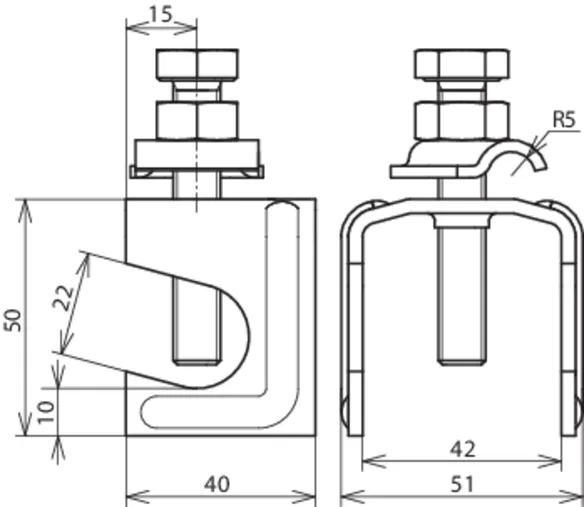

For small diameters

1 产品

货号 308035 VK 6.22 FL40 KB6.10 BSB STBL

全球贸易项目代码 4013364123472, 海关HS编码: 85359000, 总重: 169.60 g, 包装单位: 25.00 pc(s)


附加信息

Connecting clamps for reinforcements, St/bare
Connecting clamps for reinforcements for connecting reinforcements to round conductors
For T, cross and parallel connections
With clamping piece for flexible connection of round conductors or fixed earthing terminals
while fixing in the formwork

Material: St/bare
Clamping range Rd / Rd: (+/II) 6-22 / 6-10 mm
Clamping range Rd / Fl: (+) 6-22 / 40 mm
Standard: EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.): 1.0 kA

Brand: DEHN
Type: VK 6.22 FL40 KB6.10 BSB STBL
Part No.: 308035
or equivalent.

认证



技术参数

Material St/bare
Clamping range Rd / Rd (+/II) 6-22 / 6-10 mm
Clamping range Rd / Fl (+) 6-22 / 40 mm
Screw di M10 x 60 mm
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 1.0 kA
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品308035加入购物车。

进入网上商店

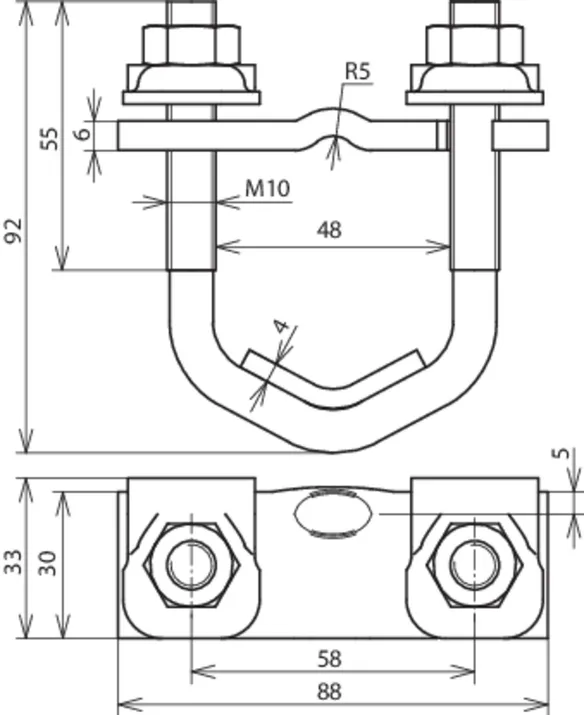

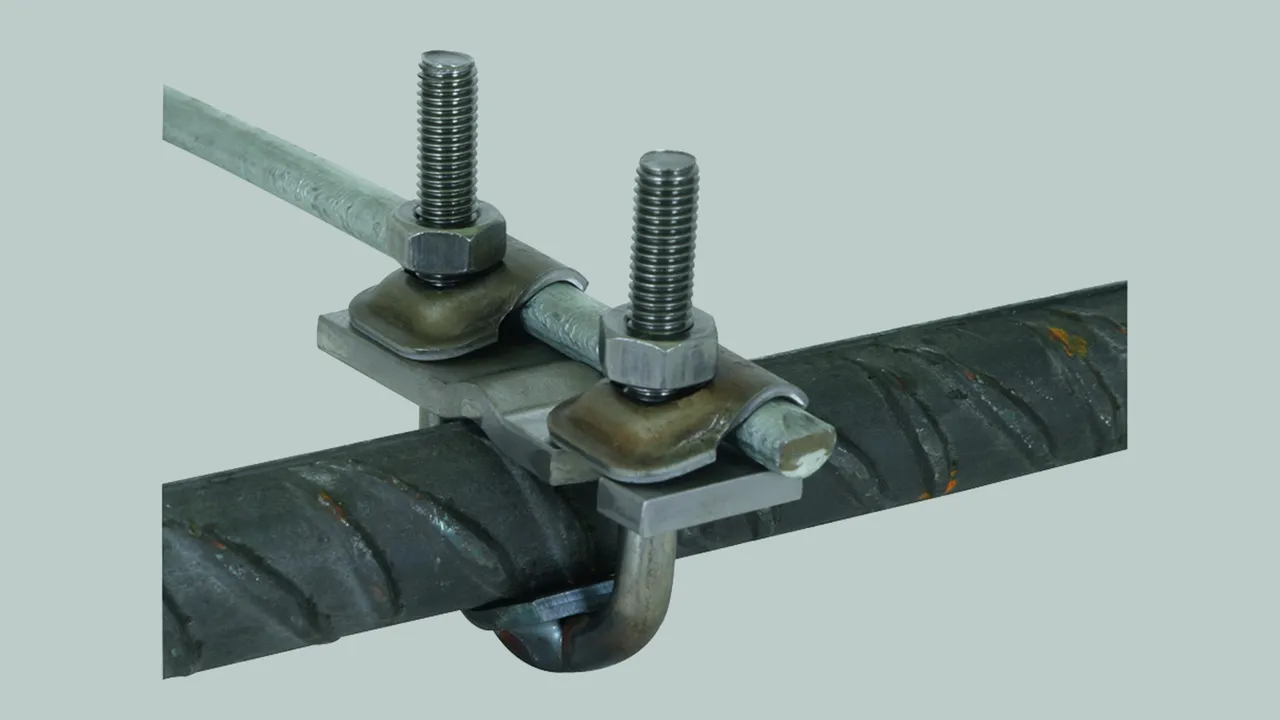

U-clamp for large diameters

1 产品

货号 308046 BVK 16.48 FL40 KB6.10 BSB STBL

全球贸易项目代码 4013364124462, 海关HS编码: 85359000, 总重: 292.40 g, 包装单位: 25.00 pc(s)


附加信息

Connecting clamps, U-clamps, St/bare
Connecting clamps for reinforcements
U-clamp for large diameters
For connecting reinforcements to round conductors
For T, cross and parallel connections
With clamping piece for flexible connection of
round conductors or fixed earthing terminals while fixing in the formwork

Material: St/bare
Clamping range Rd / Rd: (+/II) 16-48 / 6-10 mm
Clamping range Rd / Fl: (II) 16-48 / 30-40 mm
Standard: EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.): 9.9 kA

Brand: DEHN
Type: BVK 16.48 FL40 KB6.10 BSB STBL
Part No.: 308046
or equivalent.

认证



技术参数

Material St/bare
Clamping range Rd / Rd (+/II) 16-48 / 6-10 mm
Clamping range Rd / Fl (II) 16-48 / 30-40 mm
Screw U-bolt M10 x 48 mm
Standard EN 62561-1
Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) 9.9 kA
*) For exact assignment see test certificate.
