Straightened / Angled Connection Lugs

For connecting down conductors to the earth-termination system; made of corrosion-resistant stainless steel.

Round wires

4 产品

货号 860110 AF 10 V4A 1000

全球贸易项目代码 4013364150256, 海关HS编码: 72222031, 总重: 624.00 g, 包装单位: 5.00 pc(s)


附加信息

Connection lug, round wire, StSt (V4A)
Connection lugs aimed at connection
to the earth-termination system
made of corrosion-resistant stainless steel (V4A)
In accordance with DIN EN 62561-2 (VDE 0185 Part 202).
Material: StSt (V4A)
Material No.: 1.4571 / 1.4404
ASTM / AISI:: 316Ti / 316L
Length: 1000 mm
Dimensions: Ø10 mm
Cross-section: 78 mm2
Standard: EN 62561-2

Brand: DEHN
Type: AF 10 V4A 1000
Part No.: 860110
or equivalent.

认证



技术参数

Material StSt (V4A)
Material No. 1.4571 / 1.4404
ASTM / AISI: 316Ti / 316L
Length (l1) 1000 mm
Dimensions Ø10 mm
Cross-section 78 mm2
Standard EN 62561-2

.产品已加入收藏夹。

进入收藏夹

商品860110加入购物车。

进入网上商店

货号 860115 AF 10 V4A 1500

全球贸易项目代码 4013364101104, 海关HS编码: 72222031, 总重: 930.00 g, 包装单位: 5.00 pc(s)


附加信息

Connection lug, round wire, StSt (V4A)
Connection lugs aimed at connection
to the earth-termination system
made of corrosion-resistant stainless steel (V4A)
In accordance with DIN EN 62561-2 (VDE 0185 Part 202).
Material: StSt (V4A)
Material No.: 1.4571 / 1.4404
ASTM / AISI:: 316Ti / 316L
Length: 1500 mm
Dimensions: Ø10 mm
Cross-section: 78 mm2
Standard: EN 62561-2

Brand: DEHN
Type: AF 10 V4A 1500
Part No.: 860115
or equivalent.

认证



技术参数

Material StSt (V4A)
Material No. 1.4571 / 1.4404
ASTM / AISI: 316Ti / 316L
Length (l1) 1500 mm
Dimensions Ø10 mm
Cross-section 78 mm2
Standard EN 62561-2

.产品已加入收藏夹。

进入收藏夹

商品860115加入购物车。

进入网上商店

货号 860129 AF 10 V4A 2000

全球贸易项目代码 4013364486782, 海关HS编码: 72222031, 总重: 1.24 kg, 包装单位: 5.00 pc(s)


附加信息

Connection lug, round wire, StSt (V4A)
Connection lugs aimed at connection
to the earth-termination system
made of corrosion-resistant stainless steel (V4A)
In accordance with DIN EN 62561-2 (VDE 0185 Part 202).
Material: StSt (V4A)
Material No.: 1.4571 / 1.4404
ASTM / AISI:: 316Ti / 316L
Length: 2000 mm
Dimensions: Ø10 mm
Cross-section: 78 mm2
Standard: EN 62561-2

Brand: DEHN
Type: AF 10 V4A 2000
Part No.: 860129
or equivalent.

认证



技术参数

Material StSt (V4A)
Material No. 1.4571 / 1.4404
ASTM / AISI: 316Ti / 316L
Length (l1) 2000 mm
Dimensions Ø10 mm
Cross-section 78 mm2
Standard EN 62561-2

.产品已加入收藏夹。

进入收藏夹

商品860129加入购物车。

进入网上商店

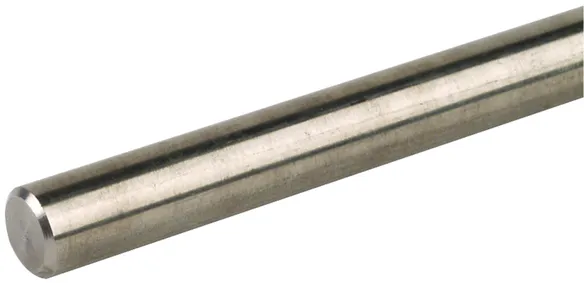

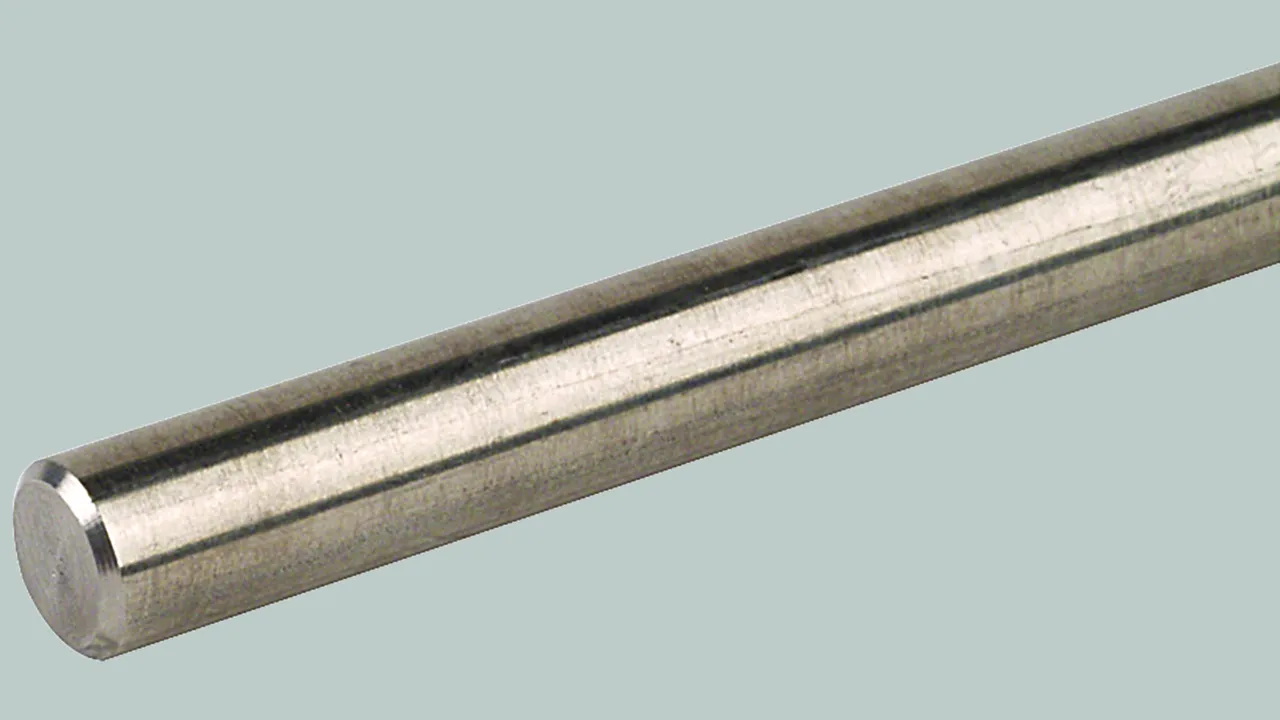

货号 860130 AF 10 V4A 3000

全球贸易项目代码 4013364101111, 海关HS编码: 72222031, 总重: 1.80 kg, 包装单位: 5.00 pc(s)


附加信息

Connection lug, round wire, StSt (V4A)
Connection lugs aimed at connection
to the earth-termination system
made of corrosion-resistant stainless steel (V4A)
In accordance with DIN EN 62561-2 (VDE 0185 Part 202).
Material: StSt (V4A)
Material No.: 1.4571 / 1.4404
ASTM / AISI:: 316Ti / 316L
Length: 3000 mm
Dimensions: Ø10 mm
Cross-section: 78 mm2
Standard: EN 62561-2

Brand: DEHN
Type: AF 10 V4A 3000
Part No.: 860130
or equivalent.

认证



技术参数

Material StSt (V4A)
Material No. 1.4571 / 1.4404
ASTM / AISI: 316Ti / 316L
Length (l1) 3000 mm
Dimensions Ø10 mm
Cross-section 78 mm2
Standard EN 62561-2

.产品已加入收藏夹。

进入收藏夹

商品860130加入购物车。

进入网上商店

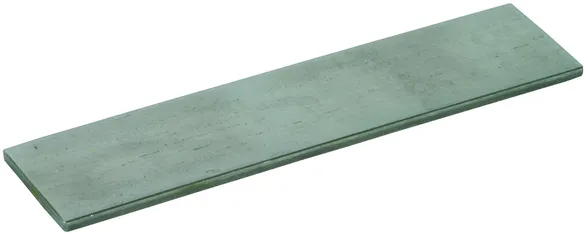

Flat strips

4 产品

货号 860210 AF 30X3.5 V4A 1000

全球贸易项目代码 4013364159365, 海关HS编码: 85389099, 总重: 830.00 g, 包装单位: 5.00 pc(s)


附加信息

Connection lug, flat strip, StSt (V4A)
Connection lug (straightened) for connecting down
conductors to the earth-termination system
Made of corrosion-resistant stainless steel (V4A)

In accordance with EN 62561-2
Material: StSt (V4A)
Material No.: 1.4571 / 1.4404
ASTM / AISI:: 316Ti / 316L
Length: 1000 mm
Dimensions: 30 x 3.5 mm
Cross-section: 105 mm2
Standard: EN 62561-2

Brand: DEHN
Type: AF 30X3.5 V4A 1000
Part No.: 860210
or equivalent.

认证



技术参数

Material StSt (V4A)
Material No. 1.4571 / 1.4404
ASTM / AISI: 316Ti / 316L
Length (l1) 1000 mm
Dimensions 30 x 3.5 mm
Cross-section 105 mm2
Standard EN 62561-2

.产品已加入收藏夹。

进入收藏夹

商品860210加入购物车。

进入网上商店

货号 860215 AF 30X3.5 V4A 1500

全球贸易项目代码 4013364101081, 海关HS编码: 72202021, 总重: 1.25 kg, 包装单位: 5.00 pc(s)


附加信息

Connection lug, flat strip, StSt (V4A)
Connection lug (straightened) for connecting down
conductors to the earth-termination system
Made of corrosion-resistant stainless steel (V4A)

In accordance with EN 62561-2
Material: StSt (V4A)
Material No.: 1.4571 / 1.4404
ASTM / AISI:: 316Ti / 316L
Length: 1500 mm
Dimensions: 30 x 3.5 mm
Cross-section: 105 mm2
Standard: EN 62561-2

Brand: DEHN
Type: AF 30X3.5 V4A 1500
Part No.: 860215
or equivalent.

认证



技术参数

Material StSt (V4A)
Material No. 1.4571 / 1.4404
ASTM / AISI: 316Ti / 316L
Length (l1) 1500 mm
Dimensions 30 x 3.5 mm
Cross-section 105 mm2
Standard EN 62561-2

.产品已加入收藏夹。

进入收藏夹

商品860215加入购物车。

进入网上商店

货号 860230 AF 30X3.5 V4A 3000

全球贸易项目代码 4013364101098, 海关HS编码: 72202021, 总重: 2.48 kg, 包装单位: 5.00 pc(s)


附加信息

Connection lug, flat strip, StSt (V4A)
Connection lug (straightened) for connecting down
conductors to the earth-termination system
Made of corrosion-resistant stainless steel (V4A)

In accordance with EN 62561-2
Material: StSt (V4A)
Material No.: 1.4571 / 1.4404
ASTM / AISI:: 316Ti / 316L
Length: 3000 mm
Dimensions: 30 x 3.5 mm
Cross-section: 105 mm2
Standard: EN 62561-2

Brand: DEHN
Type: AF 30X3.5 V4A 3000
Part No.: 860230
or equivalent.

认证



技术参数

Material StSt (V4A)
Material No. 1.4571 / 1.4404
ASTM / AISI: 316Ti / 316L
Length (l1) 3000 mm
Dimensions 30 x 3.5 mm
Cross-section 105 mm2
Standard EN 62561-2

.产品已加入收藏夹。

进入收藏夹

商品860230加入购物车。

进入网上商店

货号 860240 AF 30X3.5 V4A 4000

全球贸易项目代码 4013364159372, 海关HS编码: 72202021, 总重: 3.32 kg, 包装单位: 5.00 pc(s)


附加信息

Connection lug, flat strip, StSt (V4A)
Connection lug (straightened) for connecting down
conductors to the earth-termination system
Made of corrosion-resistant stainless steel (V4A)

In accordance with EN 62561-2
Material: StSt (V4A)
Material No.: 1.4571 / 1.4404
ASTM / AISI:: 316Ti / 316L
Length: 4000 mm
Dimensions: 30 x 3.5 mm
Cross-section: 105 mm2
Standard: EN 62561-2

Brand: DEHN
Type: AF 30X3.5 V4A 4000
Part No.: 860240
or equivalent.

认证



技术参数

Material StSt (V4A)
Material No. 1.4571 / 1.4404
ASTM / AISI: 316Ti / 316L
Length (l1) 4000 mm
Dimensions 30 x 3.5 mm
Cross-section 105 mm2
Standard EN 62561-2

.产品已加入收藏夹。

进入收藏夹

商品860240加入购物车。

进入网上商店

Flat strips with holes

Holes at intervals of 500 mm.

1 产品

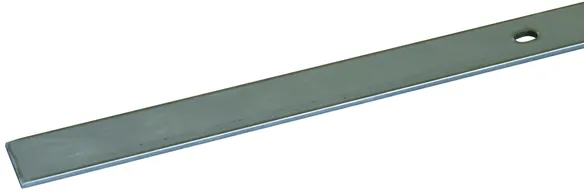

货号 860430 AF 30X3.5 V4A B6.5X12 3000

全球贸易项目代码 4013364227781, 海关HS编码: 72202021, 总重: 2.00 kg, 包装单位: 5.00 pc(s)


附加信息

Connection lug, flat strip with holes, StSt (V4A)
Connection lug with holes made of corrosion-
resistant stainless steel for connecting down
conductors to the earth-termination system. In
accordance with EN 62561-2.
Material: StSt (V4A)
Material No.: 1.4571 / 1.4404
ASTM / AISI:: 316Ti / 316L
Length: 3000 mm
Dimensions: 30 x 3.5 mm
Cross-section: 105 mm2
Standard: EN 62561-2

Brand: DEHN
Type: AF 30X3.5 V4A B6.5X12 3000
Part No.: 860430
or equivalent.

认证



技术参数

Material StSt (V4A)
Material No. 1.4571 / 1.4404
ASTM / AISI: 316Ti / 316L
Length (l1) 3000 mm
Dimensions 30 x 3.5 mm
Fixing [6x] 6.5 x 12 mm
Hole distance 500 mm
Cross-section 105 mm2
Standard EN 62561-2

.产品已加入收藏夹。

进入收藏夹

商品860430加入购物车。

进入网上商店

Flat strips, angled

For wall mounting (without a gap) with holes for countersunk head screws.

2 产品

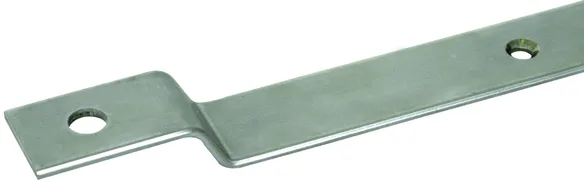

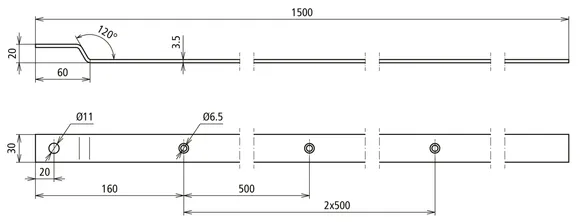

货号 860315 AF 30X3.5 V4A ZW 1500

全球贸易项目代码 4013364150058, 海关HS编码: 85389099, 总重: 1.25 kg, 包装单位: 5.00 pc(s)


附加信息

Connection lug, angled flat strip, StSt (V4A)
Connection lug angled for connecting down
conductors to the earth-termination system
Made of corrosion-resistant stainless steel (V4A)
In accordance with EN 62561-2
Material: StSt (V4A)
Material No.: 1.4571 / 1.4404
ASTM / AISI:: 316Ti / 316L
Length: 1500 mm
Dimensions: 30 x 3.5 mm
Connection: disconnecting clamp or KS connector
Cross-section: 105 mm2
Standard: EN 62561-2

Brand: DEHN
Type: AF 30X3.5 V4A ZW 1500
Part No.: 860315
or equivalent.

认证



技术参数

Material StSt (V4A)
Material No. 1.4571 / 1.4404
ASTM / AISI: 316Ti / 316L
Length (l1) 1500 mm
Dimensions 30 x 3.5 mm
Connection disconnecting clamp or KS connector
Fixing [3x] Ø6.5 mm
Hole distance 500 mm
Cross-section 105 mm2
Standard EN 62561-2

.产品已加入收藏夹。

进入收藏夹

商品860315加入购物车。

进入网上商店

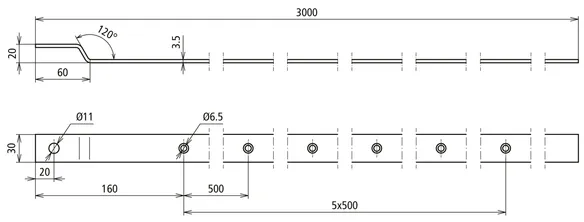

货号 860330 AF 30X3.5 V4A ZW 3000

全球贸易项目代码 4013364150065, 海关HS编码: 72202021, 总重: 2.50 kg, 包装单位: 5.00 pc(s)


附加信息

Connection lug, angled flat strip, StSt (V4A)
Connection lug angled for connecting down
conductors to the earth-termination system
Made of corrosion-resistant stainless steel (V4A)
In accordance with EN 62561-2
Material: StSt (V4A)
Material No.: 1.4571 / 1.4404
ASTM / AISI:: 316Ti / 316L
Length: 3000 mm
Dimensions: 30 x 3.5 mm
Connection: disconnecting clamp or KS connector
Cross-section: 105 mm2
Standard: EN 62561-2

Brand: DEHN
Type: AF 30X3.5 V4A ZW 3000
Part No.: 860330
or equivalent.

认证



技术参数

Material StSt (V4A)
Material No. 1.4571 / 1.4404
ASTM / AISI: 316Ti / 316L
Length (l1) 3000 mm
Dimensions 30 x 3.5 mm
Connection disconnecting clamp or KS connector
Fixing [6x] Ø6.5 mm
Hole distance 500 mm
Cross-section 105 mm2
Standard EN 62561-2

.产品已加入收藏夹。

进入收藏夹

商品860330加入购物车。

进入网上商店
