Earth Entry Rods

For connecting down conductors to the earth-termination system.

Chamfered

5 产品

货号 483150 FS 16 1500 STTZN

全球贸易项目代码 4013364019492, 海关HS编码: 85389099, 总重: 2.40 kg, 包装单位: 10.00 pc(s)


附加信息

Air-termination rod, diameter: 16 mm, total length: 1500 mm, St/tZn
Earth entry rod for protecting roof-mounted structures, chimneys, etc., for installation with concrete bases
or as earth entry rods for connecting the down conductors to the earth-termination system.
Material: St/tZn
Standard: EN 62561-2
Diameter Ø: 16 mm
Length: 1500 mm

Brand: DEHN
Type: FS 16 1500 STTZN
Part No.: 483150
or equivalent.

认证



技术参数

Material St/tZn
Standard EN 62561-2
Diameter Ø 16 mm
Length (l1) 1500 mm

.产品已加入收藏夹。

进入收藏夹

商品483150加入购物车。

进入网上商店

货号 483200 FS 16 2000 STTZN

全球贸易项目代码 4013364019713, 海关HS编码: 72149939, 总重: 3.00 kg, 包装单位: 1.00 pc(s)


附加信息

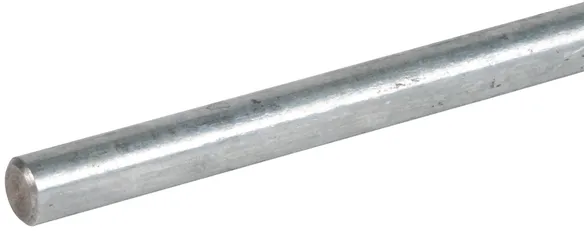

Air-termination rod, diameter: 16 mm, total length: 2000 mm, St/tZn
Air-termination/earth entry rod for protecting roof-mounted structures, chimneys, etc., for installation with concrete bases
or as earth entry rods for connecting the down conductors to the earth-termination system.
Material: St/tZn
Standard: EN 62561-2
Diameter Ø: 16 mm
Length: 2000 mm

Brand: DEHN
Type: FS 16 2000 STTZN
Part No.: 483200
or equivalent.

认证



技术参数

Material St/tZn
Standard EN 62561-2
Diameter Ø 16 mm
Length (l1) 2000 mm

.产品已加入收藏夹。

进入收藏夹

商品483200加入购物车。

进入网上商店

货号 104903 EES 16 1000 V4A

全球贸易项目代码 4013364030497, 海关HS编码: 85389099, 总重: 1.60 kg, 包装单位: 1.00 pc(s)


附加信息

Earth entry rod, stainless steel (V4A)
Air-termination rod for protecting roof-mounted structures, chimneys, etc., for installation with concrete bases
or as earth entry rods for connecting the down conductors to the earth-termination system.

Material: StSt (V4A)
Material No.: 1.4571 / 1.4404 / 1.4401
ASTM / AISI:: 316Ti / 316L / 316
Standard: EN 62561-2
Diameter Ø: 16 mm
Length: 1000 mm

Brand: DEHN
Type: EES 16 1000 V4A
Part No.: 104903
or equivalent.

认证



技术参数

Material StSt (V4A)
Material No. 1.4571 / 1.4404 / 1.4401
ASTM / AISI: 316Ti / 316L / 316
Standard EN 62561-2
Diameter Ø 16 mm
Length (l1) 1000 mm

.产品已加入收藏夹。

进入收藏夹

商品104903加入购物车。

进入网上商店

货号 104905 EES 16 1500 V4A

全球贸易项目代码 4013364030503, 海关HS编码: 85389099, 总重: 2.38 kg, 包装单位: 10.00 pc(s)


附加信息

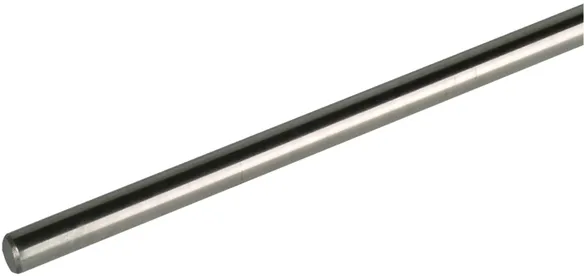

Earth entry rod, stainless steel (V4A)
Air-termination rods for protecting roof-mounted structures, chimneys, etc., also for installation with concrete bases
or as earth entry rods for connecting the down conductors to the earth-termination system.
Material: StSt (V4A)
Material No.: 1.4571 / 1.4404 / 1.4401
ASTM / AISI:: 316Ti / 316L / 316
Standard: EN 62561-2
Diameter Ø: 16 mm
Length: 1500 mm

Brand: DEHN
Type: EES 16 1500 V4A
Part No.: 104905
or equivalent.

认证



技术参数

Material StSt (V4A)
Material No. 1.4571 / 1.4404 / 1.4401
ASTM / AISI: 316Ti / 316L / 316
Standard EN 62561-2
Diameter Ø 16 mm
Length (l1) 1500 mm

.产品已加入收藏夹。

进入收藏夹

商品104905加入购物车。

进入网上商店

货号 104906 EES 16 2000 V4A

全球贸易项目代码 4013364082854, 海关HS编码: 85389099, 总重: 3.20 kg, 包装单位: 1.00 pc(s)


附加信息

Earth entry rod, stainless steel (V4A)
Air-termination rods for protecting roof-mounted structures, chimneys, etc., for installation with concrete bases
or as earth entry rods for connecting the down conductors to the earth-termination system.
Material: StSt (V4A)
Material No.: 1.4571 / 1.4404 / 1.4401
ASTM / AISI:: 316Ti / 316L / 316
Standard: EN 62561-2
Diameter Ø: 16 mm
Length: 2000 mm

Brand: DEHN
Type: EES 16 2000 V4A
Part No.: 104906
or equivalent.

认证



技术参数

Material StSt (V4A)
Material No. 1.4571 / 1.4404 / 1.4401
ASTM / AISI: 316Ti / 316L / 316
Standard EN 62561-2
Diameter Ø 16 mm
Length (l1) 2000 mm

.产品已加入收藏夹。

进入收藏夹

商品104906加入购物车。

进入网上商店

Tapered

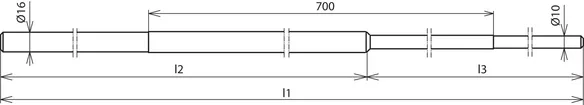

Notched conductor Ø10 mm, partly insulated (length approx. 700 mm).

4 产品

货号 480018 EES 16.10 1500 STTZN

全球贸易项目代码 4013364076372, 海关HS编码: 85389099, 总重: 1.90 kg, 包装单位: 10.00 pc(s)


附加信息

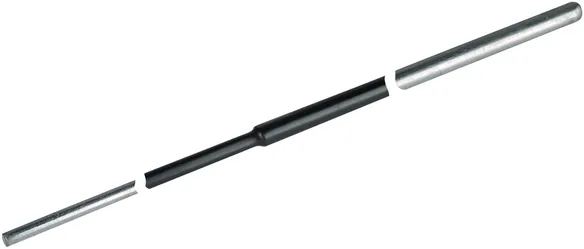

Earth entry rod, tapered, HDG steel

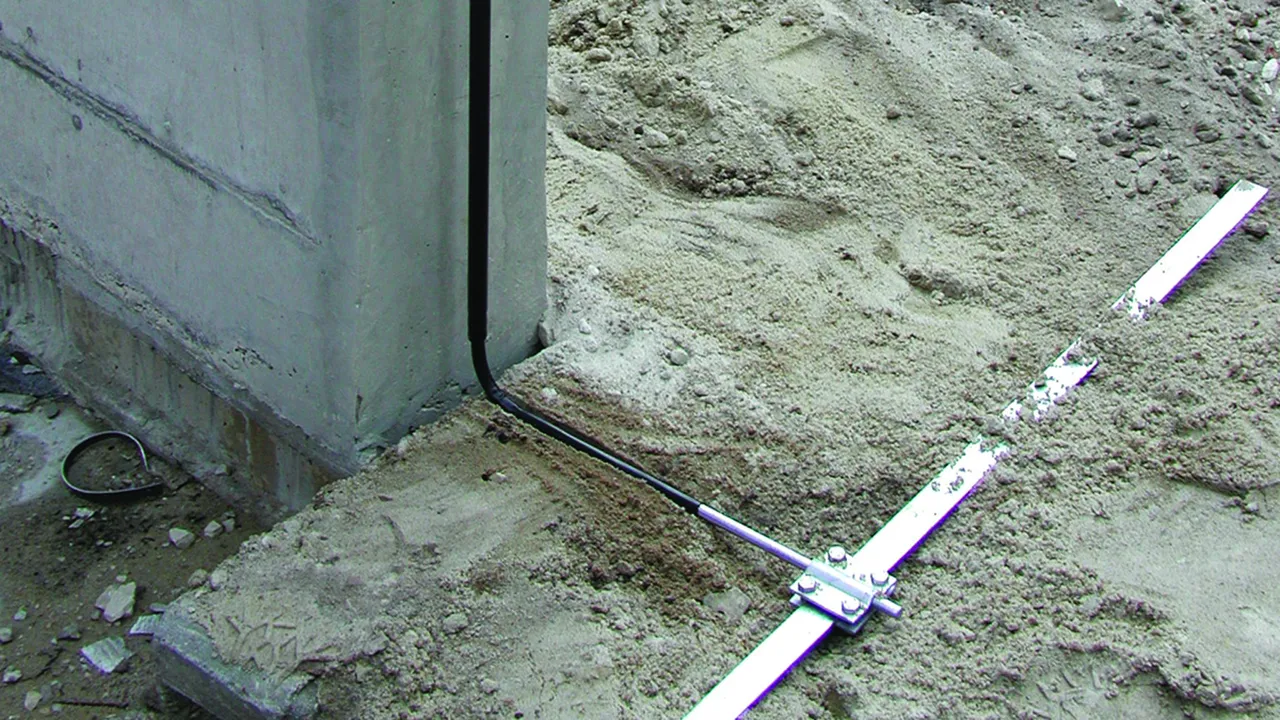

Earth entry rods for
connecting down conductors to the
earth-termination system
Tapered (notched conductor Ø10 mm),
partly insulated (length approx. 700 mm)
Material: St/tZn
Diameter Ø: 16 / 10 mm
Total length: 1500 mm
Partial length Ø16 mm: 1000 mm
Partial length Ø10 mm: 500 mm

Brand: DEHN
Type: EES 16.10 1500 STTZN
Part No.: 480018
or equivalent.

认证



技术参数

Material St/tZn
Diameter Ø 16 / 10 mm
Total length (l1) 1500 mm
Partial length Ø16 mm (l2) 1000 mm
Partial length Ø10 mm (l3) 500 mm

.产品已加入收藏夹。

进入收藏夹

商品480018加入购物车。

进入网上商店

货号 480019 EES 16.10 1750 STTZN

全球贸易项目代码 4013364068339, 海关HS编码: 85389099, 总重: 1.82 kg, 包装单位: 10.00 pc(s)


附加信息

Earth entry rod, tapered, HDG steel
Earth entry rods for
connecting down conductors to the
earth-termination system
Tapered (notched conductor Ø10 mm),
partly insulated (length approx. 700 mm)
Material: St/tZn
Diameter Ø: 16 / 10 mm
Total length: 1750 mm
Partial length Ø16 mm: 750 mm
Partial length Ø10 mm: 1000 mm

Brand: DEHN
Type: EES 16.10 1750 STTZN
Part No.: 480019
or equivalent.

认证



技术参数

Material St/tZn
Diameter Ø 16 / 10 mm
Total length (l1) 1750 mm
Partial length Ø16 mm (l2) 750 mm
Partial length Ø10 mm (l3) 1000 mm

.产品已加入收藏夹。

进入收藏夹

商品480019加入购物车。

进入网上商店

货号 480020 EES 16.10 2000 STTZN

全球贸易项目代码 4013364051638, 海关HS编码: 85389099, 总重: 2.24 kg, 包装单位: 10.00 pc(s)


附加信息

Earth entry rod, tapered, HDG steel
Earth entry rods for
connecting down conductors to the
earth-termination system
Tapered (notched conductor Ø10 mm),
partly insulated (length approx. 700 mm)
Material: St/tZn
Diameter Ø: 16 / 10 mm
Total length: 2000 mm
Partial length Ø16 mm: 1000 mm
Partial length Ø10 mm: 1000 mm

Brand: DEHN
Type: EES 16.10 2000 STTZN
Part No.: 480020
or equivalent.

认证



技术参数

Material St/tZn
Diameter Ø 16 / 10 mm
Total length (l1) 2000 mm
Partial length Ø16 mm (l2) 1000 mm
Partial length Ø10 mm (l3) 1000 mm

.产品已加入收藏夹。

进入收藏夹

商品480020加入购物车。

进入网上商店

货号 480021 EES 16.10 2500 STTZN

全球贸易项目代码 4013364051621, 海关HS编码: 85389099, 总重: 3.06 kg, 包装单位: 1.00 pc(s)


附加信息

Earth entry rod, tapered, HDG steel
Earth entry rods for
connecting down conductors to the
earth-termination system
Tapered (notched conductor Ø10 mm),
partly insulated (length approx. 700 mm)
Material: St/tZn
Diameter Ø: 16 / 10 mm
Total length: 2500 mm
Partial length Ø16 mm: 1500 mm
Partial length Ø10 mm: 1000 mm

Brand: DEHN
Type: EES 16.10 2500 STTZN
Part No.: 480021
or equivalent.

认证



技术参数

Material St/tZn
Diameter Ø 16 / 10 mm
Total length (l1) 2500 mm
Partial length Ø16 mm (l2) 1500 mm
Partial length Ø10 mm (l3) 1000 mm

.产品已加入收藏夹。

进入收藏夹

商品480021加入购物车。

进入网上商店
