Test Joint Boxes

For concrete construction with integrated test joint and special construction markings.

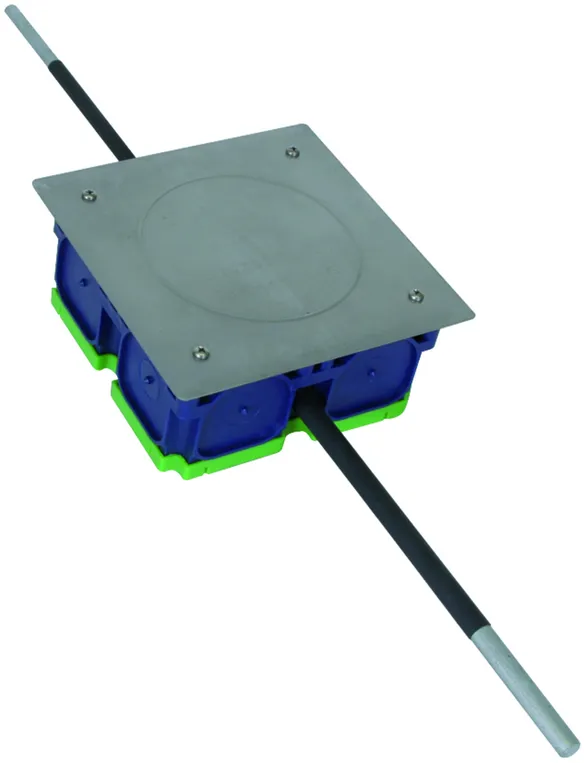

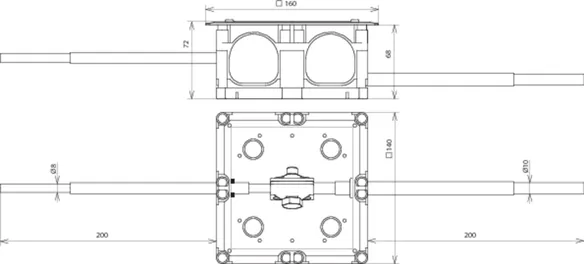

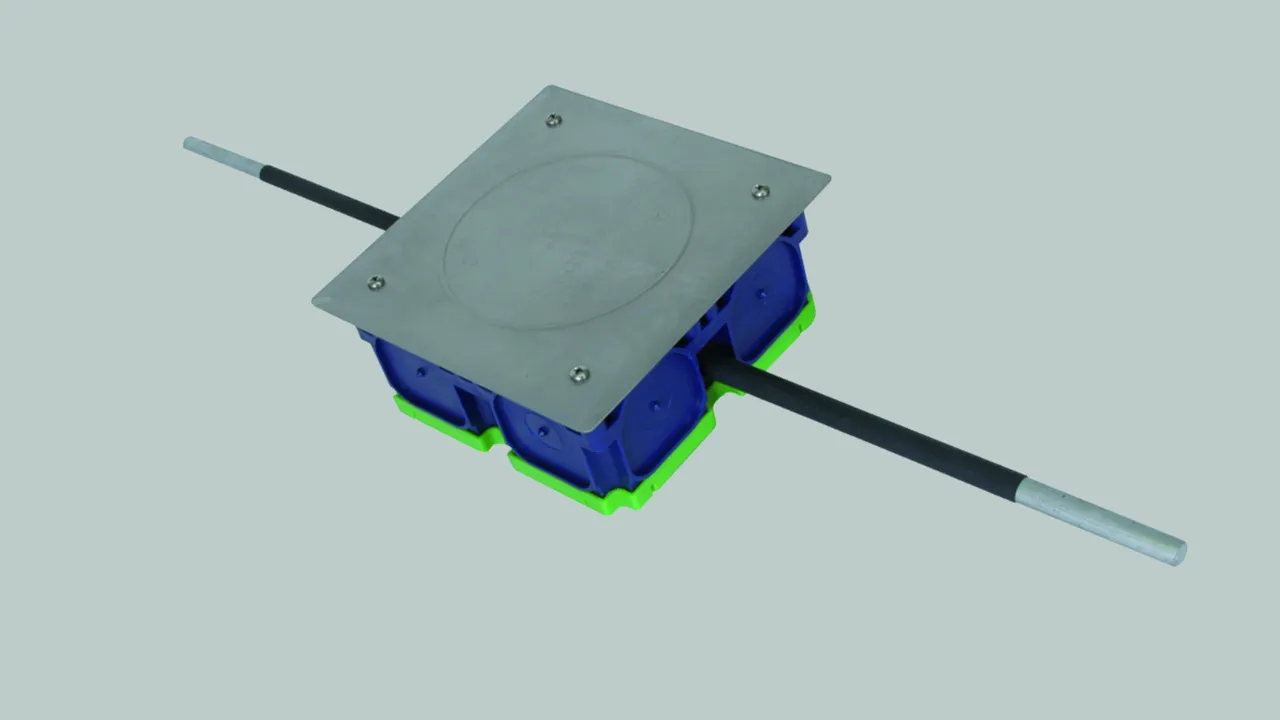

With rigid connection lugs

Rd 8 and Rd 10 mm, approx. 200 mm long (insulated).

1 产品

货号 476010 TSK 140X140 V2A AF8 10 L200 STTZN

全球贸易项目代码 4013364025578, 海关HS编码: 85359000, 总重: 797.00 g, 包装单位: 1.00 pc(s)


附加信息

Test joint boxes for concrete construction with rigid connection lugs, StSt
Test joint boxes for concrete construction with integrated test joint,
with connection lugs Rd 8 and Rd 10 mm, approx. 200 mm long (insulated)
Material of box: plastic
Material of cover: StSt

Brand: DEHN
Type: TSK 140X140 V2A AF8 10 L200 STTZN
Part No.: 476010
or equivalent.

认证



技术参数

Material of box plastic
Dimensions of box 140 x 140 x 68 mm
Material of cover StSt
Dimensions of cover 160 x 160 mm
Standard EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品476010加入购物车。

进入网上商店

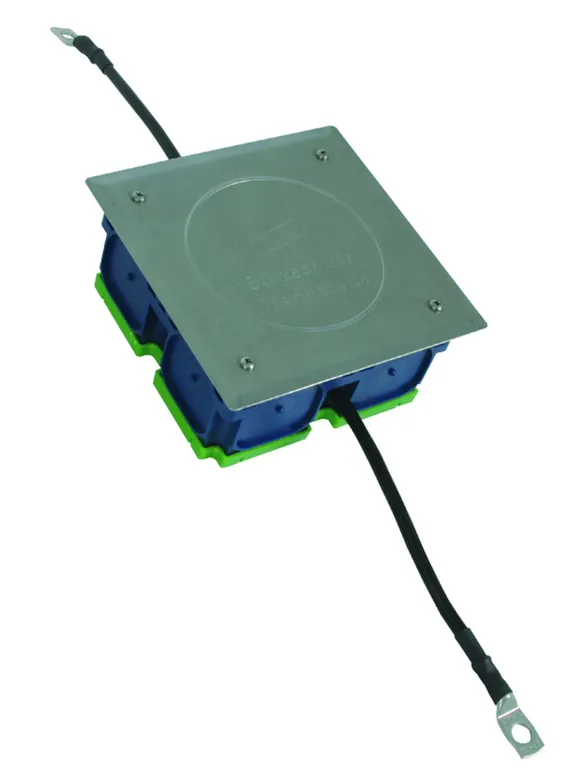

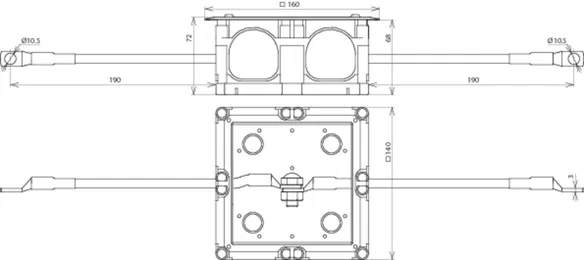

With flexible connection cables

Made from CU (16 mm2) and cable lug made out of Cu/gal Sn (hole 10.5 mm).

1 产品

货号 476016 TSK 140X140 V2A AL16CU

全球贸易项目代码 4013364125216, 海关HS编码: 85359000, 总重: 559.00 g, 包装单位: 1.00 pc(s)


附加信息

Test joint boxes with flexible connection cables
Test joint boxes for concrete construction
with integrated test joint,
with flexible connection cables Cu (16 mm2)
and cable lug Cu/gal Sn (hole 10.5 mm)
Material of box: plastic
Material of cover: StSt

Brand: DEHN
Type: TSK 140X140 V2A AL16CU
Part No.: 476016
or equivalent.

认证



技术参数

Material of box plastic
Dimensions of box 140 x 140 x 68 mm
Material of cover StSt
Dimensions of cover 160 x 160 mm
Standard EN 62561

.产品已加入收藏夹。

进入收藏夹

商品476016加入购物车。

进入网上商店
