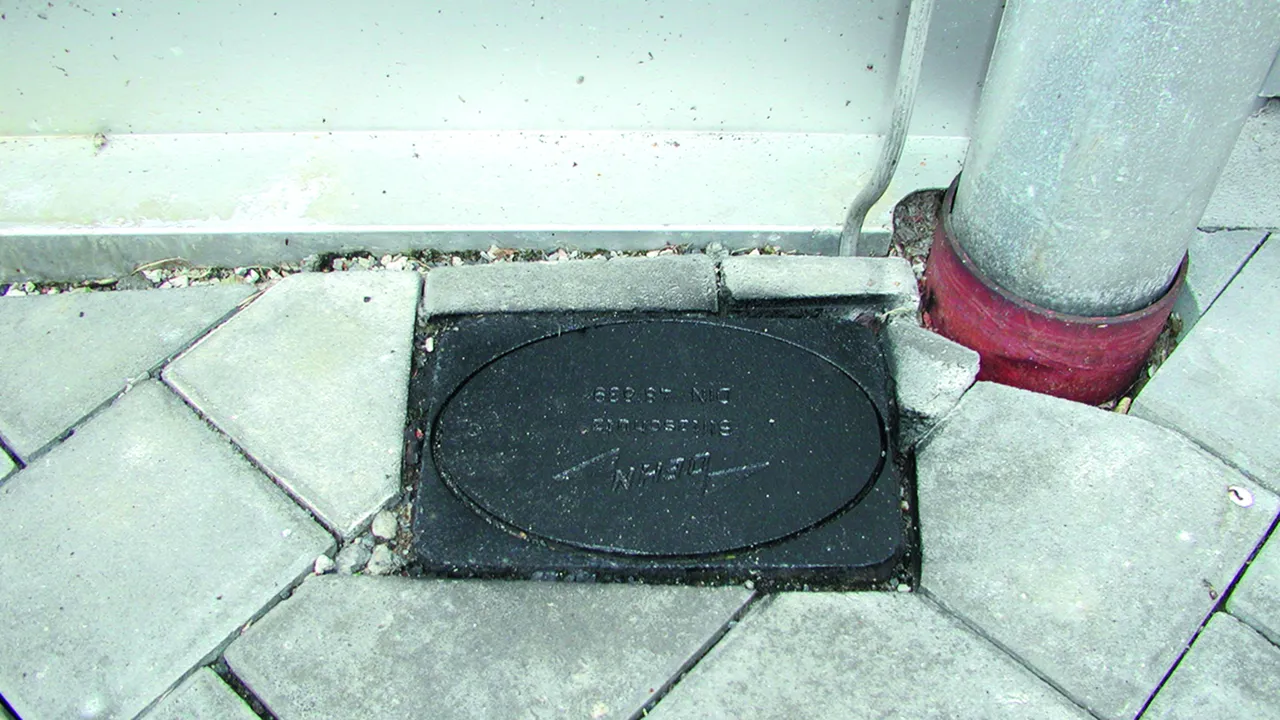

UF Test Joint Boxes

For underground installation, for disconnecting the down conductor from the earth-termination system for measuring purposes.

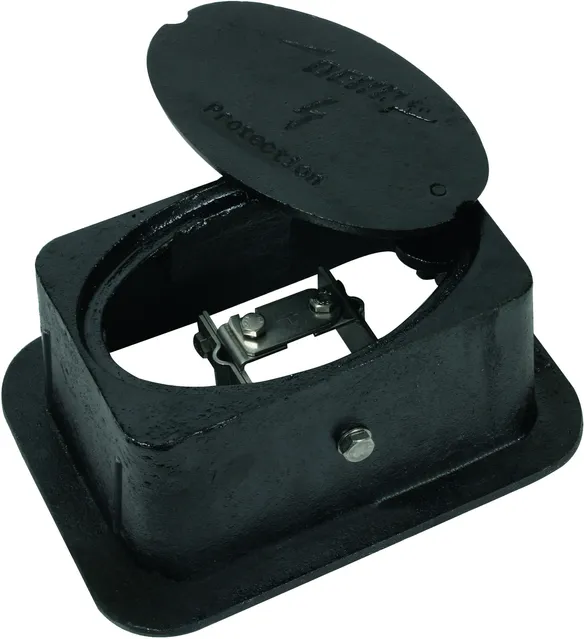

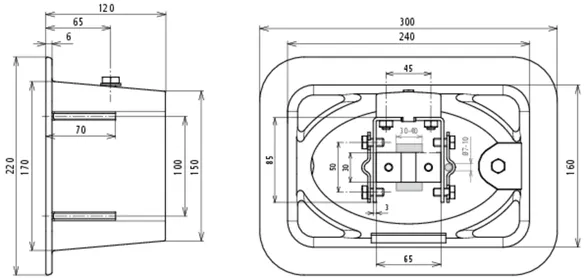

Type GCI – with integrated, easily accessible test joint

Detachable with a key, including terminal for the down conductor and the earthing conductor, open (without bottom).

1 产品

货号 549001 UFTSK 7.10 FL40 300X220X120 GG

全球贸易项目代码 4013364025554, 海关HS编码: 85359000, 总重: 6.10 kg, 包装单位: 1.00 pc(s)


附加信息

UF test joint boxes, GCI
UF test joint boxes for underground installation
with integrated, easily accessible test joint
terminal for the down conductor and earthing cable included,
open at the bottom
Material: GCI
Dimensions: 300 x 220 x 120 mm
Material of test joint: StSt

Brand: DEHN
Type: UFTSK 7.10 FL40 300X220X120 GG
Part No.: 549001
or equivalent.

认证



技术参数

Material GCI
Colour black (varnished) ●
Dimensions 300 x 220 x 120 mm
Clamping range Rd / Fl 7-10 / 30-40 mm
Max. permissible load 40 kN

.产品已加入收藏夹。

进入收藏夹

商品549001加入购物车。

进入网上商店

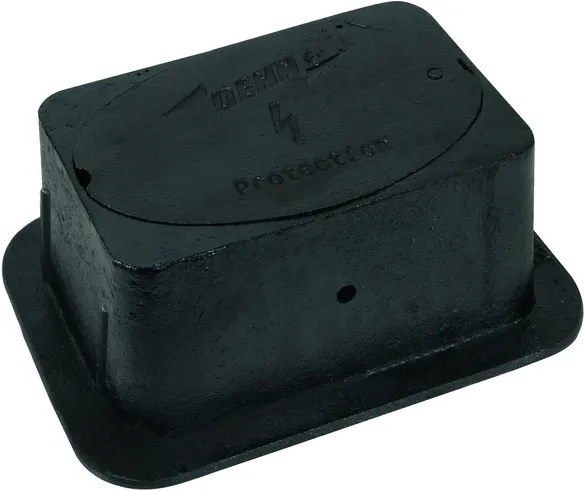

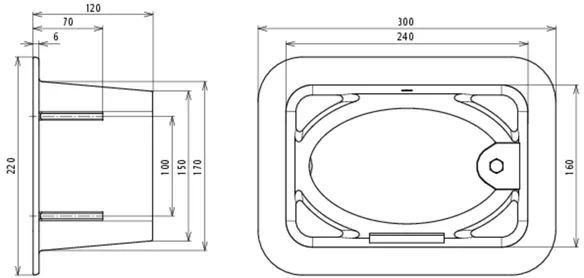

Type GCI – without test joint

Open (without bottom).

1 产品

货号 549000 UFTSK 300X220X120 GG

全球贸易项目代码 4013364025547, 海关HS编码: 85389099, 总重: 6.20 kg, 包装单位: 1.00 pc(s)


附加信息

UF test joint boxes, GCI, without test joint
UF test joint boxes for underground installation
without test joint
open at the bottom
Material: GCI
Dimensions: 300 x 220 x 120 mm

Brand: DEHN
Type: UFTSK 300X220X120 GG
Part No.: 549000
or equivalent.

认证



技术参数

Material GCI
Colour black (varnished) ●
Dimensions 300 x 220 x 120 mm
Max. permissible load 40 kN

.产品已加入收藏夹。

进入收藏夹

商品549000加入购物车。

进入网上商店

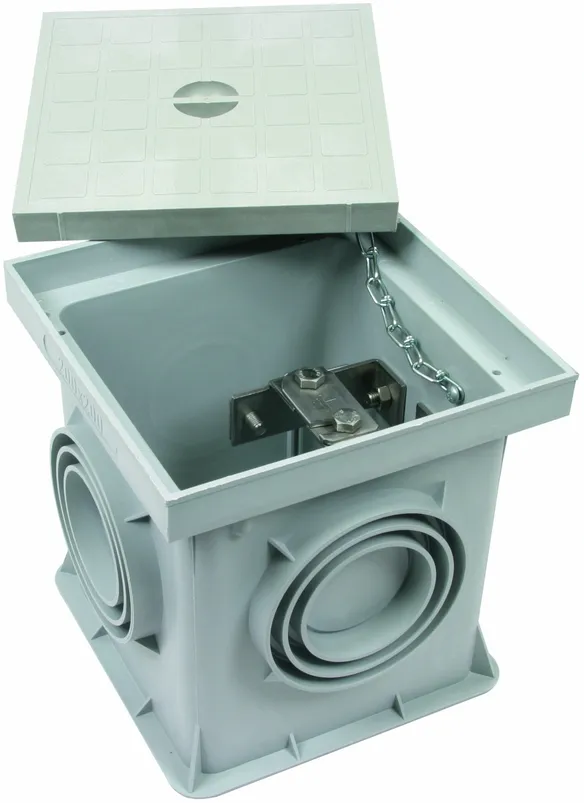

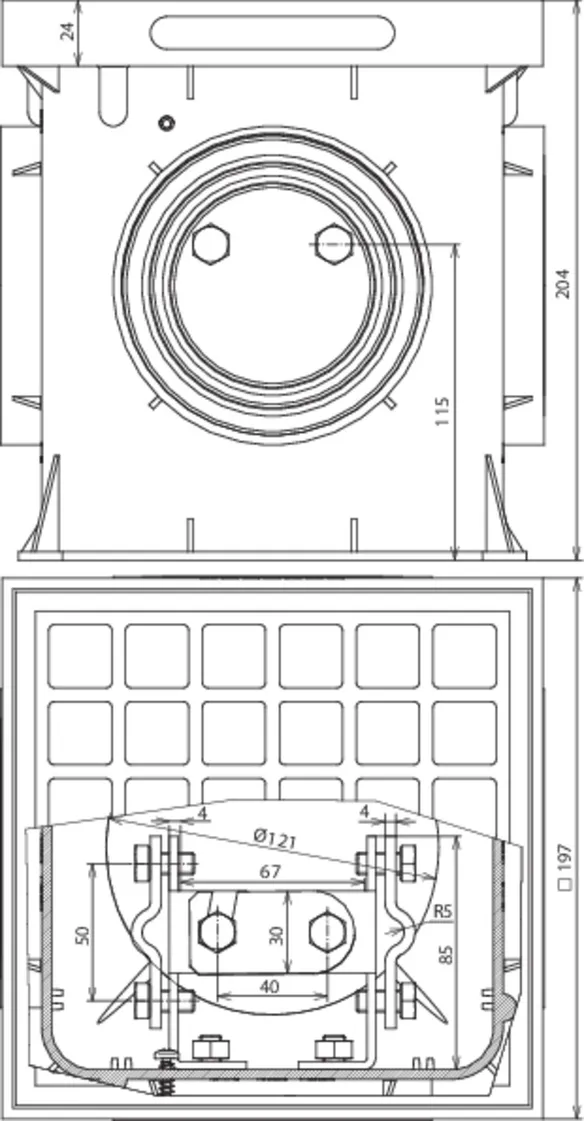

Type plastic – with integrated, easily accessible test joint

Detachable with a key, including terminal for the down conductor and the earthing conductor, open (without bottom).

1 产品

货号 549050 UFTSK 7.10 FL40 197X197X204 K

全球贸易项目代码 4013364128217, 海关HS编码: 85359000, 总重: 2.18 kg, 包装单位: 1.00 pc(s)


附加信息

UF test joint boxes, plastic
UF test joint boxes
for underground installation
with integrated, easily accessible
test joint terminal for the down conductor
and earthing cable included,
open at the bottom
Material: plastic
Dimensions: 197 x 197 x 204 mm
Material of test joint: StSt

Brand: DEHN
Type: UFTSK 7.10 FL40 197X197X204 K
Part No.: 549050
or equivalent.

认证



技术参数

Material plastic
Colour grey ●
Dimensions 197 x 197 x 204 mm
Clamping range Rd / Fl 7-10 / 30-40 mm
Max. permissible load 15 kN

.产品已加入收藏夹。

进入收藏夹

商品549050加入购物车。

进入网上商店

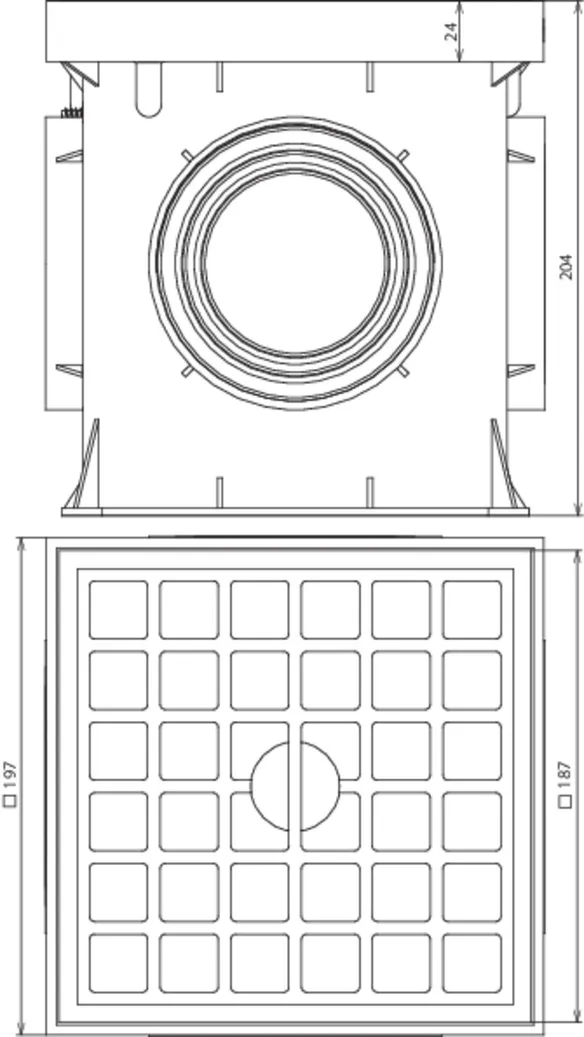

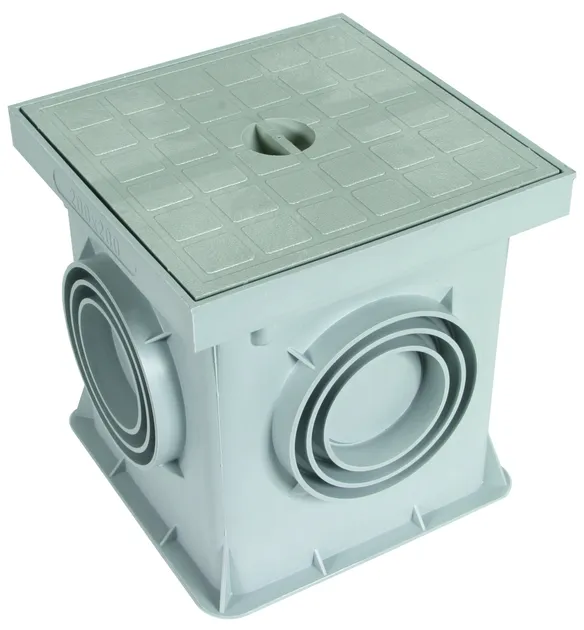

Type plastic – without test joint

Open (without bottom).

1 产品

货号 549051 UFTSK 197X197X204 K

全球贸易项目代码 4013364128224, 海关HS编码: 85389099, 总重: 1.66 kg, 包装单位: 1.00 pc(s)


附加信息

UF test joint boxes, plastic, without test joint
UF test joint boxes for underground installation
without test joint
open at the bottom
Material: plastic
Dimensions: 197 x 197 x 204 mm

Brand: DEHN
Type: UFTSK 197X197X204 K
Part No.: 549051
or equivalent.

认证



技术参数

Material plastic
Colour grey ●
Dimensions 197 x 197 x 204 mm
Max. permissible load 15 kN

.产品已加入收藏夹。

进入收藏夹

商品549051加入购物车。

进入网上商店

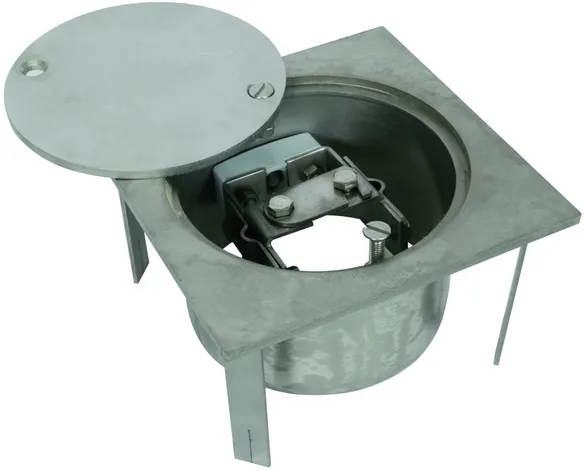

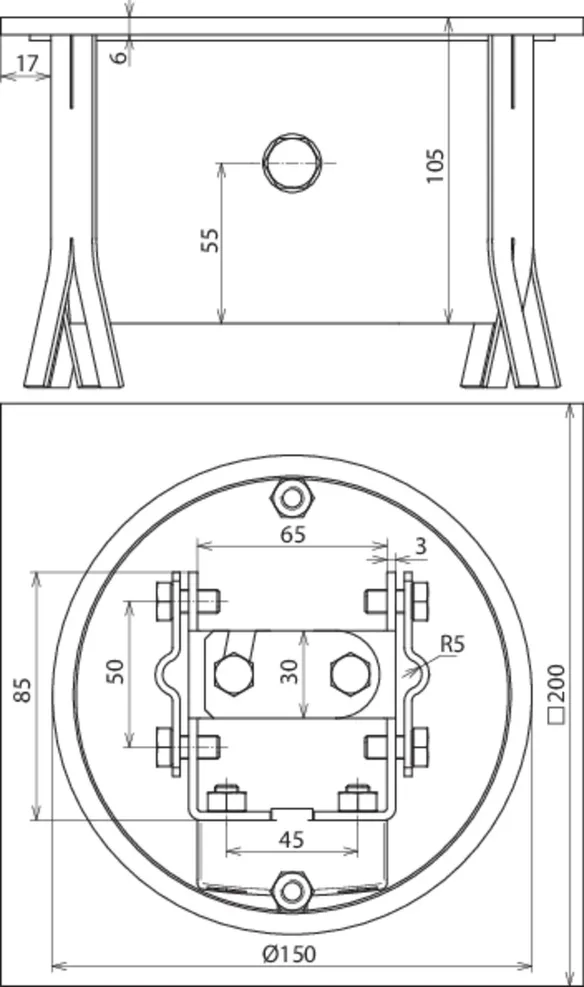

Type StSt – with integrated, easily accessible test joint

Detachable with a key, including terminal for the down conductor and the earthing conductor, open (without bottom).

1 产品

货号 549090 UFTSK 7.10 FL40 200X200X105 V2A

全球贸易项目代码 4013364128231, 海关HS编码: 85359000, 总重: 3.73 kg, 包装单位: 1.00 pc(s)


附加信息

UF test joint boxes, StSt
UF test joint boxes for
underground installation
with integrated, easily accessible test joint
terminal for the down conductor
and earthing cable included,
open at the bottom
Material: StSt
Dimensions: 200 x 200 x 105 mm
Material of test joint: StSt

Brand: DEHN
Type: UFTSK 7.10 FL40 200X200X105 V2A
Part No.: 549090
or equivalent.

认证



技术参数

Material StSt
Dimensions 200 x 200 x 105 mm
Clamping range Rd / Fl 7-10 / 30-40 mm
Max. permissible load 40 kN

.产品已加入收藏夹。

进入收藏夹

商品549090加入购物车。

进入网上商店

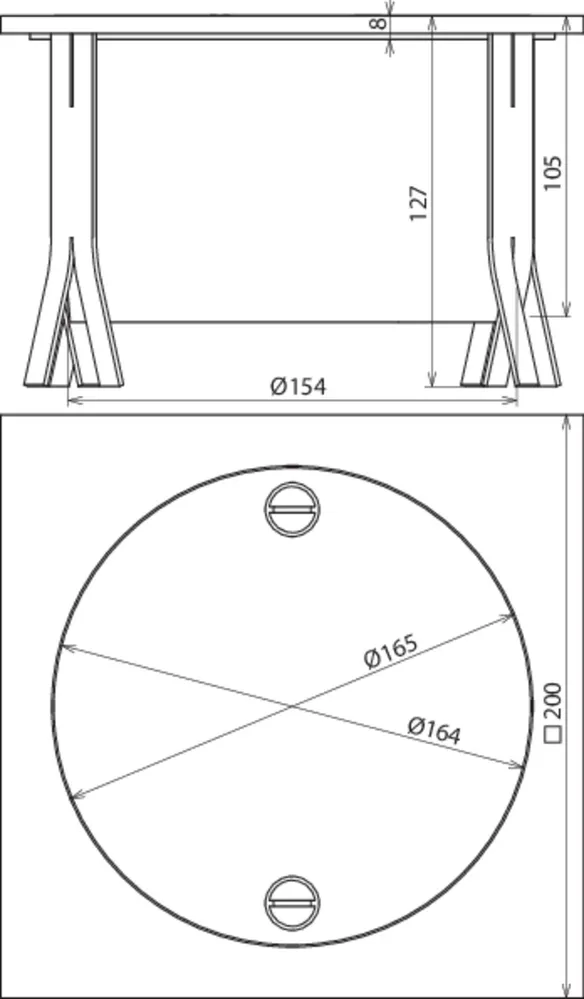

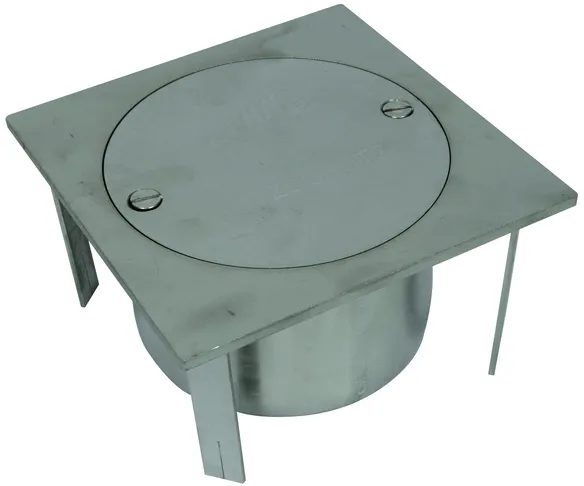

Type StSt – without test joint

Open (without bottom).

1 产品

货号 549091 UFTSK 200X200X105 V2A

全球贸易项目代码 4013364128248, 海关HS编码: 85389099, 总重: 3.15 kg, 包装单位: 1.00 pc(s)


附加信息

UF test joint boxes, StSt without test joint
UF test joint boxes for underground installation
without test joint
open at the bottom
Material: StSt
Dimensions: 200 x 200 x 105 mm

Brand: DEHN
Type: UFTSK 200X200X105 V2A
Part No.: 549091
or equivalent.

认证



技术参数

Material StSt
Dimensions 200 x 200 x 105 mm
Max. permissible load 40 kN

.产品已加入收藏夹。

进入收藏夹

商品549091加入购物车。

进入网上商店
