Connecting / Disconnecting Clamps

Two-piece or three-piece connection system with thread in the base part.

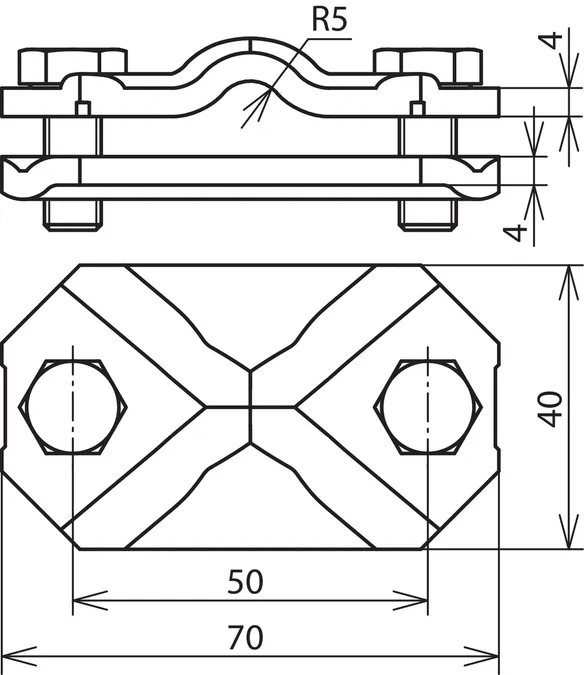

Two-piece, for a round and a flat conductor

2 产品

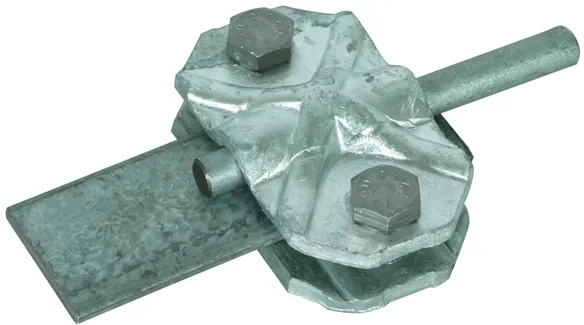

货号 454100 VTK 7.10 FL30.40 STTZN

全球贸易项目代码 4013364035904, 海关HS编码: 85359000, 总重: 181.00 g, 包装单位: 25.00 pc(s)


附加信息

Connecting / disconnecting clamps, St/tZn
Connecting / disconnecting clamps
Two-piece connection system for a round and a flat conductor
with threaded base part
Material: St/tZn
Clamping range Rd / Fl: 7-10 / 30-40 mm
Standard: EN 62561-1

Brand: DEHN
Type: VTK 7.10 FL30.40 STTZN
Part No.: 454100
or equivalent.

认证



技术参数

Material St/tZn
Clamping range Rd / Fl 7-10 / 30-40 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品454100加入购物车。

进入网上商店

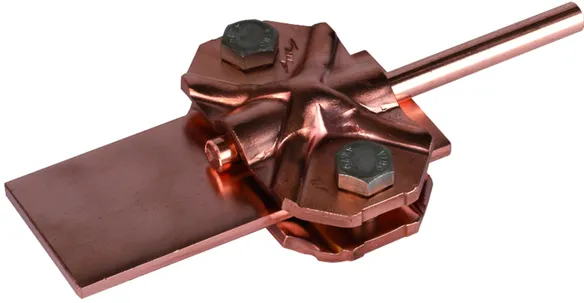

货号 454107 VTK 7.10 FL30.40 CU

全球贸易项目代码 4013364035911, 海关HS编码: 85359000, 总重: 201.90 g, 包装单位: 25.00 pc(s)


附加信息

Connecting / disconnecting clamps, Cu
Connecting / disconnecting clamps
Two-piece connection system for a round and a flat conductor
with threaded base part
Material: Cu
Clamping range Rd / Fl: 7-10 / 30-40 mm
Standard: EN 62561-1

Brand: DEHN
Type: VTK 7.10 FL30.40 CU
Part No.: 454107
or equivalent.

认证



技术参数

Material Cu
Clamping range Rd / Fl 7-10 / 30-40 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品454107加入购物车。

进入网上商店

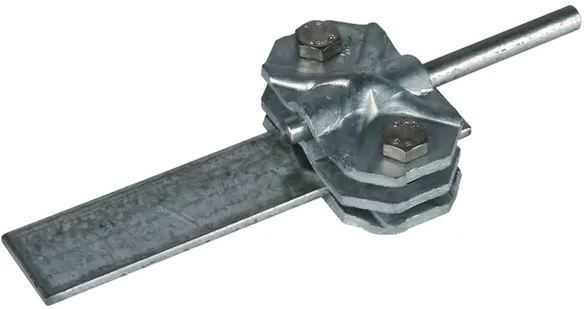

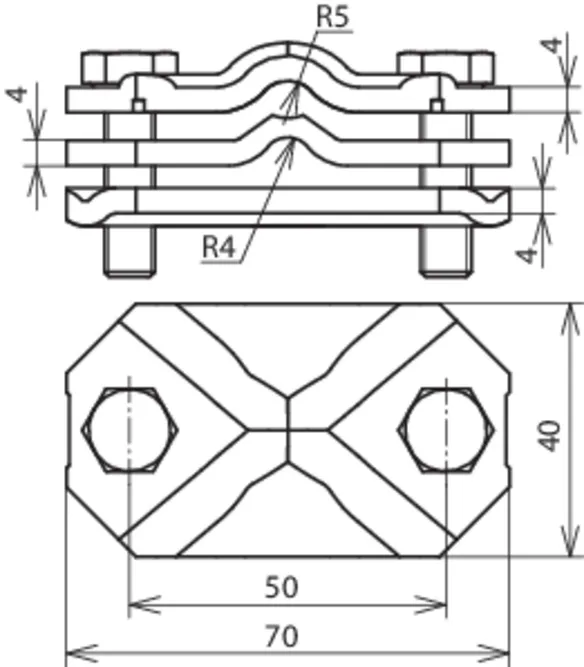

Three-piece, (with intermediate plate) for a round and a flat conductor

1 产品

货号 454000 VTK 5.10 FL30.40 ZP STTZN

全球贸易项目代码 4013364025387, 海关HS编码: 85359000, 总重: 265.00 g, 包装单位: 25.00 pc(s)


附加信息

Connecting / disconnecting clamps, St/tZn
Connecting / disconnecting clamps
Three-piece connection system for a round and a flat conductor
with threaded base part
Material: St/tZn
Clamping range Rd / Fl: 5-10 / 30-40 mm
Standard: EN 62561-1

Brand: DEHN
Type: VTK 5.10 FL30.40 ZP STTZN
Part No.: 454000
or equivalent.

认证



技术参数

Material St/tZn
Clamping range Rd / Fl 5-10 / 30-40 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品454000加入购物车。

进入网上商店

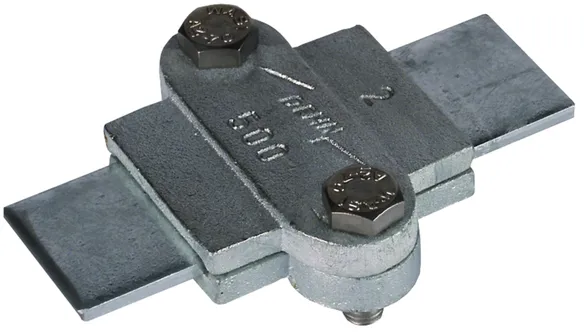

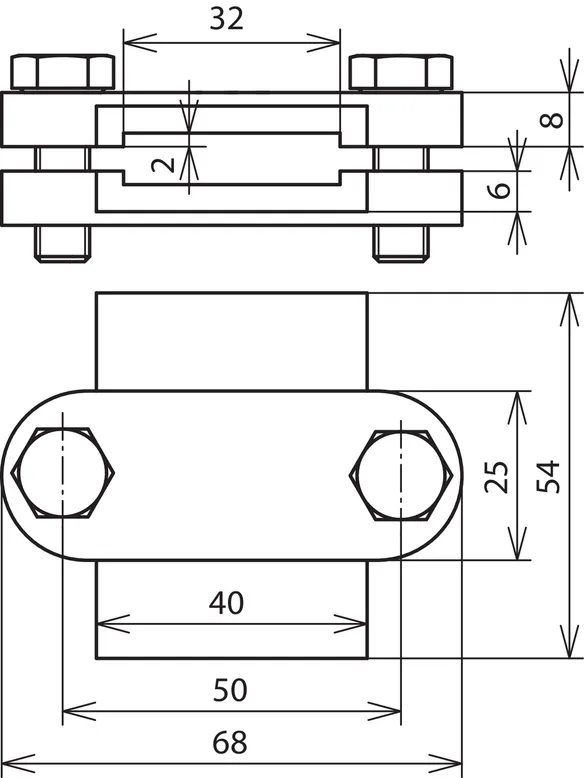

Two-piece, for two flat conductors

1 产品

货号 455000 VTK FL30 TGTZN

全球贸易项目代码 4013364025394, 海关HS编码: 85359000, 总重: 253.80 g, 包装单位: 1.00 pc(s)


附加信息

Connecting / disconnecting clamps, MCI/tZn
Connecting / disconnecting clamps
Two-piece connection system for flat conductors
with threaded base part
Material: MCI/tZn
Clamping range Fl / Fl: 30 / 30 mm
Standard: EN 62561-1

Brand: DEHN
Type: VTK FL30 TGTZN
Part No.: 455000
or equivalent.

认证



技术参数

Material MCI/tZn
Clamping range Fl / Fl 30 / 30 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品455000加入购物车。

进入网上商店
