UNI Disconnecting Clamps

For connecting down conductors with earth entries or for connecting conductors made of different materials.

With intermediate plate for two round conductors

2 产品

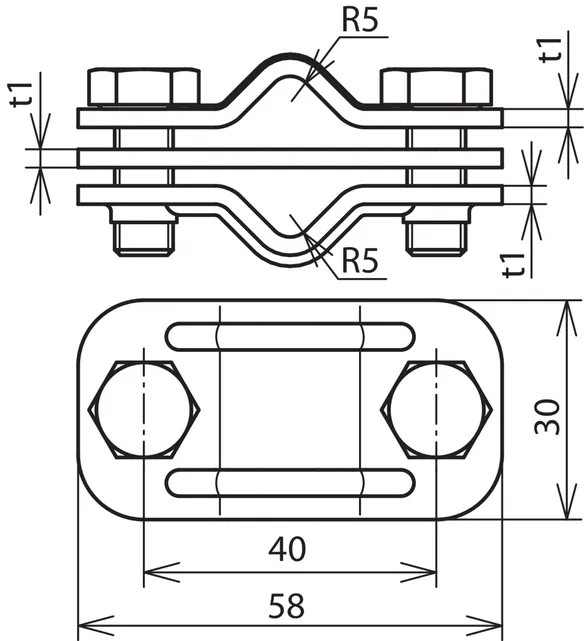

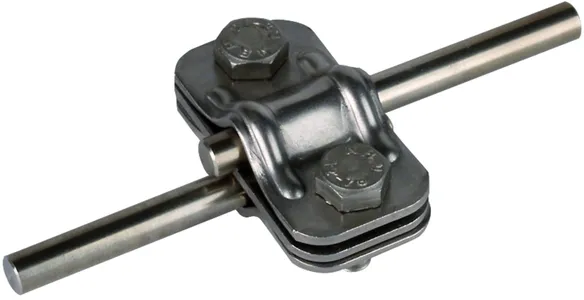

货号 459129 UTK 8.10 8.10 ZP V2A

全球贸易项目代码 4013364051386, 海关HS编码: 85359000, 总重: 122.00 g, 包装单位: 50.00 pc(s)


附加信息

UNI disconnecting clamp, StSt
UNI disconnecting clamp for connecting down conductors with earth entries
With intermediate plate for a Rd and a Rd conductor
Material: StSt
Clamping range Rd / Rd: 8-10 / 8-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: UTK 8.10 8.10 ZP V2A
Part No.: 459129
or equivalent.

认证



技术参数

Material StSt
Clamping range Rd / Rd 8-10 / 8-10 mm
Distance between screws 40 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品459129加入购物车。

进入网上商店

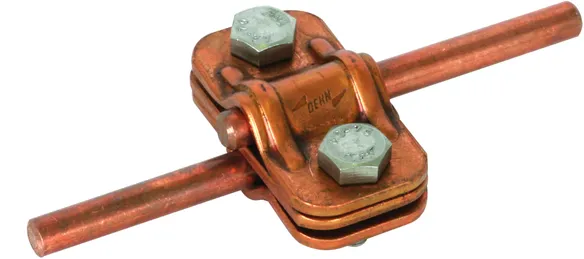

货号 459127 UTK 8.10 8.10 ZP CU

全球贸易项目代码 4013364119291, 海关HS编码: 85359000, 总重: 154.30 g, 包装单位: 1.00 pc(s)


附加信息

UNI disconnecting clamp, Cu
UNI disconnecting clamp for connecting down conductors with earth entries
With intermediate plate for a Rd and a Rd conductor
Material: Cu
Clamping range Rd / Rd: 8-10 / 8-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: UTK 8.10 8.10 ZP CU
Part No.: 459127
or equivalent.

认证



技术参数

Material Cu
Clamping range Rd / Rd 8-10 / 8-10 mm
Distance between screws 40 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品459127加入购物车。

进入网上商店

Bimetallic, for two round conductors (Cu and St/tZn or StSt (V4A))

1 产品

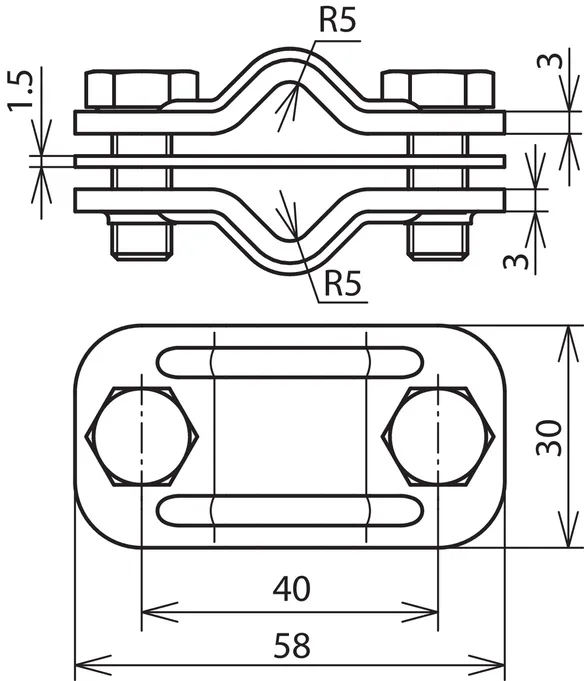

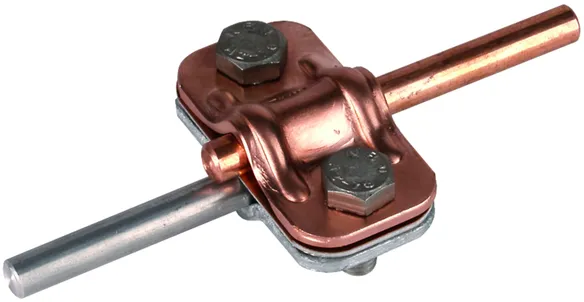

货号 460517 ZMTK 8.10 8.10 CU STTZN

全球贸易项目代码 4013364034259, 海关HS编码: 85359000, 总重: 106.60 g, 包装单位: 50.00 pc(s)


附加信息

Bimetallic UNI disconnecting clamps (Cu/St/tZn)
Bimetallic UNI disconnecting clamps for connecting conductors made of different materials
Material: Cu / St/tZn
Clamping range Rd / Rd: 8-10 / 8-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: ZMTK 8.10 8.10 CU STTZN
Part No.: 460517
or equivalent.

认证



技术参数

Material Cu / St/tZn
Clamping range Rd / Rd 8-10 / 8-10 mm
Distance between screws 40 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品460517加入购物车。

进入网上商店

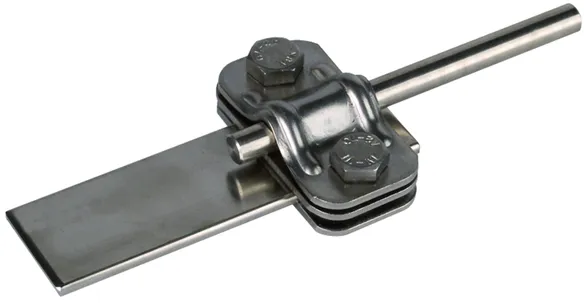

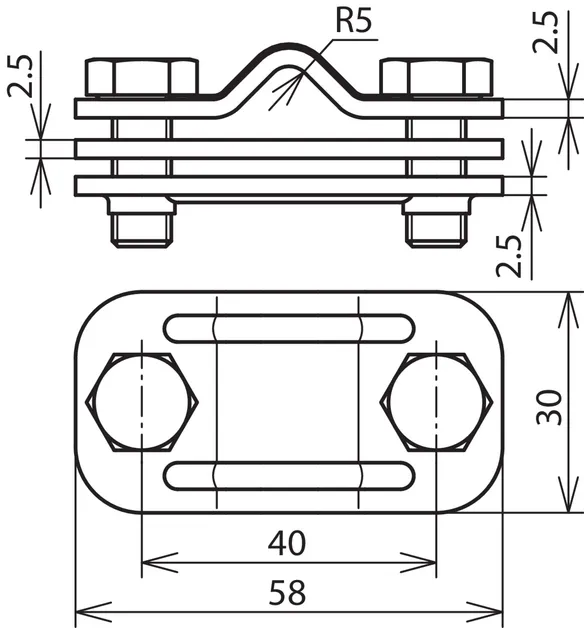

With intermediate plate for a round and a flat conductor

1 产品

货号 459139 UTK 8.10 FL30 ZP V2A

全球贸易项目代码 4013364078628, 海关HS编码: 85359000, 总重: 124.00 g, 包装单位: 50.00 pc(s)


附加信息

UNI disconnecting clamp with intermediate plate for a round and a flat conductor, StSt
UNI disconnecting clamp for connecting down conductors with earth entries
With intermediate plate for a Rd and a Fl conductor
Material: StSt
Clamping range Rd / Fl: 8-10 / 30 mm
Standard: EN 62561-1

Brand: DEHN
Type: UTK 8.10 FL30 ZP V2A
Part No.: 459139
or equivalent.

认证



技术参数

Material StSt
Clamping range Rd / Fl 8-10 / 30 mm
Distance between screws 40 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品459139加入购物车。

进入网上商店

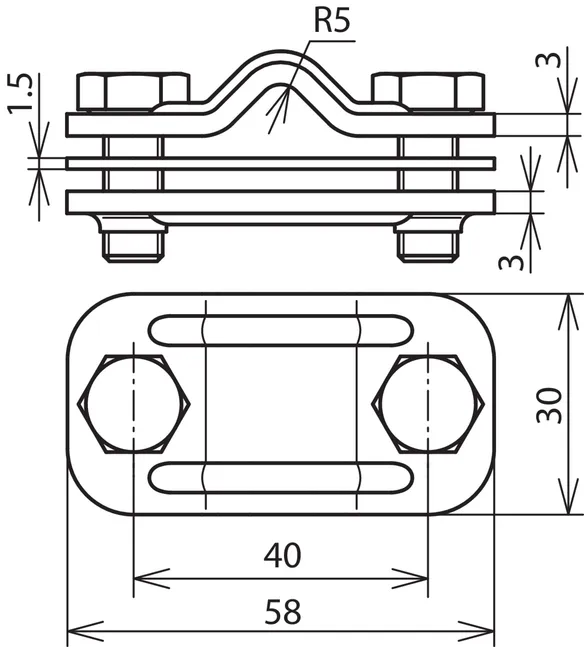

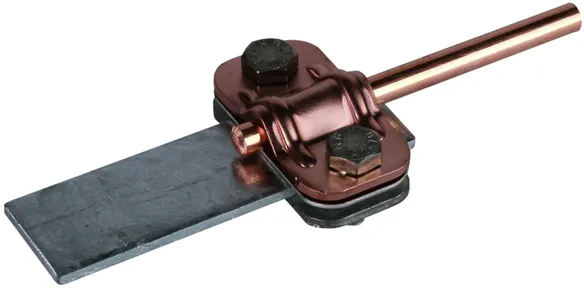

Bimetallic, for a round Cu conductor and a flat St/tZn or StSt (V4A) conductor

1 产品

货号 460557 ZMTK 8.10 FL30 CU STTZN

全球贸易项目代码 4013364034242, 海关HS编码: 85359000, 总重: 82.00 g, 包装单位: 50.00 pc(s)


附加信息

Bimetallic UNI disconnecting clamps for a round Cu conductor and a flat St/tZn or StSt (V4A) conductor
Bimetallic UNI disconnecting clamps for connecting conductors made of different materials
Material: Cu / St/tZn
Clamping range Rd / Fl: 8-10 / 30 mm
Standard: EN 62561-1

Brand: DEHN
Type: ZMTK 8.10 FL30 CU STTZN
Part No.: 460557
or equivalent.

认证



技术参数

Material Cu / St/tZn
Clamping range Rd / Fl 8-10 / 30 mm
Distance between screws 40 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品460557加入购物车。

进入网上商店

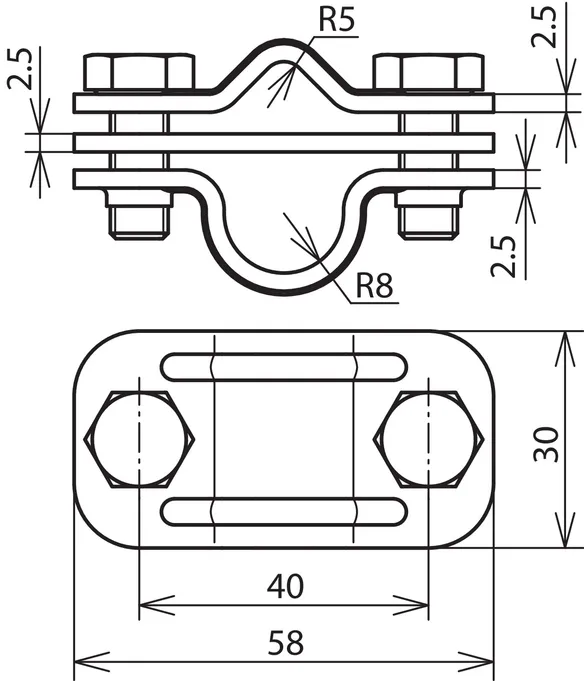

With intermediate plate for earth entry rods

1 产品

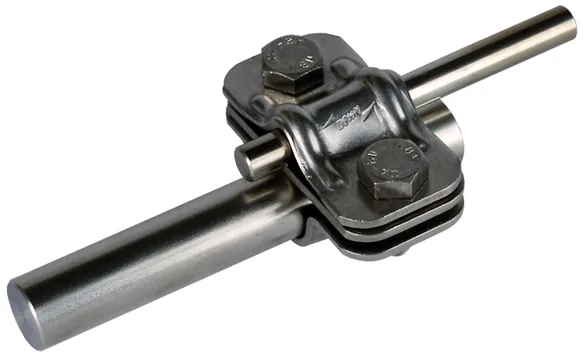

货号 459119 UTK 8.10 16 ZP V2A

全球贸易项目代码 4013364051379, 海关HS编码: 85359000, 总重: 126.00 g, 包装单位: 50.00 pc(s)


附加信息

UNI disconnecting clamp with intermediate plate for earth entry rods, StSt
UNI disconnecting clamp for connecting down conductors with earth entries
With intermediate plate for earth entry rods
Material: StSt
Clamping range Rd / Rd: 8-10 / 16 mm
Standard: EN 62561-1

Brand: DEHN
Type: UTK 8.10 16 ZP V2A
Part No.: 459119
or equivalent.

认证



技术参数

Material StSt
Clamping range Rd / Rd 8-10 / 16 mm
Distance between screws 40 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品459119加入购物车。

进入网上商店

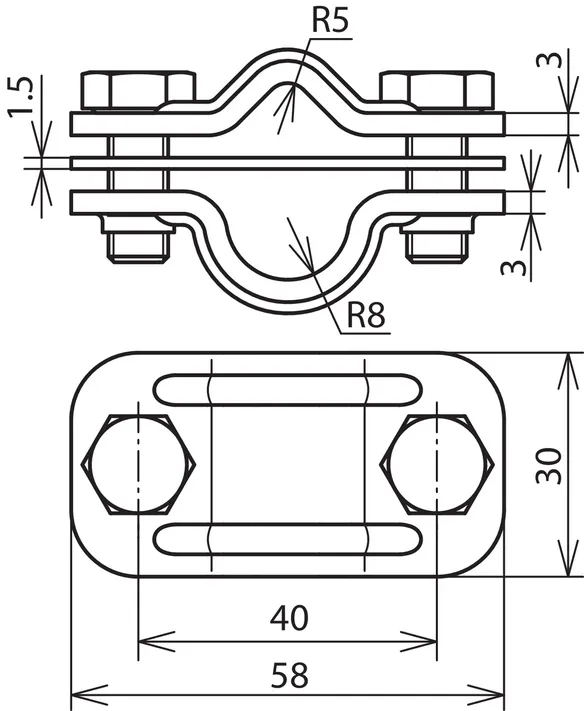

Bimetallic, for a round Cu conductor and a St/tZn or StSt (V4A) earth entry rod

1 产品

货号 460507 ZMTK 8.10 16 CU STTZN

全球贸易项目代码 4013364034266, 海关HS编码: 85359000, 总重: 128.00 g, 包装单位: 1.00 pc(s)


附加信息

Bimetallic UNI disconnecting clamps (Cu/St/tZn)
Bimetallic UNI disconnecting clamps for connecting
conductors made of different materials
Material: Cu / St/tZn
Clamping range Rd / Rd: 8-10 / 16 mm
Standard: EN 62561-1

Brand: DEHN
Type: ZMTK 8.10 16 CU STTZN
Part No.: 460507
or equivalent.

认证



技术参数

Material Cu / St/tZn
Clamping range Rd / Rd 8-10 / 16 mm
Distance between screws 40 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品460507加入购物车。

进入网上商店

With intermediate plate for two round conductors, narrow design

1 产品

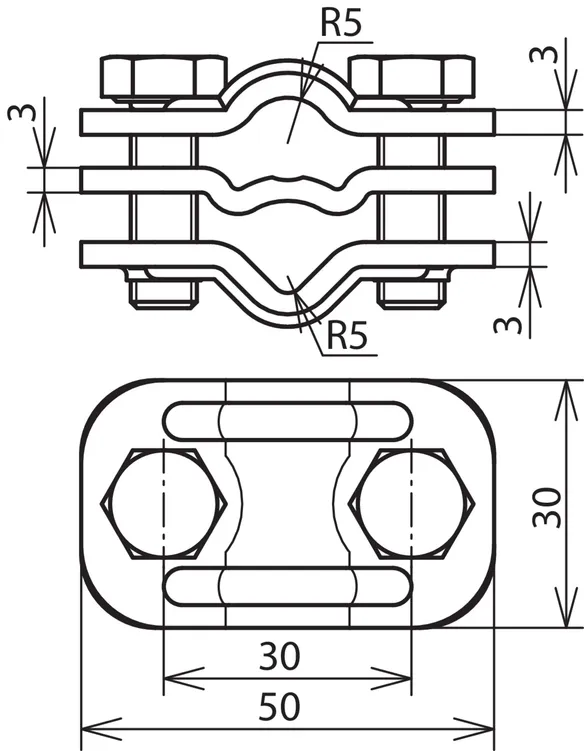

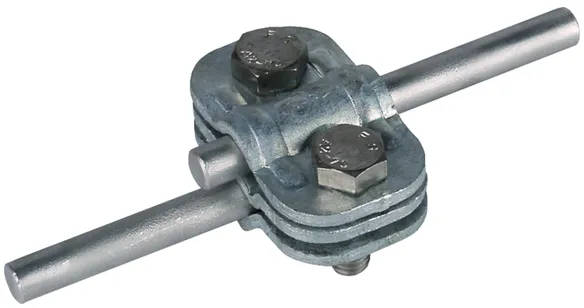

货号 459003 UTK 7.10 7.10 S ZP STTZN

全球贸易项目代码 4013364025202, 海关HS编码: 85359000, 总重: 128.00 g, 包装单位: 50.00 pc(s)


附加信息

UNI disconnecting clamp with intermediate plate for two round conductors, St/tZn
UNI disconnecting clamp for connecting down conductors with earth entries
With intermediate plate for a Rd and a Rd conductor
Narrow design

Material: St/tZn
Clamping range Rd / Rd: 7-10 / 7-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: UTK 7.10 7.10 S ZP STTZN
Part No.: 459003
or equivalent.

认证



技术参数

Material St/tZn
Clamping range Rd / Rd 7-10 / 7-10 mm
Distance between screws 30 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品459003加入购物车。

进入网上商店

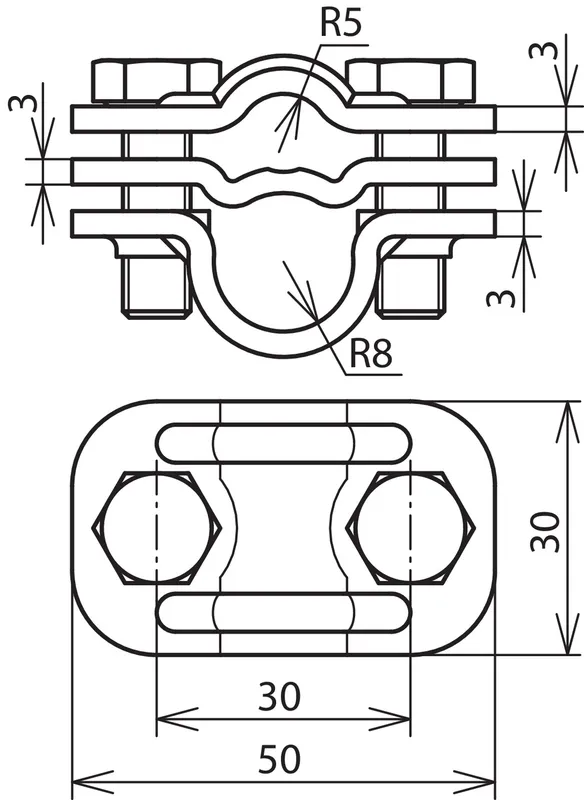

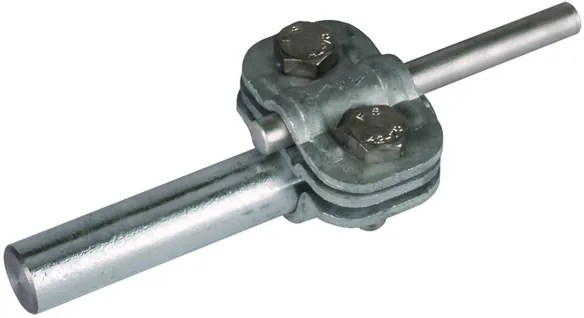

With intermediate plate for earth entry rods, narrow design

1 产品

货号 459000 UTK 7.10 16 S ZP STTZN

全球贸易项目代码 4013364025189, 海关HS编码: 85359000, 总重: 129.00 g, 包装单位: 50.00 pc(s)


附加信息

UNI disconnecting clamp with intermediate plate, St/tZn
UNI disconnecting clamp for connecting down conductors with earth entries
With intermediate plate for earth entry rods
Narrow design
Material: St/tZn
Clamping range Rd / Rd: 7-10 / 16 mm
Standard: EN 62561-1

Brand: DEHN
Type: UTK 7.10 16 S ZP STTZN
Part No.: 459000
or equivalent.

认证



技术参数

Material St/tZn
Clamping range Rd / Rd 7-10 / 16 mm
Distance between screws 30 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品459000加入购物车。

进入网上商店

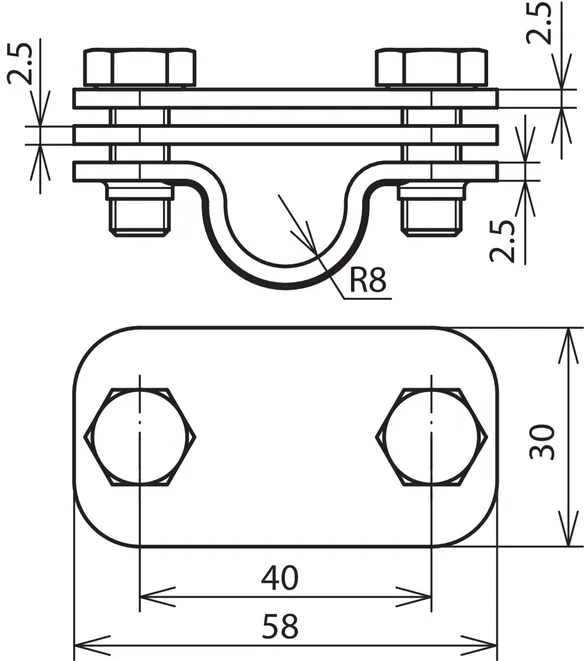

With intermediate plate for an earth entry rod and a flat conductor

1 产品

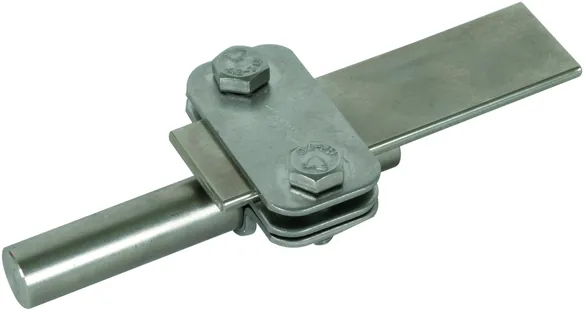

货号 459159 UTK 16 FL30 ZP V2A

全球贸易项目代码 4013364152830, 海关HS编码: 85359000, 总重: 122.20 g, 包装单位: 50.00 pc(s)


附加信息

UNI disconnecting clamp with intermediate plate, StSt
UNI disconnecting clamp for connecting down conductors with earth entries
With intermediate plate for a Rd and a Fl conductor
Material: StSt
Clamping range Rd / Fl: 16 / 30 mm
Standard: EN 62561-1

Brand: DEHN
Type: UTK 16 FL30 ZP V2A
Part No.: 459159
or equivalent.

认证



技术参数

Material StSt
Clamping range Rd / Fl 16 / 30 mm
Distance between screws 40 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品459159加入购物车。

进入网上商店

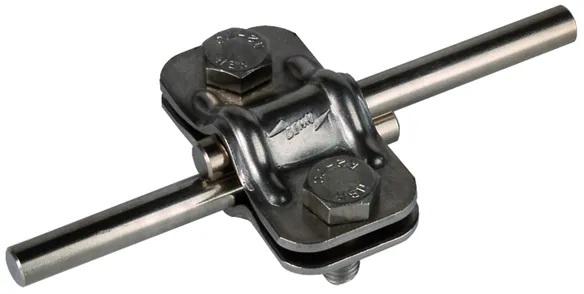

Without intermediate plate for two round conductors

2 产品

货号 459029 UTK 8.10 8.10 V2A

全球贸易项目代码 4013364047587, 海关HS编码: 85359000, 总重: 89.40 g, 包装单位: 50.00 pc(s)


附加信息

UNI disconnecting clamp without intermediate plate for two round cond., StSt
UNI disconnecting clamp for connecting down conductors with earth entries
Without intermediate plate for a Rd and a Rd conductor
Material: StSt
Clamping range Rd / Rd: 8-10 / 8-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: UTK 8.10 8.10 V2A
Part No.: 459029
or equivalent.

认证



技术参数

Material StSt
Clamping range Rd / Rd 8-10 / 8-10 mm
Distance between screws 40 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品459029加入购物车。

进入网上商店

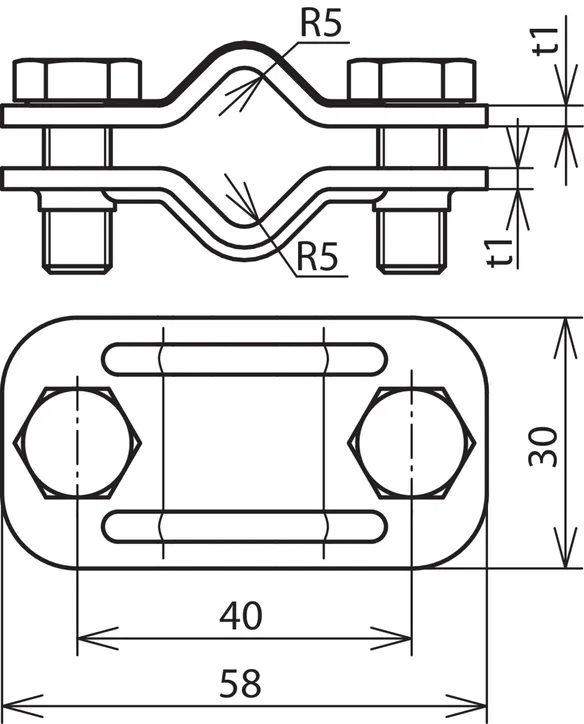

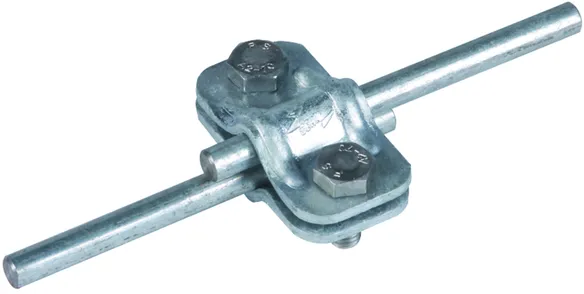

货号 459020 UTK 8.10 8.10 STTZN

全球贸易项目代码 4013364099845, 海关HS编码: 85359000, 总重: 104.90 g, 包装单位: 50.00 pc(s)


附加信息

UNI disconnecting clamp without intermediate plate for two round cond., St/tZn
UNI disconnecting clamp for connecting down conductors with earth entries
Without intermediate plate for a Rd and a Rd conductor
Material: St/tZn
Clamping range Rd / Rd: 8-10 / 8-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: UTK 8.10 8.10 STTZN
Part No.: 459020
or equivalent.

认证



技术参数

Material St/tZn
Clamping range Rd / Rd 8-10 / 8-10 mm
Distance between screws 40 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品459020加入购物车。

进入网上商店

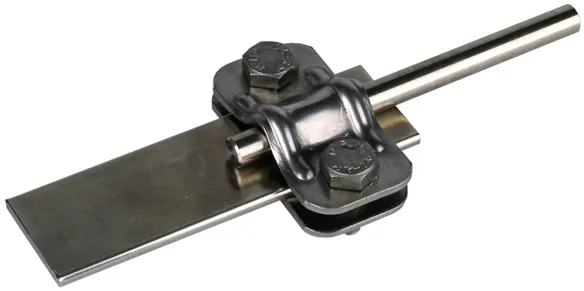

Without intermediate plate for a round and a flat conductor

2 产品

货号 459039 UTK 8.10 FL30 V2A

全球贸易项目代码 4013364047594, 海关HS编码: 85359000, 总重: 90.00 g, 包装单位: 50.00 pc(s)


附加信息

UNI disconnecting clamp without intermediate plate for a round and a flat conductor, StSt
UNI disconnecting clamp for connecting down conductors with earth entries
Without intermediate plate for a Rd and a Fl conductor
Material: StSt
Clamping range Rd / Fl: 8-10 / 30 mm
Clamping range Fl / Fl: 30 / 30 mm
Standard: EN 62561-1

Brand: DEHN
Type: UTK 8.10 FL30 V2A
Part No.: 459039
or equivalent.

认证



技术参数

Material StSt
Clamping range Rd / Fl 8-10 / 30 mm
Clamping range Fl / Fl 30 / 30 mm
Distance between screws 40 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品459039加入购物车。

进入网上商店

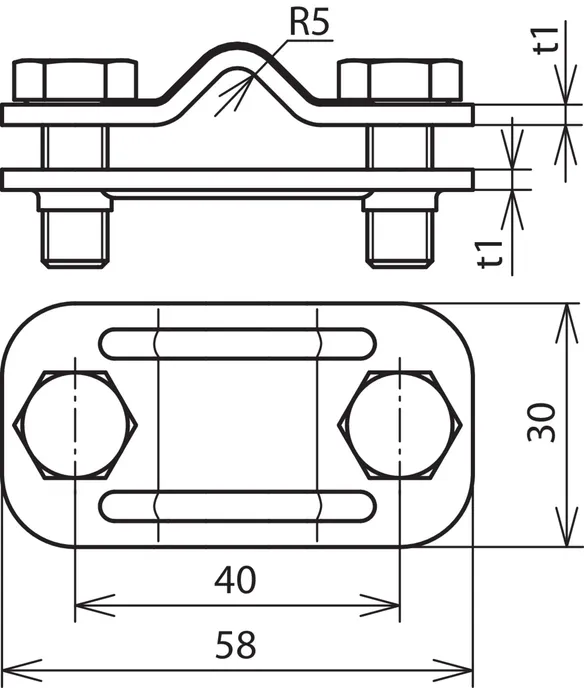

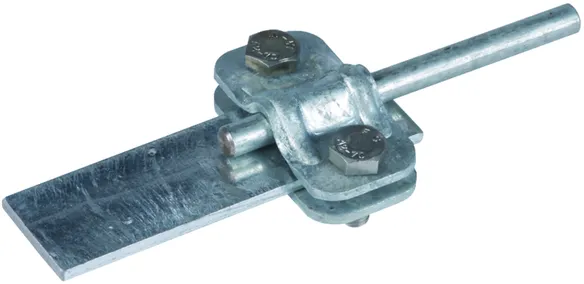

货号 459030 UTK 8.10 FL30 STTZN

全球贸易项目代码 4013364099852, 海关HS编码: 85359000, 总重: 103.00 g, 包装单位: 50.00 pc(s)


附加信息

UNI disconnecting clamp without intermediate plate for a round and a flat conductor, St/tZn
UNI disconnecting clamp for connecting down conductors with earth entries
Without intermediate plate for a Rd and a Fl conductor
Material: St/tZn
Clamping range Rd / Fl: 8-10 / 30 mm
Standard: EN 62561-1

Brand: DEHN
Type: UTK 8.10 FL30 STTZN
Part No.: 459030
or equivalent.

认证



技术参数

Material St/tZn
Clamping range Rd / Fl 8-10 / 30 mm
Distance between screws 40 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品459030加入购物车。

进入网上商店

Without intermediate plate for earth entry rods

2 产品

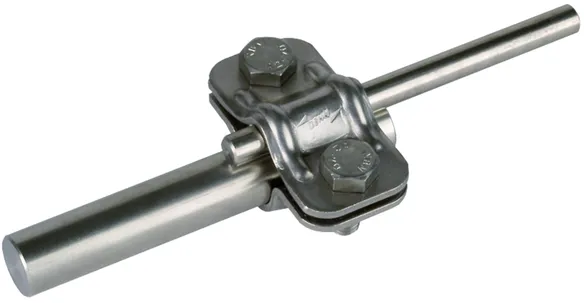

货号 459019 UTK 8.10 16 V2A

全球贸易项目代码 4013364031272, 海关HS编码: 85359000, 总重: 89.30 g, 包装单位: 50.00 pc(s)


附加信息

UNI disconnecting clamp without intermediate plate for earth entry rods, StSt
UNI disconnecting clamp for connecting down conductors with earth entries
Without intermediate plate for earth entry rods

Material: StSt
Clamping range Rd / Rd: 8-10 / 16 mm
Standard: EN 62561-1

Brand: DEHN
Type: UTK 8.10 16 V2A
Part No.: 459019
or equivalent.

认证



技术参数

Material StSt
Clamping range Rd / Rd 8-10 / 16 mm
Distance between screws 40 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品459019加入购物车。

进入网上商店

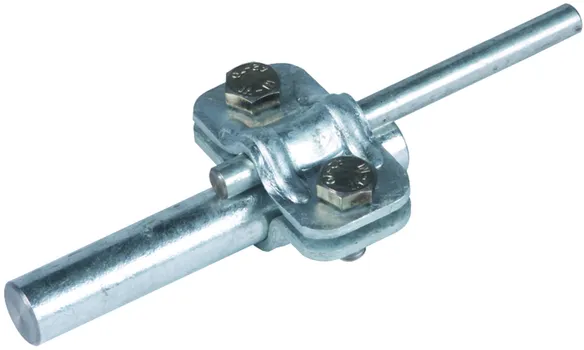

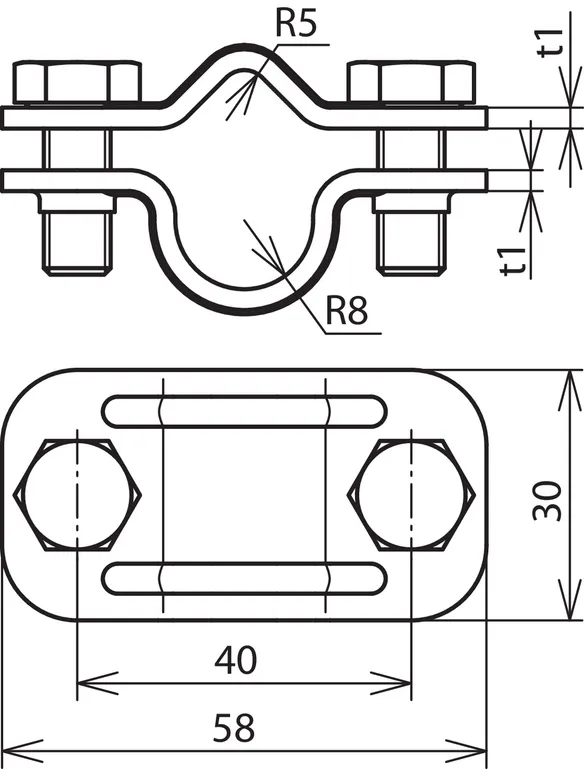

货号 459010 UTK 8.10 16 STTZN

全球贸易项目代码 4013364099838, 海关HS编码: 85359000, 总重: 112.00 g, 包装单位: 1.00 pc(s)


附加信息

UNI disconnecting clamp without intermediate plate for earth entry rods, St/tZn

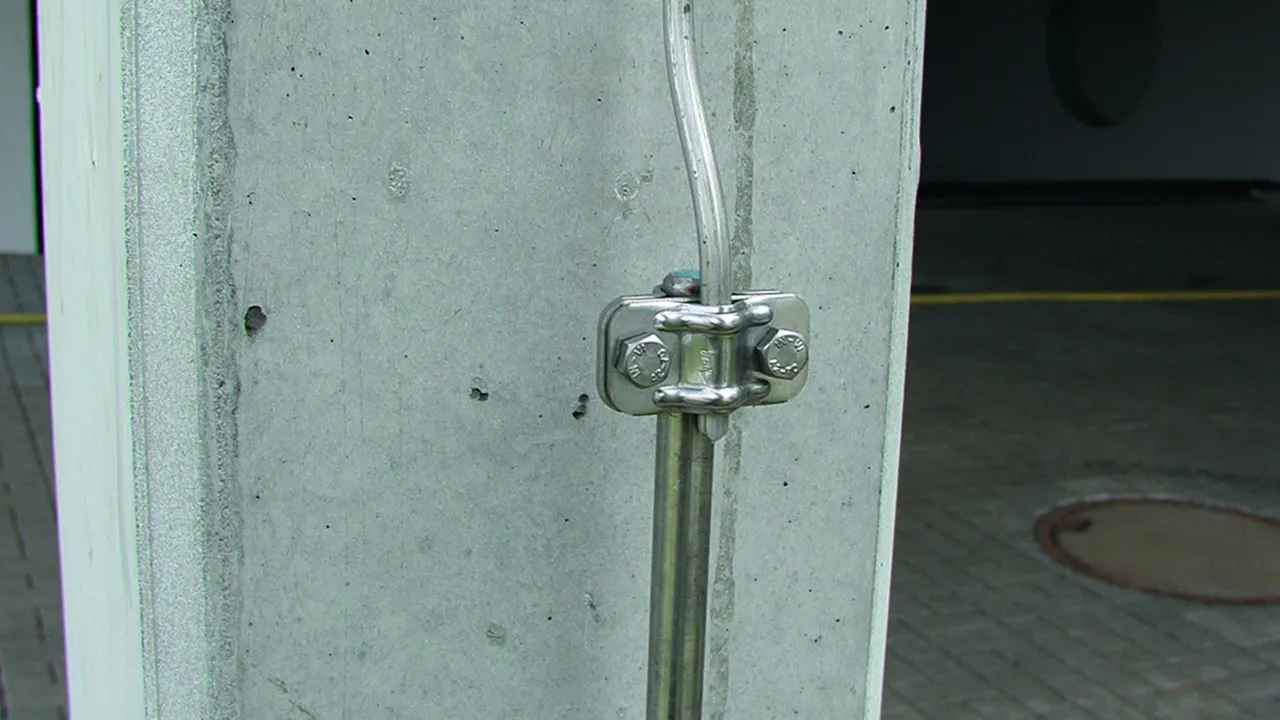

UNI disconnecting clamp for connecting down conductors with earth entries
Without intermediate plate for earth entry rods

Material: St/tZn
Clamping range Rd / Rd: 8-10 / 16 mm
Standard: EN 62561-1

Brand: DEHN
Type: UTK 8.10 16 STTZN
Part No.: 459010
or equivalent.

认证



技术参数

Material St/tZn
Clamping range Rd / Rd 8-10 / 16 mm
Distance between screws 40 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品459010加入购物车。

进入网上商店
返回顶部
