Bridging Cables

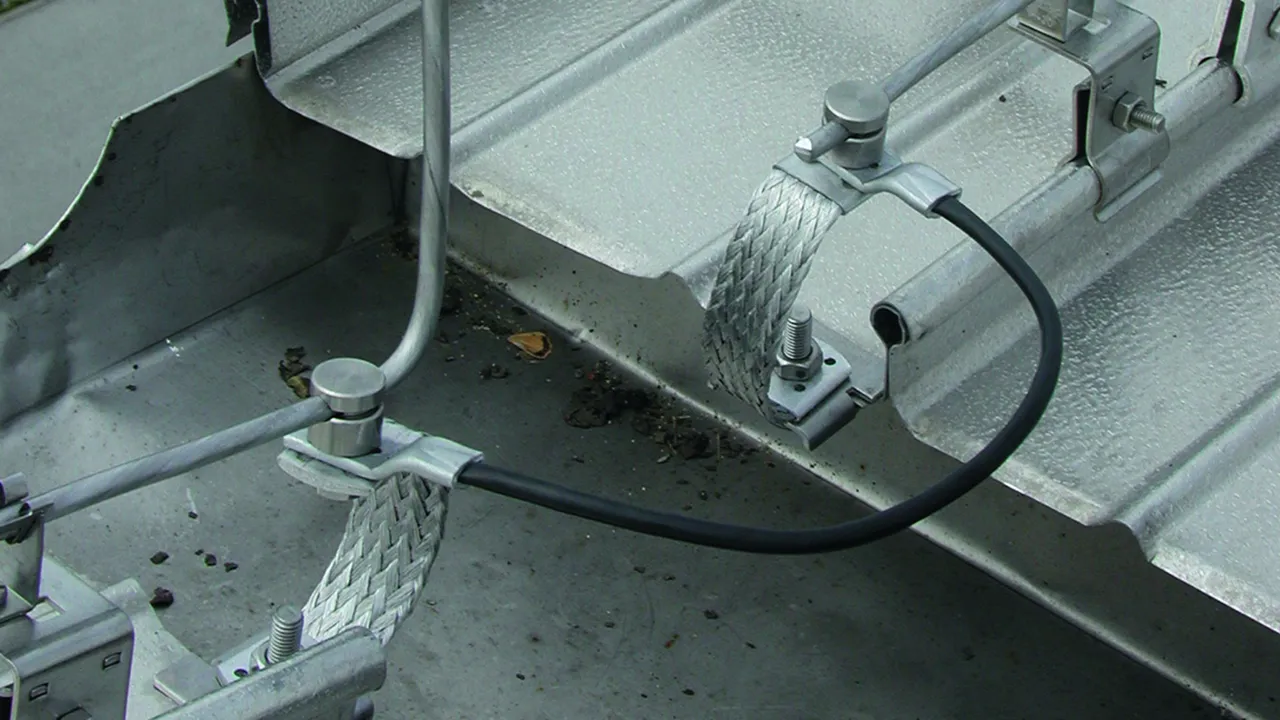

Suitable for connecting / bridging metal claddings, or as compensation for certain temperature-related changes in length for round wires; connection e.g. with KS connector part no. 301 019.
For connecting/bridging fixed earthing terminals. Suitable for protective and functional equipotential bonding.

Configurable lengths Outdoor

For use in outdoor areas with UV-stabilised conductor (H01N2-D)
Specify cable length when ordering (50 mm steps)

5 产品

货号 377316 UEBS 16 L... B10.5 CU SW OD

全球贸易项目代码 4013364522459, 海关HS编码: 85359000, 总重: 411.90 g, 包装单位: 1.00 pc(s)


附加信息

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use in outdoor areas.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H01N2-D
Cross-section: 16 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 16 L... B10.5 CU SW OD
Part No.: 377316
or equivalent.

认证



技术参数

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H01N2-D
Cross-section 16 mm2
Fixing [2x] Ø10.5 mm
Application note For use in outdoor areas
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

.产品已加入收藏夹。

进入收藏夹

商品377316加入购物车。

进入网上商店

货号 377325 UEBS 25 L... B10.5 CU SW OD

全球贸易项目代码 4013364522466, 海关HS编码: 85359000, 总重: 558.80 g, 包装单位: 1.00 pc(s)


附加信息

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use in outdoor areas.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H01N2-D
Cross-section: 25 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 25 L... B10.5 CU SW OD
Part No.: 377325
or equivalent.

认证



技术参数

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H01N2-D
Cross-section 25 mm2
Fixing [2x] Ø10.5 mm
Application note For use in outdoor areas
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

.产品已加入收藏夹。

进入收藏夹

商品377325加入购物车。

进入网上商店

货号 377335 UEBS 35 L... B10.5 CU SW OD

全球贸易项目代码 4013364522473, 海关HS编码: 85359000, 总重: 937.30 kg, 包装单位: 1.00 pc(s)


附加信息

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use in outdoor areas.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H01N2-D
Cross-section: 35 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 35 L... B10.5 CU SW OD
Part No.: 377335
or equivalent.

认证



技术参数

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H01N2-D
Cross-section 35 mm2
Fixing [2x] Ø10.5 mm
Application note For use in outdoor areas
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

.产品已加入收藏夹。

进入收藏夹

商品377335加入购物车。

进入网上商店

货号 377350 UEBS 50 L... B10.5 CU SW OD

全球贸易项目代码 4013364522480, 海关HS编码: 85359000, 总重: 1.02 kg, 包装单位: 1.00 pc(s)


附加信息

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use in outdoor areas.
Length: 350 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H01N2-D
Cross-section: 50 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 50 L... B10.5 CU SW OD
Part No.: 377350
or equivalent.

认证



技术参数

Length (l1) 350 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H01N2-D
Cross-section 50 mm2
Fixing [2x] Ø10.5 mm
Application note For use in outdoor areas
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

.产品已加入收藏夹。

进入收藏夹

商品377350加入购物车。

进入网上商店

货号 377370 UEBS 70 L... B10.5 CU SW OD

全球贸易项目代码 4013364522497, 海关HS编码: 85359000, 总重: 1.40 kg, 包装单位: 1.00 pc(s)


附加信息

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use in outdoor areas.
Length: 350 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H01N2-D
Cross-section: 70 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 70 L... B10.5 CU SW OD
Part No.: 377370
or equivalent.

认证



技术参数

Length (l1) 350 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H01N2-D
Cross-section 70 mm2
Fixing [2x] Ø10.5 mm
Application note For use in outdoor areas
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

.产品已加入收藏夹。

进入收藏夹

商品377370加入购物车。

进入网上商店

Configurable lengths Indoor

For use indoors (H07V-K)
Specify cable length when ordering (50 mm steps)

10 产品

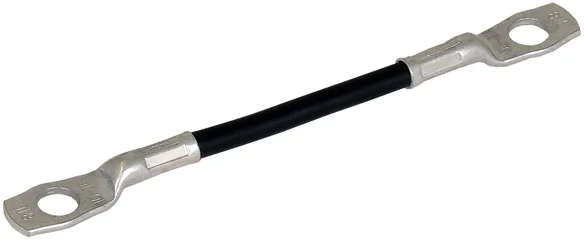

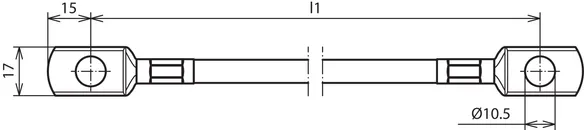

货号 377216 UEBS 16 L... B10.5 CU SW ID

全球贸易项目代码 4013364494565, 海关HS编码: 85359000, 总重: 411.90 g, 包装单位: 1.00 pc(s)


附加信息

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 16 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 16 L... B10.5 CU SW ID
Part No.: 377216
or equivalent.

认证



技术参数

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 16 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

.产品已加入收藏夹。

进入收藏夹

商品377216加入购物车。

进入网上商店

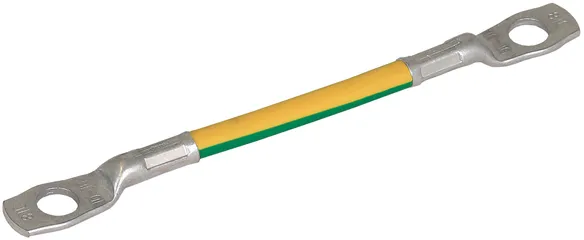

货号 377217 UEBS 16 L... B10.5 CU GNGE ID

全球贸易项目代码 4013364494572, 海关HS编码: 85359000, 总重: 411.90 g, 包装单位: 1.00 pc(s)


附加信息

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 16 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC green / yellow

Brand: DEHN
Type: UEBS 16 L... B10.5 CU GNGE ID
Part No.: 377217
or equivalent.

认证



技术参数

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 16 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC green / yellow
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

.产品已加入收藏夹。

进入收藏夹

商品377217加入购物车。

进入网上商店

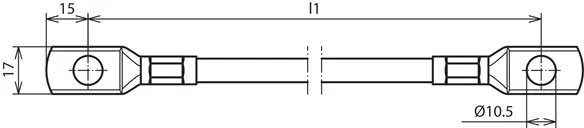

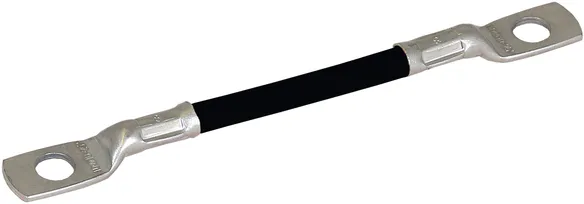

货号 377225 UEBS 25 L... B10.5 CU SW ID

全球贸易项目代码 4013364494589, 海关HS编码: 85359000, 总重: 558.80 g, 包装单位: 1.00 pc(s)


附加信息

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 25 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 25 L... B10.5 CU SW ID
Part No.: 377225
or equivalent.

认证



技术参数

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 25 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

.产品已加入收藏夹。

进入收藏夹

商品377225加入购物车。

进入网上商店

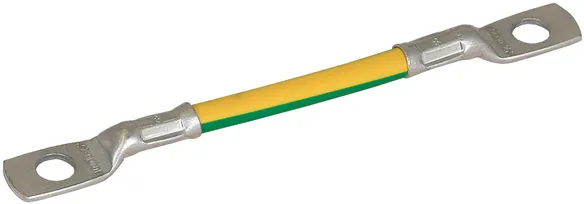

货号 377226 UEBS 25 L... B10.5 CU GNGE ID

全球贸易项目代码 4013364494596, 海关HS编码: 85359000, 总重: 558.80 g, 包装单位: 1.00 pc(s)


附加信息

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 25 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC green / yellow

Brand: DEHN
Type: UEBS 25 L... B10.5 CU GNGE ID
Part No.: 377226
or equivalent.

认证



技术参数

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 25 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC green / yellow
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

.产品已加入收藏夹。

进入收藏夹

商品377226加入购物车。

进入网上商店

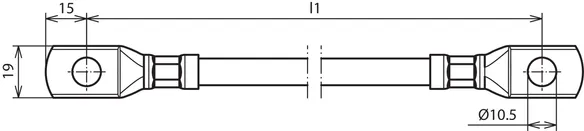

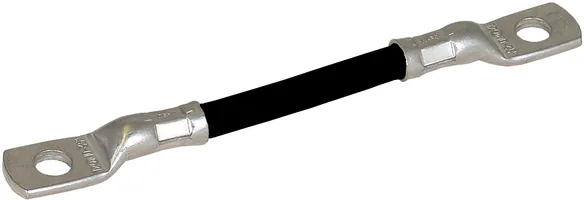

货号 377235 UEBS 35 L... B10.5 CU SW ID

全球贸易项目代码 4013364494602, 海关HS编码: 85359000, 总重: 937.30 g, 包装单位: 1.00 pc(s)


附加信息

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 35 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 35 L... B10.5 CU SW ID
Part No.: 377235
or equivalent.

认证



技术参数

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 35 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

.产品已加入收藏夹。

进入收藏夹

商品377235加入购物车。

进入网上商店

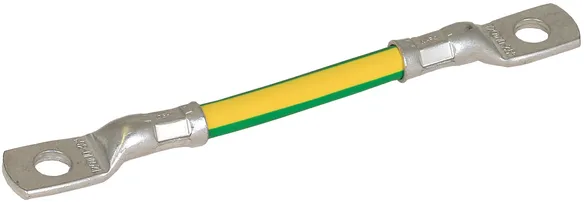

货号 377236 UEBS 35 L... B10.5 CU GNGE ID

全球贸易项目代码 4013364494619, 海关HS编码: 85359000, 总重: 937.30 g, 包装单位: 1.00 pc(s)


附加信息

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 200 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 35 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC green / yellow

Brand: DEHN
Type: UEBS 35 L... B10.5 CU GNGE ID
Part No.: 377236
or equivalent.

认证



技术参数

Length (l1) 200 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 35 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC green / yellow
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

.产品已加入收藏夹。

进入收藏夹

商品377236加入购物车。

进入网上商店

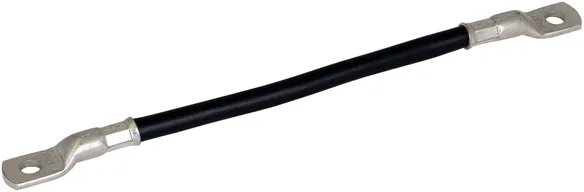

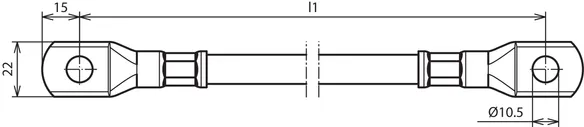

货号 377250 UEBS 50 L... B10.5 CU SW ID

全球贸易项目代码 4013364494725, 海关HS编码: 85359000, 总重: 1.02 kg, 包装单位: 1.00 pc(s)


附加信息

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 350 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 50 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 50 L... B10.5 CU SW ID
Part No.: 377250
or equivalent.

认证



技术参数

Length (l1) 350 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 50 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

.产品已加入收藏夹。

进入收藏夹

商品377250加入购物车。

进入网上商店

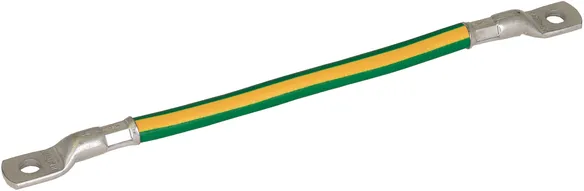

货号 377251 UEBS 50 L... B10.5 CU GNGE ID

全球贸易项目代码 4013364494732, 海关HS编码: 85359000, 总重: 1.02 kg, 包装单位: 1.00 pc(s)


附加信息

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 350 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 50 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC green / yellow

Brand: DEHN
Type: UEBS 50 L... B10.5 CU GNGE ID
Part No.: 377251
or equivalent.

认证



技术参数

Length (l1) 350 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 50 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC green / yellow
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

.产品已加入收藏夹。

进入收藏夹

商品377251加入购物车。

进入网上商店

货号 377270 UEBS 70 L... B10.5 CU SW ID

全球贸易项目代码 4013364494749, 海关HS编码: 85359000, 总重: 1.40 kg, 包装单位: 1.00 pc(s)


附加信息

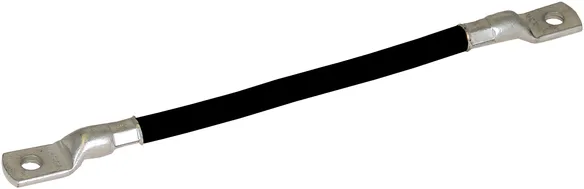

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 350 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 70 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC black

Brand: DEHN
Type: UEBS 70 L... B10.5 CU SW ID
Part No.: 377270
or equivalent.

认证



技术参数

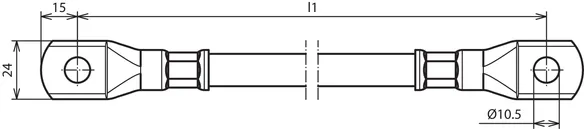

Length (l1) 350 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 70 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC black
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

.产品已加入收藏夹。

进入收藏夹

商品377270加入购物车。

进入网上商店

货号 377271 UEBS 70 L... B10.5 CU GNGE ID

全球贸易项目代码 4013364494756, 海关HS编码: 85359000, 总重: 1.40 kg, 包装单位: 1.00 pc(s)


附加信息

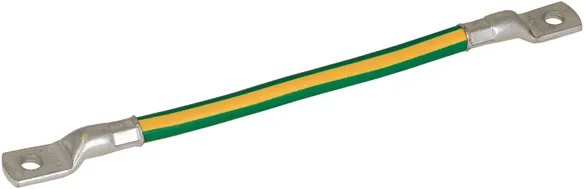

Bridging cable, variable length
Bridging cable for connecting
or bridging
metal cladding.
For use indoors.
Length: 350 - 1500 mm *)
Material of cable lug: Cu/gal (Ni)Sn
Material of cable: Cu
Cable: H07V-K
Cross-section: 70 mm2
Fixing : [2x] Ø10.5 mm
Insulation: PVC green / yellow

Brand: DEHN
Type: UEBS 70 L... B10.5 CU GNGE ID
Part No.: 377271
or equivalent.

认证



技术参数

Length (l1) 350 - 1500 mm *)
Material of cable lug Cu /gal (Ni)Sn
Material of cable Cu
Cable H07V-K
Cross-section 70 mm2
Fixing [2x] Ø10.5 mm
Application note For use indoors
Insulation PVC green / yellow
Standard EN 62561-1
*) Specify cable length when ordering (50 mm steps)

.产品已加入收藏夹。

进入收藏夹

商品377271加入购物车。

进入网上商店

Standard lengths

Suitable for use outdoors

4 产品

货号 377210 UEBS 16 L200 B10.5 B6.5 AL CU

全球贸易项目代码 4013364083028, 海关HS编码: 85359000, 总重: 53.01 g, 包装单位: 10.00 pc(s)

前代产品


附加信息

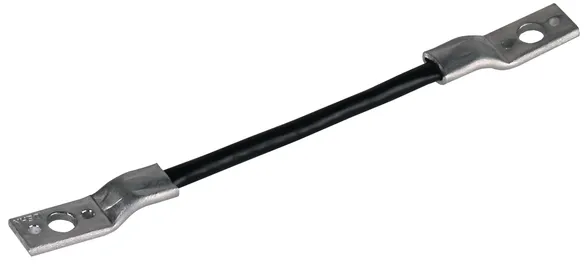

Bridging cable, 200 mm long
Bridging cable for connecting
or bridging
metal cladding.
Suitable for use
outdoors.
Length: 200 mm
Material of cable lug: Al
Material of cable: Cu
Cross-section: 16 mm2
Fixing : [4x] Ø6.5 / [2x] Ø10.5 mm
Insulation: rubber EM5 black

Brand: DEHN
Type: UEBS 16 L200 B10.5 B6.5 AL CU
Part No.: 377210
or equivalent.

认证



技术参数

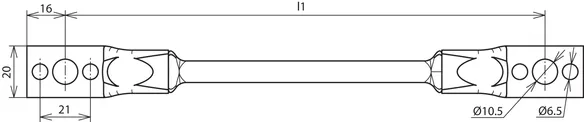

Length (l1) 200 mm
Material of cable lug Al
Material of cable Cu
Cross-section 16 mm2
Fixing [4x] Ø6.5 / [2x] Ø10.5 mm
Application note Suitable for use outdoors. According to DIN EN 62305-3 Supplement 1, materials ≥ 0.5mm thick shall be connected by 2 rivets Ø6mm, or materials ≥ 2mm thick by 2 self-tapping screws Ø6.3mm StSt (on both sides)
Insulation rubber EM5 black
Standard EN 62561-1
*) For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品377210加入购物车。

进入网上商店

货号 377310 UEBS 16 L300 B10.5 B6.5 AL CU

全球贸易项目代码 4013364033382, 海关HS编码: 85359000, 总重: 88.50 g, 包装单位: 100.00 pc(s)

前代产品


附加信息

Bridging cable, 300 mm long
Bridging cable for connecting
or bridging
metal cladding.
Suitable for use
outdoors.
Length: 300 mm
Material of cable lug: Al
Material of cable: Cu
Cross-section: 16 mm2
Fixing : [4x] Ø6.5 / [2x] Ø10.5 mm
Insulation: rubber EM5 black

Brand: DEHN
Type: UEBS 16 L300 B10.5 B6.5 AL CU
Part No.: 377310
or equivalent.

认证



技术参数

Length (l1) 300 mm
Material of cable lug Al
Material of cable Cu
Cross-section 16 mm2
Fixing [4x] Ø6.5 / [2x] Ø10.5 mm
Application note Suitable for use outdoors. According to DIN EN 62305-3 Supplement 1, materials ≥ 0.5mm thick shall be connected by 2 rivets Ø6mm, or materials ≥ 2mm thick by 2 self-tapping screws Ø6.3mm StSt (on both sides)
Insulation rubber EM5 black
Standard EN 62561-1
*) For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品377310加入购物车。

进入网上商店

货号 377410 UEBS 16 L400 B10.5 B6.5 AL CU

全球贸易项目代码 4013364083035, 海关HS编码: 85359000, 总重: 90.40 g, 包装单位: 10.00 pc(s)

前代产品


附加信息

Bridging cable, 400 mm long
Bridging cable for connecting
or bridging
metal cladding.
Suitable for use
outdoors.
Length: 400 mm
Material of cable lug: Al
Material of cable: Cu
Cross-section: 16 mm2
Fixing : [4x] Ø6.5 / [2x] Ø10.5 mm
Insulation: rubber EM5 black

Brand: DEHN
Type: UEBS 16 L400 B10.5 B6.5 AL CU
Part No.: 377410
or equivalent.

认证



技术参数

Length (l1) 400 mm
Material of cable lug Al
Material of cable Cu
Cross-section 16 mm2
Fixing [4x] Ø6.5 / [2x] Ø10.5 mm
Application note Suitable for use outdoors. According to DIN EN 62305-3 Supplement 1, materials ≥ 0.5mm thick shall be connected by 2 rivets Ø6mm, or materials ≥ 2mm thick by 2 self-tapping screws Ø6.3mm StSt (on both sides)
Insulation rubber EM5 black
Standard EN 62561-1
*) For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品377410加入购物车。

进入网上商店

货号 377510 UEBS 16 L500 B10.5 B6.5 AL CU

全球贸易项目代码 4013364033399, 海关HS编码: 85359000, 总重: 110.00 g, 包装单位: 10.00 pc(s)

前代产品


附加信息

Bridging cable, 500 mm long
Bridging cable for connecting
or bridging
metal cladding.
Suitable for use
outdoors.
Length: 500 mm
Material of cable lug: Al
Material of cable: Cu
Cross-section: 16 mm2
Fixing : [4x] Ø6.5 / [2x] Ø10.5 mm
Insulation: rubber EM5 black

Brand: DEHN
Type: UEBS 16 L500 B10.5 B6.5 AL CU
Part No.: 377510
or equivalent.

认证



技术参数

Length (l1) 500 mm
Material of cable lug Al
Material of cable Cu
Cross-section 16 mm2
Fixing [4x] Ø6.5 / [2x] Ø10.5 mm
Application note Suitable for use outdoors. According to DIN EN 62305-3 Supplement 1, materials ≥ 0.5mm thick shall be connected by 2 rivets Ø6mm, or materials ≥ 2mm thick by 2 self-tapping screws Ø6.3mm StSt (on both sides)
Insulation rubber EM5 black
Standard EN 62561-1
*) For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品377510加入购物车。

进入网上商店
返回顶部
