Bimetallic Disconnecting Clamp with Shield

Bimetallic version for connecting conductors made of different materials.

1 产品

货号 460147 ZMTK 6.10 FL30.40 CU STTZN

全球贸易项目代码 4013364025349, 海关HS编码: 85359000, 总重: 350.00 g, 包装单位: 1.00 pc(s)


附加信息

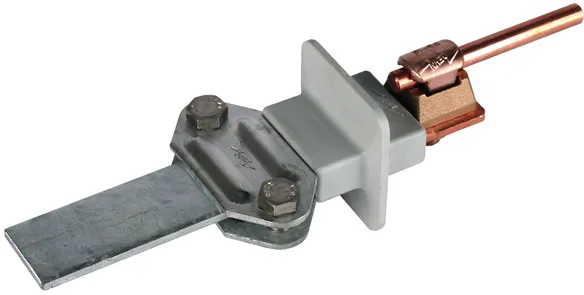

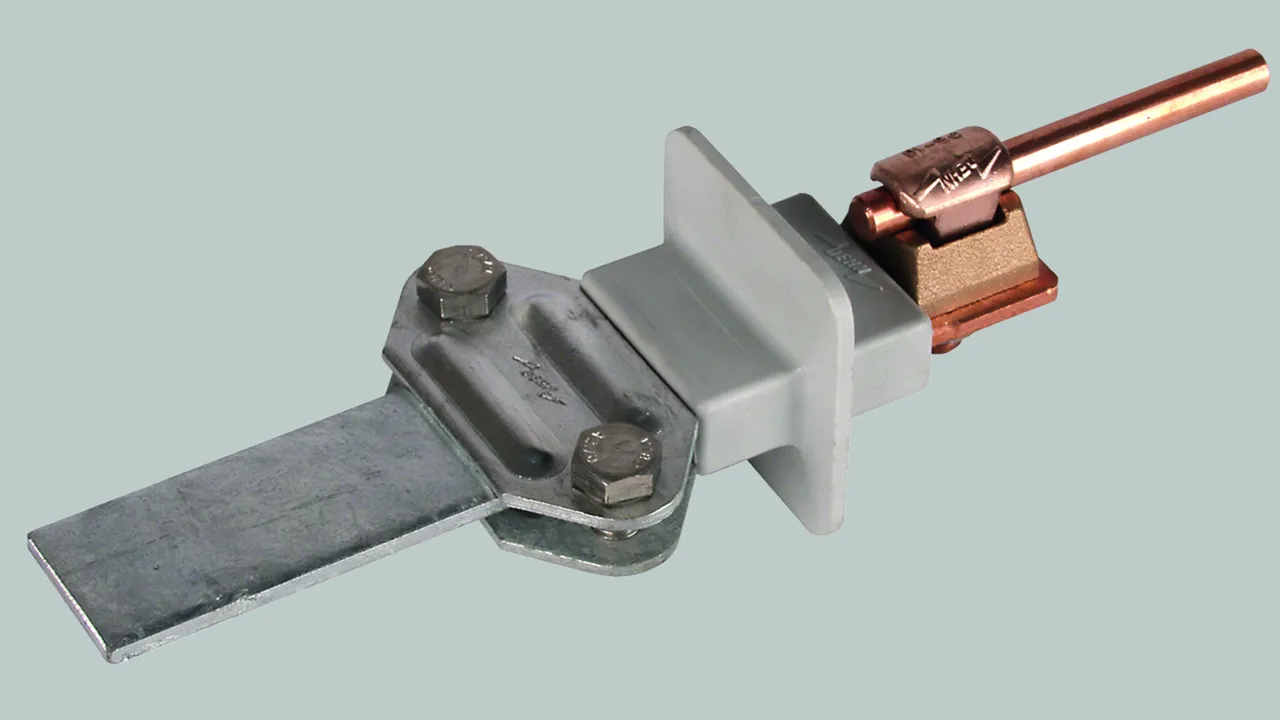

Bimetallic disconnecting clamp with shield
Bimetallic disconnecting clamp with shield for
connecting conductors made of different materials
Material: Cu / St/tZn

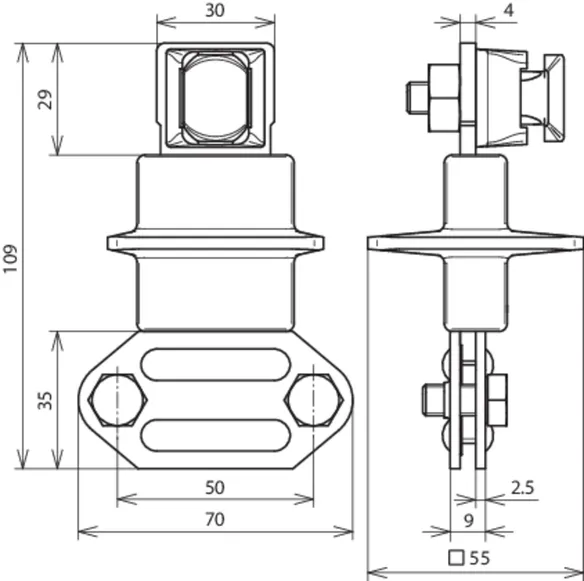

Clamping range Rd / Fl: 6-10 / 30-40 mm
Standard: EN 62561-1

Brand: DEHN
Type: ZMTK 6.10 FL30.40 CU STTZN
Part No.: 460147
or equivalent.

认证



技术参数

Material Cu / St/tZn
Clamping range Rd / Fl 6-10 / 30-40 mm
Shield plastic grey ●
Standard EN 62561-1
*) For exact classification, see test certificate.
