SVP Clamps for Aboveground and Underground Connections

Diagonal and parallel connecting clamps (Schräg-Verbinder-Parallel-Klemmen) for cross and parallel connections, with slotted upper part (no need to detach the screws).

Without intermediate plate

2 产品

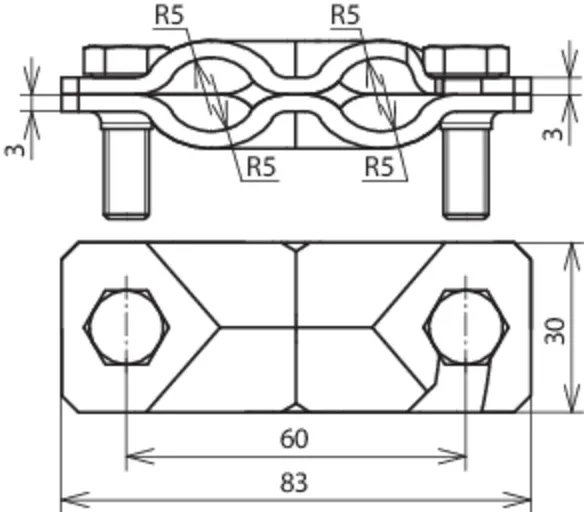

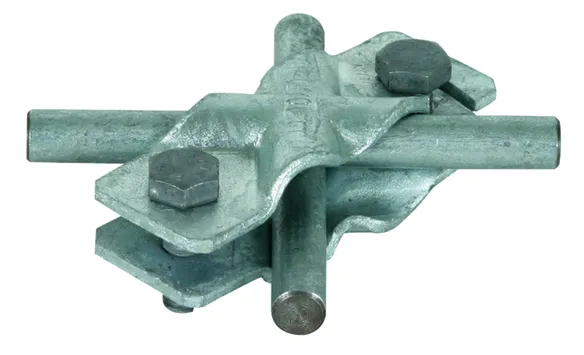

货号 308060 SVPK 8.10 8.10 FL30 STTZN

全球贸易项目代码 4013364066281, 海关HS编码: 85359000, 总重: 139.80 g, 包装单位: 50.00 pc(s)


附加信息

SVP clamp without intermediate plate, St/tZn
SVP clamp for aboveground and underground connections
For cross and parallel connection, with slotted top
part (no need to remove the screws)
Material of clamp: St/tZn
Clamping range Rd / Rd: 8-10 / 8-10 mm
Clamping range Rd / Fl: 8-10 / 30 mm
Clamping range Fl / Fl: 30 / 30 mm
Standard: EN 62561-1

Brand: DEHN
Type: SVPK 8.10 8.10 FL30 STTZN
Part No.: 308060
or equivalent.

认证



技术参数

Material of clamp St/tZn
Clamping range Rd / Rd 8-10 / 8-10 mm
Clamping range Rd / Fl 8-10 / 30 mm
Clamping range Fl / Fl 30 / 30 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品308060加入购物车。

进入网上商店

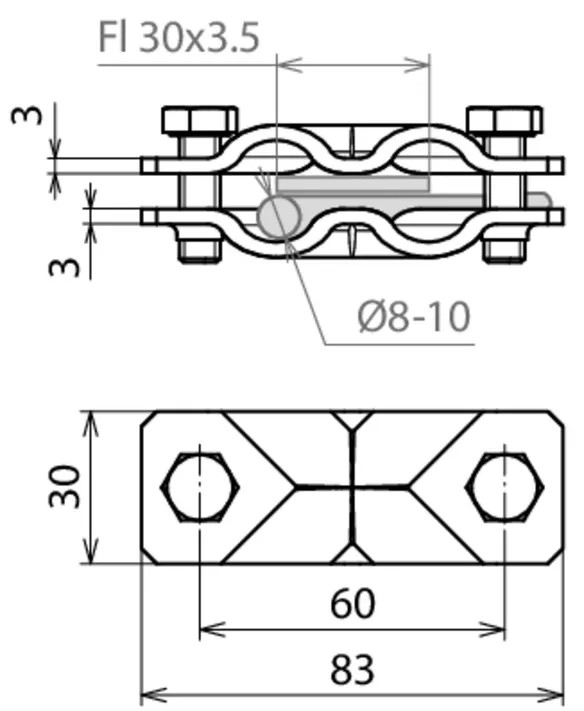

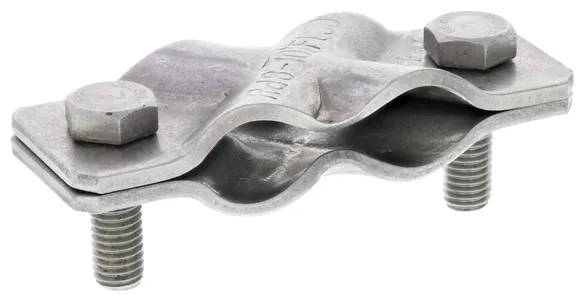

货号 308069 SVPK 8.10 8.10 FL30 V4A

全球贸易项目代码 4013364246720, 海关HS编码: 85359000, 总重: 140.00 g, 包装单位: 50.00 pc(s)


附加信息

SVP clamp without StSt intermediate plate (V4A)
SVP clamps for above-ground and underground
connections for cross and parallel connections
with slotted top section
(no need to remove the screws)
Material of clamp: StSt (V4A)
Clamping range Rd / Rd: 8-10 / 8-10 mm
Clamping range Rd / Fl: 8-10 / 30 mm
Clamping range Fl / Fl: 30 / 30 mm
Standard: EN 62561-1

Brand: DEHN
Type: SVPK 8.10 8.10 FL30 V4A
Part No.: 308069
or equivalent.

认证



技术参数

Material of clamp StSt (V4A)
Clamping range Rd / Rd 8-10 / 8-10 mm
Clamping range Rd / Fl 8-10 / 30 mm
Clamping range Fl / Fl 30 / 30 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品308069加入购物车。

进入网上商店
