MV Clamps for Air-Termination Rods

Multi-purpose connecting clamp for universal use as a cross clamp, T clamp and parallel clamp; two-piece.

With hexagon screw, spring washer and thread in the base part

2 产品

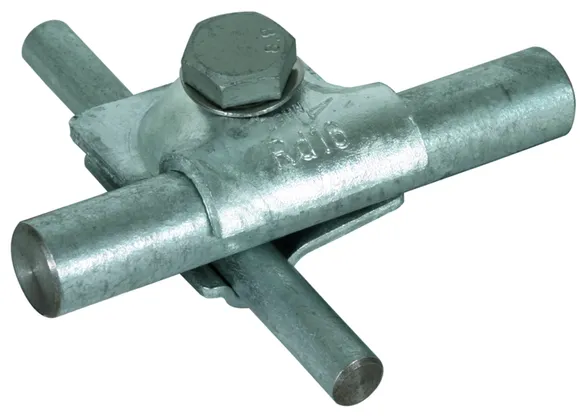

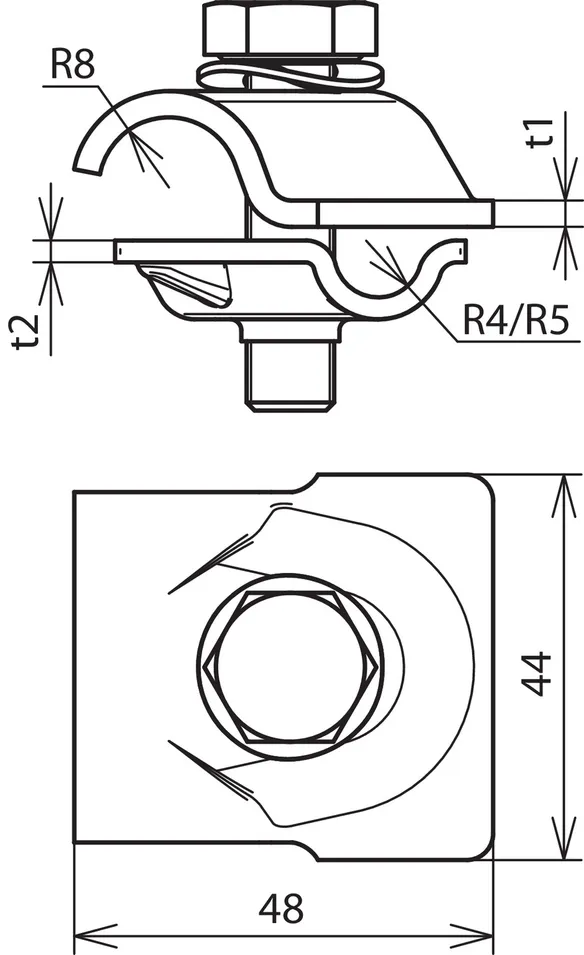

货号 392050 MVK 8.10 16 SKM10X40 FSC STTZN

全球贸易项目代码 4013364096066, 海关HS编码: 85359000, 总重: 123.30 g, 包装单位: 50.00 pc(s)


附加信息

MV clamp for air-termination rods, St/tZn
Multipurpose connecting clamp for universal use as a
cross clamp and parallel clamp,
particularly for air-termination rods and round conductors
with hexagon screw, spring washer and threaded base part
Material of clamp: St/tZn
Clamping range Rd: 8-10 / 16 mm
Material thickness: 3 / 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 16 SKM10X40 FSC STTZN
Part No.: 392050
or equivalent.

认证



技术参数

Material of clamp St/tZn
Clamping range Rd 8-10 / 16 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品392050加入购物车。

进入网上商店

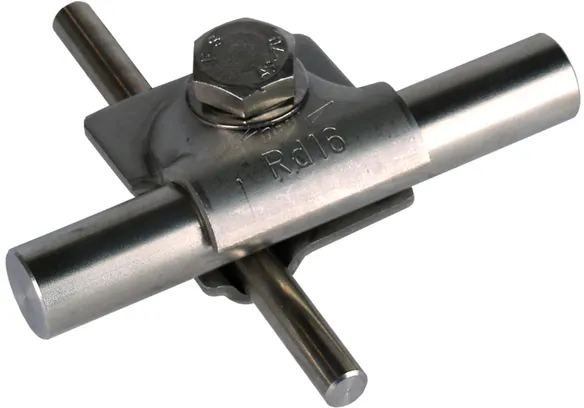

货号 392059 MVK 8.10 16 SKM10X40 FSC V2A

全球贸易项目代码 4013364096059, 海关HS编码: 85359000, 总重: 121.40 g, 包装单位: 50.00 pc(s)

前代产品


附加信息

MV clamp for air-termination rods, StSt
Multipurpose connecting clamp for universal use as a
cross clamp and parallel clamp,
particularly for air-termination rods and round conductors
with hexagon screw, spring washer and threaded base part
Material of clamp: StSt
Clamping range Rd: 8-10 / 16 mm
Material thickness: 3 / 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 16 SKM10X40 FSC V2A
Part No.: 392059
or equivalent.

认证



技术参数

Material of clamp StSt
Clamping range Rd 8-10 / 16 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品392059加入购物车。

进入网上商店

With truss head screw and anti-rotation protection

2 产品

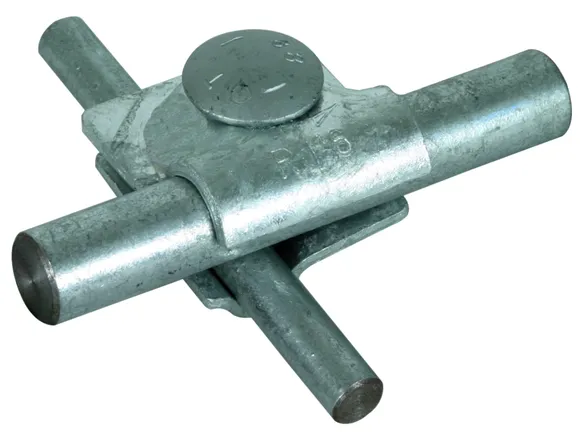

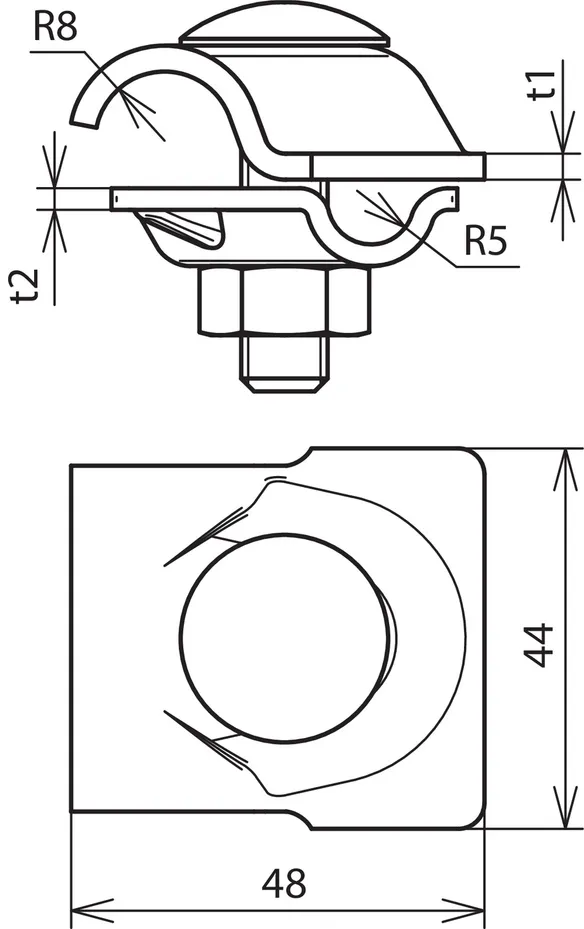

货号 392060 MVK 8.10 16 FRM10X40 STTZN

全球贸易项目代码 4013364096141, 海关HS编码: 85359000, 总重: 132.40 g, 包装单位: 50.00 pc(s)


附加信息

MV clamp for air-termination rods with truss head screw, St/tZn
Multipurpose connecting clamp for universal use as a
cross clamp and parallel clamp,
particularly for air-termination rods and round conductors
with truss head screw and anti-rotation protection
Material of clamp: St/tZn
Clamping range Rd: 8-10 / 16 mm
Material thickness: 3 / 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 16 FRM10X40 STTZN
Part No.: 392060
or equivalent.

认证



技术参数

Material of clamp St/tZn
Clamping range Rd 8-10 / 16 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品392060加入购物车。

进入网上商店

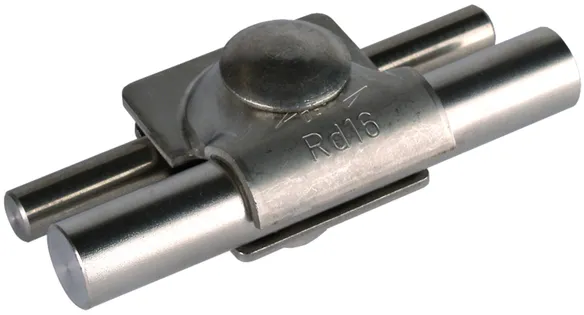

货号 392069 MVK 8.10 16 FRM10X40 V2A

全球贸易项目代码 4013364096158, 海关HS编码: 85359000, 总重: 128.40 g, 包装单位: 50.00 pc(s)


附加信息

MV clamp for air-termination rods with truss head screw, St/tZn
Multipurpose connecting clamp for universal use as a
cross clamp and parallel clamp,
particularly for air-termination rods and round conductors
with truss head screw and anti-rotation protection
Material of clamp: StSt
Clamping range Rd: 8-10 / 16 mm
Material thickness: 3 / 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: MVK 8.10 16 FRM10X40 V2A
Part No.: 392069
or equivalent.

认证



技术参数

Material of clamp StSt
Clamping range Rd 8-10 / 16 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品392069加入购物车。

进入网上商店
