Rod Clamps

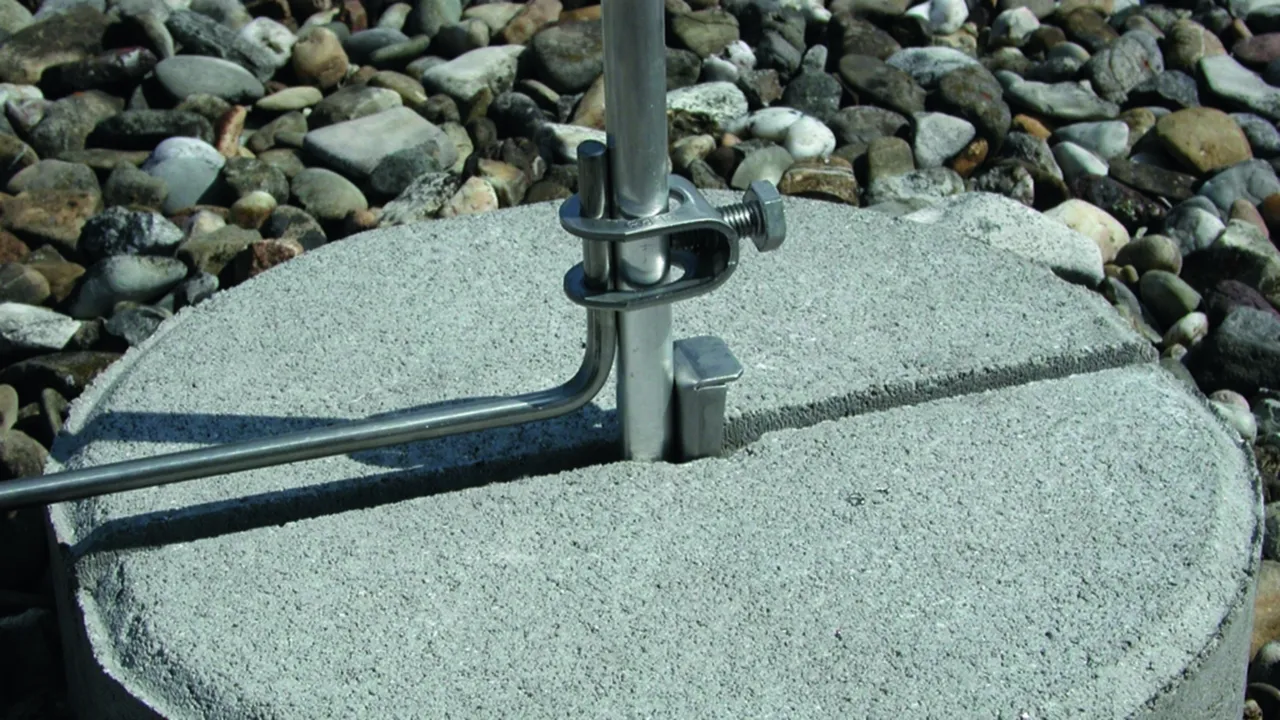

For connecting air-termination rods to conductors, for longitudinal connection of all conductor materials.
Cross connection (cross arrangement) only St/tZn and StSt.

2 产品

货号 380020 FSK 8.10 16 SKM10X25 STTZN

全球贸易项目代码 4013364066373, 海关HS编码: 85359000, 总重: 88.00 g, 包装单位: 50.00 pc(s)


附加信息

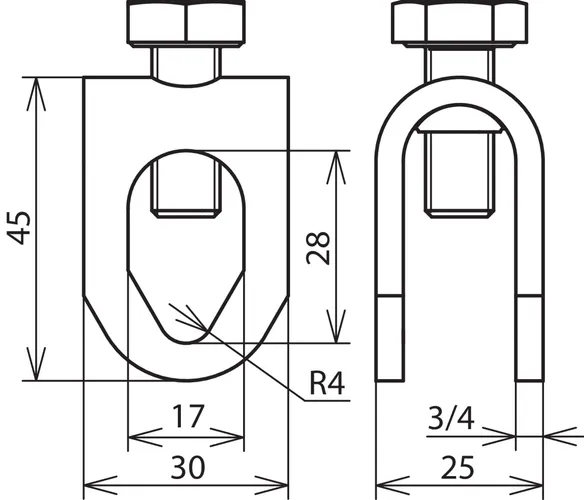

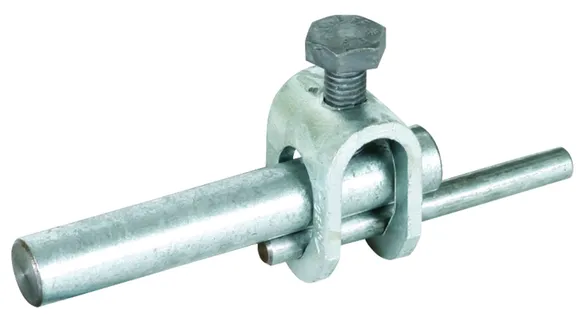

Rod clamp, St/tZn
Rod clamp for connecting air-termination rods to conductors.
For longitudinal connection, suitable for all conductor
materials.
For cross connection (cross arrangement), only
suitable for St/tZn and StSt.
Material of clamp: St/tZn
Clamping range Rd / Rd: 8-10 / 16 mm
Standard: EN 62561-1

Brand: DEHN
Type: FSK 8.10 16 SKM10X25 STTZN
Part No.: 380020
or equivalent.

认证



技术参数

Material of clamp St/tZn
Clamping range Rd / Rd 8-10 / 16 mm
Standard EN 62561-1
*) For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品380020加入购物车。

进入网上商店

货号 380029 FSK 8.10 16 SKM10X25 V2A

全球贸易项目代码 4013364066359, 海关HS编码: 85359000, 总重: 72.10 g, 包装单位: 50.00 pc(s)


附加信息

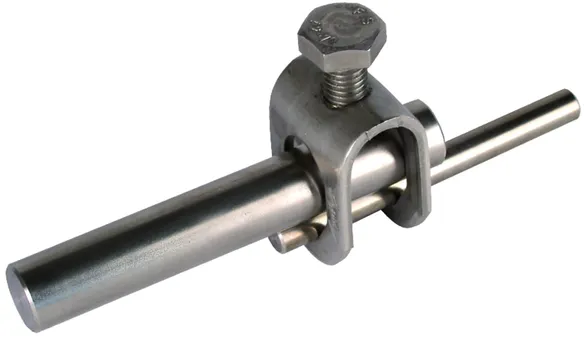

Rod clamp, StSt
Rod clamp for connecting air-termination rods to conductors.
For longitudinal connection, suitable for all conductor
materials.
For cross connection (cross arrangement), only
suitable for St/tZn and StSt.
Material of clamp: StSt
Clamping range Rd / Rd: 8-10 / 16 mm
Standard: EN 62561-1

Brand: DEHN
Type: FSK 8.10 16 SKM10X25 V2A
Part No.: 380029
or equivalent.

认证



技术参数

Material of clamp StSt
Clamping range Rd / Rd 8-10 / 16 mm
Standard EN 62561-1
*) For exact assignment, see test certificate.
