Gutter Clamps

For connecting conductors to gutters of the same or of different materials.

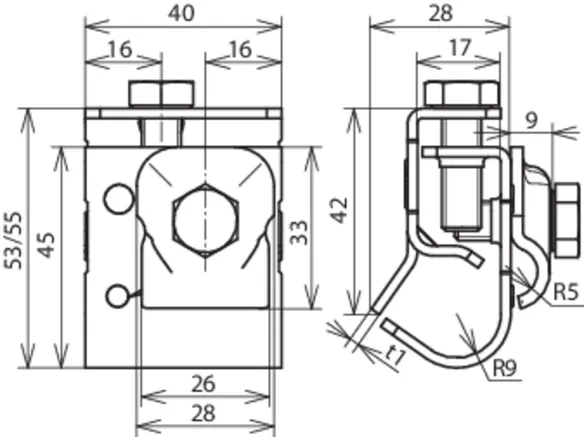

With clamping piece

Longitudinal or cross conductor routing.

4 产品

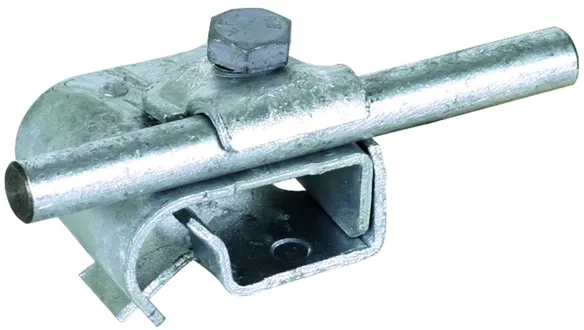

货号 339060 DRK KB 6.10 W16.22 STTZN

全球贸易项目代码 4013364046870, 海关HS编码: 85359000, 总重: 137.40 g, 包装单位: 25.00 pc(s)


附加信息

Gutter clamp with clamping piece, St/tZn
Gutter clamp for connecting conductors to gutters
Clamping range bead : 16-22 mm
Material of gutter clamp: St/tZn
Clamping range Rd: 6-10 mm
Width / material thickness: 40 mm
Standard: EN 62561-1

Brand: DEHN
Type: DRK KB 6.10 W16.22 STTZN
Part No.: 339060
or equivalent.

认证



技术参数

Clamping range bead 16-22 mm
Material of gutter clamp St/tZn
Clamping range Rd 6-10 mm
Material of conductor clamp St/tZn
Width / material thickness 40 mm
Material of screw St/tZn
Standard EN 62561-1
*) See test certificate for exact classification.

.产品已加入收藏夹。

进入收藏夹

商品339060加入购物车。

进入网上商店

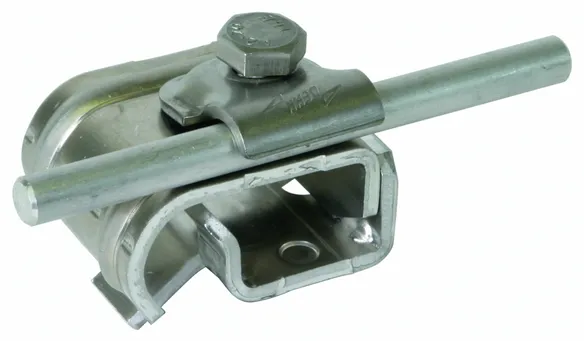

货号 339061 DRK KB 6.10 W16.22 AL

全球贸易项目代码 4013364127395, 海关HS编码: 85359000, 总重: 86.90 g, 包装单位: 25.00 pc(s)


附加信息

Gutter clamp with clamping piece, Al
Gutter clamp for connecting conductors to gutters
Clamping range bead : 16-22 mm
Material of gutter clamp: Al
Clamping range Rd: 6-10 mm
Width / material thickness: 40 / 3 mm
Standard: EN 62561-1

Brand: DEHN
Type: DRK KB 6.10 W16.22 AL
Part No.: 339061
or equivalent.



技术参数

Clamping range bead 16-22 mm
Material of gutter clamp Al
Clamping range Rd 6-10 mm
Material of conductor clamp Al
Width / material thickness 40 / 3 mm
Material of screw StSt
Standard EN 62561-1
*) See test certificate for exact classification.

.产品已加入收藏夹。

进入收藏夹

商品339061加入购物车。

进入网上商店

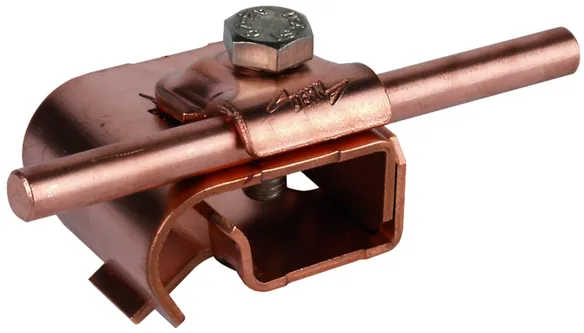

货号 339067 DRK KB 6.10 W16.22 CU

全球贸易项目代码 4013364046887, 海关HS编码: 85359000, 总重: 140.10 g, 包装单位: 25.00 pc(s)

前代产品


附加信息

Gutter clamp with clamping piece, Cu
Gutter clamp for connecting conductors to gutters
Clamping range bead : 16-22 mm
Material of gutter clamp: Cu
Clamping range Rd: 6-10 mm
Width / material thickness: 40 / 2 mm
Standard: EN 62561-1

Brand: DEHN
Type: DRK KB 6.10 W16.22 CU
Part No.: 339067
or equivalent.

认证



技术参数

Clamping range bead 16-22 mm
Material of gutter clamp Cu
Clamping range Rd 6-10 mm
Material of conductor clamp Cu
Width / material thickness 40 / 2 mm
Material of screw StSt
Standard EN 62561-1
*) See test certificate for exact classification.

.产品已加入收藏夹。

进入收藏夹

商品339067加入购物车。

进入网上商店

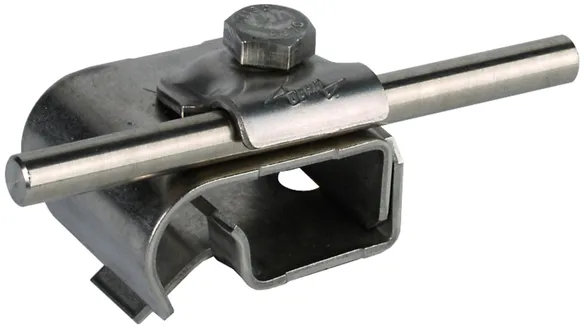

货号 339069 DRK KB 6.10 W16.22 V2A

全球贸易项目代码 4013364079960, 海关HS编码: 85359000, 总重: 126.00 g, 包装单位: 25.00 pc(s)

前代产品


附加信息

Gutter clamp with clamping piece, StSt
Gutter clamp for connecting conductors to gutters
Clamping range bead : 16-22 mm
Material of gutter clamp: StSt
Clamping range Rd: 6-10 mm
Width / material thickness: 40 / 2 mm
Standard: EN 62561-1

Brand: DEHN
Type: DRK KB 6.10 W16.22 V2A
Part No.: 339069
or equivalent.

认证



技术参数

Clamping range bead 16-22 mm
Material of gutter clamp StSt
Clamping range Rd 6-10 mm
Material of conductor clamp StSt
Width / material thickness 40 / 2 mm
Material of screw StSt
Standard EN 62561-1
*) See test certificate for exact classification.

.产品已加入收藏夹。

进入收藏夹

商品339069加入购物车。

进入网上商店

With double clamp

Longitudinal or cross conductor routing.

4 产品

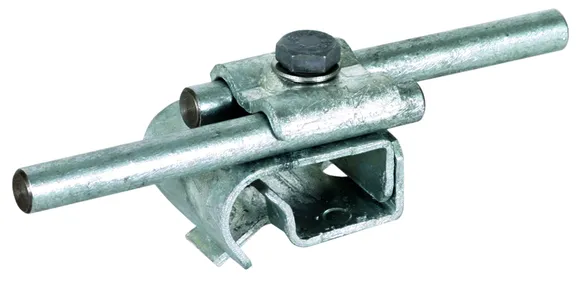

货号 339050 DRK DUL 8.10 W16.22 STTZN

全球贸易项目代码 4013364096257, 海关HS编码: 85359000, 总重: 142.00 g, 包装单位: 25.00 pc(s)


附加信息

Gutter clamp with double clamp, St/tZn
Gutter clamp for connecting conductors to gutters
Clamping range bead : 16-22 mm
Material of gutter clamp: St/tZn
Clamping range Rd: 8-10 mm
Width / material thickness: 40 / 2 mm
Standard: EN 62561-1

Brand: DEHN
Type: DRK DUL 8.10 W16.22 STTZN
Part No.: 339050
or equivalent.

认证



技术参数

Clamping range bead 16-22 mm
Material of gutter clamp St/tZn
Clamping range Rd 8-10 mm
Material of conductor clamp St/tZn
Width / material thickness 40 / 2 mm
Material of screw St/tZn
Standard EN 62561-1
*) See test certificate for exact classification.

.产品已加入收藏夹。

进入收藏夹

商品339050加入购物车。

进入网上商店

货号 339051 DRK DUL 8.10 W16.22 AL

全球贸易项目代码 4013364127388, 海关HS编码: 85359000, 总重: 98.70 g, 包装单位: 25.00 pc(s)


附加信息

Gutter clamp with double clamp, Al
Gutter clamp for connecting conductors to gutters
Clamping range bead : 16-22 mm
Material of gutter clamp: Al
Clamping range Rd: 8-10 mm
Width / material thickness: 40 / 3 mm
Standard: EN 62561-1

Brand: DEHN
Type: DRK DUL 8.10 W16.22 AL
Part No.: 339051
or equivalent.



技术参数

Clamping range bead 16-22 mm
Material of gutter clamp Al
Clamping range Rd 8-10 mm
Material of conductor clamp StSt
Width / material thickness 40 / 3 mm
Material of screw StSt
Standard EN 62561-1
*) See test certificate for exact classification.

.产品已加入收藏夹。

进入收藏夹

商品339051加入购物车。

进入网上商店

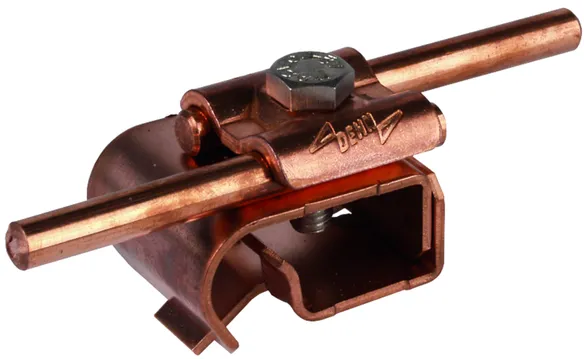

货号 339057 DRK DUL 8.10 W16.22 CU

全球贸易项目代码 4013364096332, 海关HS编码: 85359000, 总重: 154.00 g, 包装单位: 25.00 pc(s)

前代产品


附加信息

Gutter clamp with double clamp, Cu
Gutter clamp for connecting conductors to gutters
Clamping range bead : 16-22 mm
Material of gutter clamp: Cu
Clamping range Rd: 8-10 mm
Width / material thickness: 40 / 2 mm
Standard: EN 62561-1

Brand: DEHN
Type: DRK DUL 8.10 W16.22 CU
Part No.: 339057
or equivalent.

认证



技术参数

Clamping range bead 16-22 mm
Material of gutter clamp Cu
Clamping range Rd 8-10 mm
Material of conductor clamp Cu
Width / material thickness 40 / 2 mm
Material of screw StSt
Standard EN 62561-1
*) See test certificate for exact classification.

.产品已加入收藏夹。

进入收藏夹

商品339057加入购物车。

进入网上商店

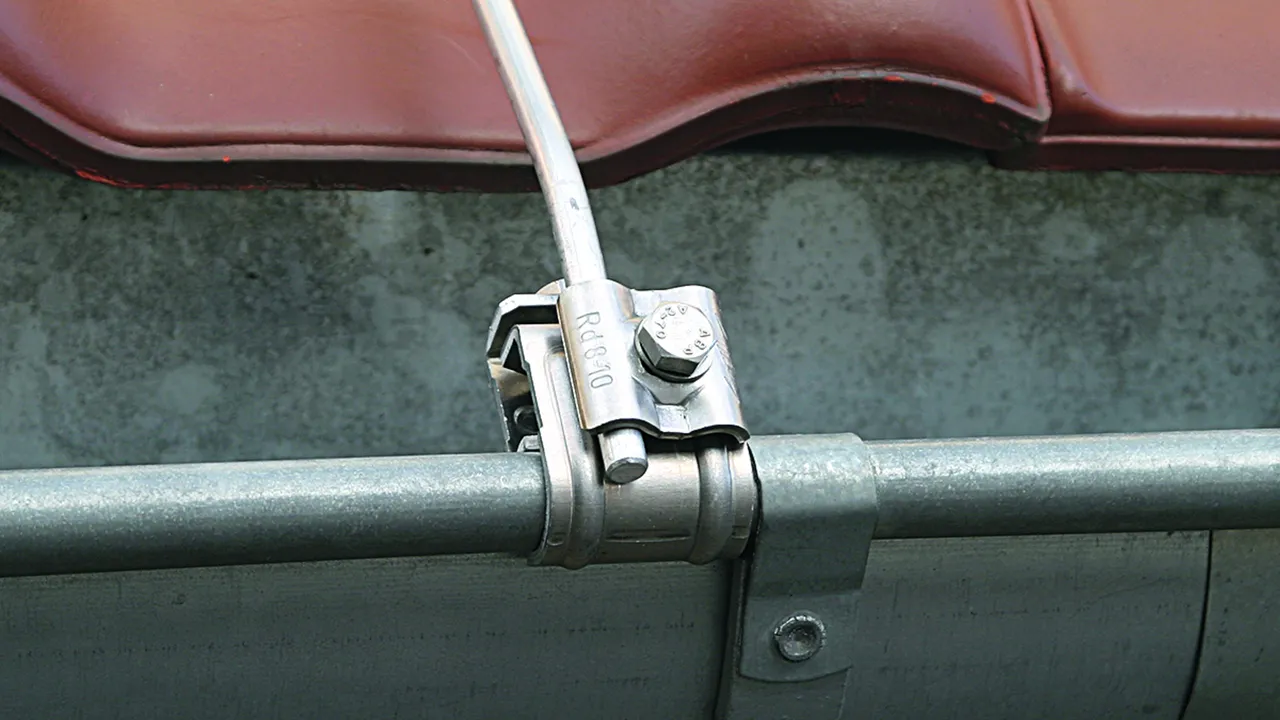

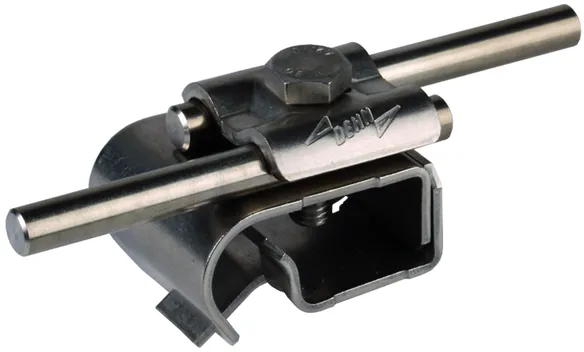

货号 339059 DRK DUL 8.10 W16.22 V2A

全球贸易项目代码 4013364096301, 海关HS编码: 85359000, 总重: 136.00 g, 包装单位: 25.00 pc(s)

前代产品


附加信息

Gutter clamp with double clamp, StSt
Gutter clamp for connecting conductors to gutters
Clamping range bead : 16-22 mm
Material of gutter clamp: StSt
Clamping range Rd: 8-10 mm
Width / material thickness: 40 / 2 mm
Standard: EN 62561-1

Brand: DEHN
Type: DRK DUL 8.10 W16.22 V2A
Part No.: 339059
or equivalent.

认证



技术参数

Clamping range bead 16-22 mm
Material of gutter clamp StSt
Clamping range Rd 8-10 mm
Material of conductor clamp StSt
Width / material thickness 40 / 2 mm
Material of screw StSt
Standard EN 62561-1
*) See test certificate for exact classification.

.产品已加入收藏夹。

进入收藏夹

商品339059加入购物车。

进入网上商店

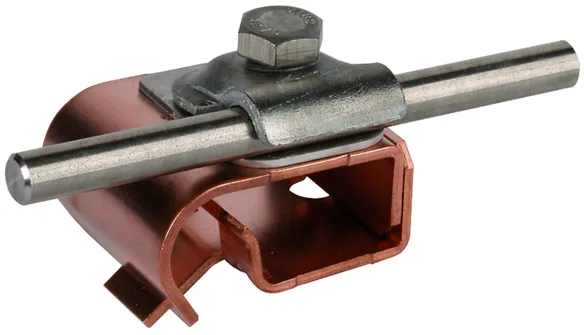

Bimetallic, for gutters (Cu), with clamping piece (St/tZn) and intermediate plate (Cupal)

1 产品

货号 339167 ZMDRK KB 6.10 W16.22 CU STTZN

全球贸易项目代码 4013364034426, 海关HS编码: 85359000, 总重: 144.00 g, 包装单位: 1.00 pc(s)


附加信息

Bimetallic gutter clamp
Bimetallic gutter clamp
For connecting conductors to gutters made of
different materials
Clamping range bead : 16-22 mm
Material of gutter clamp: Cu / St/tZn
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: ZMDRK KB 6.10 W16.22 CU STTZN
Part No.: 339167
or equivalent.

认证



技术参数

Clamping range bead 16-22 mm
Material of gutter clamp Cu / St/tZn
Clamping range Rd 6-10 mm
Material of screw StSt
Standard EN 62561-1
*) See test certificate for exact classification.

.产品已加入收藏夹。

进入收藏夹

商品339167加入购物车。

进入网上商店

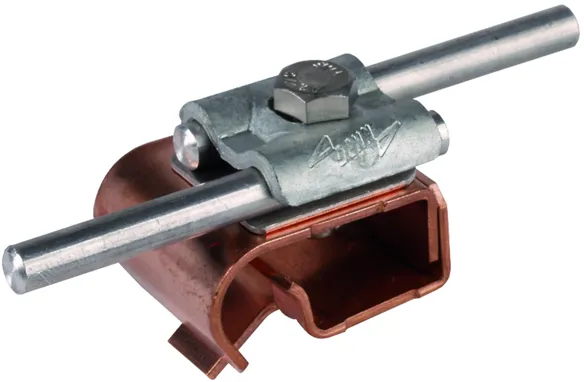

Bimetallic, for gutters (Cu), with double clamp (St/tZn) and intermediate plate (Cupal)

1 产品

货号 339157 ZMDRK DUL 8.10 W16.22 CU STTZN

全球贸易项目代码 4013364096325, 海关HS编码: 85359000, 总重: 146.00 g, 包装单位: 25.00 pc(s)


附加信息

Bimetallic gutter clamps
Bimetallic gutter clamps for connecting conductors to gutters made of
different materials
Clamping range bead : 16-22 mm
Material of gutter clamp: Cu / St/tZn
Clamping range Rd: 8-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: ZMDRK DUL 8.10 W16.22 CU STTZN
Part No.: 339157
or equivalent.

认证



技术参数

Clamping range bead 16-22 mm
Material of gutter clamp Cu / St/tZn
Clamping range Rd 8-10 mm
Material of screw StSt
Standard EN 62561-1
*) See test certificate for exact classification.

.产品已加入收藏夹。

进入收藏夹

商品339157加入购物车。

进入网上商店

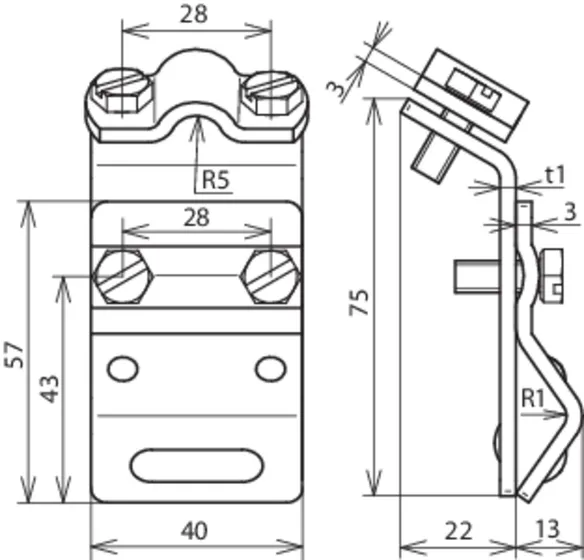

With two-screw clamp, width 40 mm

Longitudinal conductor routing.

4 产品

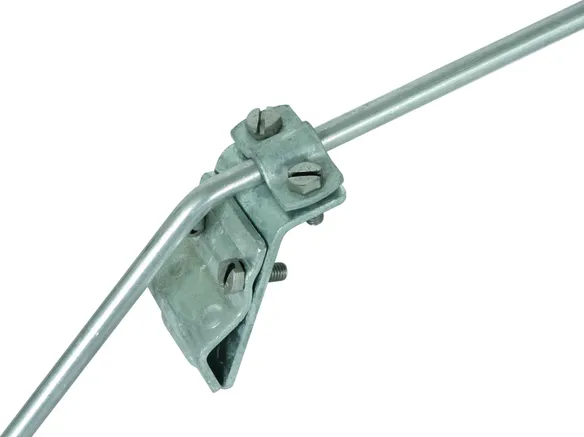

货号 338000 DRK ZS 7.10 W13.25 STTZN

全球贸易项目代码 4013364024847, 海关HS编码: 85359000, 总重: 175.00 g, 包装单位: 25.00 pc(s)


附加信息

Gutter clamp with two-screw clamp, width: 40 mm, St/tZn
Gutter clamp for connecting conductors to gutters
Clamping range bead : 13-25 mm
Material of gutter clamp: St/tZn
Clamping range Rd: 7-10 mm
Width / material thickness: 40 / 3 mm
Standard: EN 62561-1

Brand: DEHN
Type: DRK ZS 7.10 W13.25 STTZN
Part No.: 338000
or equivalent.

认证



技术参数

Clamping range bead 13-25 mm
Material of gutter clamp St/tZn
Clamping range Rd 7-10 mm
Material of conductor clamp St/tZn
Width / material thickness 40 / 3 mm
Material of screw StSt
Standard EN 62561-1
*) See test certificate for exact classification.

.产品已加入收藏夹。

进入收藏夹

商品338000加入购物车。

进入网上商店

货号 338001 DRK ZS 7.10 W13.25 AL

全球贸易项目代码 4013364054172, 海关HS编码: 85359000, 总重: 72.50 g, 包装单位: 25.00 pc(s)


附加信息

Gutter clamp with two-screw clamp, width: 40 mm, Al
Gutter clamp for connecting conductors to gutters
Clamping range bead : 13-25 mm
Material of gutter clamp: Al
Clamping range Rd: 7-10 mm
Width / material thickness: 40 / 3 mm
Standard: EN 62561-1

Brand: DEHN
Type: DRK ZS 7.10 W13.25 AL
Part No.: 338001
or equivalent.

认证



技术参数

Clamping range bead 13-25 mm
Material of gutter clamp Al
Clamping range Rd 7-10 mm
Material of conductor clamp Al
Width / material thickness 40 / 3 mm
Material of screw StSt
Standard EN 62561-1
*) See test certificate for exact classification.

.产品已加入收藏夹。

进入收藏夹

商品338001加入购物车。

进入网上商店

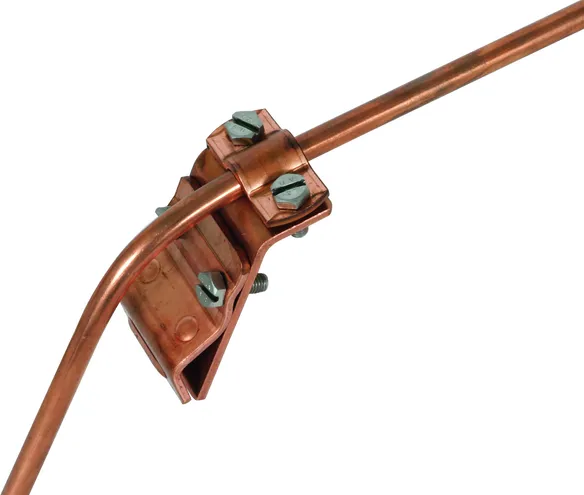

货号 338007 DRK ZS 7.10 W13.25 CU

全球贸易项目代码 4013364024854, 海关HS编码: 85359000, 总重: 194.00 g, 包装单位: 25.00 pc(s)


附加信息

Gutter clamp with two-screw clamp, width: 40 mm, Cu
Gutter clamp for connecting conductors to gutters
Clamping range bead : 13-25 mm
Material of gutter clamp: Cu
Clamping range Rd: 7-10 mm
Width / material thickness: 40 / 3 mm
Standard: EN 62561-1

Brand: DEHN
Type: DRK ZS 7.10 W13.25 CU
Part No.: 338007
or equivalent.

认证



技术参数

Clamping range bead 13-25 mm
Material of gutter clamp Cu
Clamping range Rd 7-10 mm
Material of conductor clamp Cu
Width / material thickness 40 / 3 mm
Material of screw StSt
Standard EN 62561-1
*) See test certificate for exact classification.

.产品已加入收藏夹。

进入收藏夹

商品338007加入购物车。

进入网上商店

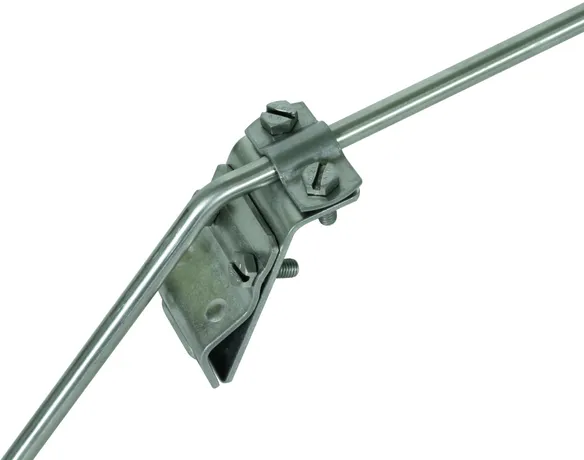

货号 338009 DRK ZS 7.10 W13.25 V2A

全球贸易项目代码 4013364057982, 海关HS编码: 85359000, 总重: 140.00 g, 包装单位: 25.00 pc(s)


附加信息

Gutter clamp with two-screw clamp, width: 40 mm, StSt
Gutter clamp for connecting conductors to gutters
Clamping range bead : 13-25 mm
Material of gutter clamp: StSt
Clamping range Rd: 7-10 mm
Width / material thickness: 40 / 2,5 mm
Standard: EN 62561-1

Brand: DEHN
Type: DRK ZS 7.10 W13.25 V2A
Part No.: 338009
or equivalent.

认证



技术参数

Clamping range bead 13-25 mm
Material of gutter clamp StSt
Clamping range Rd 7-10 mm
Material of conductor clamp StSt
Width / material thickness 40 / 2,5 mm
Material of screw StSt
Standard EN 62561-1
*) See test certificate for exact classification.

.产品已加入收藏夹。

进入收藏夹

商品338009加入购物车。

进入网上商店

With two-screw clamp, width 60 mm

Longitudinal conductor routing.

1 产品

货号 339010 DRK ZS 7.10 W13.25 B60 STTZN

全球贸易项目代码 4013364024823, 海关HS编码: 85359000, 总重: 199.00 g, 包装单位: 25.00 pc(s)


附加信息

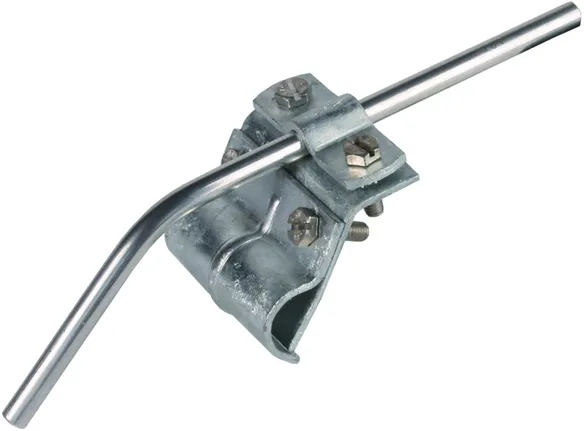

Gutter clamp with two-screw clamp, width: 60 mm, St/tZn
Gutter clamp for connecting conductors to gutters
Clamping range bead : 13-25 mm
Material of gutter clamp: St/tZn
Clamping range Rd: 7-10 mm
Width / material thickness: 60 / 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: DRK ZS 7.10 W13.25 B60 STTZN
Part No.: 339010
or equivalent.

认证



技术参数

Clamping range bead 13-25 mm
Material of gutter clamp St/tZn
Clamping range Rd 7-10 mm
Material of conductor clamp St/tZn
Width / material thickness 60 / 2.5 mm
Material of screw StSt
Standard EN 62561-1
*) See test certificate for exact classification.

.产品已加入收藏夹。

进入收藏夹

商品339010加入购物车。

进入网上商店
返回顶部
