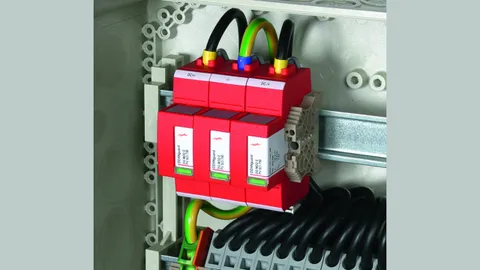

DEHNguard modular E (Y)PV SCI 1500

Prewired modular complete unit for use in photovoltaic systems up to 1500 V consisting of a base part and plug-in protection modules
Combined disconnection and short-circuiting device with safe electrical isolation in the protection module (patented SCI principle)
New design for safe use in PV systems up to 1500 V
Tested to EN 50539-11
Suitable for use in all PV systems in accordance with IEC 60364-7-712

详情

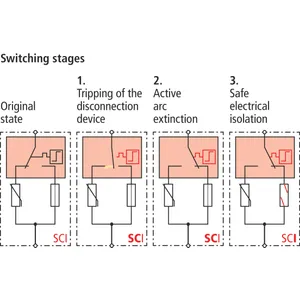

Three-step d.c. switching device (patented SCI principle)

DEHNguard ME YPV SCI 1500 (FM)

Modular multipole surge arrester with three-step d.c. switching device for PV systems.

2 产品

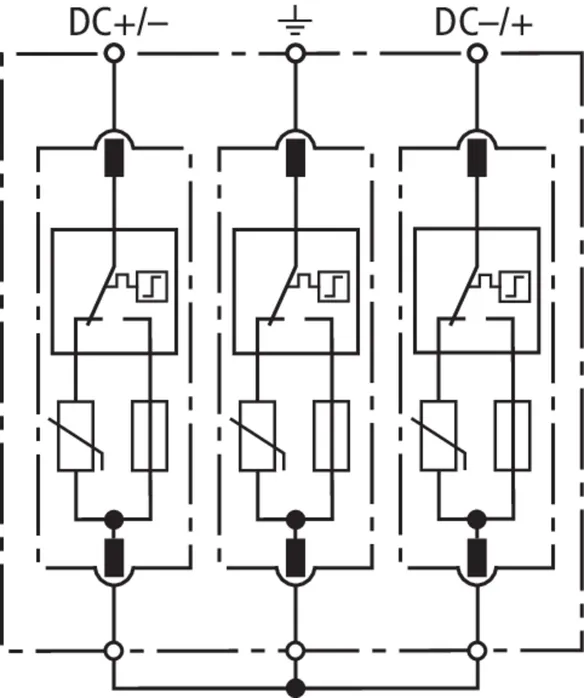

货号 952520 DG ME YPV SCI 1500

全球贸易项目代码 4013364149069, 海关HS编码: 85354000, 总重: 535.70 g, 包装单位: 1.00 pc(s)


附加信息

CAD文件

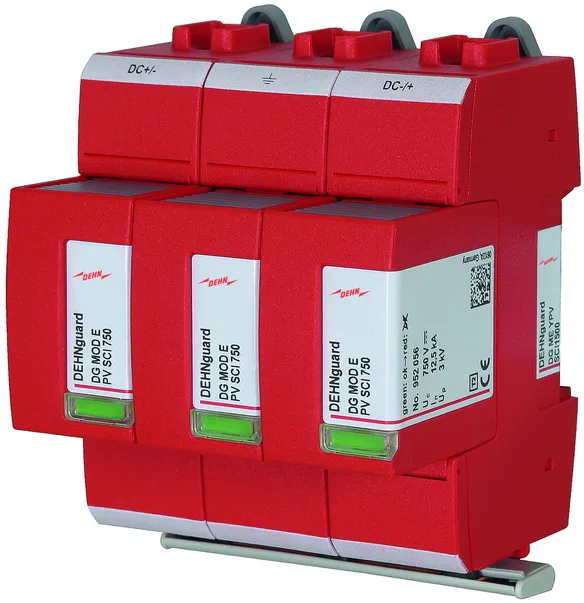

DEHNguard ME YPV SCI 1500 surge arrester
Modular and pluggable multipole arrester
for use in photovoltaic systems up to 1500 V d.c.
with three-step d.c. switching device, width: 4.5 modules
Fault indication
Type 2 SPD according to EN 50539-11
For use in accordance with IEC 60364-7-712
Safe electrical isolation in the protection module
Max. PV voltage: <= 1500 V d.c.
Total discharge current: 25 kA
Voltage protection level: <= 6 kV
Short-circuit current rating Iscpv: 10 kA

Brand: DEHN
Type: DG ME YPV SCI 1500
Part No.: 952520
or equivalent.

认证

技术参数

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. PV voltage (U_CPV )	1500 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	25 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 6 kV
Approvals	KEMA, UL

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. PV voltage (U_CPV )	1500 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	25 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 6 kV
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4.5 module(s), DIN 43880
Approvals	KEMA, UL

.产品已加入收藏夹。

进入收藏夹

商品952520加入购物车。

进入网上商店

货号 952525 DG ME YPV SCI1500 FM

全球贸易项目代码 4013364149076, 海关HS编码: 85354000, 总重: 556.00 g, 包装单位: 1.00 pc(s)


附加信息

CAD文件

DEHNguard ME YPV SCI 1500 FM surge arrester
Modular and pluggable multipole arrester
for use in photovoltaic systems up to 1500 V d.c.
with three-step d.c. switching device, width: 4.5 modules
with remote signalling contact
Fault indication
Type 2 SPD according to EN 50539-11
For use in accordance with IEC 60364-7-712
Safe electrical isolation in the protection module
Max. PV voltage: <= 1500 V d.c.
Total discharge current: 25 kA
Voltage protection level: <= 6 kV
Short-circuit current rating Iscpv: 10 kA

Brand: DEHN
Type: DG ME YPV SCI1500 FM
Part No.: 952525
or equivalent.

认证

技术参数

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. PV voltage (U_CPV )	1500 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	25 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 6 kV
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. PV voltage (U_CPV )	1500 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	25 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	12.5 kA
Voltage protection level (U_P )	≤ 6 kV
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4.5 module(s), DIN 43880
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A, 125 V / 0.2 A, 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

.产品已加入收藏夹。

进入收藏夹

商品952525加入购物车。

进入网上商店
