Seam Clamps

For connecting conductors with seams of the same or of different materials.

With clamping piece

Longitudinal or cross conductor routing.

4 产品

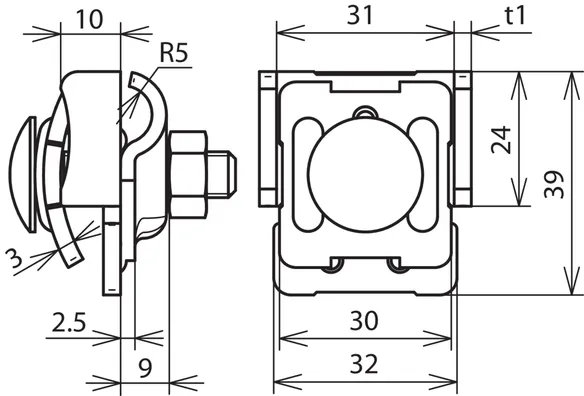

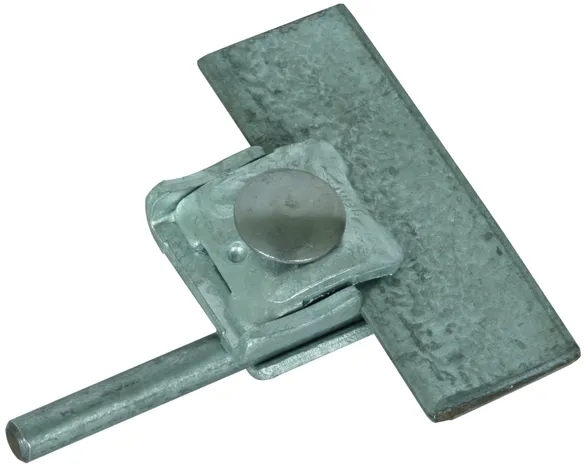

货号 365030 FK KB 6.10 KBF0.7 8 STTZN

全球贸易项目代码 4013364046894, 海关HS编码: 85359000, 总重: 102.00 g, 包装单位: 50.00 pc(s)


附加信息

Seam clamp with clamping piece, St/tZn
Seam clamp for connecting conductors to seams
Clamping range of seam: 0.7-8 mm
Material of clamp: St/tZn
Material thickness : 3 mm
Standard: EN 62561-1

Brand: DEHN
Type: FK KB 6.10 KBF0.7 8 STTZN
Part No.: 365030
or equivalent.

认证



技术参数

Clamping range of seam 0.7-8 mm
Material of clamp St/tZn
Clamping range Rd 6-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品365030加入购物车。

进入网上商店

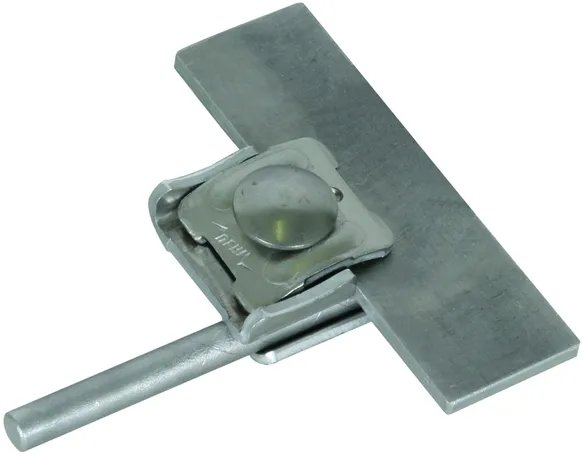

货号 365031 FK KB 6.10 KBF0.7 8 AL

全球贸易项目代码 4013364055438, 海关HS编码: 85359000, 总重: 50.60 g, 包装单位: 50.00 pc(s)


附加信息

Seam clamp with clamping piece, Al
Seam clamp for connecting conductors to seams
Clamping range of seam: 0.7-8 mm
Material of clamp: Al
Material thickness : 3 mm
Standard: EN 62561-1

Brand: DEHN
Type: FK KB 6.10 KBF0.7 8 AL
Part No.: 365031
or equivalent.

认证



技术参数

Clamping range of seam 0.7-8 mm
Material of clamp Al
Clamping range Rd 6-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品365031加入购物车。

进入网上商店

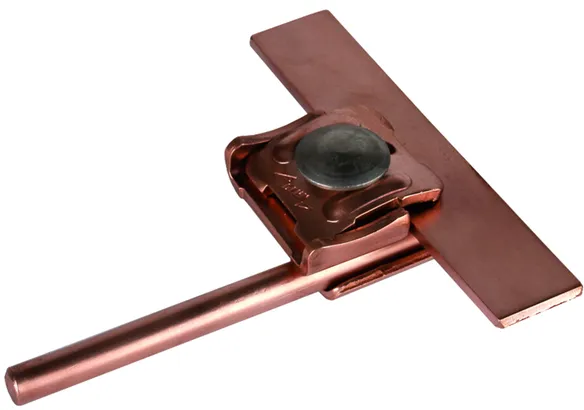

货号 365037 FK KB 6.10 KBF0.7 8 CU

全球贸易项目代码 4013364046900, 海关HS编码: 85359000, 总重: 105.00 g, 包装单位: 50.00 pc(s)


附加信息

Seam clamp with clamping piece, Cu
Seam clamp for connecting conductors to seams
Clamping range of seam: 0.7-8 mm
Material of clamp: Cu
Material thickness : 3 mm
Standard: EN 62561-1

Brand: DEHN
Type: FK KB 6.10 KBF0.7 8 CU
Part No.: 365037
or equivalent.

认证



技术参数

Clamping range of seam 0.7-8 mm
Material of clamp Cu
Clamping range Rd 6-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品365037加入购物车。

进入网上商店

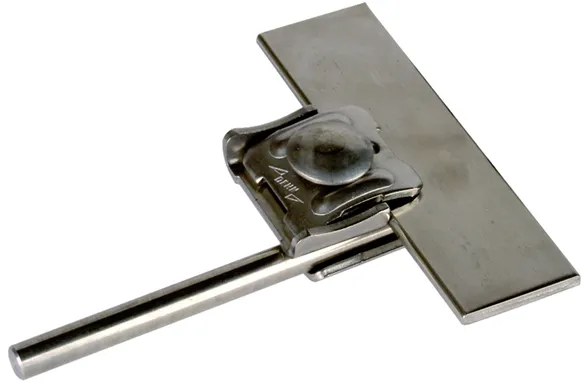

货号 365039 FK KB 6.10 KBF0.7 8 V2A

全球贸易项目代码 4013364057777, 海关HS编码: 85359000, 总重: 90.90 g, 包装单位: 50.00 pc(s)


附加信息

Seam clamp with clamping piece, StSt
Seam clamp for connecting conductors to seams
Clamping range of seam: 0.7-8 mm
Material of clamp: StSt
Material thickness : 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: FK KB 6.10 KBF0.7 8 V2A
Part No.: 365039
or equivalent.

认证



技术参数

Clamping range of seam 0.7-8 mm
Material of clamp StSt
Clamping range Rd 6-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品365039加入购物车。

进入网上商店

With double clamp

Longitudinal or cross conductor routing.

4 产品

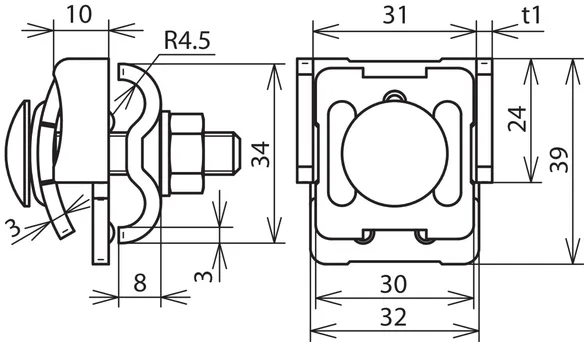

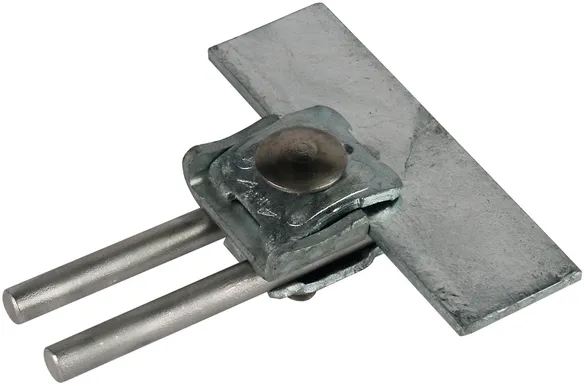

货号 365010 FK DUL 8.10 KBF0.7 8 STTZN

全球贸易项目代码 4013364096318, 海关HS编码: 85359000, 总重: 109.00 g, 包装单位: 50.00 pc(s)


附加信息

Seam clamp with double clamp, St/tZn
Seam clamp for connecting conductors to seams
Clamping range of seam: 0.7-8 mm
Material of clamp: St/tZn
Material thickness : 3 mm
Standard: EN 62561-1

Brand: DEHN
Type: FK DUL 8.10 KBF0.7 8 STTZN
Part No.: 365010
or equivalent.

认证



技术参数

Clamping range of seam 0.7-8 mm
Material of clamp St/tZn
Clamping range Rd 8-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品365010加入购物车。

进入网上商店

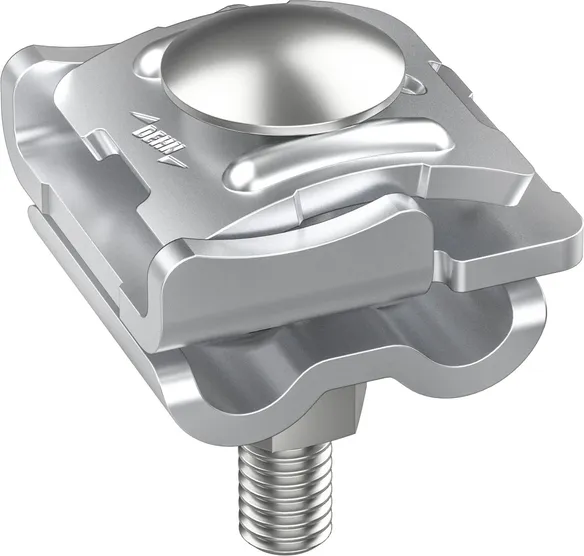

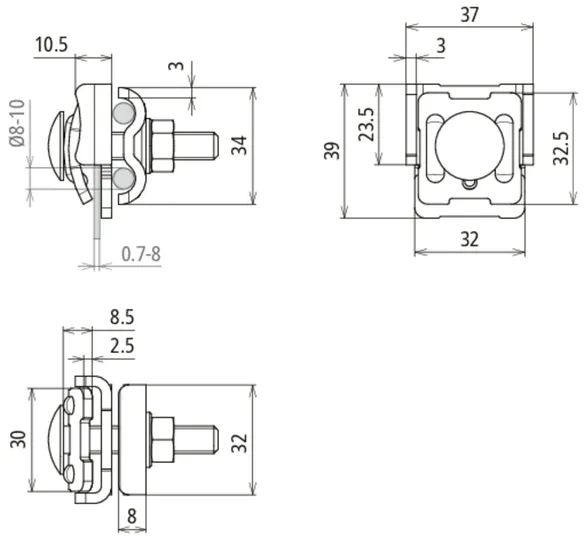

货号 365011 FK DUL 6.10 KBF0.7 8 AL

全球贸易项目代码 4013364528826, 海关HS编码: 85359000, 总重: 54.32 g, 包装单位: 50.00 pc(s)


附加信息

Seam clamp with double clamp, aluminium
Seam clamps for connecting conductors with seams
Clamping range of seam: 0.7-8 mm
Material of clamp: Al
Material thickness : 3 mm
Standard: EN 62561-1

Brand: DEHN
Type: FK DUL 6.10 KBF0.7 8 AL
Part No.: 365011
or equivalent.

认证



技术参数

Clamping range of seam 0.7-8 mm
Material of clamp Al
Clamping range Rd 8-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品365011加入购物车。

进入网上商店

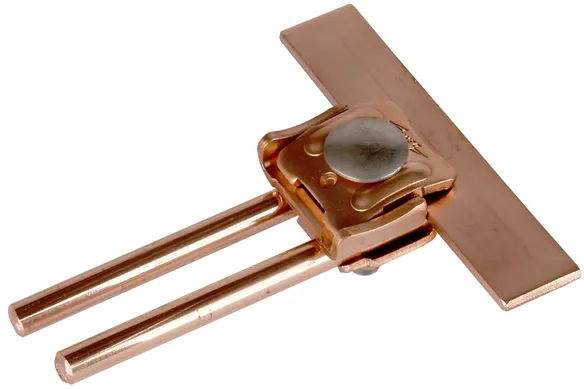

货号 365017 FK DUL 8.10 KBF0.7 8 CU

全球贸易项目代码 4013364096349, 海关HS编码: 85359000, 总重: 107.20 g, 包装单位: 50.00 pc(s)


附加信息

Seam clamp with double clamp, Cu
Seam clamp for connecting conductors to seams
Clamping range of seam: 0.7-8 mm
Material of clamp: Cu
Material thickness : 3 mm
Standard: EN 62561-1

Brand: DEHN
Type: FK DUL 8.10 KBF0.7 8 CU
Part No.: 365017
or equivalent.

认证



技术参数

Clamping range of seam 0.7-8 mm
Material of clamp Cu
Clamping range Rd 8-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品365017加入购物车。

进入网上商店

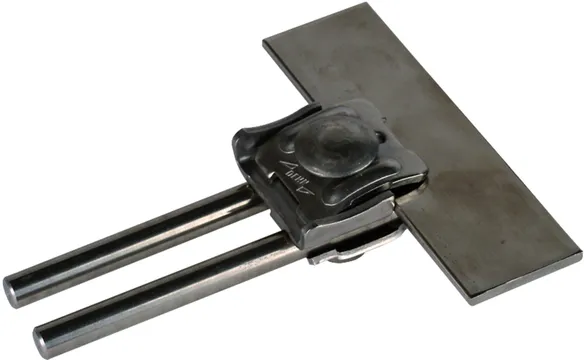

货号 365019 FK DUL 6.10 KBF0.7 8 V2A

全球贸易项目代码 4013364096295, 海关HS编码: 85359000, 总重: 85.00 g, 包装单位: 50.00 pc(s)


附加信息

Seam clamp with double clamp, StSt
Seam clamp for connecting conductors to seams
Clamping range of seam: 0.7-8 mm
Material of clamp: StSt
Material thickness : 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: FK DUL 6.10 KBF0.7 8 V2A
Part No.: 365019
or equivalent.

认证



技术参数

Clamping range of seam 0.7-8 mm
Material of clamp StSt
Clamping range Rd 8-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品365019加入购物车。

进入网上商店

With clamping piece and double clamp

1 产品

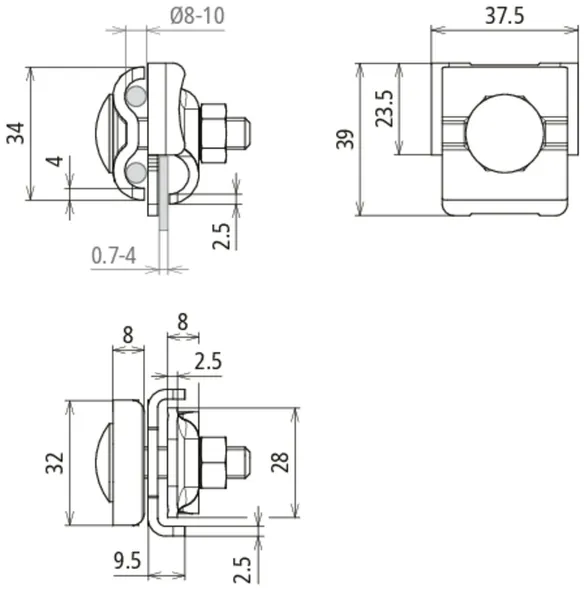

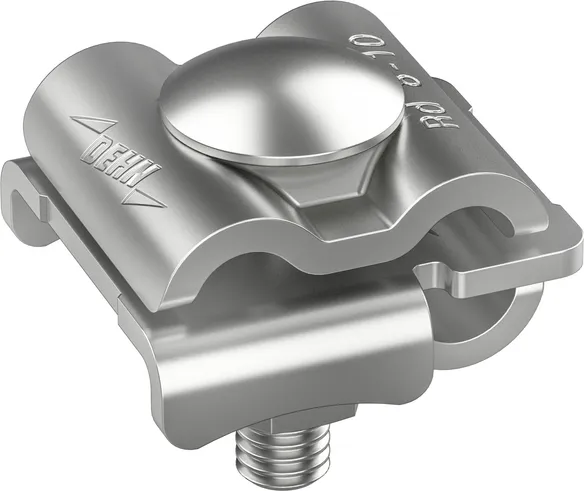

货号 365018 FK KB DUL 6.10 KBF0.7 4 V2A

全球贸易项目代码 4013364535428, 海关HS编码: 85359000, 总重: 108.00 g, 包装单位: 50.00 pc(s)


附加信息

Seam clamp with clamping piece and double clamp, stainless steel
Seam clamps for connecting conductors with seams
Clamping range of seam: 0.7-4 mm
Material of clamp: StSt
Material thickness : 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: FK KB DUL 6.10 KBF0.7 4 V2A
Part No.: 365018
or equivalent.

认证



技术参数

Clamping range of seam 0.7-4 mm
Material of clamp StSt
Clamping range Rd 8-10 mm
Standard EN 62561-1

.产品已加入收藏夹。

进入收藏夹

商品365018加入购物车。

进入网上商店

With two-screw clamp

Longitudinal or cross conductor routing.

2 产品

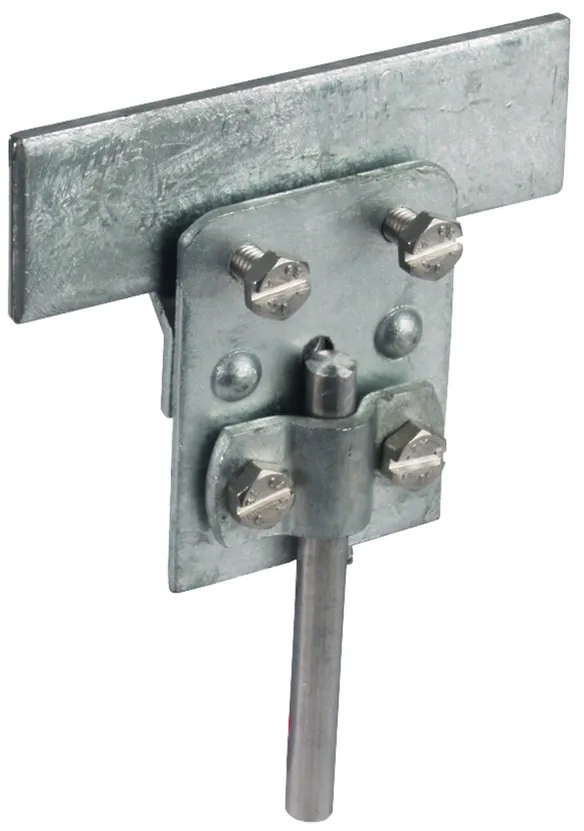

货号 251002 FK ZS 7.10 KF0.7 8 STTZN

全球贸易项目代码 4013364095779, 海关HS编码: 85359000, 总重: 137.40 g, 包装单位: 50.00 pc(s)


附加信息

Seam clamp with two-screw clamp, St/tZn
Seam clamp for connecting conductors to seams
Clamping range of seam: 0.7-5 mm
Material of clamp: St/tZn
Material thickness : 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: FK ZS 7.10 KF0.7 8 STTZN
Part No.: 251002
or equivalent.

认证



技术参数

Clamping range of seam 0.7-5 mm
Material of clamp St/tZn
Clamping range Rd 7-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品251002加入购物车。

进入网上商店

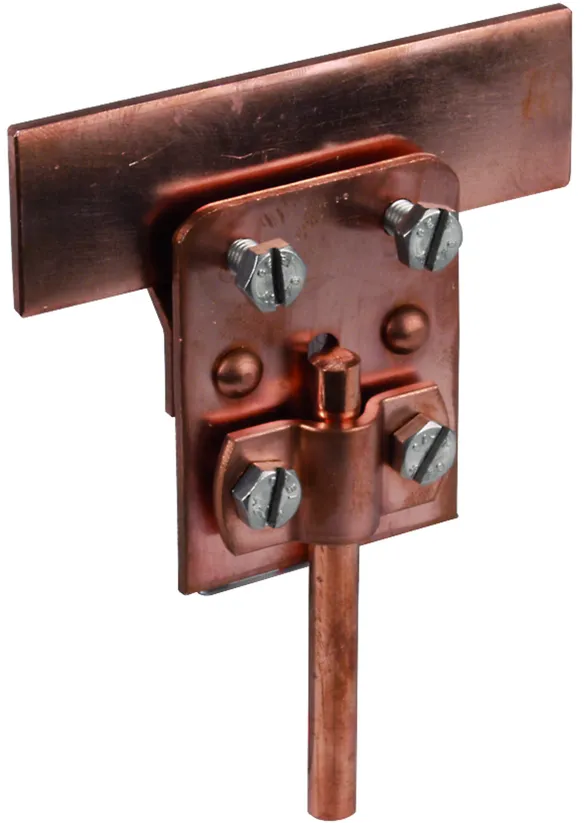

货号 251027 FK ZS 7.10 KF0.7 8 CU

全球贸易项目代码 4013364096394, 海关HS编码: 85359000, 总重: 150.40 g, 包装单位: 50.00 pc(s)


附加信息

Seam clamp with two-screw clamp, Cu
Seam clamp for connecting conductors to seams
Clamping range of seam: 0.7-5 mm
Material of clamp: Cu
Material thickness : 2.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: FK ZS 7.10 KF0.7 8 CU
Part No.: 251027
or equivalent.

认证



技术参数

Clamping range of seam 0.7-5 mm
Material of clamp Cu
Clamping range Rd 7-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品251027加入购物车。

进入网上商店

With two-screw clamp, e.g. for standing seams

Longitudinal or cross conductor routing.

2 产品

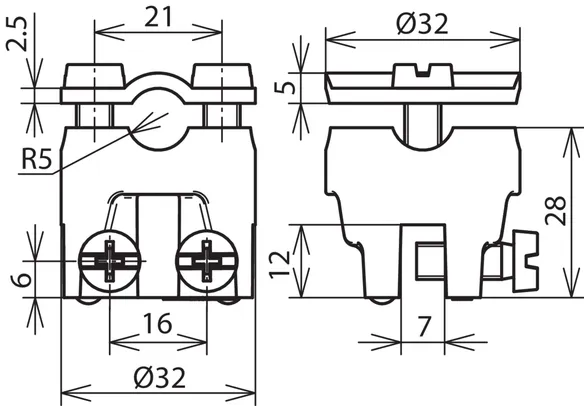

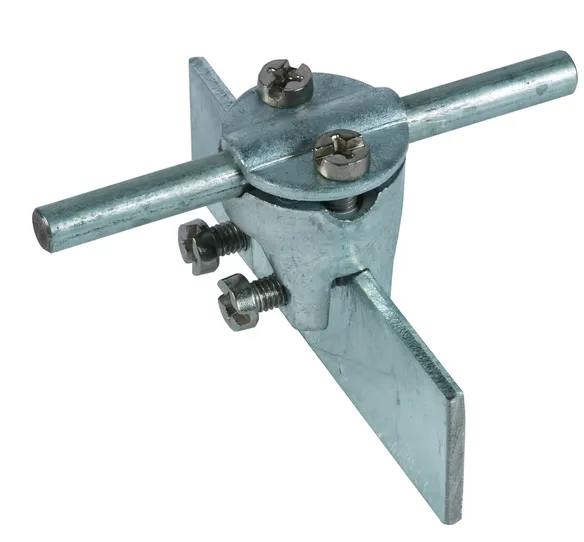

货号 365000 FK ZS 7.10 KBF0.7 6 ZG

全球贸易项目代码 4013364024731, 海关HS编码: 85359000, 总重: 111.00 g, 包装单位: 50.00 pc(s)


附加信息

Seam clamp with two-screw clamp, ZDC
Seam clamp for connecting conductors to seams
Clamping range of seam: 0.7-6 mm
Material of clamp: ZDC
Standard: EN 62561-1

Brand: DEHN
Type: FK ZS 7.10 KBF0.7 6 ZG
Part No.: 365000
or equivalent.

认证



技术参数

Clamping range of seam 0.7-6 mm
Material of clamp ZDC
Clamping range Rd 7-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品365000加入购物车。

进入网上商店

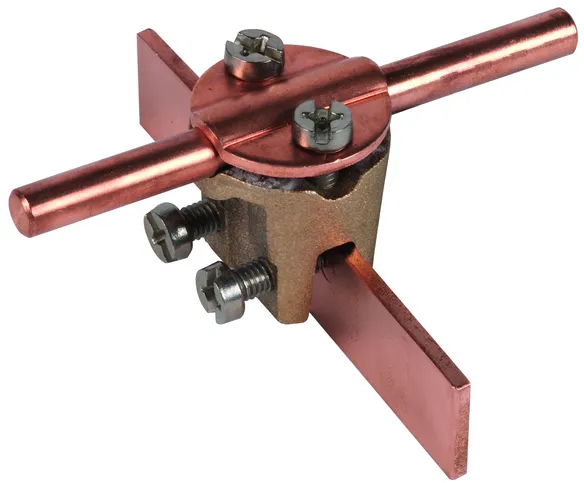

货号 365007 FK ZS 7.10 KBF0.7 6 RG

全球贸易项目代码 4013364024748, 海关HS编码: 85359000, 总重: 133.40 g, 包装单位: 50.00 pc(s)


附加信息

Seam clamp with two-screw clamp, RCB
Seam clamp for connecting conductors to seams
Clamping range of seam: 0.7-6 mm
Material of clamp: high copper alloy
Standard: EN 62561-1

Brand: DEHN
Type: FK ZS 7.10 KBF0.7 6 RG
Part No.: 365007
or equivalent.

认证



技术参数

Clamping range of seam 0.7-6 mm
Material of clamp high copper alloy
Clamping range Rd 7-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品365007加入购物车。

进入网上商店

With clamping piece, for hooking under seams

Which are close to a roof or wall surface.
Longitudinal or cross conductor routing.

2 产品

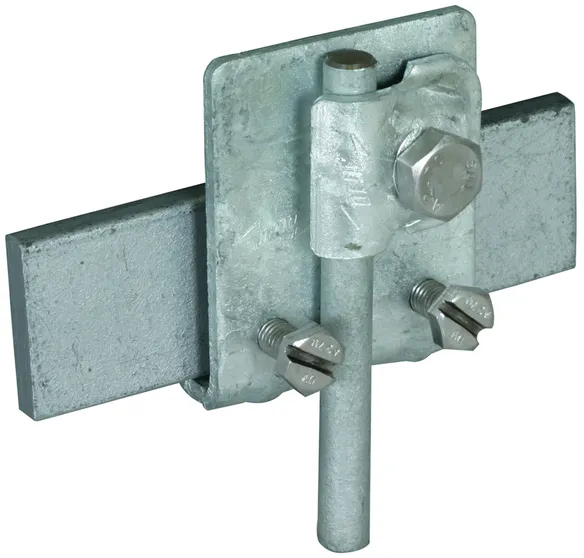

货号 365020 FK KB 6.10 KBF0.7 10 STTZN

全球贸易项目代码 4013364035126, 海关HS编码: 85359000, 总重: 122.40 g, 包装单位: 50.00 pc(s)


附加信息

Seam clamp with clamping piece for hooking under seams, St/tZn
Seam clamp for connecting conductors to seams
Clamping range of seam: 0.7-10 mm
Material of clamp: St/tZn
Material thickness : 3 mm
Standard: EN 62561-1

Brand: DEHN
Type: FK KB 6.10 KBF0.7 10 STTZN
Part No.: 365020
or equivalent.

认证



技术参数

Clamping range of seam 0.7-10 mm
Material of clamp St/tZn
Clamping range Rd 6-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品365020加入购物车。

进入网上商店

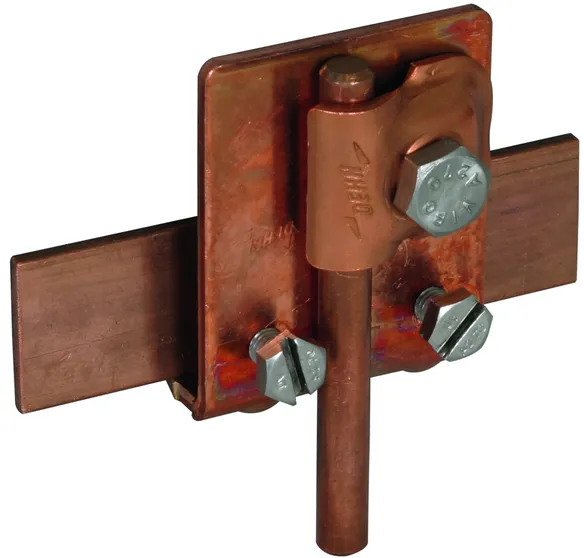

货号 365027 FK KB 6.10 KBF0.7 10 CU

全球贸易项目代码 4013364035133, 海关HS编码: 85359000, 总重: 147.90 g, 包装单位: 50.00 pc(s)


附加信息

Seam clamp with clamping piece for hooking under seams, Cu
Seam clamp for connecting conductors to seams
Clamping range of seam: 0.7-10 mm
Material of clamp: Cu
Material thickness : 3 mm
Standard: EN 62561-1

Brand: DEHN
Type: FK KB 6.10 KBF0.7 10 CU
Part No.: 365027
or equivalent.

认证



技术参数

Clamping range of seam 0.7-10 mm
Material of clamp Cu
Clamping range Rd 6-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品365027加入购物车。

进入网上商店

With two-screw clamp, for hooking under seams

Which are close to a roof or wall surface.
Longitudinal or cross conductor routing.

2 产品

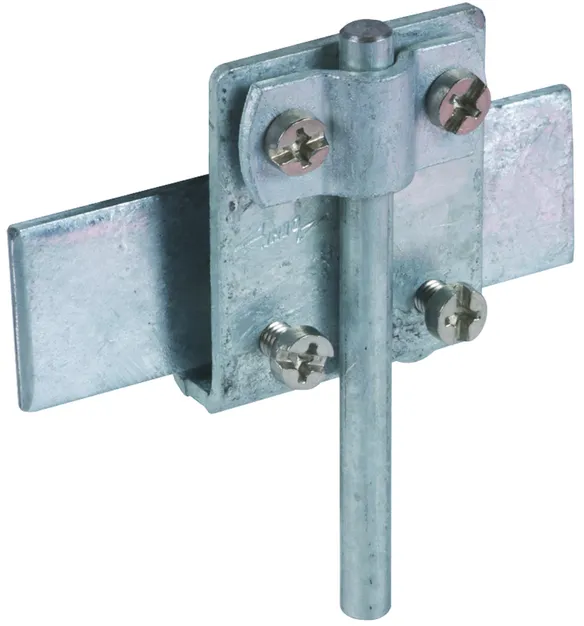

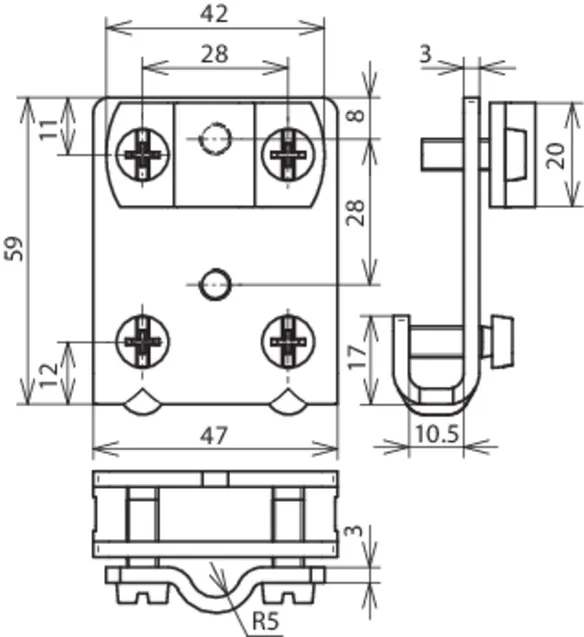

货号 365040 FK ZS 7.10 KBF0.7 10 STTZN

全球贸易项目代码 4013364069053, 海关HS编码: 85359000, 总重: 126.40 g, 包装单位: 50.00 pc(s)


附加信息

Seam clamp with two-screw clamp under hooking at seams, St/tZn
Seam clamp for connecting conductors to seams
Clamping range of seam: 0.7-10 mm
Material of clamp: St/tZn
Material thickness : 3 mm
Standard: EN 62561-1

Brand: DEHN
Type: FK ZS 7.10 KBF0.7 10 STTZN
Part No.: 365040
or equivalent.

认证



技术参数

Clamping range of seam 0.7-10 mm
Material of clamp St/tZn
Clamping range Rd 7-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品365040加入购物车。

进入网上商店

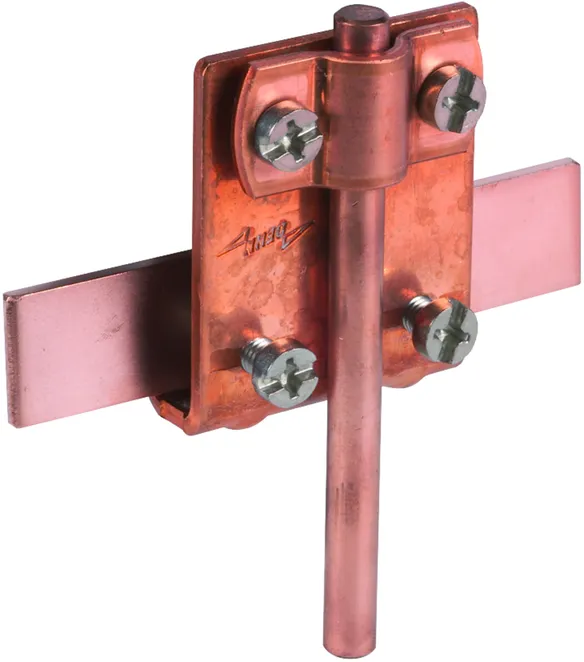

货号 365047 FK ZS 7.10 KBF0.7 10 CU

全球贸易项目代码 4013364069046, 海关HS编码: 85359000, 总重: 141.40 g, 包装单位: 50.00 pc(s)


附加信息

Seam clamp with two-screw clamp under hooking at seams, Cu
Seam clamp for connecting conductors to seams
Clamping range of seam: 0.7-10 mm
Material of clamp: Cu
Material thickness : 3 mm
Standard: EN 62561-1

Brand: DEHN
Type: FK ZS 7.10 KBF0.7 10 CU
Part No.: 365047
or equivalent.

认证



技术参数

Clamping range of seam 0.7-10 mm
Material of clamp Cu
Clamping range Rd 7-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品365047加入购物车。

进入网上商店

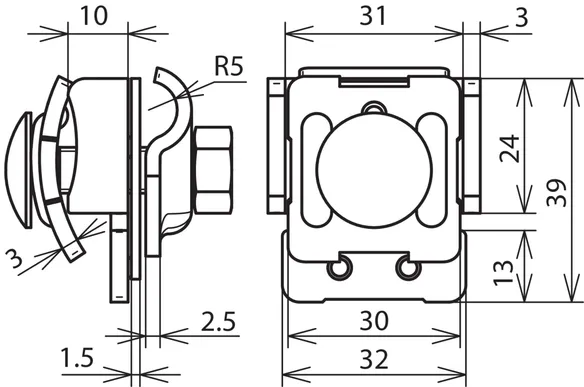

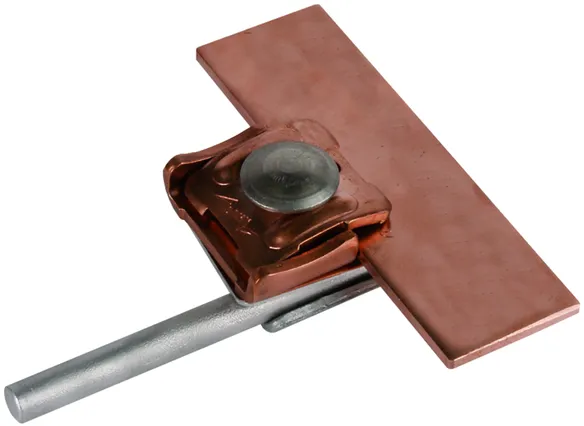

Bimetallic, for Cu seams, with intermediate plate (Cupal)

1 产品

货号 365117 ZMFK KB 6.10 KBF0.7 8 STTZN CU

全球贸易项目代码 4013364035331, 海关HS编码: 85359000, 总重: 116.60 g, 包装单位: 50.00 pc(s)


附加信息

Bimetallic seam clamps with intermediate plate (St/tZn/Cu)
Bimetallic seam clamp
For connecting conductors to seams made
of different materials
Clamping range of seam: 0.7-8 mm
Material of clamp: St/tZn / Cu
Standard: EN 62561-1

Brand: DEHN
Type: ZMFK KB 6.10 KBF0.7 8 STTZN CU
Part No.: 365117
or equivalent.

认证



技术参数

Clamping range of seam 0.7-8 mm
Material of clamp St/tZn / Cu
Clamping range Rd 6-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品365117加入购物车。

进入网上商店

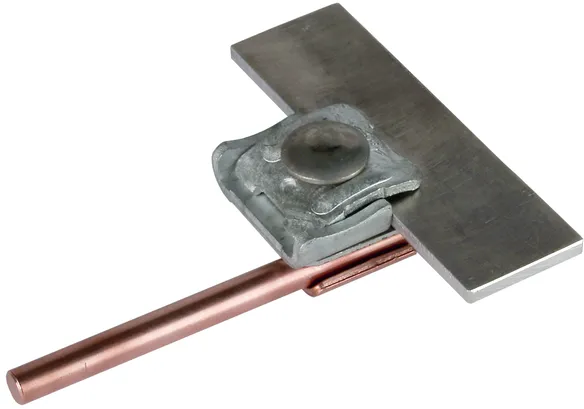

Bimetallic, for St/tZn seams, with intermediate plate (Cupal)

1 产品

货号 365127 ZMFK KB 6.10 KBF0.7 8 CU STTZN

全球贸易项目代码 4013364080317, 海关HS编码: 85359000, 总重: 106.00 g, 包装单位: 1.00 pc(s)


附加信息

Bimetallic seam clamps with intermediate plate (Cu/St/tZn)
Bimetallic seam clamp
For connecting conductors to seams made
of different materials
Clamping range of seam: 0.7-8 mm
Material of clamp: Cu / St/tZn

Brand: DEHN
Type: ZMFK KB 6.10 KBF0.7 8 CU STTZN
Part No.: 365127
or equivalent.



技术参数

Clamping range of seam 0.7-8 mm
Material of clamp Cu / St/tZn
Clamping range Rd 6-10 mm
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品365127加入购物车。

进入网上商店
返回顶部
