货号 377005 AL ZF B11.11 B5.2 6.5 L81 AL

全球贸易项目代码 4013364024908, 海关HS编码: 85359000, 总重: 23.90 g, 包装单位: 50.00 pc(s)


Open PDF

附加信息

CAD文件

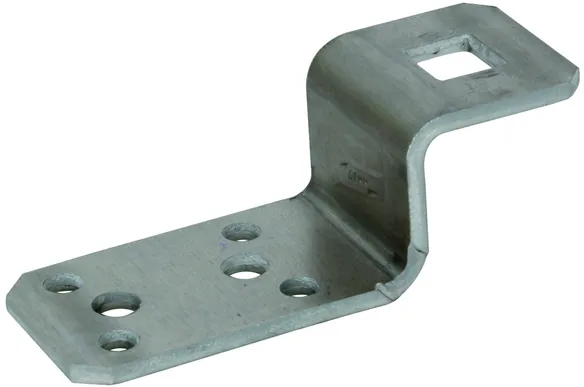

Connection bracket with square hole, Al
Connection bracket for connecting metal cladding using blind rivets or screws
Square hole 11x11 mm (e.g. for KS connectors), longitudinal and cross connection
Material of bracket: Al
Fixing : [4x] Ø5.2 / [2x] Ø6.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: AL ZF B11.11 B5.2 6.5 L81 AL
Part No.: 377005
or equivalent.

认证

技术参数

Material of bracket	Al
Fixing	[4x] Ø5.2 / [2x] Ø6.5 mm
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Material of bracket	Al
Material thickness (t1)	3 mm
Fixing	[4x] Ø5.2 / [2x] Ø6.5 mm
Fixing possibility	blind rivets or drilling screws
Application note	according to EN 62305-3 Suppl. 1 4 rivets Ø5mm, 2 rivets Ø6mm, shall be used to connect materials ≥ 0,5mm thick, or 2 Parker screws StSt Ø6,3mm for materials ≥ 2mm thick.
Connection	lengthwise / crosswise
Connection with	square hole 11x11 mm (KS connector)
Lightning current carrying capability (10/350 µs)	= *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品377005加入购物车。

进入网上商店

货号 377017 AL ZF B11.11 B5.2 6.5 L81 CU

全球贸易项目代码 4013364024915, 海关HS编码: 85359000, 总重: 51.20 g, 包装单位: 50.00 pc(s)


Open PDF

附加信息

CAD文件

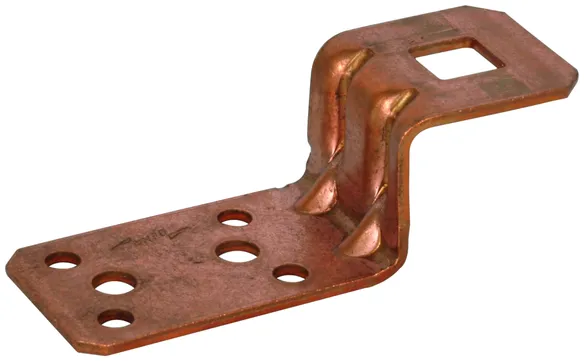

Connection bracket with square hole, Cu
Connection bracket for connecting metal cladding using blind rivets or screws
Square hole 11x11 mm (e.g. for KS connectors), longitudinal and cross connection
Material of bracket: Cu
Fixing : [4x] Ø5.2 / [2x] Ø6.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: AL ZF B11.11 B5.2 6.5 L81 CU
Part No.: 377017
or equivalent.

认证

技术参数

Material of bracket	Cu
Fixing	[4x] Ø5.2 / [2x] Ø6.5 mm
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Material of bracket	Cu
Material thickness (t1)	2 mm
Fixing	[4x] Ø5.2 / [2x] Ø6.5 mm
Fixing possibility	blind rivets or drilling screws
Application note	according to EN 62305-3 Suppl. 1 4 rivets Ø5mm, 2 rivets Ø6mm shall be used to connect materials ≥ 0.5mm thick or 2 Parker screws StSt Ø6.3mm for materials ≥ 2mm thick.
Connection	lengthwise / crosswise
Connection with	square hole 11x11 mm (KS connector)
Lightning current carrying capability (10/350 µs)	= *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品377017加入购物车。

进入网上商店

货号 377009 AL ZF B11.11 B5.2 6.5 L81 V2A

全球贸易项目代码 4013364119284, 海关HS编码: 85359000, 总重: 54.10 g, 包装单位: 50.00 pc(s)


Open PDF

附加信息

CAD文件

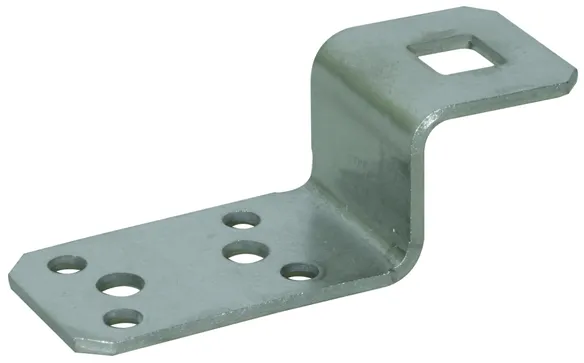

Connection bracket with square hole, StSt
Connection bracket for connecting metal cladding using blind rivets or screws
Square hole 11x11 mm (e.g. for KS connectors), longitudinal and cross connection
Material of bracket: StSt
Fixing : [4x] Ø5.2 / [2x] Ø6.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: AL ZF B11.11 B5.2 6.5 L81 V2A
Part No.: 377009
or equivalent.

认证

技术参数

Material of bracket	StSt
Fixing	[4x] Ø5.2 / [2x] Ø6.5 mm
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Material of bracket	StSt
Material thickness (t1)	2.5 mm
Fixing	[4x] Ø5.2 / [2x] Ø6.5 mm
Fixing possibility	blind rivets or drilling screws
Application note	according to EN 62305-3 Suppl. 1 4 rivets Ø5mm, 2 rivets Ø6mm shall be used to connect materials ≥ 0.5mm thick or 2 Parker screws StSt Ø6,3mm for materials ≥ 2mm thick.
Connection	lengthwise / crosswise
Connection with	square hole 11x11 mm (KS connector)
Lightning current carrying capability (10/350 µs)	= *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品377009加入购物车。

进入网上商店

货号 377100 AL ZF KB 6.10STTZN B5.2 6.5 L81 AL

全球贸易项目代码 4013364078604, 海关HS编码: 85359000, 总重: 76.00 g, 包装单位: 50.00 pc(s)


Open PDF

附加信息

CAD文件

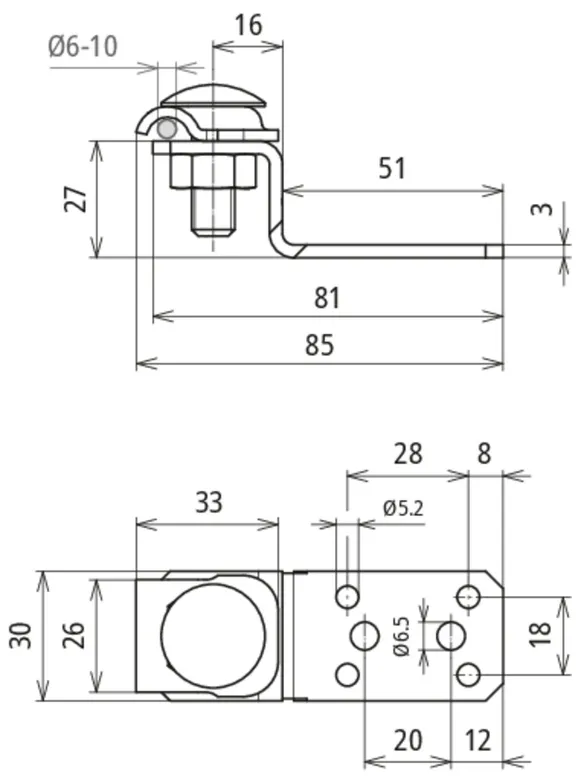

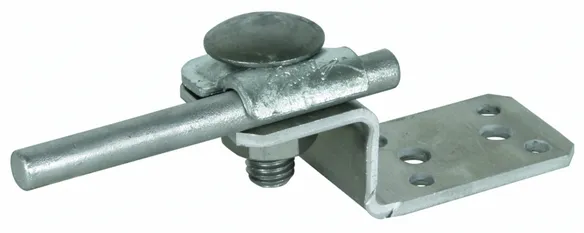

Connection bracket with clamping piece
Connection bracket for connecting metal cladding
using blind rivets or screws
With clamping piece for Rd 6-10 mm conductors
Material of bracket: Al
Fixing : [4x] Ø5.2 / [2x] Ø6.5 mm
Material of clamping piece: St/tZn
Screw: M10 x 30 mm
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AL ZF KB 6.10STTZN B5.2 6.5 L81 AL
Part No.: 377100
or equivalent.

认证

技术参数

Material of bracket	Al
Fixing	[4x] Ø5.2 / [2x] Ø6.5 mm
Material of clamping piece	St/tZn
Clamping range Rd	6-10 mm
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Material of bracket	Al
Material thickness (t1)	3 mm
Fixing	[4x] Ø5.2 / [2x] Ø6.5 mm
Fixing possibility	blind rivets or drilling screws
Application note	according to EN 62305-3 Suppl. 1 4 rivets Ø5mm, 2 rivets Ø6mm shall be used to connect materials ≥ 0.5mm thick or 2 Parker screws StSt Ø6.3mm for materials ≥ 2mm thick.
Material of clamping piece	St/tZn
Screw	e M10 x 30 mm
Material of screw / nut	StSt
Connection	lengthwise / crosswise
Connection with	clamping piece
Clamping range Rd	6-10 mm
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品377100加入购物车。

进入网上商店

货号 377200 AL ZF DUL 6.10 B5.2 6.5 L81 AL

全球贸易项目代码 4013364136465, 海关HS编码: 85359000, 总重: 72.40 g, 包装单位: 50.00 pc(s)


Open PDF

附加信息

CAD文件

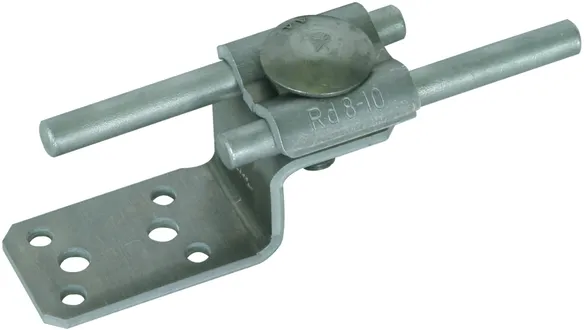

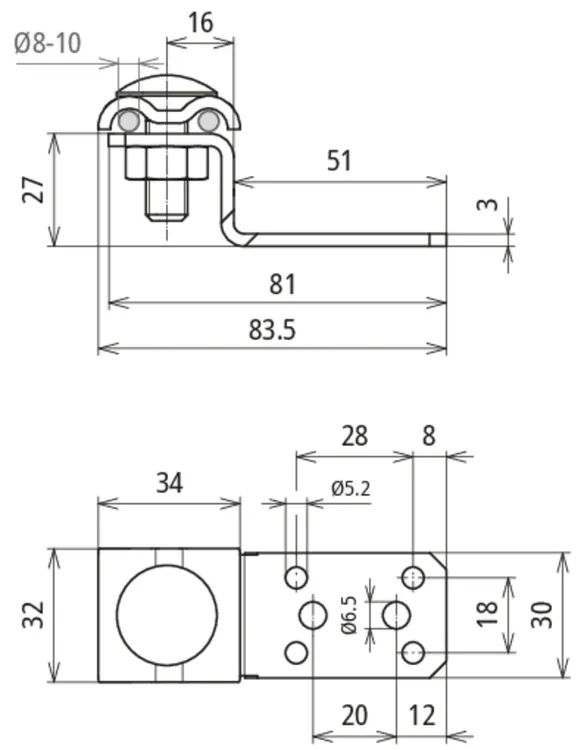

Connection bracket with double clamp, Al
Connection bracket for connecting metal cladding
using blind rivets or screws
With double clamp for Rd 8-10 mm conductors
Material of bracket: Al
Fixing : [4x] Ø5.2 / [2x] Ø6.5 mm
Material of double clamp: Al
Screw: M10 x 30 mm
Clamping range Rd: 8-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AL ZF DUL 6.10 B5.2 6.5 L81 AL
Part No.: 377200
or equivalent.

认证

技术参数

Material of bracket	Al
Fixing	[4x] Ø5.2 / [2x] Ø6.5 mm
Material of double clamp	Al
Clamping range Rd	8-10 mm
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Material of bracket	Al
Material thickness (t1)	3 mm
Fixing	[4x] Ø5.2 / [2x] Ø6.5 mm
Fixing possibility	blind rivets or drilling screws
Application note	according to EN 62305-3 Suppl. 1 4 rivets Ø5mm, 2 rivets Ø6mm shall be used to connect materials ≥ 0.5mm thick or 2 Parker screws StSt Ø6.3mm for materials ≥ 2mm thick.
Material of double clamp	Al
Screw	e M10 x 30 mm
Material of screw / nut	StSt
Connection	lengthwise / crosswise
Connection with	double cleat
Clamping range Rd	8-10 mm
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品377200加入购物车。

进入网上商店

货号 377201 AL ZF DUL 6.10 B5.2 6.5 L81 STTZN

全球贸易项目代码 4013364525122, 海关HS编码: 85359000, 总重: 117.50 g, 包装单位: 50.00 pc(s)


Open PDF

附加信息

CAD文件

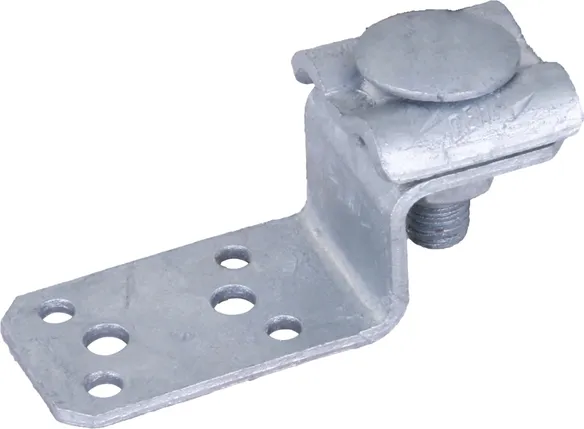

Connection bracket with double clamp, HDG steel
Connection brackets for connecting
metal cladding using blind rivets
or screws
With double clamp for Rd. 8-10 mm conductors
Material of bracket: HDG steel
Fixing : [4x] Ø5.2 / [2x] Ø6.5 mm
Material of double clamp: HDG steel
Screw: M10 x 30 mm
Clamping range Rd: 8-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AL ZF DUL 6.10 B5.2 6.5 L81 STTZN
Part No.: 377201
or equivalent.

认证

技术参数

Material of bracket	HDG steel
Fixing	[4x] Ø5.2 / [2x] Ø6.5 mm
Material of double clamp	HDG steel
Clamping range Rd	8-10 mm
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Material of bracket	HDG steel
Material thickness (t1)	3 mm
Fixing	[4x] Ø5.2 / [2x] Ø6.5 mm
Fixing possibility	blind rivets or drilling screws
Application note	according to EN 62305-3 Suppl. 1 4 rivets Ø5mm, 2 rivets Ø6mm shall be used to connect materials ≥ 0.5mm thick or 2 Parker screws StSt Ø6.3mm for materials ≥ 2mm thick.
Material of double clamp	HDG steel
Screw	e M10 x 30 mm
Material of screw / nut	HDG steel
Connection	lengthwise / crosswise
Connection with	double cleat
Clamping range Rd	8-10 mm
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品377201加入购物车。

进入网上商店

货号 377209 AL ZF DUL 6.10 B5.2 6.5 L81 V2A

全球贸易项目代码 4013364525139, 海关HS编码: 85359000, 总重: 111.65 g, 包装单位: 50.00 pc(s)


Open PDF

附加信息

CAD文件

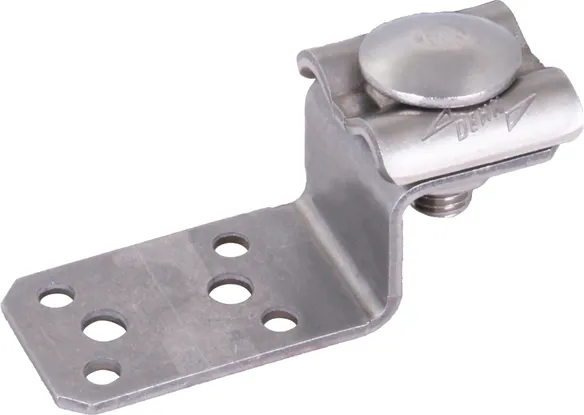

Connection bracket with double clamp, stainless steel
Connection brackets for connecting
metal cladding using blind rivets
or screws
With double clamp for Rd. 8-10 mm conductors
Material of bracket: StSt
Fixing : [4x] Ø5.2 / [2x] Ø6.5 mm
Material of double clamp: StSt
Screw: M10 x 30 mm
Clamping range Rd: 8-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: AL ZF DUL 6.10 B5.2 6.5 L81 V2A
Part No.: 377209
or equivalent.

认证

技术参数

Material of bracket	StSt
Fixing	[4x] Ø5.2 / [2x] Ø6.5 mm
Material of double clamp	StSt
Clamping range Rd	8-10 mm
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Material of bracket	StSt
Material thickness (t1)	3 mm
Fixing	[4x] Ø5.2 / [2x] Ø6.5 mm
Fixing possibility	blind rivets or drilling screws
Application note	according to EN 62305-3 Suppl. 1 4 rivets Ø5mm, 2 rivets Ø6mm shall be used to connect materials ≥ 0.5mm thick or 2 Parker screws StSt Ø6.3mm for materials ≥ 2mm thick.
Material of double clamp	StSt
Screw	e M10 x 30 mm
Material of screw / nut	StSt
Connection	lengthwise / crosswise
Connection with	double cleat
Clamping range Rd	8-10 mm
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品377209加入购物车。

进入网上商店
