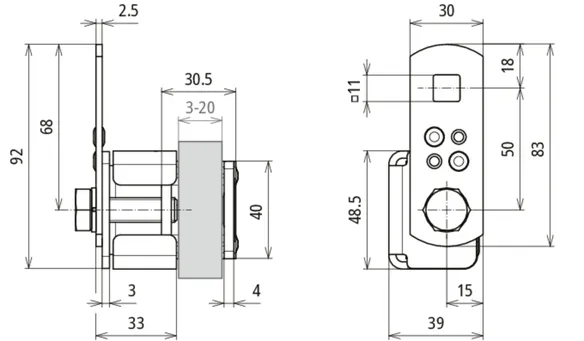

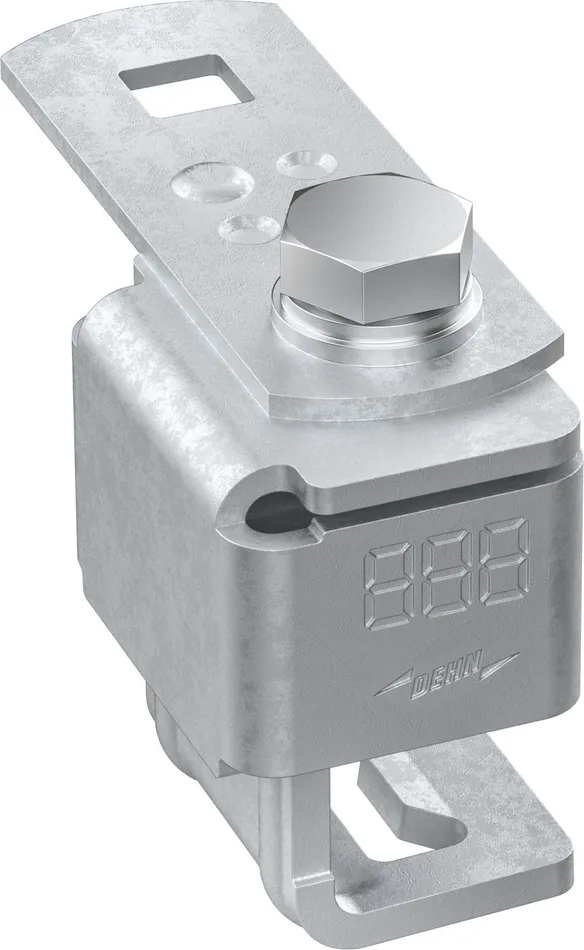

货号 372330 AKK AL B11.11 KBF 3 20 STTZN

全球贸易项目代码 4013364515758, 海关HS编码: 85359000, 总重: 278.21 g, 包装单位: 25.00 pc(s)


Open PDF

附加信息

CAD文件

Connection clamps with blade for steel girders with HDG steel connection bracket
Connection clamps for steel girders
heavy design; for connection
to steel structures

Clamping range: 3-20 mm
Material of clamp: St/tZn
Connection with: Connection bracket
Connection bracket square hole: 11x11 mm
Standard: EN 62561-1

Brand: DEHN
Type: AKK AL B11.11 KBF 3 20 STTZN
Part No.: 372330
or equivalent.

认证

技术参数

Clamping range	3-20 mm
Material of clamp	St/tZn
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Clamping range	3-20 mm
Material of clamp	St/tZn
Screw	di M10 x 35 mm
Screw / spring washer material	StSt
Type of connection	Releasable connection
Penetration of surface protection	Up to 0.2 mm with blade or blade and screw
Connection with	Connection bracket
Connection bracket square hole	11x11 mm
Lightning current carrying capability (10/350 µs)	& = *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品372330加入购物车。

进入网上商店

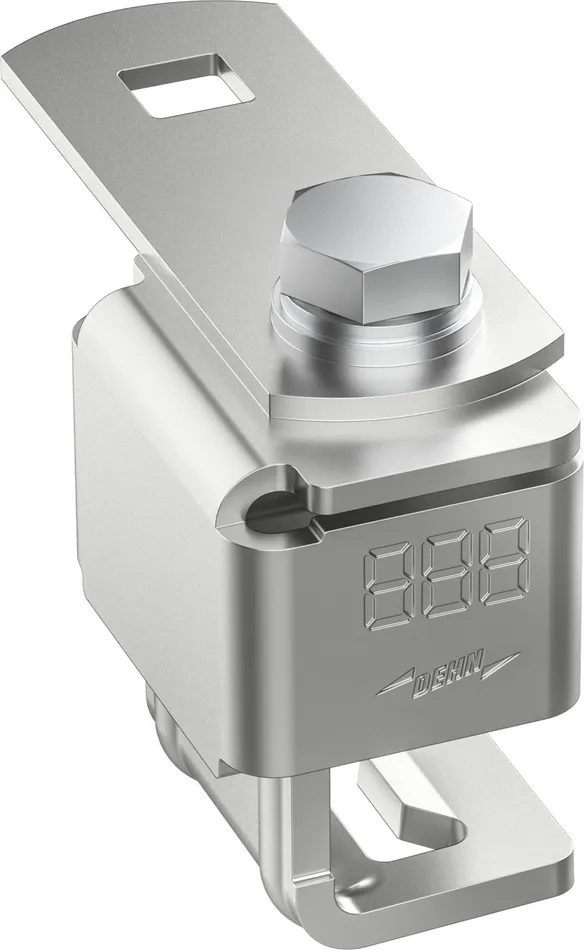

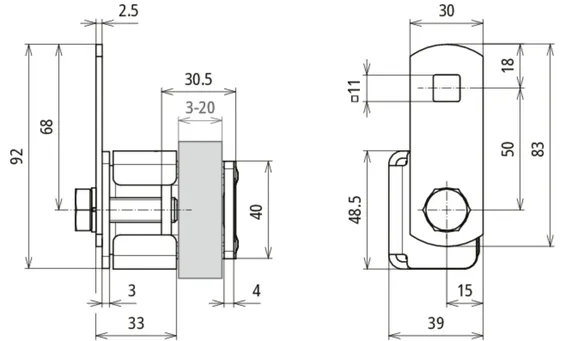

货号 372339 AKK AL B11.11 KBF 3 20 V2A

全球贸易项目代码 4013364518988, 海关HS编码: 85359000, 总重: 263.25 g, 包装单位: 25.00 pc(s)


Open PDF

附加信息

CAD文件

Connection clamps with blade for steel girders with stainless steel connection bracket
Connection clamps for steel girders
heavy design; for connection
to steel structures
Clamping range: 3-20 mm
Material of clamp: StSt
Connection with: Connection bracket
Connection bracket square hole: 11x11 mm
Standard: EN 62561-1

Brand: DEHN
Type: AKK AL B11.11 KBF 3 20 V2A
Part No.: 372339
or equivalent.

认证

技术参数

Clamping range	3-20 mm
Material of clamp	StSt
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Clamping range	3-20 mm
Material of clamp	StSt
Screw	di M10 x 35 mm
Screw / spring washer material	StSt
Type of connection	Releasable connection
Penetration of surface protection	Up to 0.2 mm with blade or blade and screw
Connection with	Connection bracket
Connection bracket square hole	11x11 mm
Lightning current carrying capability (10/350 µs)	& = *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品372339加入购物车。

进入网上商店

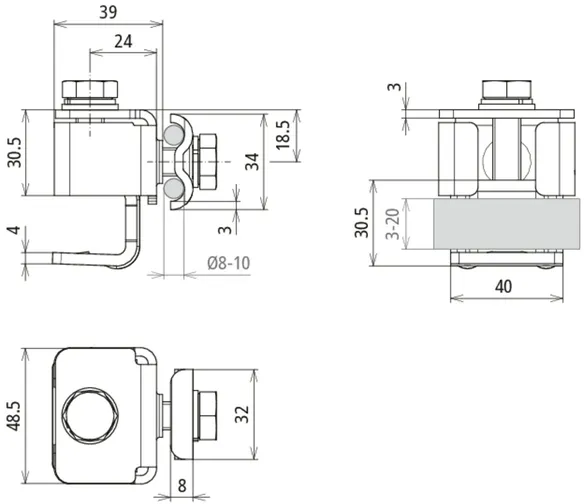

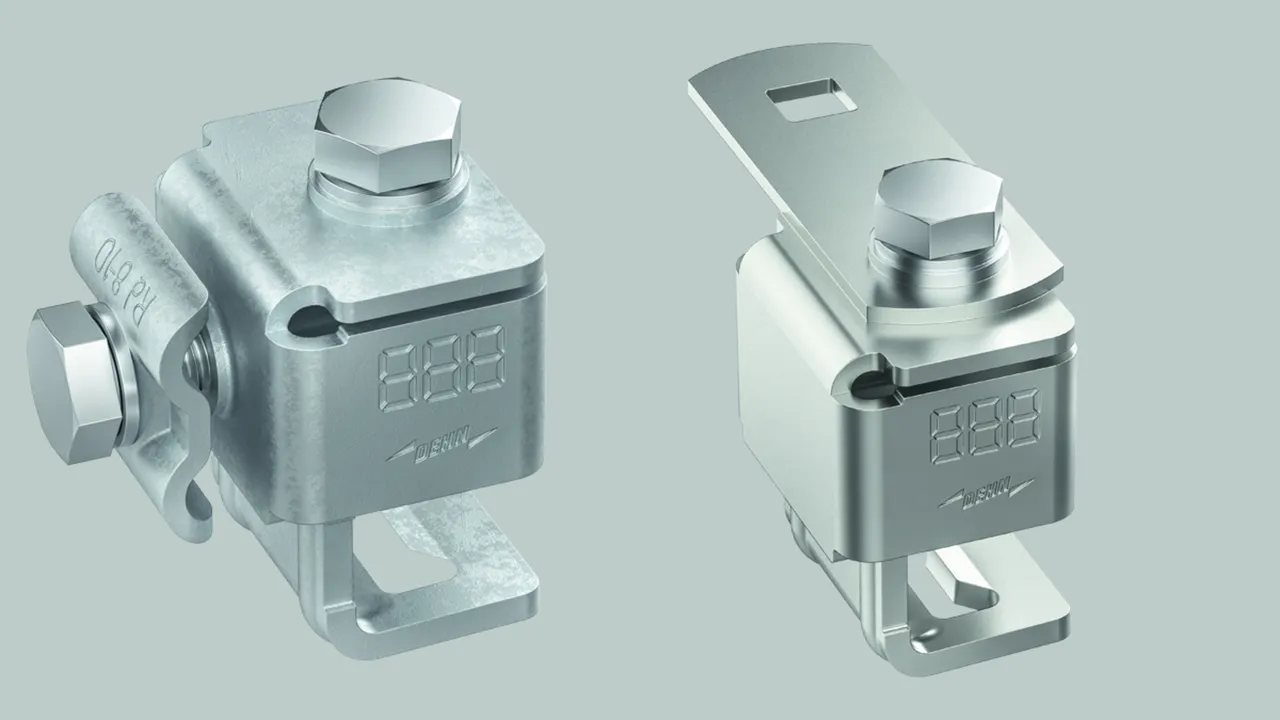

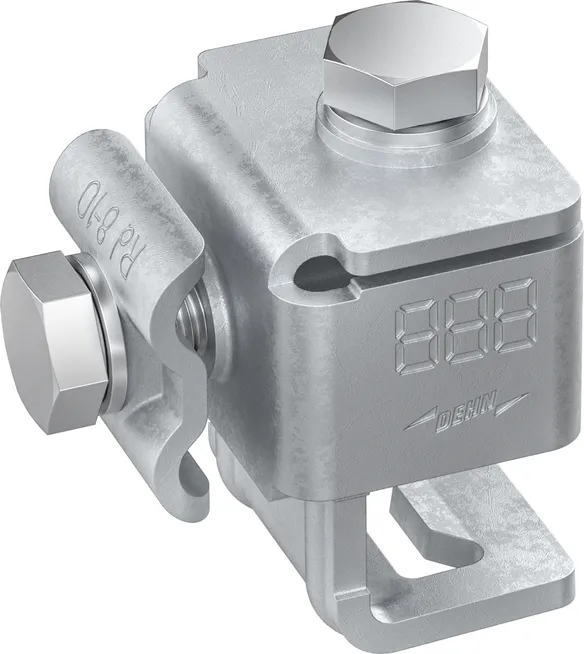

货号 372300 AKK DUL 8.10 KBF 3 20 STTZN

全球贸易项目代码 4013364515765, 海关HS编码: 85359000, 总重: 250.66 g, 包装单位: 25.00 pc(s)


Open PDF

附加信息

CAD文件

Connection clamps with blade for steel girders with HDG steel connection bracket
Connection clamps for steel girders
heavy design; for connection
to steel structures
Clamping range: 3-20 mm
Material of clamp: St/tZn
Clamping range Rd: 8-10 mm
Connection with: Double clamp
Standard: EN 62561-1

Brand: DEHN
Type: AKK DUL 8.10 KBF 3 20 STTZN
Part No.: 372300
or equivalent.

认证

技术参数

Clamping range	3-20 mm
Material of clamp	St/tZn
Clamping range Rd	8-10 mm
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Clamping range	3-20 mm
Material of clamp	St/tZn
Clamping range Rd	8-10 mm
Screw	di M10 x 32 mm / M10 x 18 mm
Screw / spring washer material	StSt
Type of connection	Releasable connection
Penetration of surface protection	Up to 0.2 mm with blade or blade and screw
Connection with	Double clamp
Lightning current carrying capability (10/350 µs)	& = *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品372300加入购物车。

进入网上商店

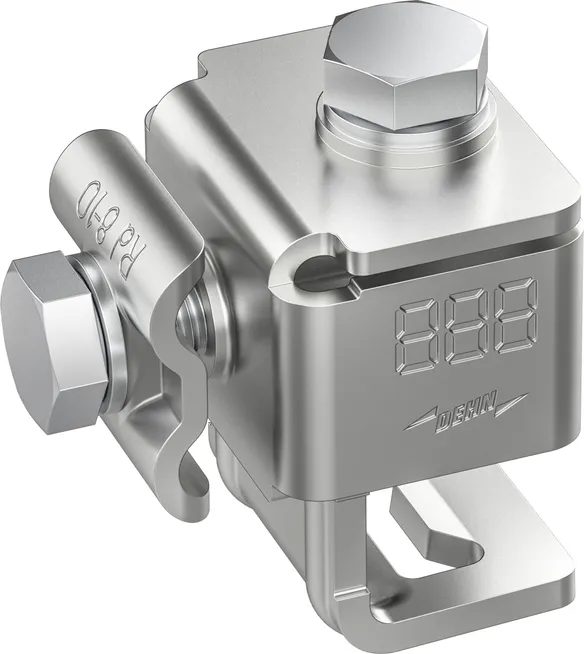

货号 372309 AKK DUL 8.10 KBF 3 20 V2A

全球贸易项目代码 4013364518971, 海关HS编码: 85359000, 总重: 266.98 g, 包装单位: 25.00 pc(s)


Open PDF

附加信息

CAD文件

Connection clamps with blade for steel girders with stainless steel connection bracket
Connection clamps for steel girders
heavy design; for connection
to steel structures
Clamping range: 3-20 mm
Material of clamp: StSt
Clamping range Rd: 8-10 mm
Connection with: Double clamp
Standard: EN 62561-1

Brand: DEHN
Type: AKK DUL 8.10 KBF 3 20 V2A
Part No.: 372309
or equivalent.

认证

技术参数

Clamping range	3-20 mm
Material of clamp	StSt
Clamping range Rd	8-10 mm
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Clamping range	3-20 mm
Material of clamp	StSt
Clamping range Rd	8-10 mm
Screw	di M10 x 32 mm / M10 x 18 mm
Screw / spring washer material	StSt
Type of connection	Releasable connection
Penetration of surface protection	Up to 0.2 mm with blade or blade and screw
Connection with	Double clamp
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品372309加入购物车。

进入网上商店

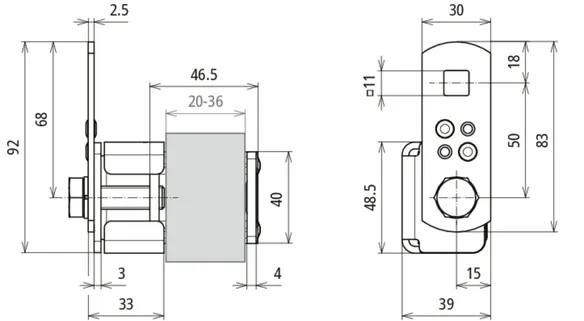

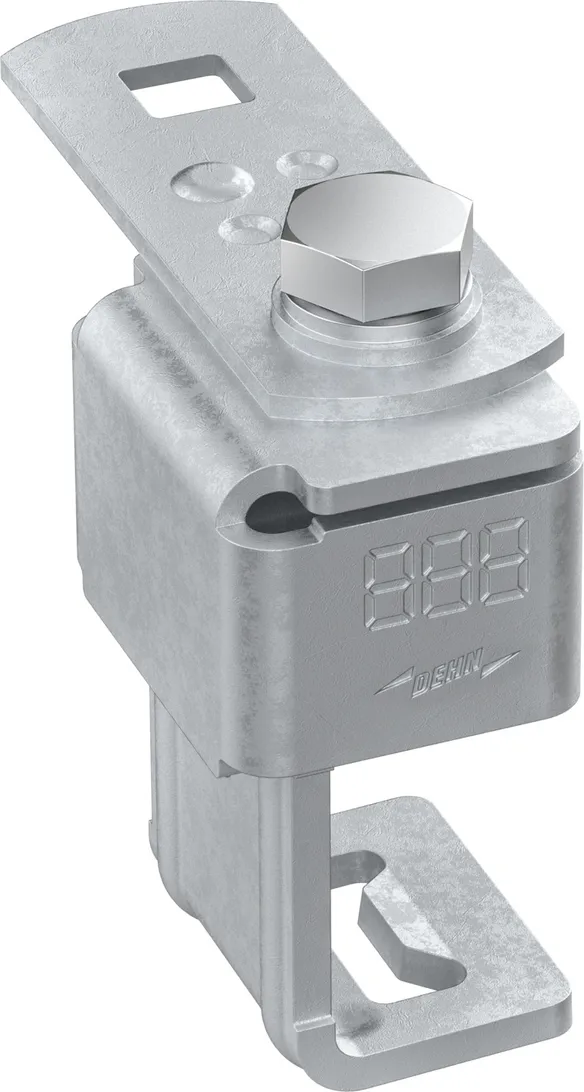

货号 372340 AKK AL B11.11 KBF 20 36 STTZN

全球贸易项目代码 4013364520400, 海关HS编码: 85359000, 总重: 298.72 g, 包装单位: 25.00 pc(s)


Open PDF

附加信息

CAD文件

Connection clamps with blade for steel girders with HDG steel connection bracket
Connection clamps for steel girders
heavy design; for connection
to steel structures
Clamping range: 20-36 mm
Material of clamp: St/tZn
Connection with: Connection bracket
Connection bracket square hole: 11x11 mm
Standard: EN 62561-1

Brand: DEHN
Type: AKK AL B11.11 KBF 20 36 STTZN
Part No.: 372340
or equivalent.

技术参数

Clamping range	20-36 mm
Material of clamp	St/tZn
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Clamping range	20-36 mm
Material of clamp	St/tZn
Screw	di M10 x 35 mm
Screw / spring washer material	StSt
Type of connection	Releasable connection
Penetration of surface protection	Up to 0.2 mm with blade or blade and screw
Connection with	Connection bracket
Connection bracket square hole	11x11 mm
Lightning current carrying capability (10/350 µs)	& = *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品372340加入购物车。

进入网上商店

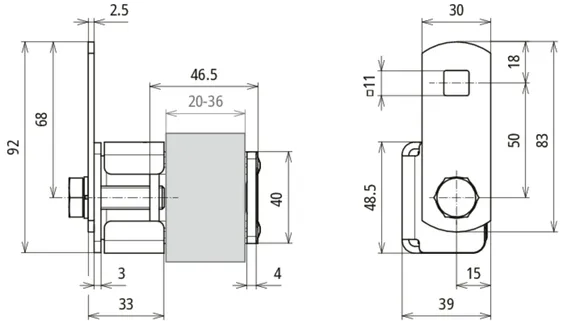

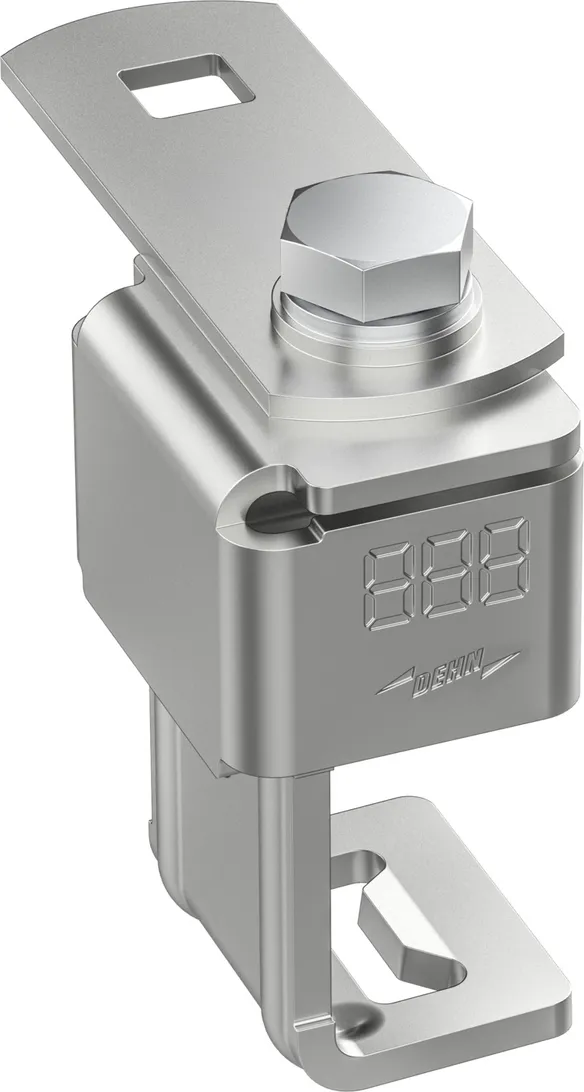

货号 372349 AKK AL B11.11 KBF 20 36 V2A

全球贸易项目代码 4013364520349, 海关HS编码: 85359000, 总重: 282.53 g, 包装单位: 25.00 pc(s)


Open PDF

附加信息

CAD文件

Connection clamps with blade for steel girders with stainless steel connection bracket
Connection clamps for steel girders
heavy design; for connection
to steel structures
Clamping range: 20-36 mm
Material of clamp: StSt
Connection with: Connection bracket
Connection bracket square hole: 11x11 mm
Standard: EN 62561-1

Brand: DEHN
Type: AKK AL B11.11 KBF 20 36 V2A
Part No.: 372349
or equivalent.

认证

技术参数

Clamping range	20-36 mm
Material of clamp	StSt
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Clamping range	20-36 mm
Material of clamp	StSt
Screw	di M10 x 35 mm
Screw / spring washer material	StSt
Type of connection	Releasable connection
Penetration of surface protection	Up to 0.2 mm with blade or blade and screw
Connection with	Connection bracket
Connection bracket square hole	11x11 mm
Lightning current carrying capability (10/350 µs)	& = *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品372349加入购物车。

进入网上商店

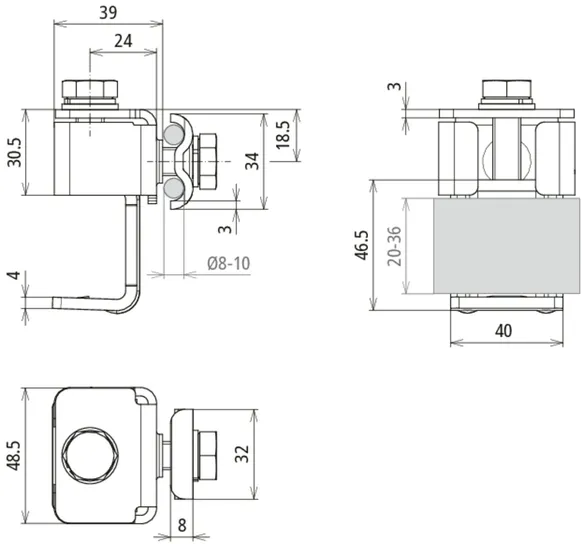

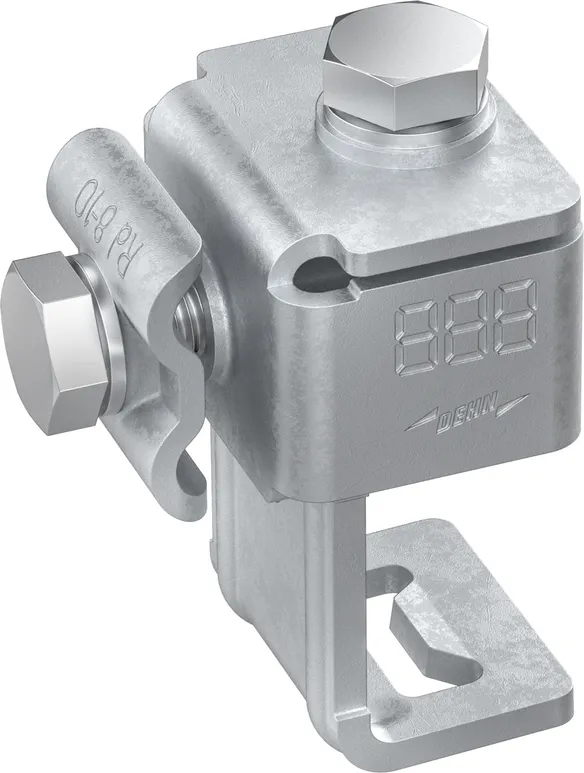

货号 372310 AKK DUL 8.10 KBF 20 36 STTZN

全球贸易项目代码 4013364520363, 海关HS编码: 85359000, 总重: 304.56 g, 包装单位: 25.00 pc(s)


Open PDF

附加信息

CAD文件

Connection clamps with blade for steel girders with HDG steel connection bracket
Connection clamps for steel girders
heavy design; for connection
to steel structures
Clamping range: 20-36 mm
Material of clamp: St/tZn
Clamping range Rd: 8-10 mm
Connection with: Double clamp
Standard: EN 62561-1

Brand: DEHN
Type: AKK DUL 8.10 KBF 20 36 STTZN
Part No.: 372310
or equivalent.

认证

技术参数

Clamping range	20-36 mm
Material of clamp	St/tZn
Clamping range Rd	8-10 mm
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Clamping range	20-36 mm
Material of clamp	St/tZn
Clamping range Rd	8-10 mm
Screw	di M10 x 32 mm / M10 x 18 mm
Screw / spring washer material	StSt
Type of connection	Releasable connection
Penetration of surface protection	Up to 0.2 mm with blade or blade and screw
Connection with	Double clamp
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品372310加入购物车。

进入网上商店

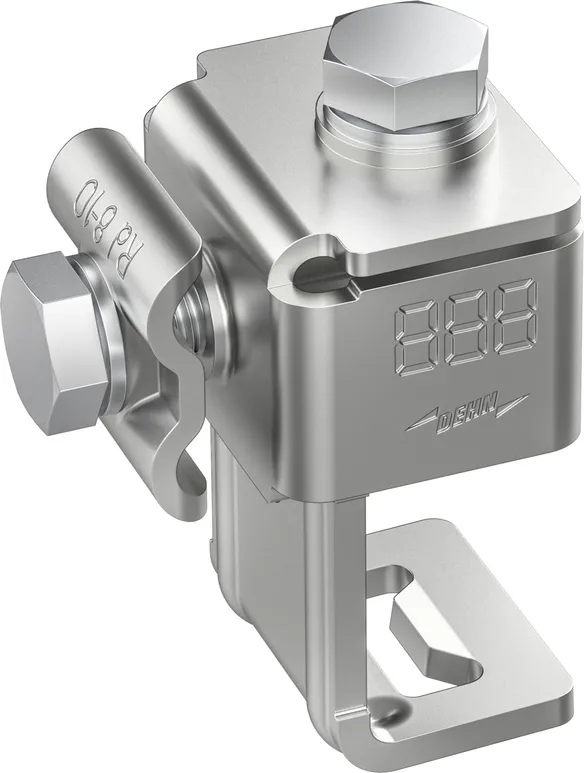

货号 372319 AKK DUL 8.10 KBF 20 36 V2A

全球贸易项目代码 4013364520370, 海关HS编码: 85359000, 总重: 285.95 g, 包装单位: 25.00 pc(s)


Open PDF

附加信息

CAD文件

Connection clamps with blade for steel girders with stainless steel connection bracket
Connection clamps for steel girders
heavy design; for connection
to steel structures
Clamping range: 20-36 mm
Material of clamp: StSt
Clamping range Rd: 8-10 mm
Connection with: Double clamp
Standard: EN 62561-1

Brand: DEHN
Type: AKK DUL 8.10 KBF 20 36 V2A
Part No.: 372319
or equivalent.

认证

技术参数

Clamping range	20-36 mm
Material of clamp	StSt
Clamping range Rd	8-10 mm
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Clamping range	20-36 mm
Material of clamp	StSt
Clamping range Rd	8-10 mm
Screw	di M10 x 32 mm / M10 x 18 mm
Screw / spring washer material	StSt
Type of connection	Releasable connection
Penetration of surface protection	Up to 0.2 mm with blade or blade and screw
Connection with	Double clamp
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品372319加入购物车。

进入网上商店

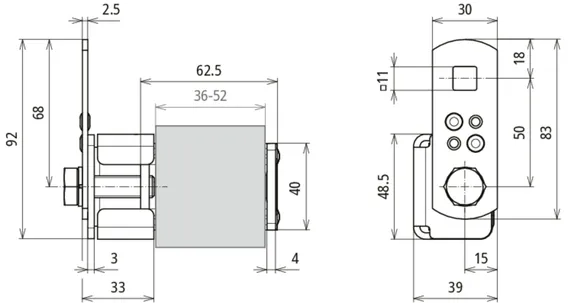

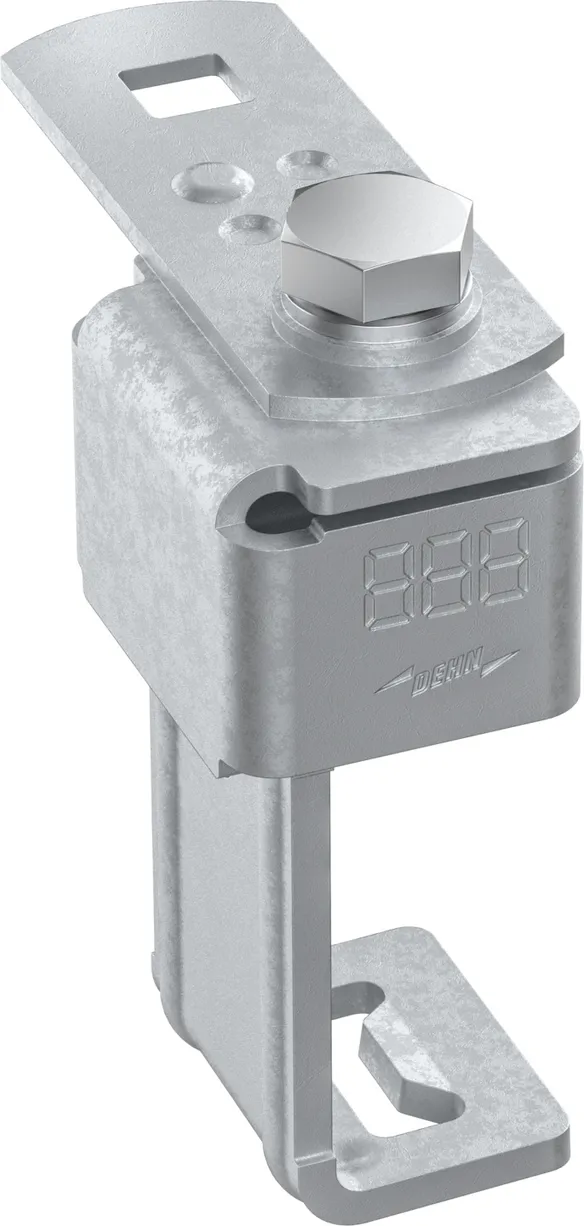

货号 372350 AKK AL B11.11 KBF 36 52 STTZN

全球贸易项目代码 4013364520356, 海关HS编码: 85359000, 总重: 327.80 g, 包装单位: 25.00 pc(s)


Open PDF

附加信息

CAD文件

Connection clamps with blade for steel girders with HDG steel connection bracket
Connection clamps for steel girders
heavy design; for connection
to steel structures
Clamping range: 36-52 mm
Material of clamp: St/tZn
Connection with: Connection bracket
Connection bracket square hole: 11x11 mm
Standard: EN 62561-1

Brand: DEHN
Type: AKK AL B11.11 KBF 36 52 STTZN
Part No.: 372350
or equivalent.

认证

技术参数

Clamping range	36-52 mm
Material of clamp	St/tZn
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Clamping range	36-52 mm
Material of clamp	St/tZn
Screw	di M10 x 35 mm
Screw / spring washer material	StSt
Type of connection	Releasable connection
Penetration of surface protection	Up to 0.2 mm with blade or blade and screw
Connection with	Connection bracket
Connection bracket square hole	11x11 mm
Lightning current carrying capability (10/350 µs)	& = *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品372350加入购物车。

进入网上商店

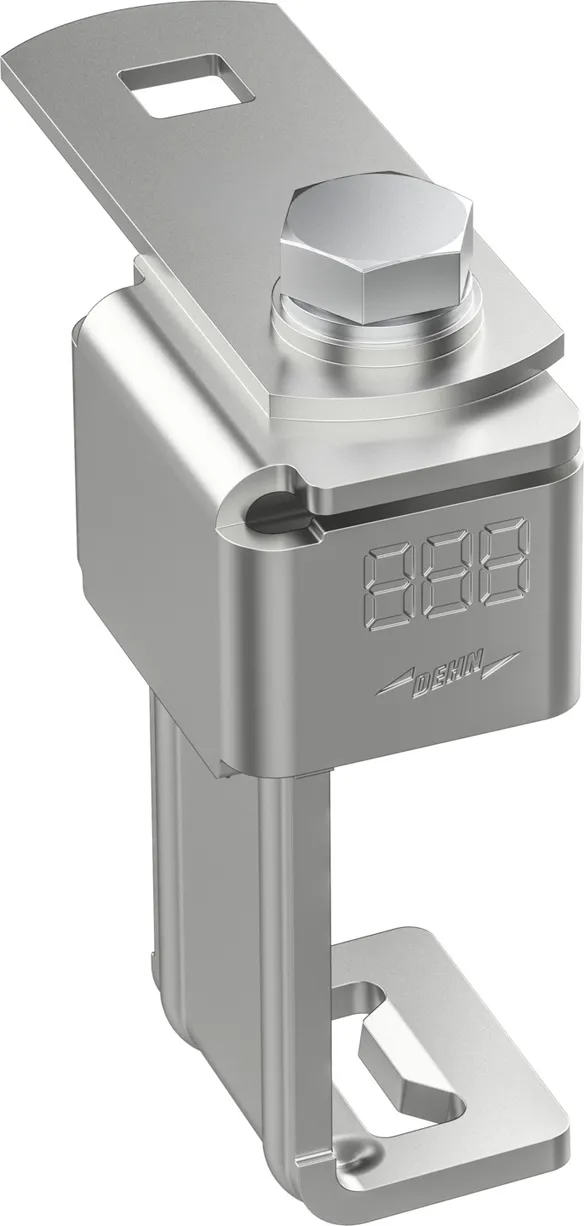

货号 372359 AKK AL B11.11 KBF 36 52 V2A

全球贸易项目代码 4013364520103, 海关HS编码: 85359000, 总重: 303.90 g, 包装单位: 25.00 pc(s)


Open PDF

附加信息

CAD文件

Connection clamps with blade for steel girders with stainless steel connection bracket
Connection clamps for steel girders
heavy design; for connection
to steel structures
Clamping range: 36-52 mm
Material of clamp: StSt
Connection with: Connection bracket
Connection bracket square hole: 11x11 mm
Standard: EN 62561-1

Brand: DEHN
Type: AKK AL B11.11 KBF 36 52 V2A
Part No.: 372359
or equivalent.

认证

技术参数

Clamping range	36-52 mm
Material of clamp	StSt
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Clamping range	36-52 mm
Material of clamp	StSt
Screw	di M10 x 35 mm
Screw / spring washer material	StSt
Type of connection	Releasable connection
Penetration of surface protection	Up to 0.2 mm with blade or blade and screw
Connection with	Connection bracket
Connection bracket square hole	11x11 mm
Lightning current carrying capability (10/350 µs)	& = *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品372359加入购物车。

进入网上商店

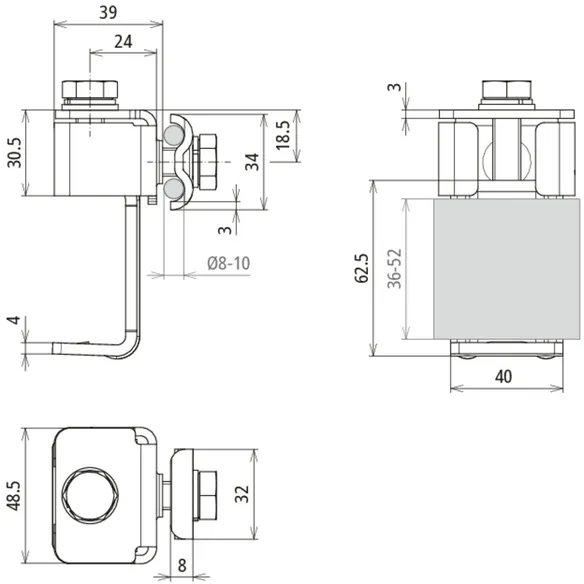

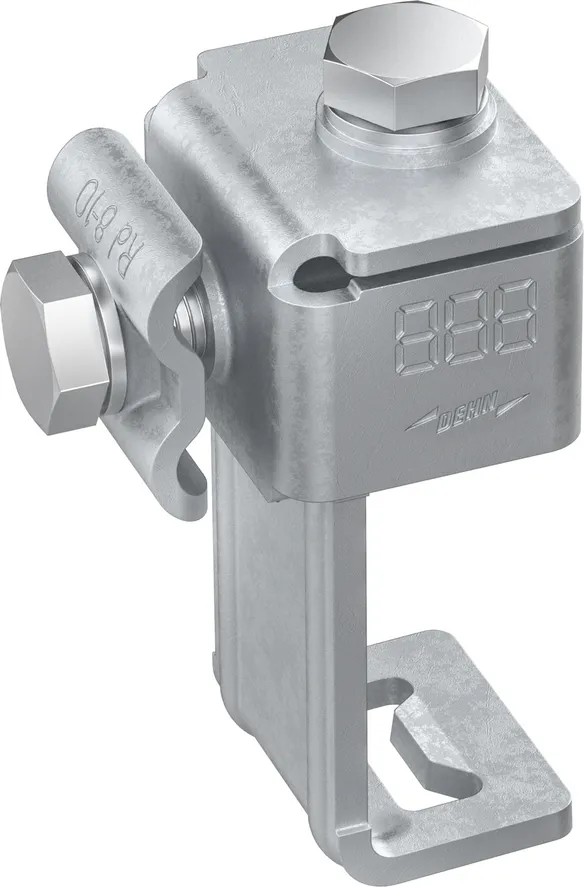

货号 372320 AKK DUL 8.10 KBF 36 52 STTZN

全球贸易项目代码 4013364520387, 海关HS编码: 85359000, 总重: 321.44 g, 包装单位: 25.00 pc(s)


Open PDF

附加信息

CAD文件

Connection clamps with blade for steel girders with HDG steel connection bracket
Connection clamps for steel girders
heavy design; for connection
to steel structures
Clamping range: 36-52 mm
Material of clamp: St/tZn
Clamping range Rd: 8-10 mm
Connection with: Double clamp
Standard: EN 62561-1

Brand: DEHN
Type: AKK DUL 8.10 KBF 36 52 STTZN
Part No.: 372320
or equivalent.

认证

技术参数

Clamping range	36-52 mm
Material of clamp	St/tZn
Clamping range Rd	8-10 mm
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Clamping range	36-52 mm
Material of clamp	St/tZn
Clamping range Rd	8-10 mm
Screw	di M10 x 32 mm / M10 x 18 mm
Screw / spring washer material	StSt
Type of connection	Releasable connection
Penetration of surface protection	Up to 0.2 mm with blade or blade and screw
Connection with	Double clamp
Lightning current carrying capability (10/350 µs)	& = *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品372320加入购物车。

进入网上商店

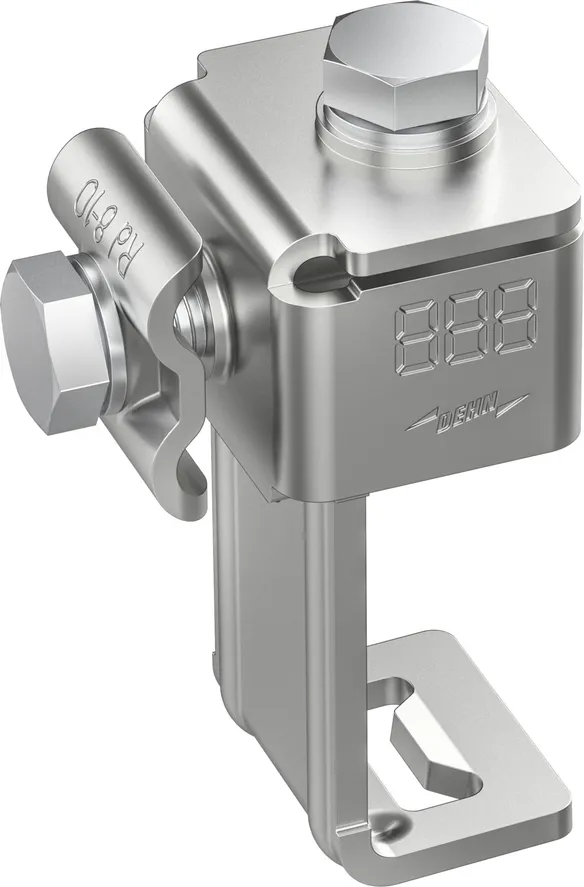

货号 372329 AKK DUL 8.10 KBF 36 52 V2A

全球贸易项目代码 4013364520394, 海关HS编码: 85359000, 总重: 308.22 g, 包装单位: 25.00 pc(s)


Open PDF

附加信息

CAD文件

Connection clamps with blade for steel girders with stainless steel connection bracket
Connection clamps for steel girders
heavy design; for connection
to steel structures
Clamping range: 36-52 mm
Material of clamp: StSt
Clamping range Rd: 8-10 mm
Connection with: Double clamp
Standard: EN 62561-1

Brand: DEHN
Type: AKK DUL 8.10 KBF 36 52 V2A
Part No.: 372329
or equivalent.

认证

技术参数

Clamping range	36-52 mm
Material of clamp	StSt
Clamping range Rd	8-10 mm
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

Clamping range	36-52 mm
Material of clamp	StSt
Clamping range Rd	8-10 mm
Screw	di M10 x 32 mm / M10 x 18 mm
Screw / spring washer material	StSt
Type of connection	Releasable connection
Penetration of surface protection	Up to 0.2 mm with blade or blade and screw
Connection with	Double clamp
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾ For exact assignment, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品372329加入购物车。

进入网上商店

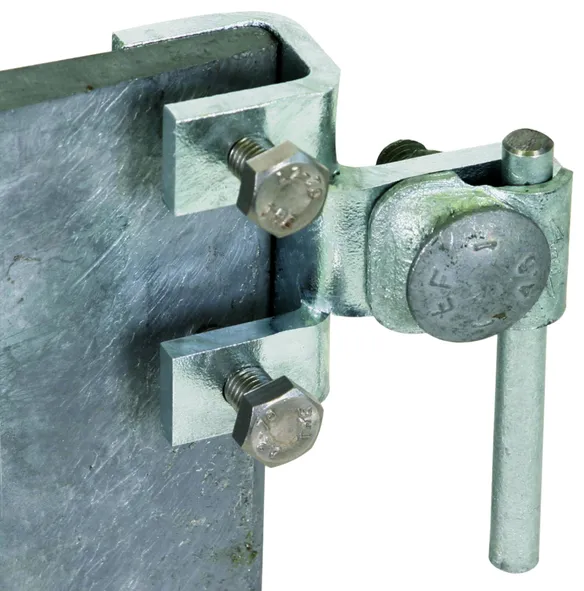

货号 372110 AK 6.10 KB S KBF3 18 STTZN

全球贸易项目代码 4013364119055, 海关HS编码: 85359000, 总重: 287.60 g, 包装单位: 25.00 pc(s)


Open PDF

附加信息

CAD文件

Connection clamps for steel girders, vertical, with clamping piece, St/tZn
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 3-18 mm
Material of clamp: St/tZn
Clamping range Rd: 6-10 mm
Connection with: clamping piece
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KB S KBF3 18 STTZN
Part No.: 372110
or equivalent.

认证

技术参数

Clamping range	3-18 mm
Material of clamp	St/tZn
Clamping range Rd	6-10 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Clamping range	3-18 mm
Material of clamp	St/tZn
Clamping range Rd	6-10 mm
Screw	di M8 x 25 mm
Material of screw / nut	StSt
Connection with	clamping piece
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品372110加入购物车。

进入网上商店

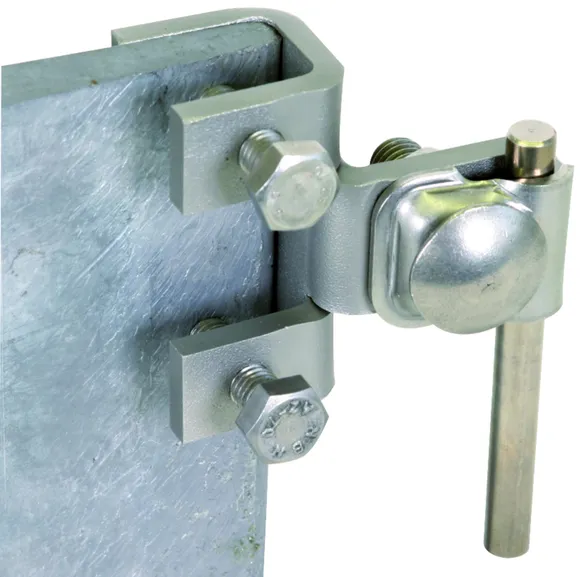

货号 372119 AK 6.10 KB S KBF3 18 V2A

全球贸易项目代码 4013364119178, 海关HS编码: 85359000, 总重: 282.00 g, 包装单位: 25.00 pc(s)


Open PDF

附加信息

CAD文件

Connection clamps for steel girders, vertical, with clamping piece, StSt
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 3-18 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Connection with: clamping piece
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KB S KBF3 18 V2A
Part No.: 372119
or equivalent.

认证

技术参数

Clamping range	3-18 mm
Material of clamp	StSt
Clamping range Rd	6-10 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Clamping range	3-18 mm
Material of clamp	StSt
Clamping range Rd	6-10 mm
Screw	di M8x 25 mm
Material of screw / nut	StSt
Connection with	clamping piece
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品372119加入购物车。

进入网上商店

货号 372140 AK 6.10 KB S KBF18 35 STTZN

全球贸易项目代码 4013364119086, 海关HS编码: 85359000, 总重: 340.20 g, 包装单位: 25.00 pc(s)


附加信息

CAD文件

Connection clamps for steel girders, vertical, with clamping piece, St/tZn
Conneciton clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 18-35 mm
Material of clamp: St/tZn
Clamping range Rd: 6-10 mm
Connection with: clamping piece
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KB S KBF18 35 STTZN
Part No.: 372140
or equivalent.

认证

技术参数

Clamping range	18-35 mm
Material of clamp	St/tZn
Clamping range Rd	6-10 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Clamping range	18-35 mm
Material of clamp	St/tZn
Clamping range Rd	6-10 mm
Screw	di M8 x 25 mm
Material of screw / nut	StSt
Connection with	clamping piece
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品372140加入购物车。

进入网上商店

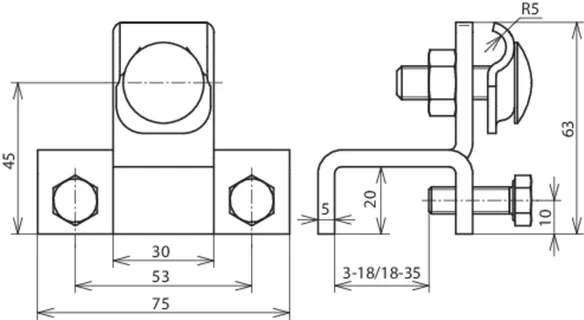

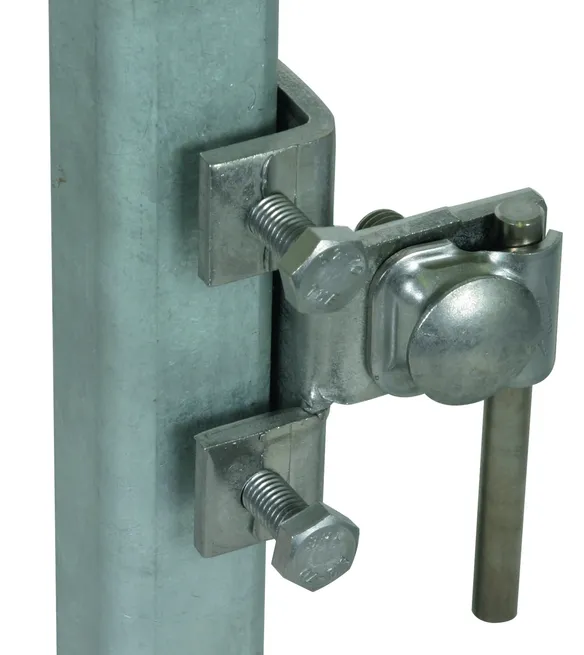

货号 372149 AK 6.10 KB S KBF18 35 V2A

全球贸易项目代码 4013364119208, 海关HS编码: 85359000, 总重: 331.10 g, 包装单位: 25.00 pc(s)


Open PDF

附加信息

CAD文件

Connection clamps for steel girders, vertical, with clamping piece, StSt
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 18-35 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Connection with: clamping piece
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KB S KBF18 35 V2A
Part No.: 372149
or equivalent.

认证

技术参数

Clamping range	18-35 mm
Material of clamp	StSt
Clamping range Rd	6-10 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Clamping range	18-35 mm
Material of clamp	StSt
Clamping range Rd	6-10 mm
Screw	di M8 x 25 mm
Material of screw / nut	StSt
Connection with	clamping piece
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品372149加入购物车。

进入网上商店

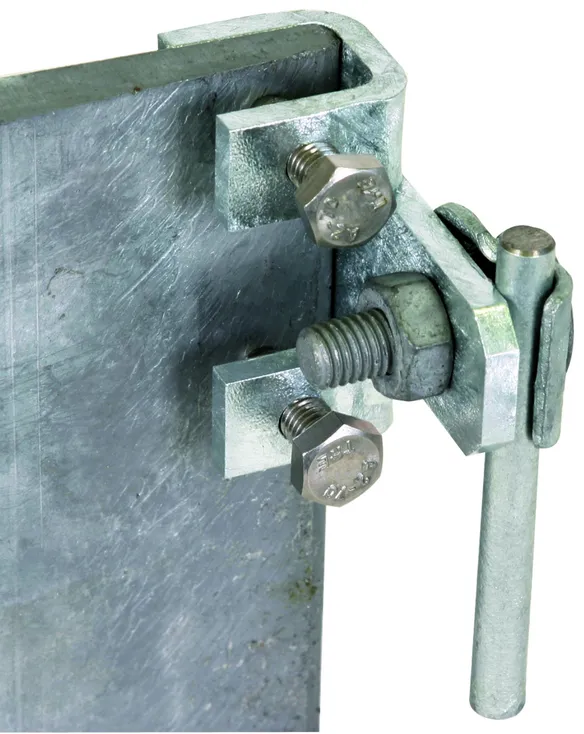

货号 372210 AK 6.10 KB W KBF3 18 STTZN

全球贸易项目代码 4013364119116, 海关HS编码: 85359000, 总重: 288.40 g, 包装单位: 25.00 pc(s)


Open PDF

附加信息

CAD文件

Connection clamps for steel girders, horizontal, with clamping piece, St/tZn
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 3-18 mm
Material of clamp: St/tZn
Clamping range Rd: 6-10 mm
Connection with: clamping piece
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KB W KBF3 18 STTZN
Part No.: 372210
or equivalent.

认证

技术参数

Clamping range	3-18 mm
Material of clamp	St/tZn
Clamping range Rd	6-10 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Clamping range	3-18 mm
Material of clamp	St/tZn
Clamping range Rd	6-10 mm
Screw	di M8 x 25 mm
Material of screw / nut	StSt
Connection with	clamping piece
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品372210加入购物车。

进入网上商店

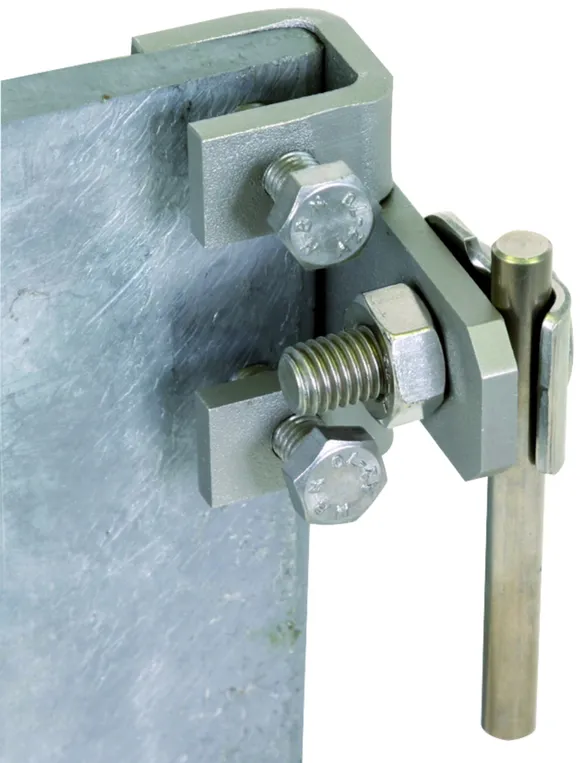

货号 372219 AK 6.10 KB W KBF3 18 V2A

全球贸易项目代码 4013364119239, 海关HS编码: 85359000, 总重: 282.90 g, 包装单位: 25.00 pc(s)


Open PDF

附加信息

CAD文件

Connection clamps for steel girders, horizontal, with clamping piece, StSt
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 3-18 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Connection with: clamping piece
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KB W KBF3 18 V2A
Part No.: 372219
or equivalent.

认证

技术参数

Clamping range	3-18 mm
Material of clamp	StSt
Clamping range Rd	6-10 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Clamping range	3-18 mm
Material of clamp	StSt
Clamping range Rd	6-10 mm
Screw	di M8 x 25 mm
Material of screw / nut	StSt
Connection with	clamping piece
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品372219加入购物车。

进入网上商店

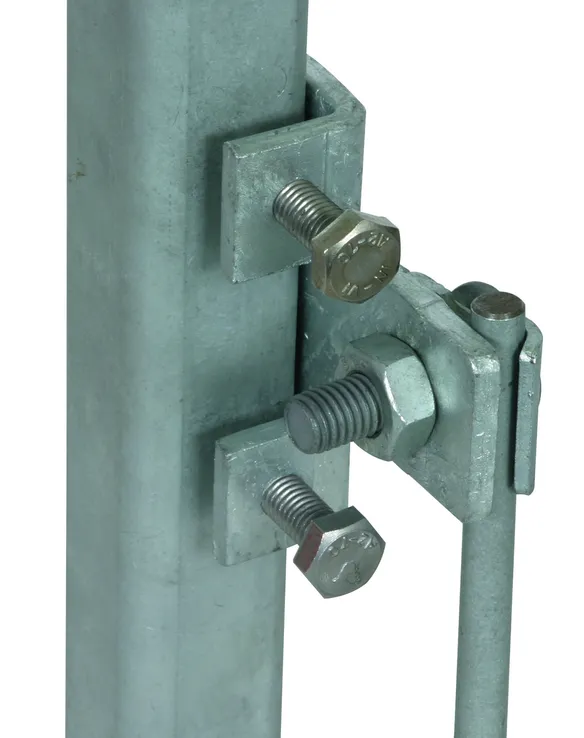

货号 372240 AK 6.10 KB W KBF18 35 STTZN

全球贸易项目代码 4013364119147, 海关HS编码: 85359000, 总重: 339.50 g, 包装单位: 25.00 pc(s)


Open PDF

附加信息

CAD文件

Connection clamps for steel girders, horizontal, with clamping piece, St/tZn
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 18-35 mm
Material of clamp: St/tZn
Clamping range Rd: 6-10 mm
Connection with: clamping piece
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KB W KBF18 35 STTZN
Part No.: 372240
or equivalent.

认证

技术参数

Clamping range	18-35 mm
Material of clamp	St/tZn
Clamping range Rd	6-10 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Clamping range	18-35 mm
Material of clamp	St/tZn
Clamping range Rd	6-10 mm
Screw	di M8 x 25 mm
Material of screw / nut	StSt
Connection with	clamping piece
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品372240加入购物车。

进入网上商店

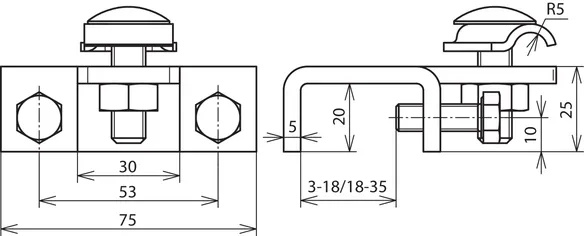

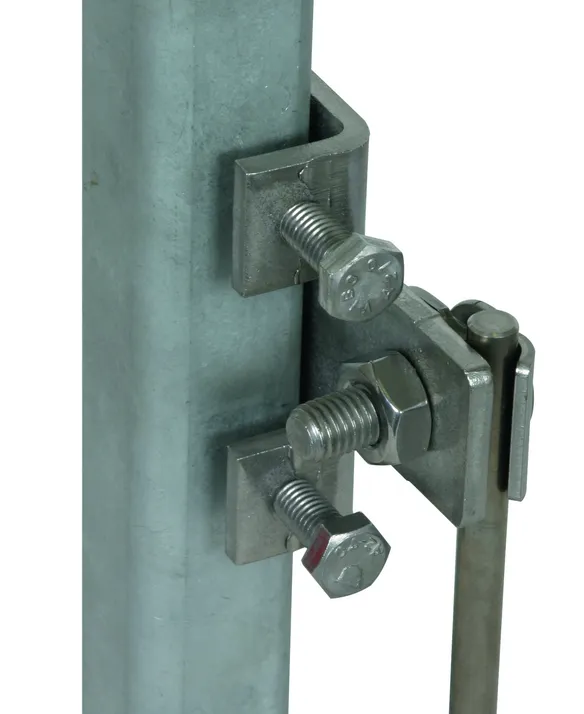

货号 372249 AK 6.10 KB W KBF18 35 V2A

全球贸易项目代码 4013364119260, 海关HS编码: 85359000, 总重: 330.90 g, 包装单位: 1.00 pc(s)


Open PDF

附加信息

CAD文件

Connection clamps for steel girders, horizontal, with clamping piece, StSt
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 18-35 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Connection with: clamping piece
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KB W KBF18 35 V2A
Part No.: 372249
or equivalent.

认证

技术参数

Clamping range	18-35 mm
Material of clamp	StSt
Clamping range Rd	6-10 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Clamping range	18-35 mm
Material of clamp	StSt
Clamping range Rd	6-10 mm
Screw	di M8 x 25 mm
Material of screw / nut	StSt
Connection with	clamping piece
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品372249加入购物车。

进入网上商店

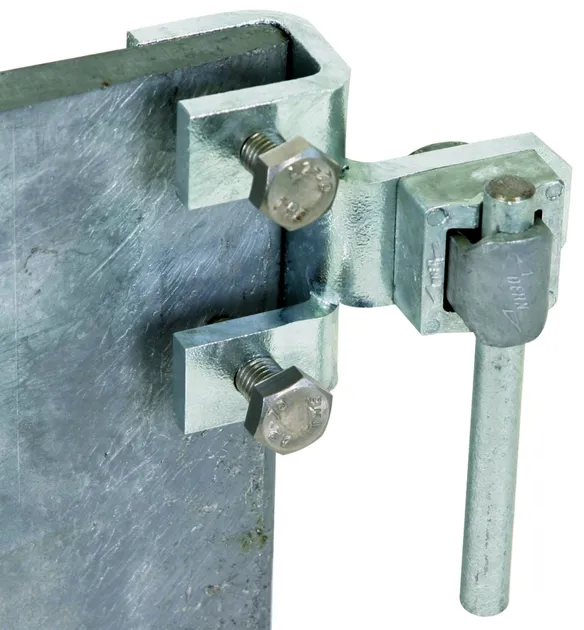

货号 372120 AK 7.10 KSV S KBF3 18 STTZN

全球贸易项目代码 4013364119062, 海关HS编码: 85359000, 总重: 292.30 g, 包装单位: 25.00 pc(s)


Open PDF

附加信息

CAD文件

Connection clamps for steel girders, vertical, with KS connector, St/tZn
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 3-18 mm
Material of clamp: St/tZn
Clamping range Rd: 7-10 mm
Connection with: clamping piece
Standard: EN 62561-1

Brand: DEHN
Type: AK 7.10 KSV S KBF3 18 STTZN
Part No.: 372120
or equivalent.

认证

技术参数

Clamping range	3-18 mm
Material of clamp	St/tZn
Clamping range Rd	7-10 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Clamping range	3-18 mm
Material of clamp	St/tZn
Clamping range Rd	7-10 mm
Screw	di M8 x 25 mm
Material of screw / nut	StSt
Connection with	clamping piece
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品372120加入购物车。

进入网上商店

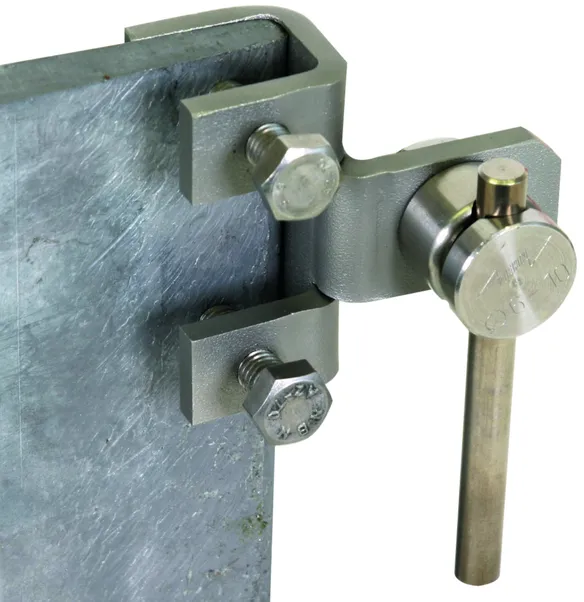

货号 372129 AK 6.10 KSV S KBF3 18 V2A

全球贸易项目代码 4013364119185, 海关HS编码: 85359000, 总重: 280.00 g, 包装单位: 25.00 pc(s)


Open PDF

附加信息

CAD文件

Connection clamps for steel girders, vertical, with KS connector, StSt
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 3-18 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Connection with: clamping piece
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KSV S KBF3 18 V2A
Part No.: 372129
or equivalent.

认证

技术参数

Clamping range	3-18 mm
Material of clamp	StSt
Clamping range Rd	6-10 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Clamping range	3-18 mm
Material of clamp	StSt
Clamping range Rd	6-10 mm
Screw	di M8 x 25 mm
Material of screw / nut	StSt
Connection with	clamping piece
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品372129加入购物车。

进入网上商店

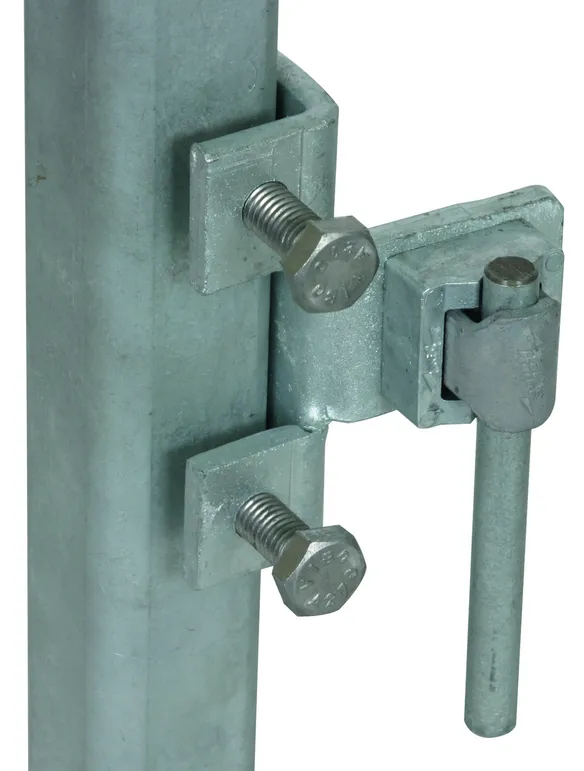

货号 372150 AK 7.10 KSV S KBF18 35 STTZN

全球贸易项目代码 4013364119093, 海关HS编码: 85359000, 总重: 343.60 g, 包装单位: 25.00 pc(s)


Open PDF

附加信息

CAD文件

Connection clamps for steel girders, vertical, with KS connector, St/tZn
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 18-35 mm
Material of clamp: St/tZn
Clamping range Rd: 7-10 mm
Connection with: clamping piece
Standard: EN 62561-1

Brand: DEHN
Type: AK 7.10 KSV S KBF18 35 STTZN
Part No.: 372150
or equivalent.

认证

技术参数

Clamping range	18-35 mm
Material of clamp	St/tZn
Clamping range Rd	7-10 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Clamping range	18-35 mm
Material of clamp	St/tZn
Clamping range Rd	7-10 mm
Screw	di M8 x 25 mm
Material of screw / nut	StSt
Connection with	clamping piece
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品372150加入购物车。

进入网上商店

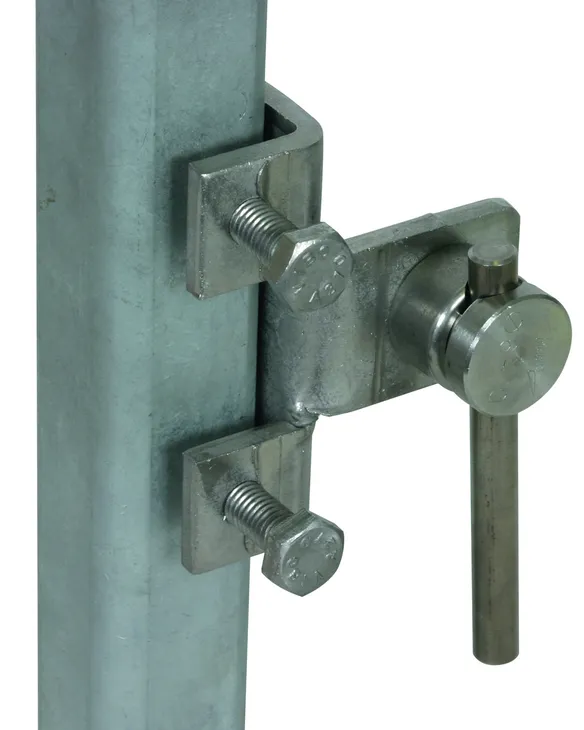

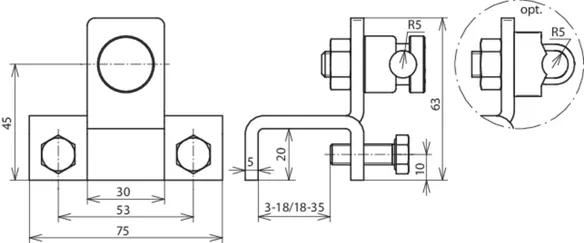

货号 372159 AK 6.10 KSV S KBF18 35 V2A

全球贸易项目代码 4013364119215, 海关HS编码: 85359000, 总重: 337.80 g, 包装单位: 25.00 pc(s)


Open PDF

附加信息

CAD文件

Connection clamps for steel girders, vertical, with KS connector, StSt
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 18-35 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Connection with: clamping piece
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KSV S KBF18 35 V2A
Part No.: 372159
or equivalent.

认证

技术参数

Clamping range	18-35 mm
Material of clamp	StSt
Clamping range Rd	6-10 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Clamping range	18-35 mm
Material of clamp	StSt
Clamping range Rd	6-10 mm
Screw	di M8 x 25 mm
Material of screw / nut	StSt
Connection with	clamping piece
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品372159加入购物车。

进入网上商店

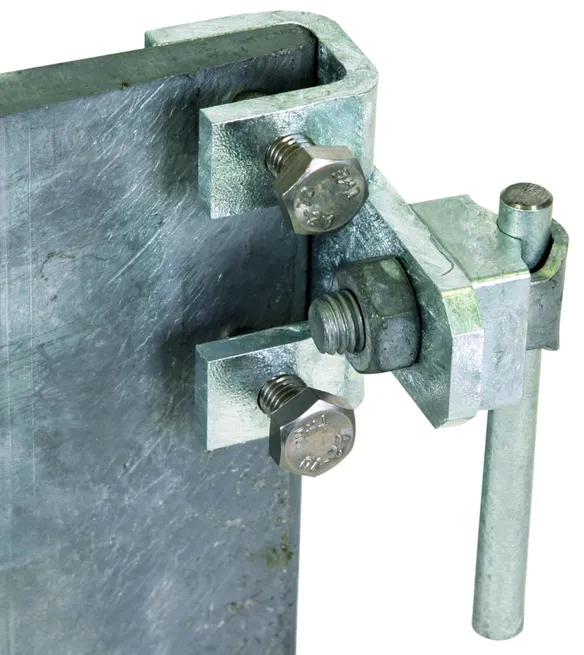

货号 372220 AK 7.10 KSV W KBF3 18 STTZN

全球贸易项目代码 4013364119123, 海关HS编码: 85359000, 总重: 292.40 g, 包装单位: 25.00 pc(s)


Open PDF

附加信息

CAD文件

Connection clamps for steel girders, horizontal, with KS connector, St/tZn
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 3-18 mm
Material of clamp: St/tZn
Clamping range Rd: 7-10 mm
Connection with: clamping piece
Standard: EN 62561-1

Brand: DEHN
Type: AK 7.10 KSV W KBF3 18 STTZN
Part No.: 372220
or equivalent.

认证

技术参数

Clamping range	3-18 mm
Material of clamp	St/tZn
Clamping range Rd	7-10 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Clamping range	3-18 mm
Material of clamp	St/tZn
Clamping range Rd	7-10 mm
Screw	di M8 x 25 mm
Material of screw / nut	StSt
Connection with	clamping piece
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品372220加入购物车。

进入网上商店

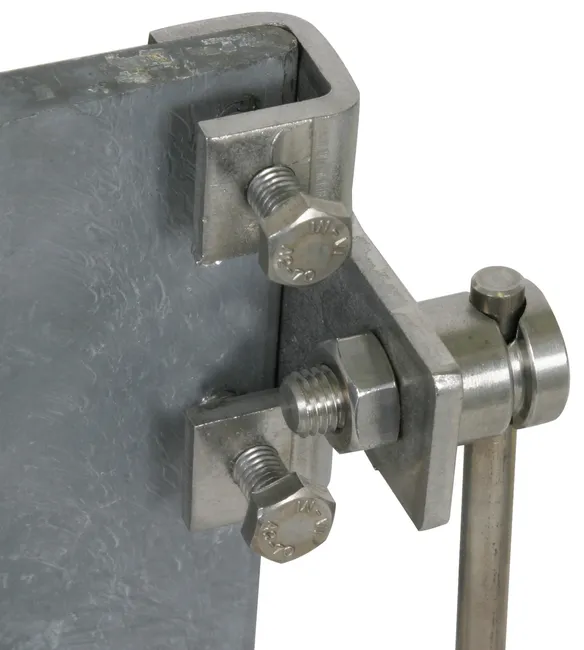

货号 372229 AK 6.10 KSV W KBF3 18 V2A

全球贸易项目代码 4013364119246, 海关HS编码: 85359000, 总重: 287.90 g, 包装单位: 25.00 pc(s)


附加信息

CAD文件

Connection clamps for steel girders, horizontal, with KS connector, StSt
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 3-18 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Connection with: clamping piece
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KSV W KBF3 18 V2A
Part No.: 372229
or equivalent.

认证

技术参数

Clamping range	3-18 mm
Material of clamp	StSt
Clamping range Rd	6-10 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Clamping range	3-18 mm
Material of clamp	StSt
Clamping range Rd	6-10 mm
Screw	di M8 x 25 mm
Material of screw / nut	StSt
Connection with	clamping piece
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品372229加入购物车。

进入网上商店

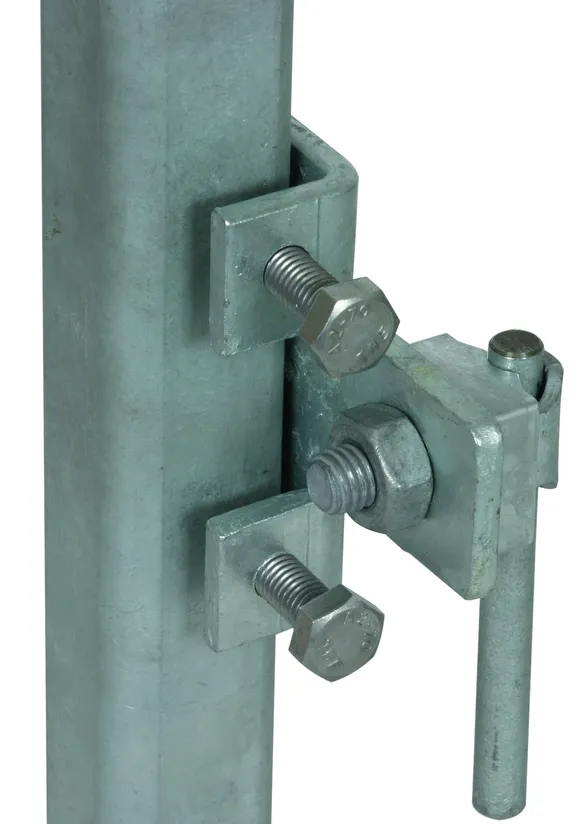

货号 372250 AK 7.10 KSV W KBF18 35 STTZN

全球贸易项目代码 4013364119154, 海关HS编码: 85359000, 总重: 342.60 g, 包装单位: 25.00 pc(s)


Open PDF

附加信息

CAD文件

Connection clamps for steel girders, horizontal, with KS connector, St/tZn
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 18-35 mm
Material of clamp: St/tZn
Clamping range Rd: 7-10 mm
Connection with: clamping piece
Standard: EN 62561-1

Brand: DEHN
Type: AK 7.10 KSV W KBF18 35 STTZN
Part No.: 372250
or equivalent.

认证

技术参数

Clamping range	18-35 mm
Material of clamp	St/tZn
Clamping range Rd	7-10 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Clamping range	18-35 mm
Material of clamp	St/tZn
Clamping range Rd	7-10 mm
Screw	di M8 x 25 mm
Material of screw / nut	StSt
Connection with	clamping piece
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品372250加入购物车。

进入网上商店

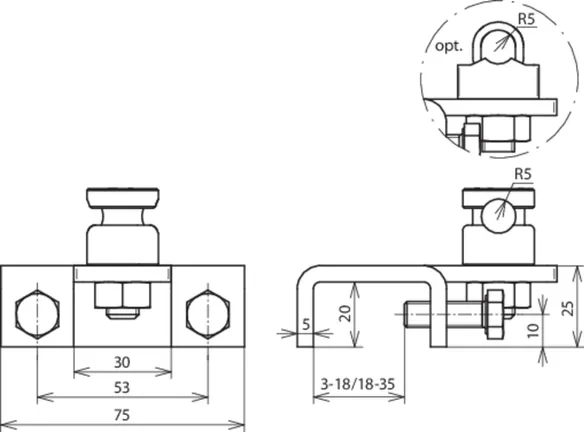

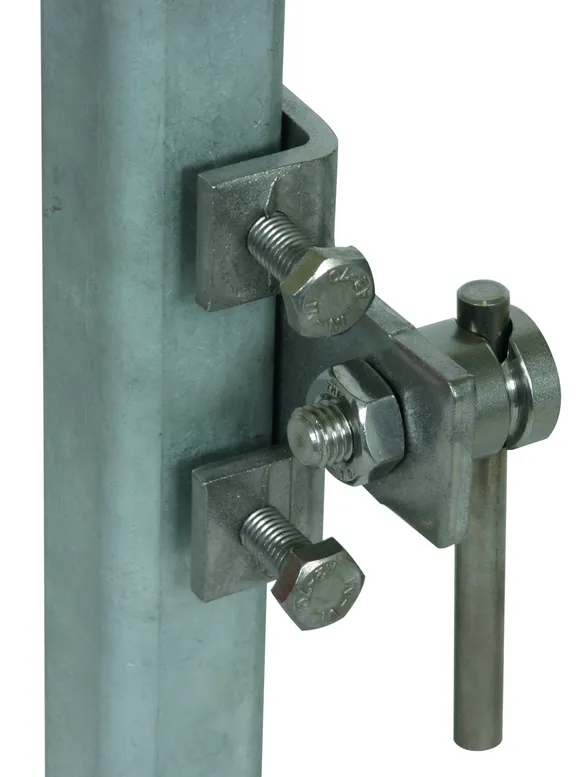

货号 372259 AK 6.10 KSV W KBF18 35 V2A

全球贸易项目代码 4013364119277, 海关HS编码: 85359000, 总重: 335.80 g, 包装单位: 25.00 pc(s)


Open PDF

附加信息

CAD文件

Connection clamps for steel girders, horizontal, with KS connector, StSt
Connection clamp for steel girders
Heavy type, for connection to steel constructions
Clamping range: 18-35 mm
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Connection with: clamping piece
Standard: EN 62561-1

Brand: DEHN
Type: AK 6.10 KSV W KBF18 35 V2A
Part No.: 372259
or equivalent.

认证

技术参数

Clamping range	18-35 mm
Material of clamp	StSt
Clamping range Rd	6-10 mm
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

Clamping range	18-35 mm
Material of clamp	StSt
Clamping range Rd	6-10 mm
Screw	di M8 x 25 mm
Material of screw / nut	StSt
Connection with	clamping piece
Lightning current carrying capability (10/350 µs)	& *⁾
Standard	EN 62561-1
*⁾For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品372259加入购物车。

进入网上商店

Connection Clamps for Steel Girders

Small version

货号 372330 AKK AL B11.11 KBF 3 20 STTZN

372330.stp 您没有下载权限372330.stp

372330.igs 您没有下载权限372330.igs

372330.jt 您没有下载权限372330.jt

372330.dwg 您没有下载权限372330.dwg

372330m_D.dxf 您没有下载权限372330m_D.dxf

.产品已加入收藏夹。

商品372330加入购物车。

货号 372339 AKK AL B11.11 KBF 3 20 V2A

372339.stp 您没有下载权限372339.stp

372339.igs 您没有下载权限372339.igs

372339.jt 您没有下载权限372339.jt

372339.dwg 您没有下载权限372339.dwg

372339m_D.dxf 您没有下载权限372339m_D.dxf

.产品已加入收藏夹。

商品372339加入购物车。

货号 372300 AKK DUL 8.10 KBF 3 20 STTZN

372300_372309.stp 您没有下载权限372300_372309.stp

372300_372309.igs 您没有下载权限372300_372309.igs

372300_372309.jt 您没有下载权限372300_372309.jt

372300_372309.dwg 您没有下载权限372300_372309.dwg

372300_372309m_D.dxf 您没有下载权限372300_372309m_D.dxf

.产品已加入收藏夹。

商品372300加入购物车。

货号 372309 AKK DUL 8.10 KBF 3 20 V2A

372300_372309.stp 您没有下载权限372300_372309.stp

372300_372309.igs 您没有下载权限372300_372309.igs

372300_372309.jt 您没有下载权限372300_372309.jt

372300_372309.dwg 您没有下载权限372300_372309.dwg

372300_372309m_D.dxf 您没有下载权限372300_372309m_D.dxf

.产品已加入收藏夹。

商品372309加入购物车。

Medium version

货号 372340 AKK AL B11.11 KBF 20 36 STTZN

372340.stp 您没有下载权限372340.stp

372340.igs 您没有下载权限372340.igs

372340.jt 您没有下载权限372340.jt

372340.dwg 您没有下载权限372340.dwg

372340m_D.dxf 您没有下载权限372340m_D.dxf

.产品已加入收藏夹。

商品372340加入购物车。

货号 372349 AKK AL B11.11 KBF 20 36 V2A

372349.stp 您没有下载权限372349.stp

372349.igs 您没有下载权限372349.igs

372349.jt 您没有下载权限372349.jt

372349.dwg 您没有下载权限372349.dwg

372349m_D.dxf 您没有下载权限372349m_D.dxf

.产品已加入收藏夹。

商品372349加入购物车。

货号 372310 AKK DUL 8.10 KBF 20 36 STTZN

372310_372319.stp 您没有下载权限372310_372319.stp

372310_372319.igs 您没有下载权限372310_372319.igs

372310_372319.jt 您没有下载权限372310_372319.jt

372310_372319.dwg 您没有下载权限372310_372319.dwg

372310_372319m_D.dxf 您没有下载权限372310_372319m_D.dxf

.产品已加入收藏夹。

商品372310加入购物车。

货号 372319 AKK DUL 8.10 KBF 20 36 V2A

372310_372319.stp 您没有下载权限372310_372319.stp

372310_372319.igs 您没有下载权限372310_372319.igs

372310_372319.jt 您没有下载权限372310_372319.jt

372310_372319.dwg 您没有下载权限372310_372319.dwg

372310_372319m_D.dxf 您没有下载权限372310_372319m_D.dxf

.产品已加入收藏夹。

商品372319加入购物车。

Large version

货号 372350 AKK AL B11.11 KBF 36 52 STTZN

372350.stp 您没有下载权限372350.stp

372350.igs 您没有下载权限372350.igs

372350.jt 您没有下载权限372350.jt

372350.dwg 您没有下载权限372350.dwg

372350m_D.dxf 您没有下载权限372350m_D.dxf

.产品已加入收藏夹。

商品372350加入购物车。

货号 372359 AKK AL B11.11 KBF 36 52 V2A

372359.stp 您没有下载权限372359.stp

372359.igs 您没有下载权限372359.igs

372359.jt 您没有下载权限372359.jt
