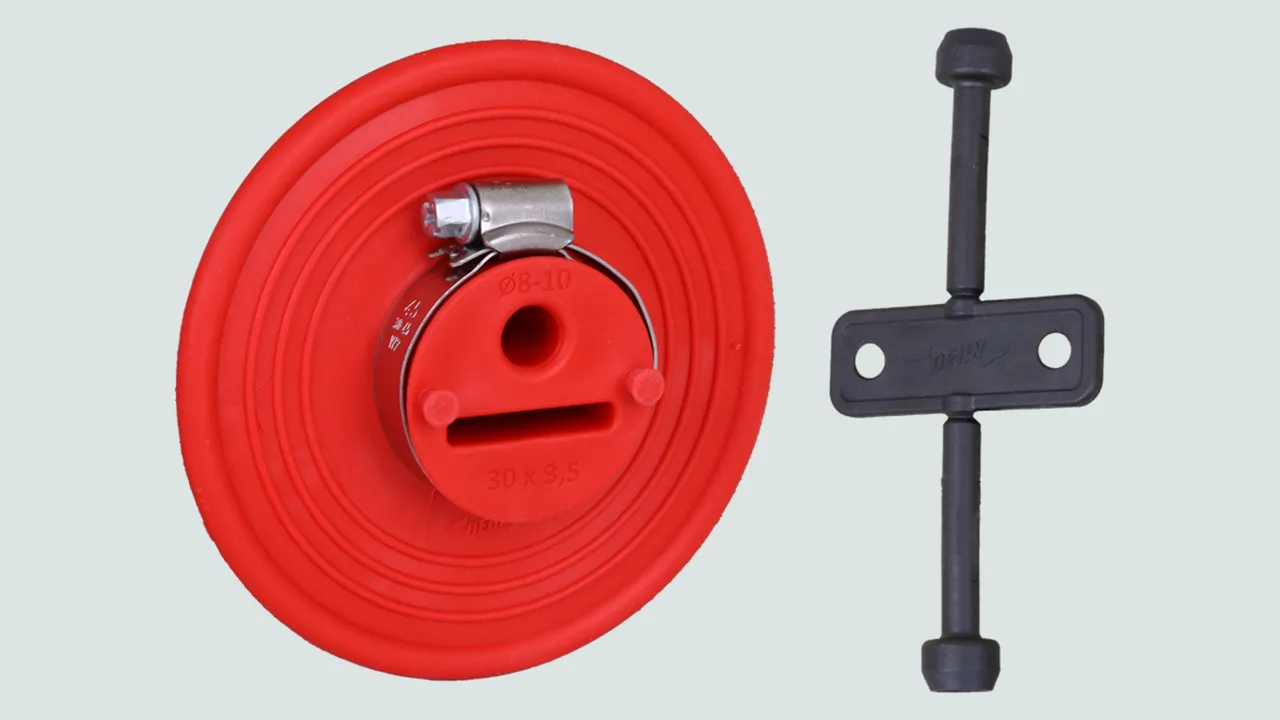

Sealing collar for round and flat conductors

Water-pressure-tight sealing collar for round conductors (Ø8-10 mm) and flat conductors (30 x 3.5 mm) with waterproof foundation slabs / walls (e.g. watertight concrete constructions).

With torque control spanner for easy tightening of the two stainless steel tensioning straps.

MPA-tested to 5.0 bar, methane-resistant, radon-safe (as per FHRK leaflet MB 101).

Waterproof concrete construction guideline: Load class 1 + 2.

For round and flat conductors

1 产品

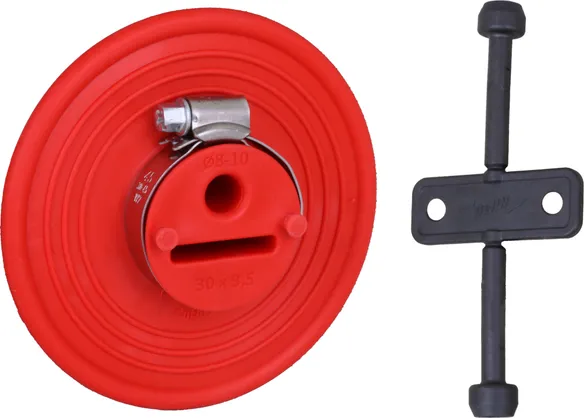

货号 478597 DM RD8.10 FL30X3.5 D114MM TPE

全球贸易项目代码 4013364523029, 海关HS编码: 40169300, 总重: 182.50 g, 包装单位: 12.00 pc(s)

前代产品


附加信息

Water-pressure-tight sealing collar for Round conductors (Ø8–10 mm) and flat conductors (30 x 3.5 mm)
With torque control spanner
for easy tightening
of the two stainless steel tensioning straps
Sealing collar for bushings
for waterproof
foundation slabs / walls
(e.g. watertight concrete construction).

Sealing collar material: Thermoplastic elastomer (TPE)
Torque control spanner material: Polyamide (recycled PA)
Material of tensioning straps: StSt
Diameter of sealing collar: 114 mm
Bushing / seal, Rd.: 8-10 mm
Bushing / seal, Fl.: 30 x 3.5 mm
Pressure-water test: MPA tested to 5 bar
Waterproof concrete construction guideline: Load class 1+2
Resistance: Methane-gas-resistant
Radon: Radon-safe (as per FHRK leaflet MB 101)
Breakaway torque Torque control spanner: 3.5 Nm

Brand: DEHN
Type: DM RD8.10 FL30X3.5 D114MM TPE
Part No.: 478597
or equivalent.

认证



技术参数

Sealing collar material Thermoplastic elastomer (TPE)
Material of tensioning straps StSt
Diameter of sealing collar 114 mm
Bushing / seal, Rd. 8-10 mm
Bushing / seal, Fl. 30 x 3.5 mm

.产品已加入收藏夹。

进入收藏夹

商品478597加入购物车。

进入网上商店

For flat conductors

1 产品

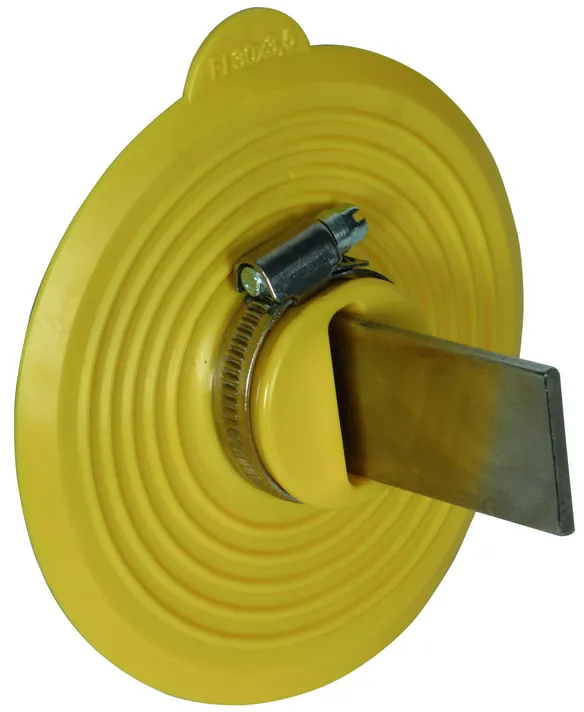

货号 478599 DM AF FL30X3.5 D120MM TPE

全球贸易项目代码 4013364158023, 海关HS编码: 40169300, 总重: 170.00 g, 包装单位: 10.00 pc(s)


附加信息

Sealing collar for connection lug (flat conductors)
Sealing collar for bushings in case of water-tight foundation slabs / walls (e.g. white tank). Water-pressure-tight, to be pushed/positioned on round conductors with StSt tensioning straps. Pressurised water test up to 1 bar represents an installation depth of 10 m in stagnant water, additionally tested with 5 bar compressed air according to EN 62561-5.
Sealing collar material: thermoplast elastomer
Material of tensioning straps: StSt
Diameter of sealing collar: 119 mm
Pressure-water test: 1 bar
Standard: EN 62561-5

Brand: DEHN
Type: DM AF FL30X3.5 D120MM TPE
Part No.: 478599
or equivalent.

认证



技术参数

Sealing collar material thermoplast elastomer
Material of tensioning straps StSt
Diameter of sealing collar 119 mm
