Cross Units for Aboveground Connections

of conductors in cross, parallel and T arrangement.

Without intermediate plate

2 产品

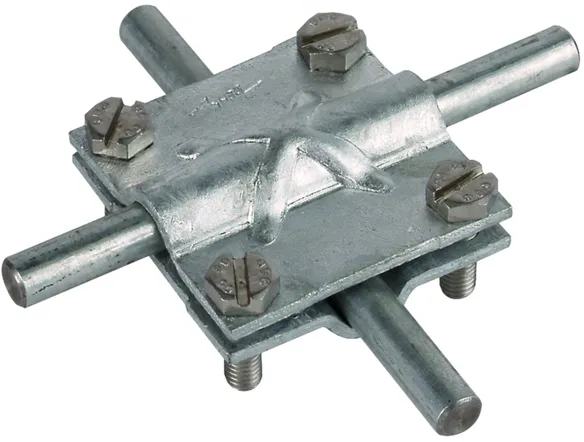

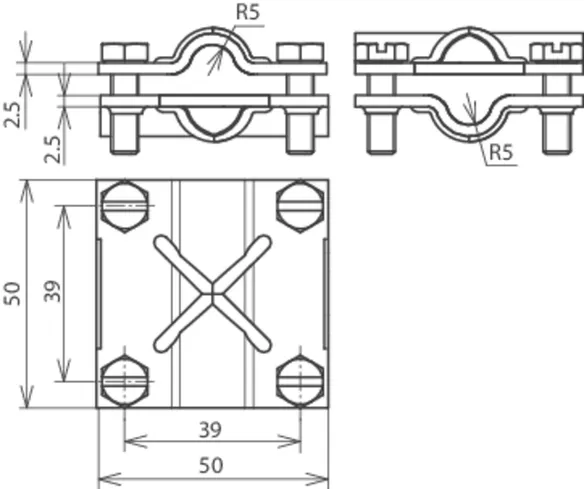

货号 314300 KS 8.10 8.10 FL30 OV STTZN

全球贸易项目代码 4013364096400, 海关HS编码: 85359000, 总重: 122.30 g, 包装单位: 50.00 pc(s)


附加信息

Cross units for aboveground connections without intermediate plate, HDG steel
Cross units for aboveground connections
for connecting conductors
in cross, parallel and T arrangement
Material of clamp: St/tZn
Clamping range Rd / Rd: 8-10 / 8-10 mm
Clamping range Rd / Fl: 8-10 / 30 mm
Clamping range Fl / Fl: 30 / 30 mm
Standard: EN 62561-1

Brand: DEHN
Type: KS 8.10 8.10 FL30 OV STTZN
Part No.: 314300
or equivalent.

认证



技术参数

Material of clamp St/tZn
Clamping range Rd / Rd 8-10 / 8-10 mm
Clamping range Rd / Fl 8-10 / 30 mm
Clamping range Fl / Fl 30 / 30 mm
Dimensions 50 x 50 x 2.5 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品314300加入购物车。

进入网上商店

货号 314307 KS 8.10 8.10 FL30 OV CU

全球贸易项目代码 4013364096417, 海关HS编码: 85359000, 总重: 134.30 g, 包装单位: 50.00 pc(s)


附加信息

Cross units for aboveground connections without intermediate plate, Cu
Cross units for aboveground connections
for connecting conductors
in cross, parallel and T arrangement
Material of clamp: Cu
Clamping range Rd / Rd: 8-10 / 8-10 mm
Clamping range Rd / Fl: 8-10 / 30 mm
Clamping range Fl / Fl: 30 / 30 mm
Clamping range (stranded / cable): 35-70 mm2
Standard: EN 62561-1

Brand: DEHN
Type: KS 8.10 8.10 FL30 OV CU
Part No.: 314307
or equivalent.

认证



技术参数

Material of clamp Cu
Clamping range Rd / Rd 8-10 / 8-10 mm
Clamping range Rd / Fl 8-10 / 30 mm
Clamping range Fl / Fl 30 / 30 mm
Clamping range (stranded / cable) 35-70 mm2
Dimensions 50 x 50 x 2.5 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品314307加入购物车。

进入网上商店

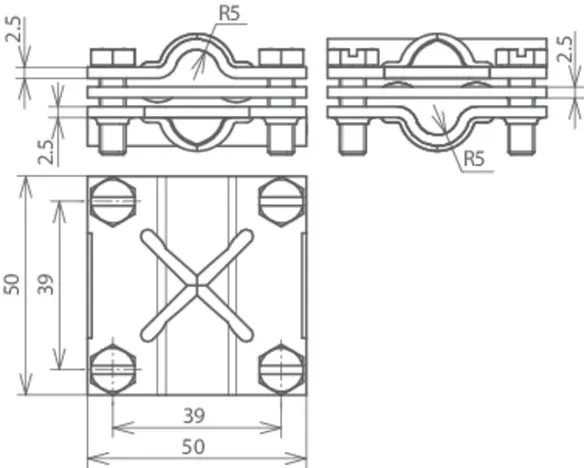

With intermediate plate

1 产品

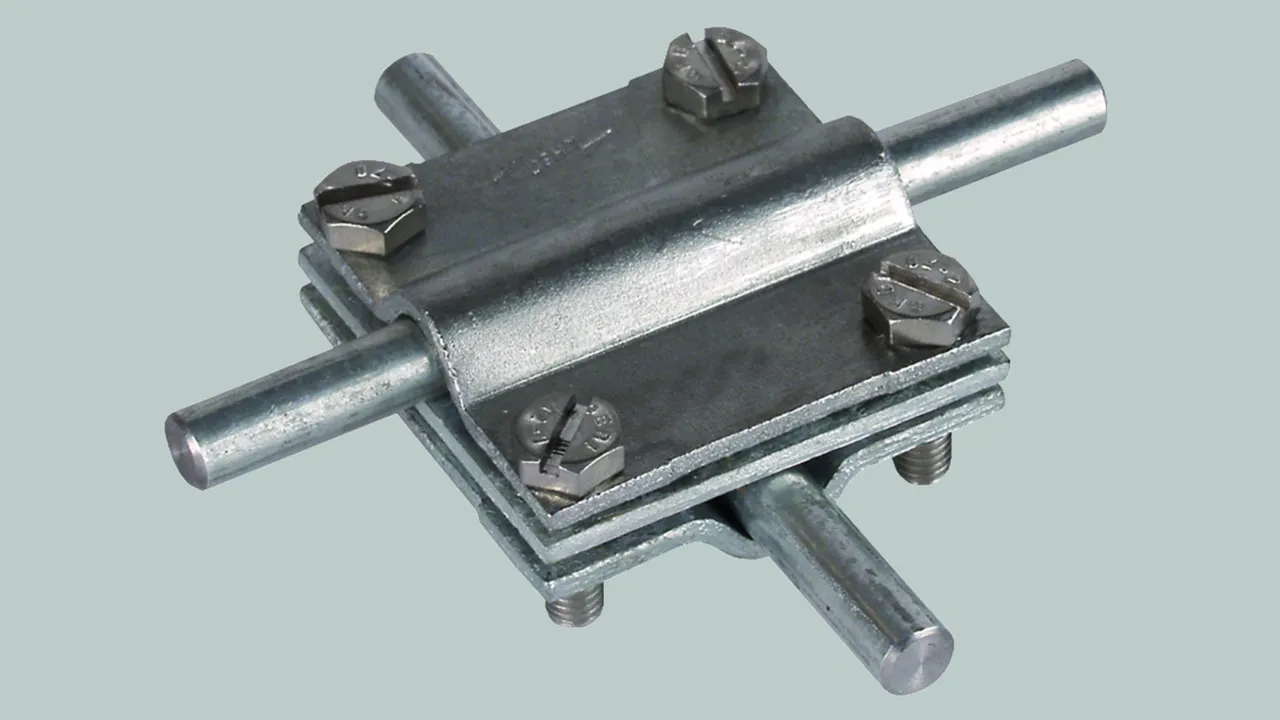

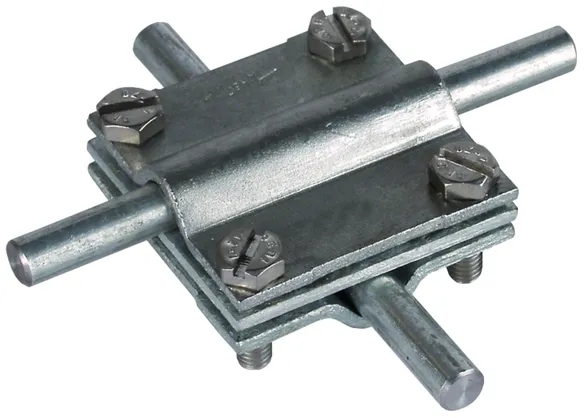

货号 314310 KS 8.10 8.10 FL30 OV ZP STTZN

全球贸易项目代码 4013364042841, 海关HS编码: 85359000, 总重: 176.80 g, 包装单位: 50.00 pc(s)


附加信息

Cross units for aboveground connections with intermediate plate, HDG steel
Cross units for aboveground connections
for connecting conductors
in cross, parallel and T arrangement
Material of clamp: St/tZn
Clamping range Rd / Rd: 8-10 / 8-10 mm
Clamping range Rd / Fl: 8-10 / 30 mm
Clamping range Fl / Fl: 30 / 30 mm
Intermediate plate: yes
Standard: EN 62561-1

Brand: DEHN
Type: KS 8.10 8.10 FL30 OV ZP STTZN
Part No.: 314310
or equivalent.

认证



技术参数

Material of clamp St/tZn
Clamping range Rd / Rd 8-10 / 8-10 mm
Clamping range Rd / Fl 8-10 / 30 mm
Clamping range Fl / Fl 30 / 30 mm
Dimensions 50 x 50 x 2.5 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品314310加入购物车。

进入网上商店

With intermediate plate, e.g. for air-termination rods

2 产品

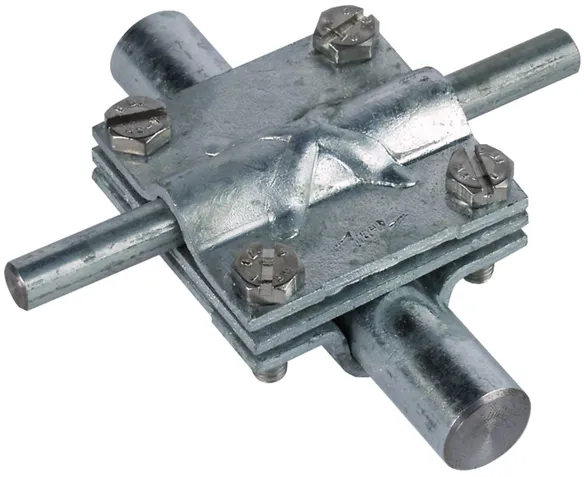

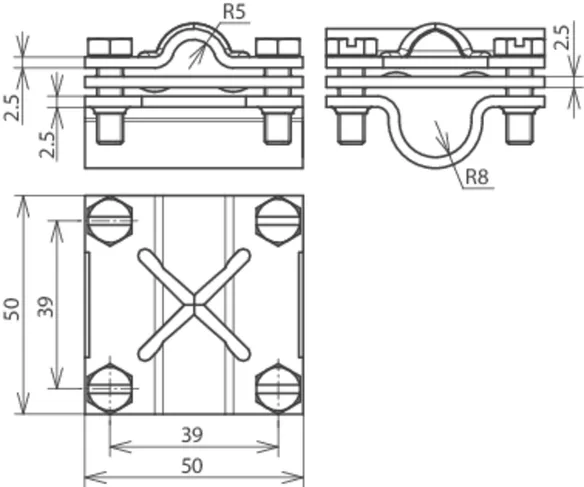

货号 316163 KS 16 8.10 FL30 OV ZP STTZN

全球贸易项目代码 4013364024502, 海关HS编码: 85359000, 总重: 195.00 g, 包装单位: 1.00 pc(s)


附加信息

Cross units for aboveground connections with intermediate plate, HDG steel
Cross units for aboveground connections
for connecting conductors with the air-termination rod
in cross, parallel and T arrangement
Material of clamp: St/tZn
Clamping range Rd / Rd: 16 / 8-10 mm
Clamping range Rd / Fl: 16 / 30 mm
Intermediate plate: yes
Standard: EN 62561-1

Brand: DEHN
Type: KS 16 8.10 FL30 OV ZP STTZN
Part No.: 316163
or equivalent.

认证



技术参数

Material of clamp St/tZn
Clamping range Rd / Rd 16 / 8-10 mm
Clamping range Rd / Fl 16 / 30 mm
Dimensions 50 x 50 x 2.5 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品316163加入购物车。

进入网上商店

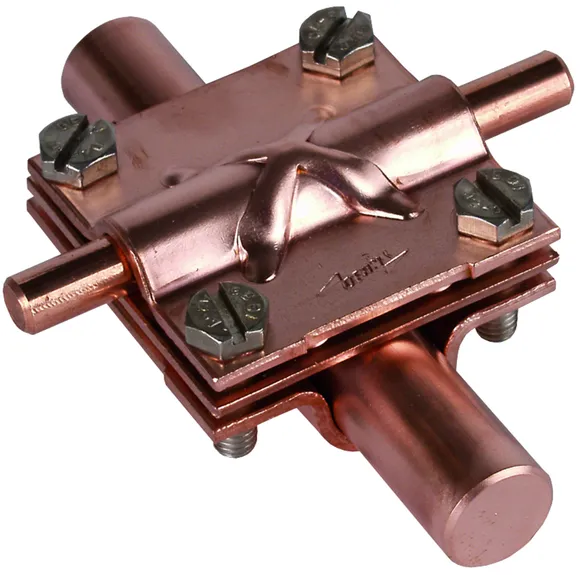

货号 316167 KS 16 8.10 FL30 OV ZP CU

全球贸易项目代码 4013364035386, 海关HS编码: 85359000, 总重: 213.40 g, 包装单位: 25.00 pc(s)


附加信息

Cross units for aboveground connections with intermediate plate, Cu
Cross units for aboveground connections
for connecting conductors with the air-termination rod
in cross, parallel and T arrangement
Material of clamp: Cu
Clamping range Rd / Rd: 16 / 8-10 mm
Clamping range Rd / Fl: 16 / 30 mm
Clamping range (stranded / cable): 35-120 mm2
Intermediate plate: yes
Standard: EN 62561-1

Brand: DEHN
Type: KS 16 8.10 FL30 OV ZP CU
Part No.: 316167
or equivalent.

认证



技术参数

Material of clamp Cu
Clamping range Rd / Rd 16 / 8-10 mm
Clamping range Rd / Fl 16 / 30 mm
Clamping range (stranded / cable) 35-120 mm2
Dimensions 50 x 50 x 2.5 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品316167加入购物车。

进入网上商店
