Parallel Connectors

For connecting two conductors in parallel arrangement.

For equal diameters with one screw

2 产品

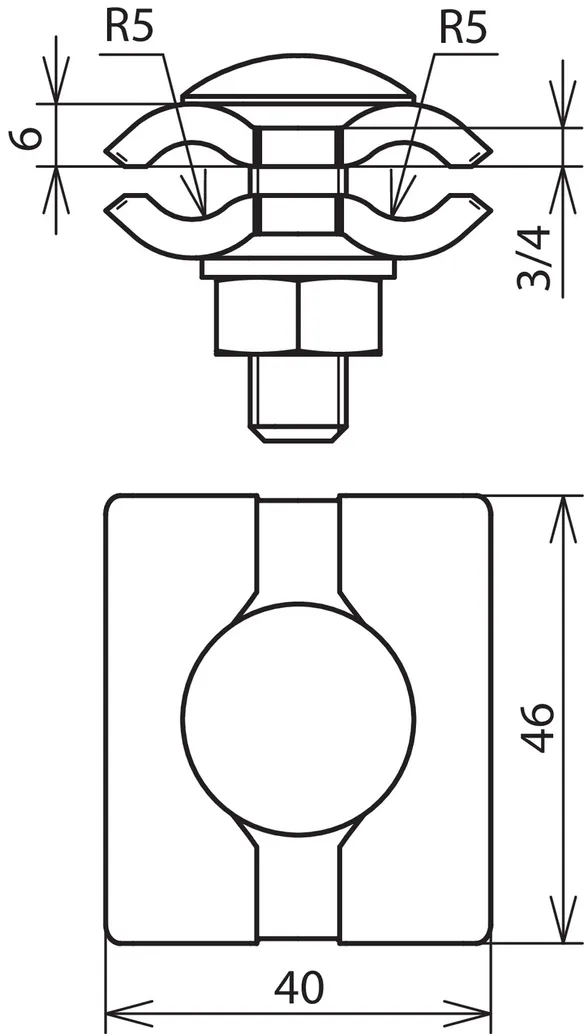

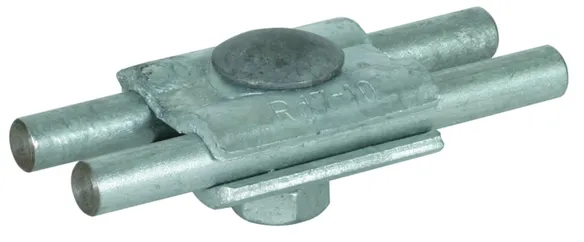

货号 306020 PV 7.10 FRM10X35 STTZN

全球贸易项目代码 4013364096264, 海关HS编码: 85359000, 总重: 147.00 g, 包装单位: 50.00 pc(s)


附加信息

Parallel connector with one screw, St/tZn
Parallel connector
For connecting two conductors in parallel arrangements
Material of clamp: St/tZn
Clamping range Rd / Rd: 7-10 mm
Screw: M10 x 35 mm
Standard: EN 62561-1

Brand: DEHN
Type: PV 7.10 FRM10X35 STTZN
Part No.: 306020
or equivalent.

认证



技术参数

Material of clamp St/tZn
Clamping range Rd / Rd 7-10 mm
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 4.0 kA
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品306020加入购物车。

进入网上商店

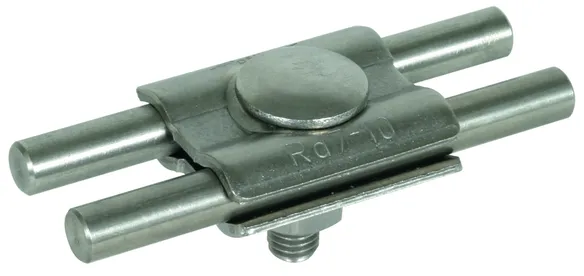

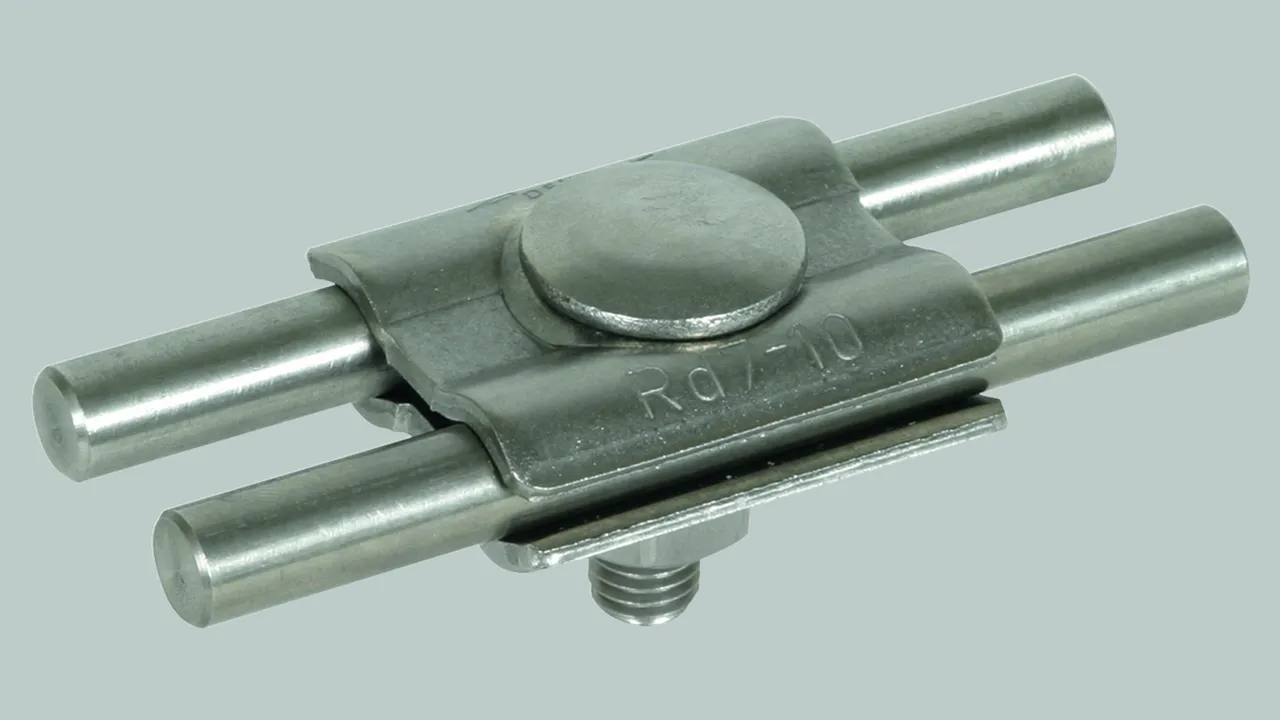

货号 306029 PV 7.10 FRM10X35 V4A

全球贸易项目代码 4013364129467, 海关HS编码: 85359000, 总重: 122.00 g, 包装单位: 50.00 pc(s)


附加信息

Parallel connector with one screw, StSt (V4A)
Parallel connector
For connecting two conductors in parallel
arrangements
Material of clamp: StSt (V4A)
Clamping range Rd / Rd: 7-10 mm
Clamping range (stranded / cable): 25-120 mm2
Screw: M10 x 35 mm
Material No.: 1.4571 / 1.4404 / 1.4401
ASTM / AISI:: 316Ti / 316L / 316
Standard: EN 62561-1

Brand: DEHN
Type: PV 7.10 FRM10X35 V4A
Part No.: 306029
or equivalent.

认证



技术参数

Material of clamp StSt (V4A)
Clamping range Rd / Rd 7-10 mm
Clamping range (stranded / cable) 25-120 mm2
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 2.9 kA
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品306029加入购物车。

进入网上商店

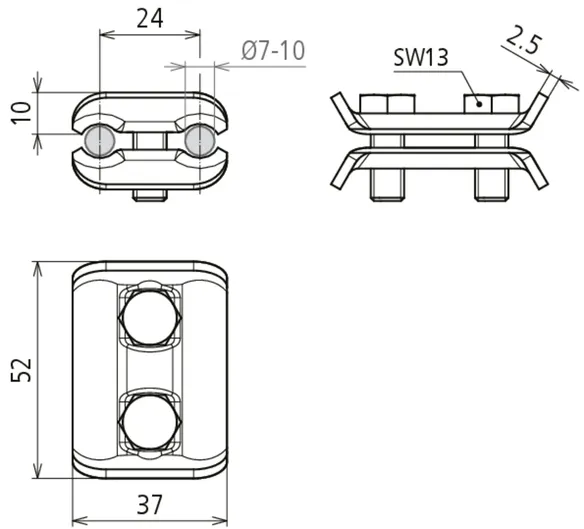

For equal diameters with two screws

2 产品

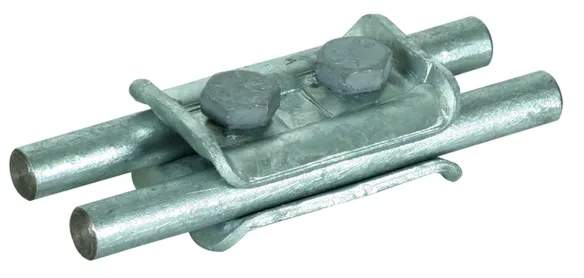

货号 307000 PV 7.10 SKM8X20 STTZN

全球贸易项目代码 4013364024151, 海关HS编码: 85359000, 总重: 107.00 g, 包装单位: 50.00 pc(s)


附加信息

Parallel connector with two screws, St/tZn
Parallel connector
For connecting two conductors in parallel
arrangements
Material of clamp: St/tZn
Clamping range Rd / Rd: 7-10 mm
Screw: M8 x 20 mm
Standard: EN 62561-1

Brand: DEHN
Type: PV 7.10 SKM8X20 STTZN
Part No.: 307000
or equivalent.

认证



技术参数

Material of clamp St/tZn
Clamping range Rd / Rd 7-10 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品307000加入购物车。

进入网上商店

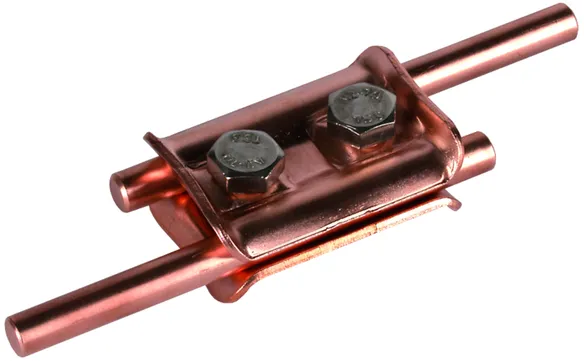

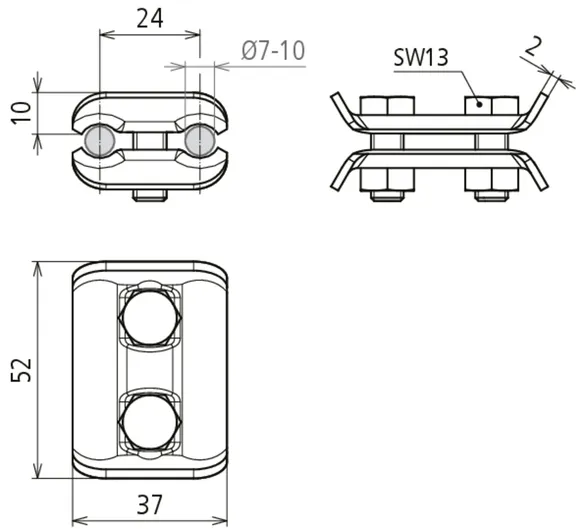

货号 307007 PV 7.10 SKM8X20 CU

全球贸易项目代码 4013364024168, 海关HS编码: 85359000, 总重: 106.00 g, 包装单位: 50.00 pc(s)


附加信息

Parallel connector with two screws, Cu
Parallel connector
For connecting two conductors in parallel
arrangements
Material of clamp: Cu
Clamping range Rd / Rd: 7-10 mm
Clamping range (stranded / cable): 16-95 mm2
Screw: M8 x 20 mm
Standard: EN 62561-1

Brand: DEHN
Type: PV 7.10 SKM8X20 CU
Part No.: 307007
or equivalent.

认证



技术参数

Material of clamp Cu
Clamping range Rd / Rd 7-10 mm
Clamping range (stranded / cable) 16-95 mm2
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品307007加入购物车。

进入网上商店

For different diameters with one screw

2 产品

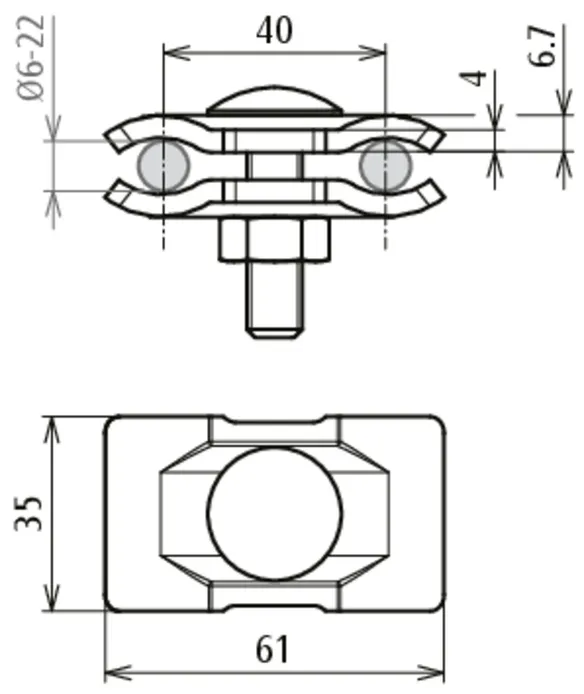

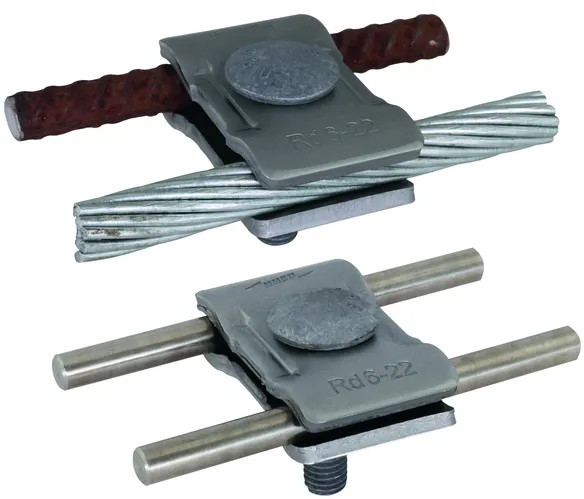

货号 306121 PV 6.22 FRM10X40 STBLANK

全球贸易项目代码 4013364284920, 海关HS编码: 85359000, 总重: 163.16 g, 包装单位: 50.00 pc(s)


附加信息

Parallel connector with one screw, St/blank
Parallel connector
For connecting two conductors in parallel arrangements
Material of clamp: St/bare
Clamping range Rd / Rd: 6-22 / 6-22 mm
Screw: M10 x 40 mm
Standard: EN 62561-1

Brand: DEHN
Type: PV 6.22 FRM10X40 STBLANK
Part No.: 306121
or equivalent.

认证



技术参数

Material of clamp St/bare
Clamping range Rd / Rd 6-22 / 6-22 mm
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 6.1 kA
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品306121加入购物车。

进入网上商店

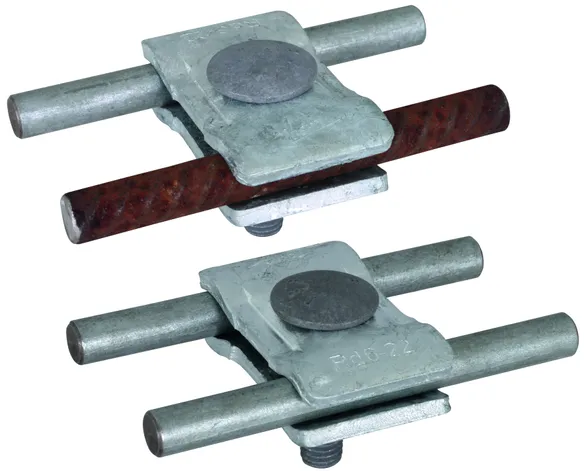

货号 306122 PV 6.22 FRM10X40 STTZN

全球贸易项目代码 4013364284937, 海关HS编码: 85359000, 总重: 167.12 g, 包装单位: 50.00 pc(s)


附加信息

Parallel connector with one screw, St/tZn
Parallel connector
For connecting two conductors in parallel arrangements
Material of clamp: St/tZn
Clamping range Rd / Rd: 6-22 / 6-22 mm
Screw: M10 x 40 mm
Standard: EN 62561-1

Brand: DEHN
Type: PV 6.22 FRM10X40 STTZN
Part No.: 306122
or equivalent.

认证



技术参数

Material of clamp St/tZn
Clamping range Rd / Rd 6-22 / 6-22 mm
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 6.1 kA
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品306122加入购物车。

进入网上商店

For different diameters 4-10 mm with two scews

2 产品

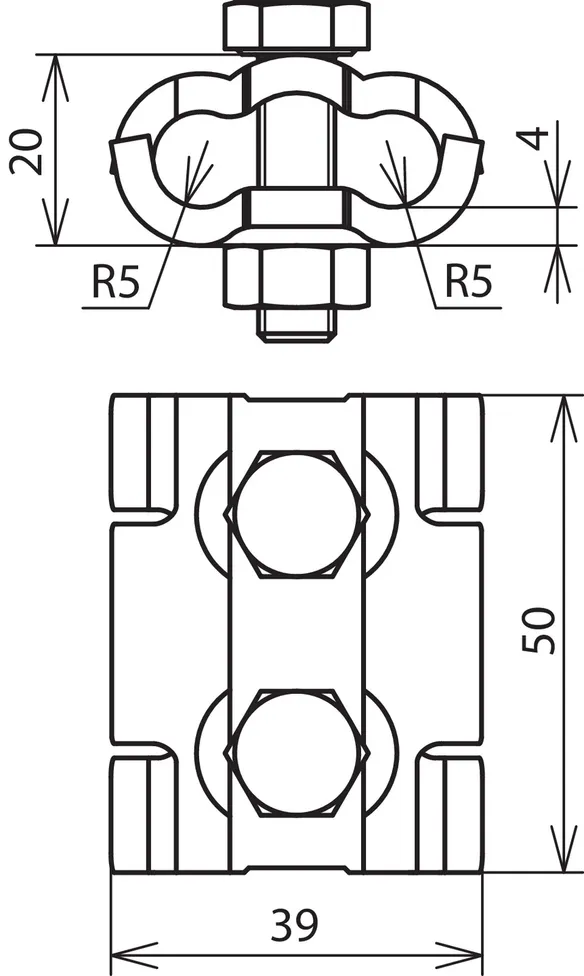

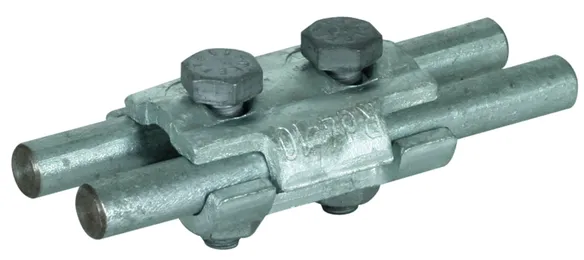

货号 305000 PV 4.10 SKM8X30 STTZN

全球贸易项目代码 4013364041936, 海关HS编码: 85359000, 总重: 148.00 g, 包装单位: 50.00 pc(s)


附加信息

Parallel connector for different diameters 4-10 mm, St/tZn
Parallel connector
For connecting two conductors in parallel
arrangements
Material of clamp: St/tZn
Clamping range Rd / Rd: 4-10 mm
Screw: M8 x 30 mm
Standard: EN 62561-1

Brand: DEHN
Type: PV 4.10 SKM8X30 STTZN
Part No.: 305000
or equivalent.

认证



技术参数

Material of clamp St/tZn
Clamping range Rd / Rd 4-10 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品305000加入购物车。

进入网上商店

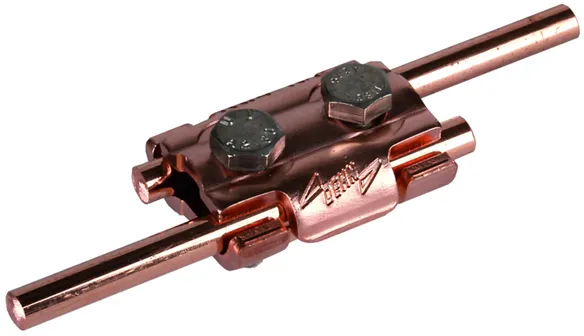

货号 305007 PV 4.10 SKM8X30 CU

全球贸易项目代码 4013364052307, 海关HS编码: 85369095, 总重: 153.00 g, 包装单位: 50.00 pc(s)


附加信息

Parallel connector for different diameters 4-10 mm, Cu
Parallel connector
For connecting two conductors in parallel
arrangements
Material of clamp: Cu
Clamping range Rd / Rd: 4-10 mm
Clamping range (stranded / cable): 10-70 mm2
Screw: M8 x 30 mm
Material No.: 1.4571 / 1.4404 / 1.4401
ASTM / AISI:: 316Ti / 316L / 316
Standard: EN 62561-1

Brand: DEHN
Type: PV 4.10 SKM8X30 CU
Part No.: 305007
or equivalent.

认证



技术参数

Material of clamp Cu
Clamping range Rd / Rd 4-10 mm
Clamping range (stranded / cable) 10-70 mm2
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 13.6 kA
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品305007加入购物车。

进入网上商店

For equal and different cable diameters, small

With thread in the base part and lock nut M8.
Specified short-circuit current applies to 70 mm² Cu cable.

1 产品

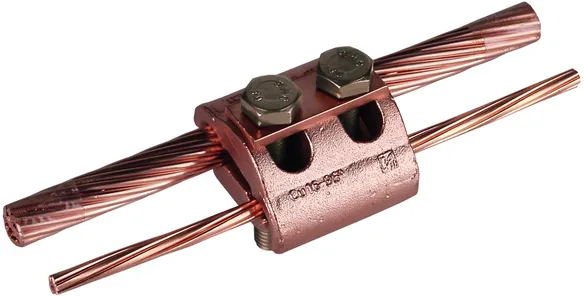

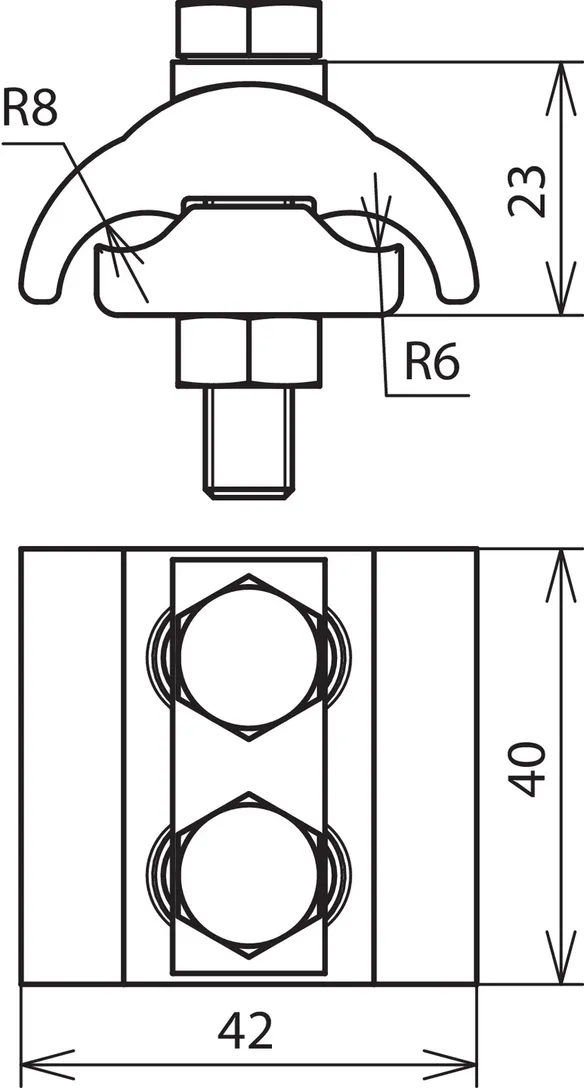

货号 306100 PV 5.12.5 SKM8X45 CU

全球贸易项目代码 4013364024113, 海关HS编码: 85359000, 总重: 238.30 g, 包装单位: 25.00 pc(s)


附加信息

Parallel connector for different cable diameters, small, Cu
Parallel connector
For connecting two conductors or cables in parallel
arrangements
Material of clamp: Cu
Clamping range Rd / Rd: 5-12.5 mm
Clamping range (stranded / cable): 16-95 mm2
Screw: M8 x 45 mm
Material No.: 1.4571 / 1.4404 / 1.4401
ASTM / AISI:: 316Ti / 316L / 316
Standard: EN 62561-1

Brand: DEHN
Type: PV 5.12.5 SKM8X45 CU
Part No.: 306100
or equivalent.

认证



技术参数

Material of clamp Cu
Clamping range Rd / Rd 5-12.5 mm
Clamping range (stranded / cable) 16-95 mm2
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 13.6 kA
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品306100加入购物车。

进入网上商店

For equal and different cable diameters, large

With thread in the base part and lock nut M10.
Specified short-circuit current applies to 70 mm² Cu cable.

1 产品

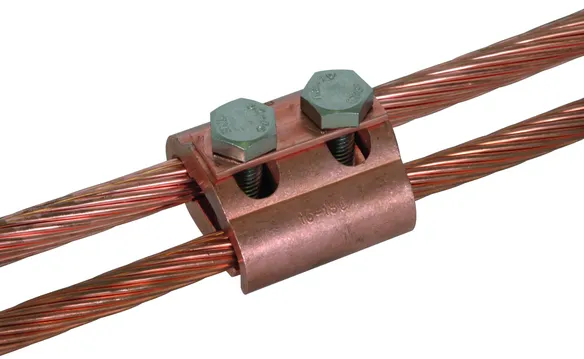

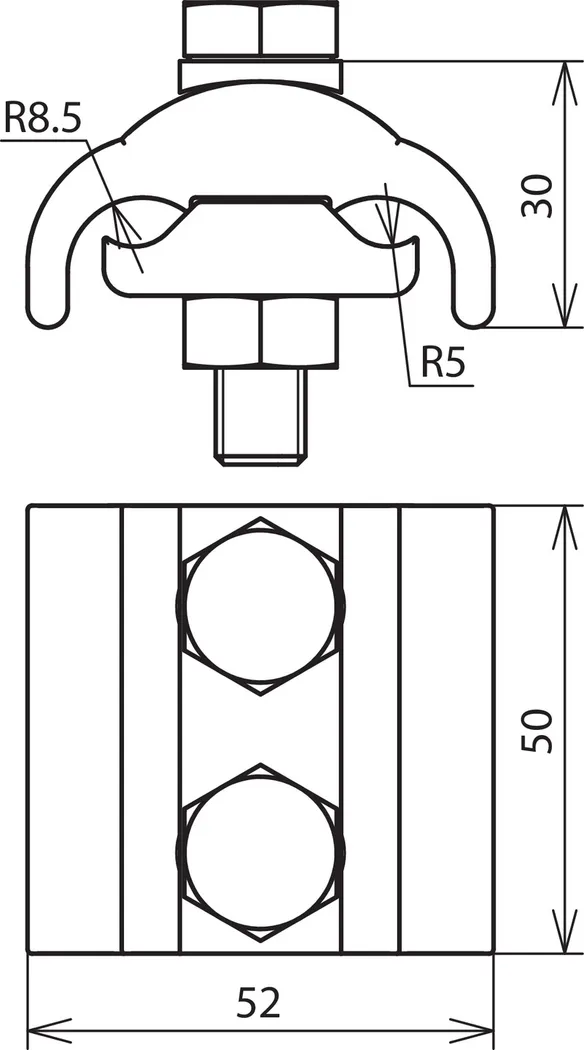

货号 306101 PV 5.16 SKM10X50 CU

全球贸易项目代码 4013364024120, 海关HS编码: 85359000, 总重: 412.00 g, 包装单位: 25.00 pc(s)


附加信息

Parallel connector for different cable diameters, large, Cu
Parallel connector
For connecting two conductors or cables in parallel
arrangements
Material of clamp: Cu
Clamping range Rd / Rd: 5-16 mm
Clamping range (stranded / cable): 16-150 mm2
Screw: M10 x 50 mm
Material No.: 1.4571 / 1.4404 / 1.4401
ASTM / AISI:: 316Ti / 316L / 316
Standard: EN 62561-1

Brand: DEHN
Type: PV 5.16 SKM10X50 CU
Part No.: 306101
or equivalent.

认证



技术参数

Material of clamp Cu
Clamping range Rd / Rd 5-16 mm
Clamping range (stranded / cable) 16-150 mm2
Standard EN 62561-1
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) 13.6 kA
*) For exact classification, see test certificate.

.产品已加入收藏夹。

进入收藏夹

商品306101加入购物车。

进入网上商店
